LAXMI ENGiNEERING EQUIPMENT Vatva, Ahmedabad, Gujarat

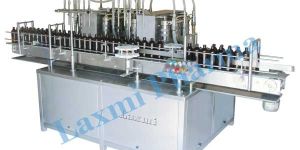

Automatic Volumetric High Speed Twelve Head Bottle Liquid Filling Machine, Model No: ALFT – 251. The machine consist of S.S. slat conveyor belt, reciprocating filling nozzle with self centering devices, S.S. – 316 Syringes, Silicon rubber tubings, easy –reach compact panel and with no container no filling system etc. It is compact, versatile. The un-scrambler has been designed in the machine to eliminate dead ends and difficult to clean spot. All its exposed parts are made of S.S. – 304. It is provided with co-eccentric nozzles, which allow quick and precise setting. Its height can be adjusted to match other machines for efficient synchronization.

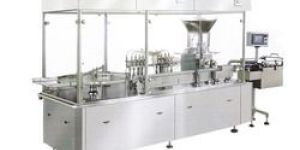

Automatic Volumetric Liquid Vial Filling & Stoppering (Full & Half bunging) Machine. The Basic Unit Consists Of One Or both side Turn Tables, S.S. Slat Conveyor Belt, Unique Co- eccentric Simultaneous Gassing with Filling. The Machine Is And Can Be Run Totally Through Touch Screen HMI, PLC Control And The Machine Is Based On Servo Motor Drive, Being The Stoppering Of Rubber Bungs Is Carried Out With The Help Of Vacuum Air Pressure. The Main Characteristics of the Machine Is That The Volume Can Be set On the Touch Screen HMI within a two second. The Machine Has an Output Speed of 200 Vials per Minute but Depending upon the Fill Volume and Container Dia. size Or the Quality & Viscosity of Liquid.

Net Weight : 825 kgs

Automatic Volumetric Liquid Vial Filling & Stoppering (Full & Half bunging) Machine. The Basic Unit Consists Of One Or both side Turn Tables, S.S. Slat Conveyor Belt, Unique Co- eccentric Simultaneous Gassing with Filling. The Machine Is And Can Be Run Totally Through Touch Screen HMI, PLC Control And The Machine Is Based On Servo Motor Drive, Being The Stoppering Of Rubber Bungs Is Carried Out With The Help Of Vacuum Air Pressure. The Main Characteristics of the Machine Is That The Volume Can Be set On the Touch Screen HMI within a two second. The Machine Has an Output Speed of 200 Vials per Minute but Depending upon the Fill Volume and Container Dia. size Or the Quality & Viscosity of Liquid.

The machine consist of two side of turntable, S.S. slat conveyor belt, eccentric pre-gassing, filling & post –gassing S.S. -316 nozzles precision built S.S. – 316 Syringes, silicon rubber tubings, easy –reach compact panel etc. Due to its minimum distance between filling and stoppering, the risk of contamination is reduced.Filling, Rubber Stoppering & Pressing Unit is completely in corporate in single body Structure. Inbuilt two side turn table. All Liquid Contact Parts are of S.S. 316, the Body Structure is built up of S.S. 304 Pipe. Co-eccentric Nozzles allows very quick and precise setting and making unit compact and manageable. No vial, No Stopper – No Filling System. Easy reach compact panel provided easy and operation. Minimum Change over Time. From one size of container or fill size to another.

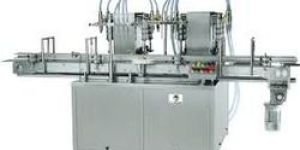

Semi Automatic Twin Heads Volumetric Liquid Filling Machine Model: SLF – 50N, designed for Injectable liquid & Oral Liquid Filling The unit is built on strong structural frame for rigidity and provides vibration free movement of operation, The Stroke of nozzle holder and the height of the nozzles id adjustable for achieving smooth entry and exit of nozzles. inside the neck of containers and avoids splash spillage of liquid or dropping at sides.The basic unit consists of Reciprocating Filling, Driving type Nozzle, multi dose filling system, plc control panel, Container Platform, Container Centering Device, syringe Holders, HDPE Tubes and Piles and on line starter.

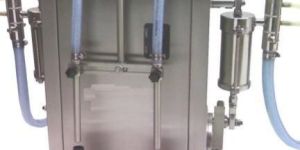

Semi Automatic Twin Heads Volumetric Liquid Filling Machine Model: SLF � 50, designed for Injectable liquid & Oral Liquid Filling The basic unit consists of Reciprocating Filling, Driving type Nozzle, , Container Platform, Container Centering Device, syringe Holders, HDPE Tubes and Piles and on line starter. The unit is built on strong structural frame for rigidity and provides vibration free movement of operation. The Stroke of nozzle holder and the height of the nozzles id adjustable for achieving smooth entry and exit of nozzles inside the neck of containers and avoids splash spillage of liquid or dropping at sides. No breakage of containers in the event centering is not done correctly as nozzle holder is spring loaded. The unit can be quickly dismantled for the maintenance just by opening front cover. Each and every part can be attended for cleaning operation of maintenance without any hindrance. High precision in manufactured syringe to achieve high accuracy in fill size and drip proof performance.

The basic unit consists of Reciprocating Filling, Driving type Nozzle, , Container Platform, Container Centering Device, syringe Holders, HDPE Tubes and Piles and on line starter. Volumetric Liquid Filling system. Nozzle driving System It is widely used for milk filling, oil filling, ointment filling, shampoo filling, juice filling, liquor filling, perfume filling, wine filling, , food product filling – in Jar, Can, Vial, Bottle, Tub & any Containers. The unit is built on strong structural frame for rigidity and provides vibration free movement of operation. The Stroke of nozzle holder and the height of the nozzles id adjustable for achieving smooth entry and exit of nozzles inside the neck of containers and avoids splash spillage of liquid or dropping at sides.

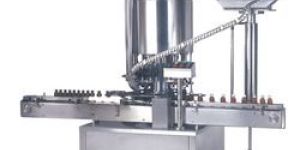

High Speed Eight Head SCREW Cap Sealing Machine Model LSCS –200, It is supporting to our range of Bottle Filling from Semi-Automatic to Automatic line Previously filled bottles with Dry Syrup Powder or Liquid Syrup are continuously fed from filling machine to the flat conveyor belt of sealing machine and move further through Infeed worm for correct spacing between two bottles and transferred to the Infeed star wheel. SCREW caps kept in orientation unit automatically orient caps in right direction before entering into delivery chute. And Bottle is entering below the sealing head, consist of total four rollers. Two rollers properly Skirts, Spins and Seals the cap and simultaneously another two roller performs perfect threading according to bottle neck diameter. After sealing operation, sealing head moves upward with help of cam and bottle move with exit star wheel and Move further on conveyor belt for next operation.

Automatic Injectable Powder Filling & Stoppering Machine Model – LPFS 100. The Basic Unit Consists Of One side Turn Tables, S.S. Slat Conveyor Belt, Unique powder wheel. Acrylic Cabinet with Aluminum Structure to maintain the humidity on Machine, The Machine Can Be Run Totally Through Touch Screen HMI, PLC Control And The Machine Is Based On Servo Motor Drive, The Machine Has an Output Speed of 120 Vials per Minute but Depending upon the Fill Volume and Container Dia. size Or the Quality of Powder, Multiple dosing of Injectable powder or change over of container size and different fill size is possible by just changing the vial separator or size of the piston respectively.

Automatic Single Head ROPP Cap Sealing Machine Model LRCS –60, It is supporting to our range of Bottle Filling from Semi-Automatic to Automatic line Previously filled bottles with Dry Syrup Powder or Liquid Syrup are continuously fed from filling machine to the flat conveyor belt of sealing machine and move further through Infeed worm for correct spacing between two bottles and transferred to the Infeed star wheel. ROPP caps kept in orientation unit automatically orient caps in right direction before entering into delivery chute.

Semi Automatic Twin Heads Volumetric Liquid Filling Machine Model: SLF – 50, designed for Injectable liquid & Oral Liquid Filling It is widely used for milk filling, oil filling, ointment filling, shampoo filling, juice filling, liquor filling, perfume filling, wine filling, , food product filling – in Jar, Can, Vial, Bottle, Tub & any Containers.The basic unit consists of Reciprocating Filling, Driving type Nozzle, , Container Platform, Container Centering Device, syringe Holders, HDPE Tubes and Piles and on line starter. The Stroke of nozzle holder and the height of the nozzles id adjustable for achieving smooth entry and exit of nozzles inside the neck of containers and avoids splash spillage of liquid or dropping at sides.

The unit is built on strong structural frame for rigidity and provides vibration free movement of operation.Semi Automatic Twin Heads Volumetric Liquid Filling Machine Model: SLF – 50, designed for Injectable liquid & Oral Liquid Filling The basic unit consists of Reciprocating Filling, Driving type Nozzle, , Container Platform, Container Centering Device, syringe Holders, HDPE Tubes and Piles and on line starter, The Stroke of nozzle holder and the height of the nozzles id adjustable for achieving smooth entry and exit of nozzles inside the neck of containers and avoids splash spillage of liquid or dropping at sides.

Injectable Powder Filling & Stoppering Machine Model – LPFS 100. The Basic Unit Consists Of One side Turn Tables, S.S. Slat Conveyor Belt, Unique powder wheel.The Machine Can Be Run Totally Through Touch Screen HMI, PLC Control And The Machine Is Based On Servo Motor Drive, The Machine Has an Output Speed of 120 Vials per Minute but Depending upon the Fill Volume and Container Dia. size Or the Quality of Powder

utomatic Volumetric High Speed Six Head Bottle Liquid Filling Machine, Mode No: ALFT – 151. The machine consist of S.S. slat conveyor belt, reciprocating filling nozzle with self centering devices, S.S. – 316 Syringes, Silicon rubber tubings, easy –reach compact panel and with no container no filling system etc. It is compact, versatile. The un-scrambler has been designed in the machine to eliminate dead ends and difficult to clean spot. All its exposed parts are made of S.S. – 304. It is provided with co-eccentric nozzles, which allow quick and precise setting. Its height can be adjusted to match other machines for efficient synchronization.

Equipment offers Automatic High Speed Hologram Sticker Labeling Machine Model No: LHL 300, user friendly, Vertical Linear Sticker Labeling machine suitable for applying Hologram Sticker Labels on Various types of Label and Film Roll used in Packaging Industries which are previously filled and sealed. . As the machine is servo motor operated, a customer has an added advantage to run the machine with a minimum required output to maximum of 300 Hologram per minute but depending upon the Label Size and Quality.

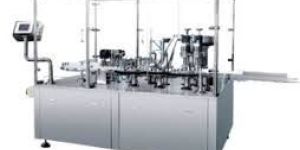

s Automatic Rotary Type Plastic Vial Eye Drop Filling & Sealing Machine Model No: LRVFS -40, The machine consist of one Side turntables, S.S. slat conveyor belt, eccentric pre-gassing, filling & post –gassing S.S. -316 nozzles precision built S.S. – 316 Syringes, silicon rubber tubings, pneumatic system for inner cap placement, mechanical orientation type bowl & chute for outer cap placement, easy – reach compact panel etc. Due to its minimum distance between filling and stoppering, the risk of contamination is reduced. It is designed for operating in a sterile area and for utilizing it under laminar flow protection. The un-scrambler itself has been designed in the machine to eliminate dead ends and difficult to clean spot.

Automatic High Speed Eight Head SCREW Cap Sealing Machine Model LSCS –200, It is supporting to our range of Bottle Filling from Semi-Automatic to Automatic line Previously filled bottles with Dry Syrup Powder or Liquid Syrup are continuously fed from filling machine to the flat conveyor belt of sealing machine and move further through Infeed worm for correct spacing between two bottles and transferred to the Infeed star wheel. SCREW caps kept in orientation unit automatically orient caps in right direction before entering into delivery chute. And Bottle is entering below the sealing head, consist of total four rollers. Two rollers properly Skirts, Spins and Seals the cap and simultaneously another two roller performs perfect threading according to bottle neck diameter. After sealing operation, sealing head moves upward with help of cam and bottle move with exit star wheel and Move further on conveyor belt for next operation.

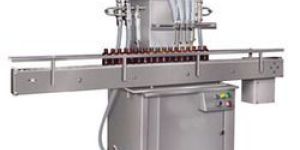

Equipment offers compact Automatic Volumetric High Speed Four Head Bottle Liquid Filling Machine, Mode No: ALFT – 100. The machine consist of S.S. slat conveyor belt, reciprocating filling nozzle with self centering devices, S.S. – 316 Syringes, Silicon rubber tubings, easy –reach compact panel and with no container no filling system etc.Volumetric Liquid Filling system Nozzle driving System Elegant and Easy reach control panel for total control on operation. No Bottle Machine stop system Rigid vibration free construction for trouble free performance Self centering device to take care of non centering of container to certain extant High precision in manufactured syringe to achieve high accuracy in fill size and drip proof performance. Liquid collection tray with outlet below conveyor to safeguard assemblies.

Equipment offers compact Automatic Single Head Auger Powder Filling Machine, Model No: LSAPF-40. The machine consist of control panel Auger Type Powder Filling Machine Elegant and Easy reach control panel for total control on operation. Rigid vibration free construction for trouble free performance.

Automatic Volumetric High Speed Six Head Bottle Liquid Filling Machine, Mode No: ALFT – 151. The machine consist of S.S. slat conveyor belt, reciprocating filling nozzle with self centering devices, S.S. – 316 Syringes, Silicon rubber tubings, easy –reach compact panel and with no container no filling system etc. It is compact, versatile. The un-scrambler has been designed in the machine to eliminate dead ends and difficult to clean spot. All its exposed parts are made of S.S. – 304. It is provided with co-eccentric nozzles, which allow quick and precise setting. Its height can be adjusted to match other machines for efficient synchronization.

Equipment offers Automatic High Speed Bottle Sticker Labeling Machine Model No: LBSL 80, Vertical Linear Sticker Labeling machine suitable for labeling round containers which are previously filled and sealed. As the machine is servo or stepper motor operated, a customer has an added advantage to run the machine with a minimum required output to maximum of 80 Labels per minute but depending upon the Label Size and Quality. All the adjustments are completely user friendly and requires minimal tools

Automatic Eight Head Aluminum Cap Sealing Machine, Model: LACS – 150 is compact versatile machine. The machine is precision built on sturdy welded steel frame and doors are provided to facilitate the servicing of machine. Duly Stoppard Vials are continuously fed from the turntable of filling machine to the flat conveyor belt of sealing machine and move further through in feed worm for correct spacing and transferred to the in feed star wheel. Flip off Aluminum tear off caps kept in vibratory bowl automatically orient caps in right direction before entering the delivery chute. Vial during its rotation movement with in feed star wheel, its picks up Aluminum seal from the retaining finger of delivery chute and correctly position on the vial before entering sealing turret. Vial now moves on the spring loaded sealing platform, where free spinning sealing rollers moves gradually inside to complete the sealing operation during rotational movement of sealing platform turret.

Automatic High Speed Four Head Ampoule Filling & Sealing Machine, Model No:- LAFS-100. The machine consist of The unit built on S. S. Square pipe frame and totally S. S. Coverings, finish, Further, the large opening available at the bottom side for ease of absolute cleaning. The pendant type electrical control panel is lifted form machine for easy of operation and safety.
