Liquid Filling Machinery Dealers in Ahmedabad

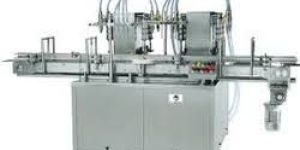

  SBLFRS Automatic 6 Head vial filling with Rubber Stoppering Machine is a compact model used for filling and rubber Stoppering of Inject able liquid into vials.   The incoming dry vial (sterilized) are fed through the Unscramble and suitably guided on the moving delrin slat conveyor belt at the required speed of the correct placement below filling unit.   The filling unit consists of Filling Head, Syringes & Nozzles which are used for liquid filling. The syringes are made of S.S. 316 construction and both, glass as well as S.S. syringes can be used. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided for ’’No Vial, No Filling’’ operation. Syringes are mounted on eccentric block and driving through bottom main gear box. Volume can be either increased or decreased by increasing or decreasing stroke length of piston as per filling size. Syringes is having non return valve for sucking and delivering situation to avoid volume variation. Liquid will reach to filling nozzles through silicon transparent pipe. Nozzle will be having Up and Down movement with help of cam mechanism and it will come down when vial will be hold by star wheel for filling operation and starts filling when it starts to move up and after completion of filling operation, star wheel delivers four/six vials together on conveyor for rubber Stoppering operation.   Stoppering unit consist of Star wheel, Vibrator unit and Bowl. The sterilized/autoclaved rubber stoppers stored in the vibrator bowl moves vertically to the rubber stopper chute. The vial is hold firmly by star wheel, which will be in continuous rotary motion and vial which is coming from filling unit get in to star wheel and move in rotary direction along with star wheel, during movement it will pick up the rubber stopper from the exit end of the chute and rubber stopper will be pressed by fix pressing roller, which is spring loaded. Then vial further move on conveyor and collected on out feed star wheel for next sealing operation.

Automatic Vial Filling Machine is suitable for chemicals, food and beverages, cosmetic and pharmaceutical applications. Vial filling machine is used to fill liquid in bottles and vials. These machines assure high quality accuracy and low production cost. Additionally, we have carved out a niche as one of the major flourishing liquid vial filling machine exporters in the national as well as international market. Product Code : 04

• Type: Soda Filling Machine
• Certification: Iso 9001:2008
• Weight: 100-500kg
• Color: Yellow
• Voltage: 220V
• Condition: New
• Automatic Grade: Semi Automatic
• Power: 1-3kw
• Driven: Electric
• Country of Origin: India
• Usage: Used in Making and Filling Soda

• Driven Type: Electric
• Power: 2HP
• Country of Origin: Made in India
• Capacity: 50Ml - 1Ltr
• Brand: Bahuchar
• Usage/Application: Bevarages Plant
• Filling Head: 4 Head Filling Range

• Features: Volumetric Filling Machines have a metal body, specially stainless steel body

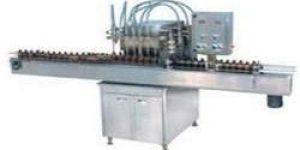

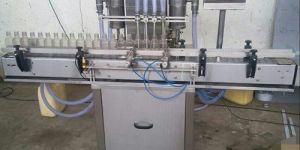

Volumetric Filling Machines find application to fill liquids from low to high viscosity. Volumetric Filling refers to filling liquids by a volume of product, which is its weight or upto a particular level. Equipped with bottom-up fill assembly and adjustable volume control, the speed of filling differs as per the volume to be filled. Ideal for filling liquids with low to medium viscosity, these machines are accurate, are time saving and efficient. Volumetric Filling Machines machines offered by us find their application in various industries for filling liquids from low to high viscosity. The speed of filling differs as per the volume to be filled as the machine is equipped with bottom-up fill assembly and adjustable volume control.

• Model No.: AIALF-40 / AIALF-80 / AIALF-120
• Brand Name: ASHIRVAD
• Filling Head: Four (As Per Clients Requirement)
• Machine Direction: Left to Right.
• Machine Dimension: 2440 mm (L) X 1220 mm (W) X 1450 mm (H).
• Production Speed: 40 to 120 Bottles / Minute.
• Power Characteristics: 230 Volts/Single Phase/50 Hz./ 1440 RPM (Four Wire System)
• Machine filling range: 10 ml. to 5000 ml.
• Filling Accuracy: + 1% in single dose.
• Bottle Diameter: Up to 90 mm.
• Conveyor Length: 8 Feet.
• Main Motor: 2 HP.
• Conveyor Motor: 1 HP.
• AC Drive: 2 HP Single Phase.

We are offering liquid tin filling machine is suitable to fill liquid in tin ,jar or berral, this type machine is semi automatic filling machine.

• Electrical Rating: 1 H.P.
• Power Characteristic :: 415 Volts, 3 Phase, 4 Wire system, 50 Cycles/Sec.
• Finish/Painted :: S.S. Finish
• Overall dimensions :: 1780 mm (L) x 1350 mm (W) x 1270 mm (H)
• Net Weight :: 900 kgs. Approx.
• Output/hour :: 7200 Ampoules

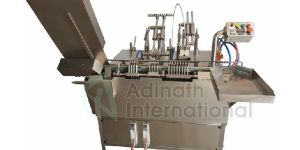

We offer our clients with ampoules Filling and Sealing Machine that is fabricated as per the industrial standards. ampoules Filling and Sealing Machine are available with in-built safety features for long term reliable operation. Further, ampoules Filling and Sealing Machine are also provided in customized specifications to meet the varied needs of the clients. Our range includes the following:- We are instrumental in offering automatic six head ampoule filling and sealing machine, model � ahfs-6. These are highly appreciated by our clients for the sealing pre mechanism and for the feature of no ampoules no filling. We offer precision engineered automatic four head ampoule filling & sealing machine, model ahfs � 4. automatic four head ampoule filling & sealing machines are manufactured using high quality components and are offered in customized solutions as per the needs of the clients. Further, automatic four head ampoule filling & sealing machine are available with a. C. Frequency drive that provides speed control for digital counter. In addition, we offer these with the pre sealing mechanism, which does not require ampoules or filling.

• Finishing: Polished
• Packaging Type: Carton Box, Wooden Box, Metal Sheet Box
• Power: 10-50 KW, 50-100 KW
• Specialities: Rust Proof, Long Life, High Performance
• Warranty: 2 Year
• Country of Origin: India
• Range: 24 BPM to 120 BPM

• Material: Metal
• Machine Structure: Horizontal
• Warranty: 1 Year
• Voltage: 220V
• Automatic Grade: Automatic
• Finishing: Polished

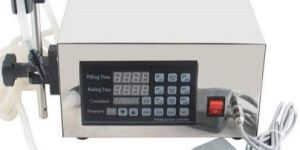

The Automatic Digital liquid filling machine is single head very compact and lightweight construction, can be easily moved around. It is easy to operate just plug and play device. It is timer based kind of machine.   Salient Features  Robust and vibration free design Minimum changeover time Compact & versatile design Easy to clean Suitable for different volumes   Application Liquid Filling     Industry  Pharmaceuticals Veterinary FMCG Cosmetics Biotechnology

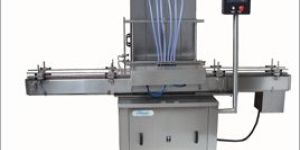

DESCRIPTION Automatic Volumetric Liquid Bottle Filling Machine work on volumetric principle with diving nozzles. The unit is made compact,versatile and enclosed in stainless steel elegantly matt finish body, of S.S Slat Conveyor, Reciprocating Nozzle with self-centering devices & SS Syringe. No container No filling system arrangement is standard feature of the machine.   The main drive of the machine and conveyor drive consist of A/C Motor with synchronized variable A/c Frequency drive. OPERATION Containers moving on S.S. Slat conveyor, feed below the filling nozzles through a settable twin pneumatically operated stopper system.The twin pneumatically operated stopper system and reciprocating nozzles can precisely match for centering of container below nozzles, to avoid spillage of liquid on container. To minimize foaming adjustable nozzle will reciprocate according to filling dose, nozzle will go upwards slowly from bottom level of bottle towards neck during filling. The dosing block with a hexagonal bolt fitted below syringes. This means fill size can be easily set. Depends on container size, Fill size, Neck diameter of container, and container, and nature of liquid etc. We can supply as per customer requirements. With help of change parts.

• Material: Mild Steel
• Driven Type: Electric
• Automatic Grade: Automatic

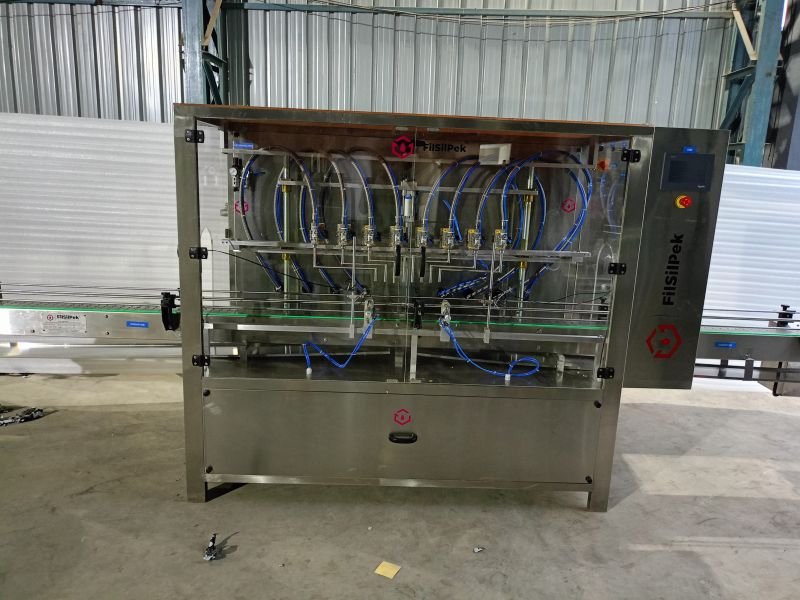

We are supplying Automatic & monoblock machines line for bottle washing, filling, capping & sealing, Inspection with coveyor & packing also. Model available for Single Head, Two Head, Four Head & Six Heads models.

• Material: Stainless Steel
• Color: Silver
• Usage/Application: Industrial
• Material Grade: SS304+316
• Automation Grade: Semi-Automatic
• Driven Type: Mechanical
