Lug Butterfly Valve Dealers in Ahmedabad

• Type: Lug Type
• Material: Meta
• Application: Water Fitting
• Feature: Durable, Investment Casting
• Certification: API 609 I BS-5155 I BS EN 593
• Type: Centric Disc Design
• Pack Type: Carton Box
• Material of Construction: CI I DI I CS I SS
• Seat & Seals: Nitrile I Neoprene PTFE I Viton I Hypalon I Silicon
• Pressure Rating: ASA 125# I 150# I PN 1.0 I PN 1.6 I PN 20 I PN 2.5
• Operation: Lever I Gear
• Size Range: 40mm to 500mm

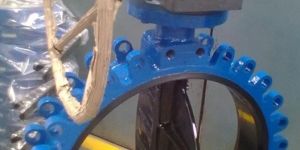

We are offering lug type butterfly valve, jupiter controls valve center disc lug type body bonded seat butterfly valve has slim-seal design, maintenance free shutoff. Lug type body center disc butterfly valves by jupiter controls are high performance solutions to your industrial butterfly valve needs. Lug type butterfly valve is available size from 1-12” to 78” in various body, disc & seat materials. Center disc lug type butterfly valves also available with worm - gear, pneumatic actuator or electrical actuator operated, our lug type center disc butterfly valves are always manufactured with the strongest, durable and long-life materials, like: stainless steel, carbon steel, ductile iron, cast iron, aluminum, and available in different styles. The difference between a wafer and lug type body butterfly valve is only the provision of mounting of valve at pipeline. Lug type valve has lugs that are used to mount the valve to lugs that are attached the flanges on then ends of sections of pipe so that each length of pipe can be removed and replaced independently. Lug type butterfly valve have main advantage is you can disconnect any flange of pipeline. We are also manufacturing of quarter turn worm gear operated lug type rubberlined butterfly valve, pneumatic actuated full lug type butterfly valves, pneumatic actuator operated rubberlined lug type butterfly valves, double acting actuator operated center disc lug type butterfly valve, single acting spring return actuator operated lug type butterfly valve, electrical actuator operated lug butterfly valve, motorized lug body butterfly valve, remote operated lug type butterfly valve, on-off lug type butterfly valve, lug butterfly control valve, modulating type lug butterfly valve india, we can do provide any type of automation in lug butterfly valve. we have more then 8 years of experience industrial process system field automation. Butterfly valve can also available with accessories like gear box, solenoid valve, air filter regulator, silence,

• Brand Name: MVA
• Nominal Diameter.: DN50 – DN600
• Pressure Range (bar): PN3.5, PN6, PN10, PN16
• Flange Accommodation: EN1092 (PN6, PN10, PN16), ANSI B16.5 #150, JIS 5K, 10K, 16K, BS – 10 TABLE E, TABLE F, TABLE H
• Face to Face Dimension: API 609 (TABLE 1)
• Operating pressure: PN16
• Vacuum: Depending on media and temperature
• Leakage Class: 100% Tightness at full differential Pressure
• Standards Followed: ISO 5211, DIN 475, API 598, API 609, ANSI B16.5 150, BS 5155

• Motorized: Butterfly Valve
• Protection: IP 67
• Limit Switch: 2 Nos.
• Torque Switch: 2 Nos.

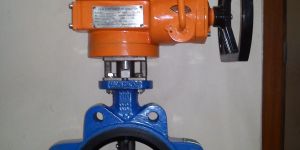

We offer Butterfly valve. electrical actuator details: manufacturer cair euromatic automation brand / model cair / mod-qt-basic characteristic on – off type travel angle 90° + 5° power supply 220v ac (±10%), single phase insulation class f housing & cover aluminum, anodized enclosure watertight ip 67 ambient temp -30° c ~ +70° c limit switches 2 x spdt torque switches 2 x spdt stall protection built –in thermal protection indicator continuous position indicator manual override hand wheel/auto de clutching mechanism self locking provide by means of worm gearing end stopper external adjustable screws conduit entries two g3/4” external coating dry powder coated butterfly valve details: body cast iron / ductile iron / cast steel / ss 304 / ss 316 disc cast iron / ductile iron / cast steel / ss 304 / ss 316 moulded seat nitrile / epdm working pressure up to 10 kg/cm² end connection lug type to suit 150# seat leakage tight shut off leakage class vi valve type centric disc butterfly valve with single piece rubber lined body.

• Brand Name: "4MATIC"
• Material: WCB/SS 304/SS 316/DUPLEX/SUPER DUPLEX/AL.BRONZE
• Type: FUU LUG TYPE BUTTERFLY VALVES
• Technics: GEAR OPERATED
• Place of Origin: INDIA
• Pressure: 10 KG
• Media: AIR/WATER/GAS
• Port Size: 2" TO 48"
• PNEUMATIC: MOTORISED

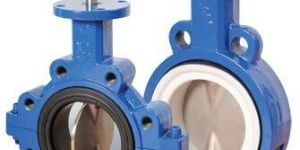

We are offering "4matic" offers full lug type centric disc resilient seated butterfly valves. Size: .2" to 48". (moc: wcbss 304s 316, duplex)

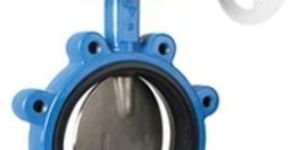

BHAVYA Fluid Controls Lug Type Butterfly Valves body seat design have a very low torque, tight shut off with zero leakage, which is very useful to select compact model of actuator, and long life smooth easy operation. The Lug type, center disc design Butterfly Valves are widely available with different combination of body, seat & disc materials to fulfill the need of most industrial application. BHAVYA Fluid Controls Center Disc Lug Type Body Butterfly Valve has Slim-Seal design, maintenance free shutoff. Lug Type Body Center Disc Butterfly Valves by BHAVYA Fluid Controls are high performance solutions to your industrial Butterfly Valve needs.  Lug Type Butterfly Valve is available size from 2” (50MM) to 24” (600MM) in various body, disc & seat materials. Center Disc Lug Type Butterfly Valves also available with Gear, Pneumatic Actuator or Electrical Actuator Operated, Our Lug Type Center Disc Butterfly Valves are always manufactured with the strongest, durable and long-life materials, like: Stainless Steel, Carbon Steel, Ductile Iron, Cast Iron, Aluminum, and available in different styles.   The difference between a Wafer and Lug type Butterfly valve is only the provision of mounting of valve at pipeline. Lug type valve has lugs that are used to mount the valve to lugs that are attached the flanges on then ends of sections of pipe so that each length of pipe can be removed and replaced independently. Lug Type Butterfly Valve have main advantage is you can disconnect any flange of pipeline.   Lug Type Butterfly Valve, Lug Type Butterfly Valve Manufacturer, Lug Type Butterfly Valve Supplier, Lug Type Butterfly Valve Exporter Lug Type Butterfly Valve Stockiest, Lug Type Butterfly Valve India, Lug Type Butterfly Valve Pneumatic Operated Lug Type Butterfly Valve Electrical Operated, Pneumatic Operated Lug Type Butterfly Valve, Electrical Operated Lug Type Butterfly Valve Butterfly Valve Lug Type, Butterfly Valve Lug Type Manufacturer, Butterfly Valve Lug Type Supplier, Butterfly Valve Lug Type Exporter Butterfly Valve Lug Type Stockiest, Butterfly Valve Lug Type India, Butterfly Valve Lug Type Pneumatic Operated Butterfly Valve Lug Type Electrical Operated, Pneumatic Operated Butterfly Valve Lug Type Electrical Operated Butterfly Valve Lug Type, Full Type Butterfly Valve, Butterfly Valve Full Lug Type

• Size: A CATEGORY 'A'
• DESCRIPTION: SPECIFICATIONS
• BODY: C.I. / SG Iron / WCB / CF8 / CF8M / GM (LG2,LG4) / AB2
• DISC: C.I. / SG Iron / WCB / CF8 / CF8M / GM (LG2,LG4) / AB2
• SEAT: NITRILE / EPDM / SILICON / VITON / HYPALON
• SHAFT: SS 410 / SS 304 / SS 316 / MONEL
• Type of Valve: Centric Disc Butterfly Valve with Rubber Lined Body
• Body Type: Single Piece, Short Wafer / Wafer Lugged / Double Flanged
• Seats Type: Integrally bonded, replaceable
• Size Range: DN50 TO DN 800
• Pressure Rating: PN 6 (DN 650 TO DN 1200) / PN 10 & PN 16 (DN 50 TO DN 600)
• Operating Temperature Range: -25° C to 200° C (Depending on MOC)
• Seat leakage performance: Tight Shut off
• Operation: Hand Leaver/ Worm Gear Operation- Optional
•  : Electrical / Pneumatic actuator operation - Optional.
• A CATEGORY 'B': D
• E: F
• G: FLANGEMOUNTING(I.S.O 5211)
• MM: INCH
• FACE TO FACE: 150
• 300: 50
• 2: 43
• -: -
• 28: 180
• 200: 15
• F07: 65
• 2 1/2: 46
• -: -
• 48: 180
• 200: 15
• F07: 80
• 3: 46
• 48: 48
• 67: 180
• 200: 15
• F07: 100
• 4: 52
• 54: 54
• 88: 180
• 200: 15
• F07: 125
• 5: 56
• 57: 59
• 114: 180
• 200: 15
• F07: 150
• 6: 56
• 57: 59
• 142: 240
• 250: 15
• F07: 200
• 8: 60
• 64: 73
• 194: 285
• 350: 15
• F10: 250
• 10: 68
• 71: 83
• 243: 285
• 350: 18
• F10: 300
• 12: 78
• 81: 92
• 292: 285
• 350: 18
• F10: 350
• 14: 92
• 92: 117
• 330: 300
• 350: 22
• F12: 400
• 16: 102
• 102: 133
• 375: 305
• 500: 22
• F14: 450
• 18: 114
• 114: 149
• 425: 305
• 500: 24
• F14: 500
• 20: 127
• 127: 159
• 470: 370
• 450: 26
• F16: 600
• 24: 154
• 154: 181
• 570: 350
• 600: 26

Lug Type Butterfly Valves are of different types according to technique of sealing the perimeter of the disc in its completely closed arrangement. Our valves offer very durable as well as flawless performance. Our valves are used in an extensive array of applications in the industries of petroleum, packed water, food products, chemicals, fertilizers, paint etc. They are anti-corrosive and resistant in abrasion in nature. The body seat of this valve is designed to offer very low torque, and a tight shut off with absolutely no leakage.

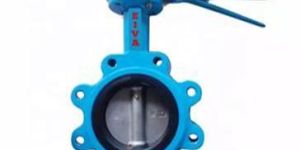

Amtech wafer design lug type butterfly valve with lever operated and soft seated seat in nbr /nitrile/silicon/viton/ptfe or any other type as per customer requirements. We manufacture valves from genuine guaranteed raw material with material test certificate, hydraulic test certificates , Mill TC 3.1.b available with all supply. Also , we can provide valves with third party inspection agencies.   Specification

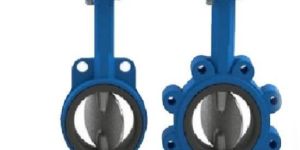

We are offering center disc lug type butterfly valve. design feature the unique center line seat and disc design insures positive valve sealing while maintaining low seating torque. all center line butterfly valve discs are precision machined to a half ball profile, providing a precise disc to seat relationship. center line’s cartridge style seat incorporates an elastomeric bonded to a phenol stabilizing ring, eliminating elastomeric movement and reducing seat tearing or fatiguing due to bunching. center line’s basic three bushing design completely isolates the valve shaft from the body, resulting in increased control of the valve disc, lower valve seating torque, and longer valve life. the center line cartridge seat has a much smaller mass of elastomeric than traditional boot seat designs, limiting seat swell and the accompanying variations in seating torque.

lug butterfly valve Valve comply with BS 5155, API 609, MSS SP 67 and ISO 5752 valves designed to fit without gaskets between flanges drilled to ANSI 125, DIN. ND 10,16, BS 10 tables D E and F of BS4505 PN 1016 tables 6,7 and 8 of IS: 6418 and tables 11,15 of IS:6392.

Full Lug Body Pattern Butterfly Valve Design Standard - BS 5155 / API 609 / AWWA C 504End Connection - Flangeless, Sandwich Pattern, Lug Body (mounting between two flanges)Pressure Rating - PN10 / PN16 / 150# Manufacturing Size Range of Lug Type Butterfly Valve:  DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch, DN150/150mm/6”/Six Inch, DN200/200mm/8”/Eight Inch, DN250/250mm/10”/Ten Inch, DN300/300mm/12”/Twelve Inch, DN350/350mm/14”/Fourteen Inch, DN400/400mm/16”/Sixteen Inch, DN 450/450mm18”/Eighteen Inch, DN500/500mm/20”/Twenty Inch, DN550/550mm/22”/Twenty Two Inch, DN600/600mm/24”/Twenty Four Inch Size and more big size of Butterfly Valve can manufacutrer on order basis. Slim Seal Design, Center Disc, Lug Type Butterfly Valve Flow Control Lever Operated - Model Series: LBFSP1/6Slim Seal Design, Center Disc, Lug Type Butterfly Valve Gear Operated - Model Series: LBFSP1G/6GSlim Seal Design, Center Disc, Lug Type Butterfly Valve Pneumatic Actuator Operated - Model Series: LBFSP1P/6P   Nivz Valves Lug Type Butterfly Valve body seat design have a very low torque, tight shut off with zero leakage, which is very useful to select compact model of actuator, and long life smooth easy operation. The Lug type, center disc design, rubber lined Butterfly Valves are widely available with variety of body, seat & disc materials to suit most industrial application. Lug Type Butterfly Valve is available size from 1-1/2” (40MM) to 24” (600MM) in various body, disc & seat materials. Center Disc Lug Type Butterfly Valves also available with Worm - Gear, Pneumatic Actuator or Electrical Actuator Operated. Our Lug Type Center Disc Butterfly Valves are always manufactured with the strongest, durable and long-life materials, like: Stainless Steel 304/316/304L/316L/317/317L, Carbon Steel/Low Temperature CS, Ductile Iron, Cast Iron, Aluminum, AB2, Aluminum Bronze, Duplex Steel, Super Duplex Steel, Hast Alloy C/22, Alloy 20 etc and more available in different metal. We have wide experience to supply of Butterfly Valves in a Sea Water, Corrosive Chemical, Cooling Water, Effluent Plant, Raw Water and DM Plant. The difference between a Wafer and Lug type body Butterfly valve is only the provision of mounting of valve at pipeline. Lug type valve has lugs that are used to mount the valve to lugs that are attached the flanges on then ends of sections of pipe so that each length of pipe can be removed and replaced independently. Lug Type Butterfly Valve have main advantage is you can disconnect any flange of pipeline. Lug Type Butterfly Valve Various Operation Option Nivz make Zero Leak, Center Disc, Slim seal design, full lug type body Butterfly Valves are mostly with flow control hand lever operation up to 8”(200MM) and above size of valve with quarter turn worm gear operated. We also manufacturing Butterfly Valves with either Pneumatic or Electrical Motorized actuator (single phase or three phase) operated for plant automation. Remote operated butterfly valve also avaliable for ON/OFF as well praportional modulating control function with accessories on order. Our manufacturing range covers Quarter Turn Worm Gear Operated Full Lug Type Body Butterfly Valve, Pneumatic Actuated Lug Type Butterfly Valves, Pneumatic Actuator Operated Rubberlined Center Disc Lug Type Butterfly Valves, Double Acting Actuator Operated Wafer Lugged Body Pattern Butterfly Valve, Single Acting Spring Return Actuator Operated Butterfly Valve, Electrical Actuator Operated Fully Threaded or Drilled Lug Type Butterfly Valve, Motorized Lugged Butterfly Valve, Remote Operated Lug Type Butterfly Valve, On-Off application remote type Log body Butterfly Valve, Butterfly Control Valves, Modulating Type Butterfly Valves. Nivz valves have basic all to provide any types of automation in Butterfly Valve.  We have more then 17 years of experience industrial process system field automation. Lug Butterfly Valve can also available with accessories like Gear Box, Solenoid Valve, Air Filter Regulator, Silence, Manual Override, Valve Positioners, Relay etc. We are one of the leading Butterfly Valve Manufacturers Exporters Supplier Stockiest in India. Nivz Valves Lug Type Butterfly Valve Manufacturer, Exporter, Stockist, Importer, Supplier. Wafer Full Lug Body, Concentric, Center Disc, Flangeless, Slim Seal Body Design, Elastomer Rubber Seated Butterfly Valves. Salient Features of Lug Type Body Butterfly Valve Concentric, Slim-Seal Design Greater Sealing Capacity Soft Seat Design Lower Torque with any fluid Permanently tight closure Bi-Directional Valve Optimum operation under Vacuum Condition Suitable for On-off as well as Throttling Service Materials for almost all media Short Face To Face Dimension Wafer Design Body Long Service Life Smooth, Easy Operation Maintenance Free Version Less Weight, Easy To Install Leakage Class VI (Zero Leakage) Application of Lug Type Body Soft Seat Butterfly Valve Water Treatment Plant Paper Industry Sugar Industry Breweries Chemical Industry Waste Effluent Treatment Plant Drilling Rigs Gas Plant Cooling Water Circulation Heating & Air Conditioning Pneumatic Conveyors Compressed Air Cement Plant Air Silo
