Masala Mills Dealers in Ahmedabad

Salient features premium micro hammer mill is designed to give more finegrinding having close tolerances, high speed and 'c' type hammers compare to conventional hammer mills. Pulveriser is having separate speed with a separate shaft and driring arrangement to select the speed of blower with common motor. Pulveriser having in???built conveying system cyclone collector, rotary air valve and fabric type dust collector to make complete system having grinding, sieving and collection in one single unit. Ideal for medium fineness compare to conventional hammer mills. M.o.c, m.s., s.s lining and s.s. Complete. Available in three size i.e. Minor (10 hp) adult (25 hp) and major (60 hp).

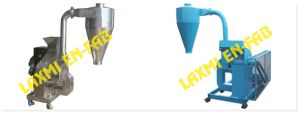

Masala Mill is economical unit designed for all types of spices for time saving operation. All spices passes through a wide feed hopper into the grinding chamber. The swinging hammers, in the rotating hammer rotor, crush materials at the stationery liners before passes through a screen and rotating hammers.The ground material is continuously sucked by a powerful air blower through screen and conveyed through the pipe line into the cyclone separator for bagging. The air blower maintains constant atmospheric cool air flow in the mill chamber in order to obtain a cool product and continuously cleans the screen, thus increasing the output of the ground material. The particles size of the ground material can be varied by a large range of sieves with the desired opening. The dust & ground material id gets separated in the cyclone separator. Top of the cyclone air balloon is fitted. Air balloon separate clean air & dust. The dust gets collected in air balloon. As soon as air balloon shacked the dust dropped into the cyclone separator and gets collected from bottom of the cyclone separator.Whole grinding operation is carried out in a cool atmospheric temperature which prevents their oil, color & flavor from the products.

• Type: Spice grinding machine
• Brand Name: CRUSHTECH
• Masala mill: Spice grinding mill

We are offering masala grinding mill. Crushtech masala grinding mill is economical unit specially designed mill with cyclone and dust collector suitable for all types of spices for time saving operation. The spices are been feed through a wide feed hopper into the grinding chamber. The swinging hammers in the rotating rotor grind spices at the stationery liners & rotating hammers before passes through a screen. advantages: • interchangeable screens in numerous sizes to produce the exact & different particle size as desired • easy to change screens in a variety of sizes • cold, dust free & silent running. • low specific power consumption, increased production leading to faster return on the investments. • durable long life • low temperature rise for heat sensitive materials • pollution free working due to properly designed cyclone. • no rcc foundation is required if fixed on a specially designed avm pad frame. application: crushtech masala mill can be used for a wide range of application e.g., food products, herbs & spices like red chilies, black pepper, long pepper, white pepper, cinnamon, cardamom, coriander, red pepper, oregano, basil, thyme, dill seed, shell corn, gingko, ginseng, cava, ginger root, yucca root, cassava root, tea, coffee, etc.

Masala mill (spice mill) operation The materials to be ground into the crushing chamber of masala mill (spice mill) from feed hopper by gravity the beaters inside the crushing chamber accelerate the material to a very high speed to the toothed liner placed at the upper half of the crushing chamber. Shearing pulverizes the material. The ground materials through screens placed at the bottom periphery of the crushing chamber for bagging. Excess air filtered through a cotton balloon. Particle size varied using screens with different size holes. Construction of masala mill (spice mill) Masala mill (spice mill) made from heavy duty mild steel fabricated body. Aluminum grinding chamber lined with serrated wear steel plates, which protects the body from wear and tear. Grinding done by a set of fixed blades or hammers on a balanced rotor. A screen classifier forms the lower half of the grinding chamber. Application of masala mill (spice mill) Masala mill (spice mill) are exclusively meant for the grinding of chili, coriander, dry ginger, black pepper, turmeric and curry powders, rava, besan, roasted coffee seeds, sugar, ambla, mehendi, heena, herbs, salt, on a small or large scale basis. These spices are ground in a two / three stage operation, depending on the fineness desired, i.e. The breaking of the turmeric in a large hole screen for the first operation, and the subsequent fine grinding done in a fine hole screen for the second and third operation. We give here below production figures for the same.   Standard accessories of masala mill (spice mill) Two numbers cotton balloons. A set of 3 numbers perforated round holes screen are supplied with the masala mill (spice mill). Ampere meter suitable totally enclosed fan cooled single or three phase sq. Cage motor is supplied with masala mill (spice mill). {electricity (special power can be accommodated): 110/220/380/415 volts, 50hz , 1/3 phase } Three meter cable along with ampere meter & suitable miniature circuit breaker for single phase motor or starter for three phase electric motor. Options of masala mill (spice mill) Magnetic feeding hopper. All contacting parts stainless steel 304 / 316 Due to continuous improvements, we reserve the rights to alter and/or amend dimensions/design without prior notice.The figure for capacities given are for guideline only may very force case to case and depending many factors.

The ground products can easily qualify by “AGMARK “Seal. Due to air blower cool atmospheric Temperature prevents self color, volatile oil & flavor. Very low maintenance so Return On Investment will be very fast.

Premium Entered in spices machineries plants. About in mid - 1970. The primary function of spices in food is to improve its flavour. After rich Experiences has Determined what combination of spices should be used for a particular dish or what dictates the composition of a blend of spices know as curry powders.
