Maxwell Control Sola, Ahmedabad, Gujarat

AUTO WEB TENSION CONTROL SYSTEMS WITH POWDER BRAKE, PNEUMATIC BRAKE, A.C. & D.C. MOTOR CONTROL PANEL MAXWELL CONTROL has developed an ultimate Load Cell based Web Tension Controller which super fast all the other types of controllers and technically excels in performance. It takes into consideration every limitation of controllers and is unique in its ability and ultimate in performance. Some of the important parameters of MAXWELL CONTROL Web Tension Controller (Load Cell Feed back) are as follows:- Constant Tension in the entire range viz. 'ZERO' speed to 'FULL' speed. High Accuracy Direct Tension Display on LCD. Consistent performance Less maintenance High reliability and stability in performance

We developed an ultimate Load Cell based Web Tension Controller which super fast all the other types of controllers and technically excels in performance. It takes into consideration every limitation of controllers and is unique in its ability and ultimate in performance. Some of the important parameters of MAXWELL CONTROL Web Tension Controller (Load Cell Feed back) are as follows:- 1. Constant Tension in the entire range viz. ‘ZERO’ speed to ‘FULL’ speed. 2. High Accuracy 3. Direct Tension Display on LCD. 4. Consistent performance 5. Less maintenance 6. High reliability and stability in performance

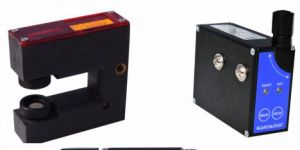

Maxwell control make web guiding system use for sensing printed and edge material of paper, flexible printed film, foil etc.

Maxwell ultrasonic sensor is used to detect the edge position with high accuracy. It detects the edge of transparent and opaque Fabric material any colour of web material. Feature : Rapid response speed. Analog Output   Specification : Model : MX 5008 Detection Type : Ultrasonic Detection Distance : 25mm Detection Diametre : 10mm Detection error : 0.1mm Response time : 100μs Input : 15VDC Output : 0-5VDC

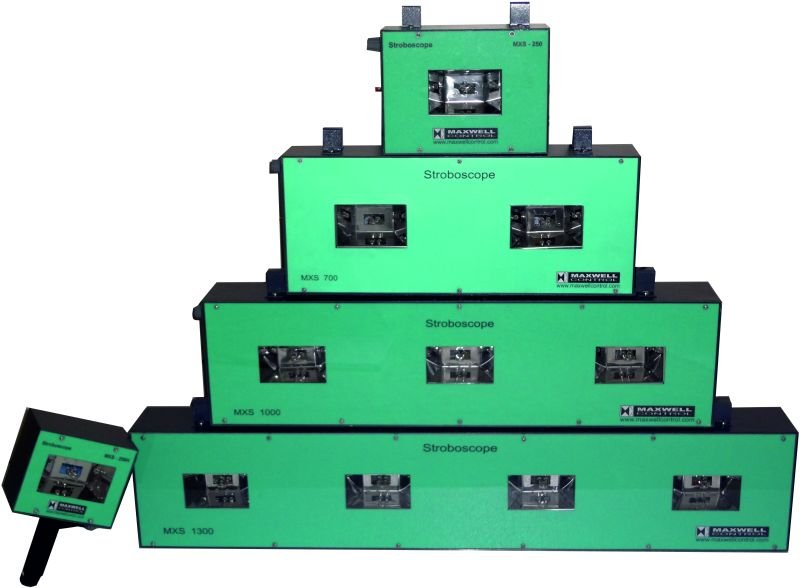

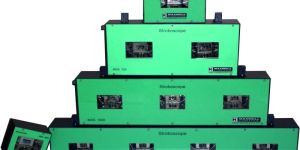

maxwell controlon line high speed web inspection stroboscopes is designed for inspecting the web beyond the speed. At very high speed printing it is not possible for the human eye to inspect the web and correct them on line. The stroboscope facilitates the operator to detect the defects and take timely action to correct shifting of registration, color splashing or spraying, lines, color, mismatch, folds, overlaps, fading, etc. maxwell control on line high speed web inspection stroboscope is operator friendly with zero maintenance, sharp visibility, high accuracy, long life, high performance. Light weight, easy to handle.

maxwell control powder brake is coupling comprises of two concentric parts, the body or input part containing the field coil within it, separated by small annular gap, an inner rotor, or output part. The annular gap contains a magnetic powder, which is activated when the coil is energized. The resultant flux which is generated, passes through the powder, causing it to align with the flux path, and thereby creates a driving bond between input and output part, the strength of which is solely determined by value of d.c. Current applied to the field coil.

MAXWELL CONTROL Pneumatic Brakes easy to use, the brake are fully assembled or chuck mounted, ready to fit and easy mounting mainly use for unwinder application.

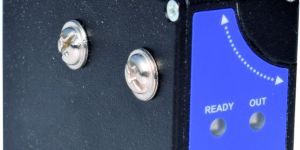

In LCD, Scrolling arrows offering the possibility of operating on all contrast with an operating distance of 9mm max between sensor & web.   Specification : Model : TLU 011 Sensor Type : Photo electric Minimum spot dimension : 1.5x5mm/2x7mm Ripple : 2VPP Max Response Time : 50μs MAX Switching Fquency : 10+20KHz Input : 10-30VDC Output : 0-5.5VDC Material which can Be Detected : Detection of transparent material, Detection of opaque material, Edge detection, line detection

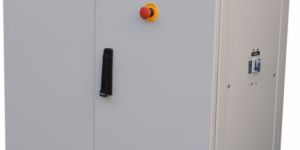

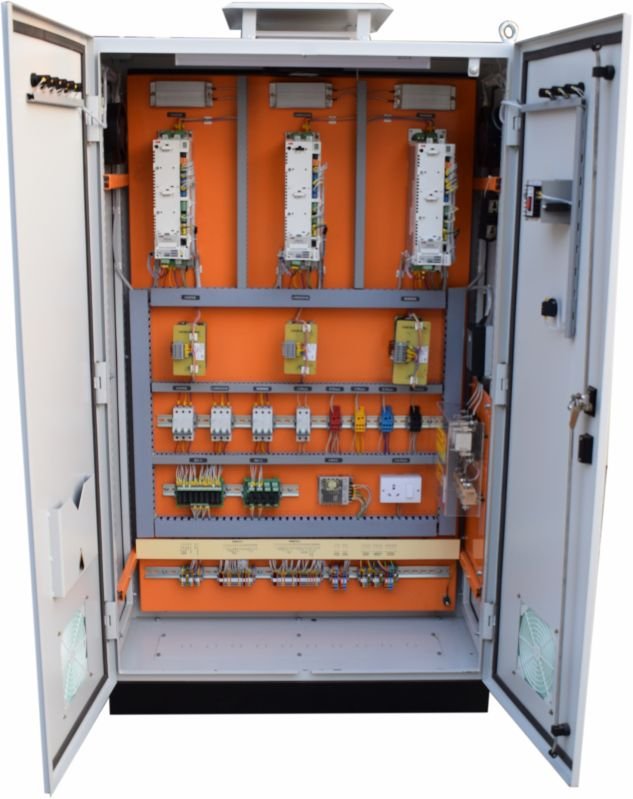

MAXWELL CONTROL make multi drive synchronize system is operator friendly, Easy operation and constant tension for entire range like Unwinder, Infeed, Main, Outfeed and Rewinded Application Rotogravure printing machine Lamination machine Slitting machine VMCH coating Machine Doctoring Machine

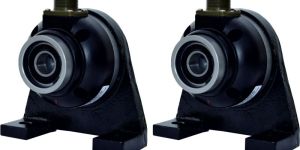

maxwell control load cells consist of a special design structure to get extreme linearity and good repeatability under all loading condition when installed as per the instructions given. Sensing elements of load cells are of strain gauge type configured to form a 4-arm whetstone bridge. Two opposite arms of whetstone bridge are energized with dual power supply of 10 vdc source from the associated controls. Under no-load, the bridge is near zero mv. When force is subjected in the direction of sensing plane, the bridge is subjected to imbalance proportional to the extent of loading. Correspondingly, potential difference between other two ends of bridge is increased which is used for amplification. The signal from load cells is amplified to the useful levels acceptable for tension controllers and indicator

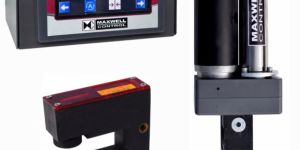

Guide Controller MX 5007 is specially designed For Motorized Actuator and sensors. This model use to sense printed & edge materials of paper, plastic film, foil, textile etc.   Feature : Position Control System. Adjustable track Control with Scrolling Display With latest Design of LCD, Scrolling arrow Presents the Possibility of operating all contrast and backgrounds, presenting different surface treatments. High Response Motor Powered Actuator Proximity Switch Provided for automatic end travel limit. Specification : Power : 210V-250V AC Operating Temperature : 0-50c Display : 16x2 LCD Operating Mode : Automatic & Manual Sensor : Contras, Through beam & ultrasonic Sensor input : 0-5VDC

MAXWELL CONTROL D.C..and A.C. Motor are use for Unwinder, Rewinder and also Main Web Tension Application.

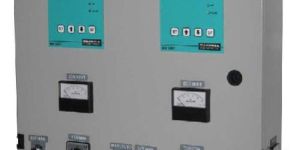

Back to Back Registration Systems for Extrusion Coating lamination Machine.

A new design of actuator with DC motar, combined with linear screw components offering the standard of convenience for maintenance also improved the power consumption rate, noise problem & physical volume. Also never make dirty on floor so you can keep clean factory. Motar Actuator is operated by 24 VDC/60 watt PMDC Motor.   Specification : Rapid response Speed. Excellent Precision as linear Screw. Lower Consumption Power and high efficiency. Easy to install and Zero Maintenance.

Type : Automatic

Material : Aluminum, Brass

Pressure : Medium Pressure

Structure : Diaphragm

Certificate : CE Certified

Port Size : 2inch

Number Of Way : 3way
