Melting Point Apparatus Dealers in Ahmedabad

• Material: Mild Steel
• Display: Digital 3 1/2 Digit, Bright LED
• Weight: 5 Kg (approx.)
• Model: 244/MICRO
• Usage/Application: MELTING PURPOSE
• Brand Name: LALCO
• Automation Type: Automatic
• Dimensions: L 405 x B 360 x H 235 mm (approx)
• Power: 230V + 10?, 50Hz
•  :

• Usage: Laboratory
• Type: Automatic
• Shape: Rectangular
• Certification: CE Certified
• Voltage: 220V
• Driven Type: Electric
• Phase: Single Phase
• Warranty: 1 Year

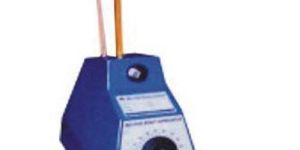

We are offering melting point apparatus. a metallic heating block is provided with holes to receive three capillary tubes and a stem type thermometer. The body is finished in stoving enamel paint. the apparatus can measure melting point upto 350oc. The block is heated by superior heating elements and temp. Is controlled by a heating regulator. A shadowless lamp has been provided to illuminate the capillaries and focusablemagnifier facilitates in observations. the whole unit is housed in a aluminium cast casing and provided with a control panel. provided with indicator lamps,heat energy regulator, on-off switch, cord-plug etc. the equipment is to work on 220 v ac 50 hz single phase. Supplied without thermometer & capillaries.

The Melting Point Apparatus, provided by us, is acclaimed due to its quality & make. We are based in Ahmedabad(India) and known for providing amazing deals and lucrative offers to the clients. We are one of the respected names engaged in the process of supplying quality Melting Point Appt at nominal rates.

• Country of Origin: Made in India
• Display: Digital
• Weight: 12.5 kg
• Brand Name: Contech
• Measuring Range of Melting point: Ambient to 300 Degree C
• Resolution: 0.1 deg C
• Rate of heating: 0.2,0.5, 1, 1.5, 2 3, 4, 5 deg C/min
• Heating time: 3 mins
• Cooling time: 5 mins
• Dimensions: 400 x 280 x 210 mm
• Frequency: 50Hz
• Voltage: 220V
• Power: 10W
• Model Number: CDMP-300

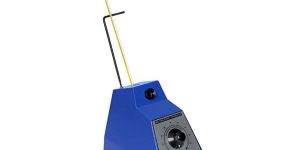

Complete aluminium die cast model. Attractively painted. Aluminium block accepts 3 capillaries and a mercury thermometer, Max. temperature about 300 deg. C. Fitted with energy regulator. The samples are illuminated by and viewed through a magnifying lens.

the equipment is known as melting point apparatus, laboratory equipment for melting point apparatus, melting point test apparatus, digital melting point apparatus, melting point apparatus manufacturers, melting point tester, tester for drop melting point, etc.  .

    Introduction Complete aluminium die cast model. Attractively painted. Aluminium block accepts 3 capillaries and a mercury thermometer, Max. temperature about 300 deg. C. Fitted with energy regulator. The samples are illuminated by and viewed through a magnifying lens.

Complete aluminium die cast model. Attractively painted. Aluminium block accepts 3 capillaries and a mercury thermometer, Max. temperature about 300 deg. C. Fitted with energy regulator. The samples are illuminated by and viewed through a magnifying lens.

MELTING POINT APPARATUS: Temperature upto 35°C. Three capillary holes and a magnifying lens. Complete with thermometer.

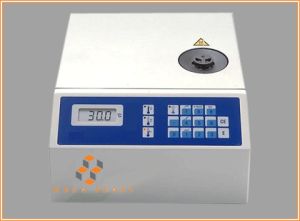

Easy to Operate 4 Digit Seven Segment LED Display Programmable Plateau Temperature Programmable Ramp Rates Storage upto 100 Results Quick Cooling with Integrated Fan Audio Visual Indicators for System Status Auto Melting Point Apparatus is specially designed to find the melting point temperature of crystalline sample held within capillary tubes. Instrument uses the latest microcontroller technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. The system is equipped with microcontroller based digital display for displaying accurate results and soft touch membrane type keys for ease of operation.The sample capillary to be analyzed is held in an heating block (i.e. aluminium block) inside the heating chamber. The block holding the sample capillary tube is heated and the temperature is displayed on the 4 digit seven segment red LED display. The plateau temperature and the heating ramp rates are fully programmable using �Plateau� �Ramp� keys along with the �Up�, �Down� keys. The plateau temperature allows the user to set a temperature to few degrees below the expected melting point temperature. Auto melting point apparatus will then heat to the programmed plateau temperature very rapidly. Once plateau temperature is reached the instrument will heat slowly from the plateau temperature until the melt occurs on programmed ramp rate. The end point of the measurement cycle (i.e. final melting point temperature) is indicated with �END� led along with the intermittent audible beep. �Run� led indicates that the instrument is in measurement cycle

• Power: Electronic
• Size: small
