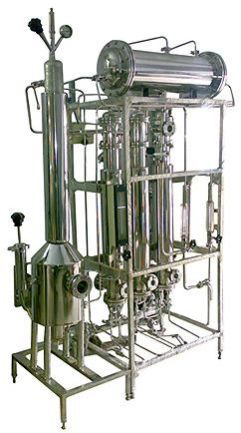

Multi Column Distillation Plant Dealers in Ahmedabad

• capacities: 80 - 5000 LPH

Multicolumn Distillation Plant is the perfect Multicolumn Distillation Plant solution. Available in capacities ranging from 80 - 5000 LPH, the Multicolumn Distilled plant is used for its economy, low maintenance and low operation costs.Pure Sterile Pyrogen free distilled water conforming to USP standards.Electro polished creviceless inner contact surfaces.PLC based system for automated operation.Sanitary triclover fittings for quick and easy preventive maintenance.Double tube Sheet construction for the first column, where boiler steam is present.Synoptic panel board with facility for logging the data can also be given.

The multi column water distillation plant is used for the sterile preparations in various industries. The Multi column distillation plant finds a wide range of application in the pharmaceutical industry. The water distillation plane is capable of meeting the needs of the customers and the standards of the Pharma industry. The machine has a water for injection system to maintain the WFI parameters of the industry within the acceptable limit. The water for injection process plant works in a way to meet the industry standards and demands of the users. The departed leg region and the high accuracy of the system ensures the control of the produced water for injection parameters under the allowable limits. The water for injection plant meets the requirement and standards of the cGMP, WHO & USFDA.   Characteristic Features: The multi -column distillation plant has an inlet that is compliable for water conductivity monitoring It is efficient for obtaining pure steam from the first column It comprises of a condenser that is appliable for higher WFI It is on the hot stand by mode The distillation plant comprises of various sanitization and sterlization columns and condenser protection panels Pure sterile and pyrogen free distilled water that is compliable to IP/BP/USP standards All the contact parts are configured with the help of SS 316 material Energy saver with 75% less heating energy Specialized design in the first column with the boiler steam Distilled water quality as per the IP/BP/USP standards The panel board is configured from SS 304 sheet Electro polished and compact design Fully automatic operation with no operator required for the operations Low operating costs applicable Technical Specifications Distillate:IP/BP/USP specifications compliance.Distillate Temperature 95ºCConductivity : Less than 0.5µ Siemens/cm.Endotoxing – Less than 0.25 Eu./ml.TOC – 100 PPB. FEED WATER :Purified water with max. conductivity of 0.5 micromhos/cm. should be used.Pressure should be 1 kg/cm² higher than the in feed steam pressure.Temperature – Ambient 30ºC COOLING WATER :Normal tap water is usedProvided hardness is less than 90 PPM of CaCo3.Temperature – Ambient 30ºC STEAM :Steam must be saturated, dry free from oil, vapors and other impurities.(A steam filter to obtain 3µ, clear quality steam is recommended ask for details)Pressure –min steam pressure of 3 kg./cm² is essential to guarantee pyrogen-free distillate.

Pure Sterile Pyrogen free distilled water conforming to USP standards. Compact in design. Electro polished creviceless inner contact surfaces. PLC based system for automated operation. Sanitary triclover fittings for quick and easy preventive maintenance.Double tube Sheet construction for the first column, where boiler steam is present. Synoptic panel board with facility for logging the data can also be given.

This translates to having a WFI (Water For Injection) generation system that is constructed to high complexity level and stringent procedure control to maintain WFI (Water For Injection) chemical parameters within the allowable limits.

Manufacturing high quality equipment multicolumn distilled water plant designed to produce 100% pyrogen free sterile distillate & chemically pure confirms to IPBPUSP standard. Multicolumn distilled water plant works on the principle of interstate heat exchanger, dramatically reduce the consumption of heating energy and cooling water. Thus enable to produce a large volume of pyrogen free distillate at a fraction of the cost than conventional systems. All documents related to factory acceptance test(FAT), Installation Qualifications(IQ), Operation Qualification(OQ), PQ are provided as part of the operational manual.

The multi column water distillation plant is used widely in the Pharma industry for sterile preparations. The multi column distillation plant is used to produce the pyrogen free sterile water. The multi column WFI plant complies to the international standards set by the pharmaceutical industry. The multi column distill water plant has a WFI (Water For Injection) generation system which helps in maintaining the WFI parameters of the pharmaceutical industry. Our distill plant for WFI meets all the specifications and standards of cGMP, WHO & USFDA. The plant has a structure which guarantees to control the parameters of the water for injection within the specified limits.

• Application: Liquid
• Material: All contact parts are made out of AISI 316 quality. All tubing is seamless
• After-sales Service Provided:: Engineers available to service machinery overseas
• Type: Purified Water Generation
• Place of Origin:: Gujarat, India
• Sealant: P.T.F.E.
• Distillate Quality: As per U.S.P. / B.P. specifications
• Distillate Temp.: 95°C
• Feed Water Quality: De-Ionized mineral water with a max. conductivity of 5 micro Siemens / cm²
• Feed Water Pressure: 1kg/cm2 higher than the boiler steam pressure
• Cooling Water: Normal tap water, hardness less than 90 PPM of CACO
• Steam: Saturated dry, free from oil, vapors and other impurities
