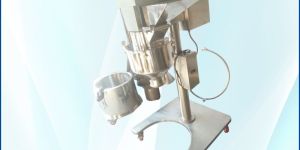

Multi Mill Dealers in Vatva, Ahmedabad

• Brand Name: ACUMAC
• Usage/Application: PHARMACEUTICAL MACHINERY
• Material: SS
• Driven Type: 3-6kw
• Color: SS
• Condition: New
• Automation Grade: Manual
• Application: DRY & WET GRANULATION
• Certification: CE Certified
• Voltage: 415
• Type: Multi Mill
• Weight: 400
• Warranty: 1year
• Country of Origin: India
• Rotor Diameter: 95
• Rotor Speed: 750 / 1500 / 2300 / 3000 RPM
• Output *: 50 to 200 Kgs. / Hr.
• Rotor Assembly Diameter: 250 mm Approx.
• Beaters: 12 Nos. with knife and impact edges  and  2 nos. scraper blades
• Screen Dimension: Inner Diameter 265 mm / Height 140  mm
• Motor: 3 Hp / 1440 RPM
• Material Charging Height: 1460 ± 5 mm
• Material Discharging Height: 760 ± 5 mm

• Weight: 1502 Kg
• Automation Grade: Automatic
• Voltage: 240 V
• Usage/Application: Pharmaceutical
• Rotor Speed: 2800
• Capacity: 50 to 350 Kg/hour
• Model Name/Number: VMTM
• Power Source: Electric
• Dimension: 36*36*60
• Frequency: 50 Hz

• Condition: New

Manufacturer & Supplier of Multi Mill & Multi Mill Machine. Our product range also comprises of Filling And Sealing Machine, Pharmaceutical Equipment and Bottle Inspection Machine.Features:Our vast industrial experience enables us to offer quality-made Multi Mill. Due to their remarkable features, these products are widely used in different industries. The offered machines are designed and developed using optimum quality raw material and sophisticated technology in complete accordance with the set international norms. In addition to this, customers can avail these products from us in different specifications.   Features :- High functionality Trouble-free performance Low power consumption NOTE : Technical details, specification & designs are subject to change without any prior notice.

We can say Granulator, Multi Mill, Comminuting, Cizer Mill. It is a reducing a partical size by crushing & granulating the powder lumps comes after drying from Fluid Bed / Tray Dryer & covert dust powder & granules passed by perforated sieves.

• Country of Origin: India
• Type: Multi Mill
• Certification: ISO 9001:2008
• Color: Silver
• Voltage: 110V, 220V, 380V, 440V
• Condition: New
• Warranty: 1year
• Automation Grade: Semi Automatic

Pharma Machinery & Spares Multi Mill are the efficient and compact unit. This equipment is used in the Pharmaceutical industry for compunction i.e. particle size reduction. This is necessary to achieve size reduction as well as an output of uniform size before subsequent operations. The unique feature of Multi Mills is that it can be used inline between two equipment conveniently. For example in the pharmaceutical industry, it is widely used at the outlet of Rapid Mixer Granulator and directly discharge in FBD Bowl for producing by RMG. The uniform granule size results in faster and uniform drying. Other Details: Multispeed drive for various product grinding. Easy dismantling and cleaning Low energy consumption SALIENT FEATURES :• Suitable for Dry Granulation / Pulversing / Shredding & Chopping of Materials.• Multi Speed Drive for Various Product Grading.• Easy Dismantling & Cleaning.• Output 20kg To 400kg / HR Depend upon Machine Model, Characteristic of Product & the Screen Size.• Easy Maneuverability with the help of Castor Wheels.• Beaters 8 to 12 nos. with Knife / Impact Edge & 2 Scrapper Blades.• Rotor Speed - 750 / 1500 / 2100 / 3000 RPM Approx.MULTI MILL is designed to utilise the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to control the particle reduction. Material fed in to the processing chamber moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in to the container kept below the processing chamber.

• Output * : 5 Kgs. To 50 Kgs./Hr.
• Rotor Assembly Diameter : 156 Mm. Approx.
• Rotor Speed : 750 / 1500 / 2300 / 3000 RPM
• Beaters : 12 Nos. With Knife And Impact Edges And 2 Nos. Scraper Blades
• Screen Dimension : Inner Diameter 168 Mm./ Height 88 Mm.
• Motor : TEFC, 1/2 HP. / 1440 RPM / 440 V. / 50 Hz. AC
• Starter : “DOL” With Reversible Switch
• Material Charging Height : 870 Mm. Approx.
• Material Discharging Height : 385 Mm. Approx.

• Rotor Speed: 750 / 1500 / 2300 / 3000 RPM
• Model: FALCON MM – 200
• Output: 50 to 200 Kgs./Hr.
• Rotor Assembly Diameter: 250 mm. Approx.
• Screen dimension Inner Diameter: 265 mm./ Height 140 m
• Motor: 3 HP. / 1440 RPM / 3 Ph.
• Material charging height: 1460 + 5 mm.
• Material discharging height: 760 + 5 mm.

Salient Features: Designed for continuous wet or dry granulation. Beaters & scraper blades made of SS 304 (SS 316 Optional) Easy to dismantle and clean Beater drive equipped with reversible switch. Castor wheels provided for mobility. Flameproof electrical components can be provided at extra cwt

• Brand Name: Chamunda Pharma Machinery Pvt. Ltd.

We are offering Multi Mill GMP Model. ■ Direction of beaters can be changed by reversible switch. ■ Machine is designed for continuous operation. ■ Cylindrical screen for higher output. ■ Castor wheels provided for mobility. ■ Flameproof electrical components can be provided at extra cost. ■ Beaters and scraper blades of S.S. 304 material. ■ All contact parts can be easily and quickly dismantled and cleaned. ■ S. S. Perforated Screens: (Optional) 0.5, 1.0, 1.5 mm Hole Dia. 2, 3, 4, 5, 6 mm Hole Dia. 7, 8, 10, 15, 20, 25 mm Hole Dia. ■ S. S. Wire Mesh Sieve:(Optional) 4, 6, 8, 10, 12, 14, 16, 20, 24, 30, 40, 50, 60 Mesh. 80, 100 Mesh.

• Rotor Speed: 750/1500/2300/3000 RPM
• Output*: 50 to 200 kg/hr
• Screen Dia: ID 260 mm X HT 135 mm
• Charging Height: 1510 mm
• Discharge Height: 750 mm
• Electrical Supply**: 3 HP, 3 Ø, A.C.

Multi Mill is widely used for wet and dry granulation, pulverization etc., in Pharmaceuticals, Chemicals, Cosmetics, colors, Dyestuff, Food product etc. it also finds application in Pesticides, Spices, Detergents, Insecticides, Plastic and Resins Industries.

• Condition: New
• After-sales Service Provided: Engineers available to service machinery overseas
• meterial: metal
• Place of Origin: Gujarat, India
• Port: Nava Seva

• Rotor Speed: 750/1500/2300/3000 RPM by step pulley Option for VFD
• Rotor Diameter: 250 mm
• MODEL: PMTM
• Output Speed: 50 Kg to 200 Kg Depends on products, speed and sieve size
• Charging Height: 1445 mm.
• Discharging Height: 730 mm.
• Motor: 3 HP/2.25 Kw/3 Phase/1440 RPM/AC

Multi Mill The Milling & Size reduction Process Application & Process : Multi Mill is used for wet and dry granulation, pulverization, milling, shredding, chopping, size reduction in Pharmaceuticals, Chemicals, Cosmetics, Ceramics, Colors, Dyestuff, Food products etc. It also finds application in Pesticides, Fertilizers, Spices, Detergents, Insecticides, Plastics and Resins industries In multi mill particle size reduction is done through impact in air, on material by blades moving at high speeds, inside a cylindrical sieve. The particles of the desired size pass out through the screen placed inside the hopper. Salient Features : Design is cGMP - Current Good Manufacturing Practices compliance All Product contact parts AISI 316 & non contact parts AISI 304 High speed milling, granulating, pulverizing, mixing and size reduction of wet & dry material. Output capacity 50 Kg to 200 Kg per hour.. Easy removable contact parts for cleaning & inspection. Easy Mobility. Variable force by swing better having knife & impact edges are rotating within screen. Direction of beaters can be changed by forward- reversible switch. Various combinations of perforated sieves & wire mesh. Optional Features : AC frequency drive for variable speed. Belt less Drive Inline milling process with HSMG and Sifter Flame Proof electrical.

• Rotor Speed: 750 / 1500 / 2300 / 3000 RPM
• Model: CM-MM-200
• Output *: 50 to 200 Kgs. / Hr.
• Rotor Assembly Diameter: 250 mm Approx.
• Beaters: 12 Nos. with knife and impact edges and 2 nos. scraper blades
• Screen Dimension: Inner Diameter 265 mm / Height 140 mm
• Motor: 3 Hp / 1440 RPM
• Starter: "DOL" with reversible switch
• Material Charging Height: 1460 ± 5 mm
• Material Discharging Height: 760 ± 5 mm

• Rotor Speed: 750/1500/2300/3000 RPM
• MODELS: CPMMM
• Output*: 50 to 200 kg/hr
• Screen Dia: ID 260 mm X HT 135 mm
• Charging Height: 1510 mm
• Discharge Height: 750 mm
• Electrical Supply**: 3 HP, 3 Ø, A.C.

Multi Mill is widely used for wet and dry granulation, pulverization etc., in Pharmaceuticals, Chemicals, Cosmetics, colors, Dyestuff, Food product etc. it also finds application in Pesticides, Spices, Detergents, Insecticides, Plastic and Resins Industries.

• Condition: New
• Color: Silver
• Material: SS 316 / SS 304
• Brand Name: Prism
• Design: Standard

• Voltage: 220V
• Condition: New
• Capacity(t/h): 250 - 10000L

Features : Efficient functioning Easy operation Low operating cost Reasonable pricing Multi Mill is broadly used for wet and dry granulation, pulverization, etc. The tool is extensively used to produce pharmaceuticals, cosmetics, ceramics, chemicals, colors, dyestuff, and food products. Nu Pharma Engineers & Consultant is a trusted multi mill manufacturer in Ahmedabad. Our multi mill machine is high in performance and appreciated worldwide. The offered range of multi mill machine is dimensionally accurate, corrosion-resistant and finds application in various industries such as fertilizers, pesticides, spices, detergents, insecticides, plastic, and resins. These offered multi mill machines are manufactured using premium-grade inputs and latest technology. We at Nu Pharma Engineers & Consultant make sure that the production of these machines is carried in accordance with the industry laid standards. The range of multi mill offered by us is rugged in design, durable, easy to operate and maintain and give an optimum-level performance. You can buy these multi mill machines from us at an industry-leading price.

• Brand Name: Crown Pharma Machinery
• Usage/Application: Pharmaceutical
• Material: SS (Body)
• Automation Grade: Semi-Automatic
• Country of Origin: India
• Rotor Speed: 3000 RPM
• Supply Ability: 10 Piece Per Week
• Material Charging Height: 1460 + 5 mm
• Material Discharging Height: 760 + 5 mm
• Output: 50 to 200 kg/hr
• Screen Dimension: Inner Diameter 265 mm / Height 140 meter
• Rotor Assembly Diameter: 250 mm
• Model Name/Number: CPM MM
• Power Source: Electric
• Motor: 3 Hp

• Rotor Speed: 750 / 1500 / 2300 / 2800 RPM
• Output: 50 to 200 Kgs./Hr.
• Rotor Assembly Diameter: 250 mm. Approx.
• Screen dimension: Inner Diameter 265 mm. / Height 140mm
• Motor: 3HP. / 1440RPM / 3ph.
• Material Charging Height: 1460 + 5 mm.
• Material Discharging Height: 760 + 5 mm.

Key Features : Designed for continuous wet or dry granulation. Beaters & scraper blades made of SS 304 (SS 316 Optional) Easy to dismantle and Clean Beater drive equipped with reversible Switch. Castor Wheels Provided for mobility. Flameproof electrical components can be provided at extra cost.

We offer multi mill. Multi mill is widely used for wet and dry granulation, pulverisation etc., in pharmaceuticals, chemicals, cosmetics, ceramics, colours, dyestuff, food products etc. It also finds application in pesticides, fertilizers, spices, detergents, insecticides, plastics and resins industries. Salient features : direction of beaters can be changed by reversible switch from knife to impact forward and vice-versa all contact parts can be easily and quickly dismantled and cleaned machine is designed for continuous operation cylindrical screen for higher output castors provided for mobility flame proof electricals can be provided at extra cost. beaters and scrapper blades of ss 304 quality.

It operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction. Material fed in the hopper, goes down to the processing chamber where it moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in the container kept below the processing chamber. Output and quality of the final product depends on three main factors Shape of beaters (knife/impact edges), SALIENT FEATURES: All contact parts can be easily and quickly dismantled and cleaned. Machine is designed for continuous operation. Cylindrical screen for higher output. Flame proof electrical can be provided at extra cost.   Material Charging auto screw feeder are also available.

• Rotor Speed: 750/1500/2300/3000 RPM
• MODELS: CPMMM
• Output*: 50 to 200 kg/hr
• Screen Dia: ID 260 mm X HT 135 mm
• Charging Height: 1510 mm
• Discharge Height: 750 mm
• Electrical Supply**: 3 HP, 3 Ø, A.C.

Multi Mill is widely used for wet and dry granulation, pulverization etc., in Pharmaceuticals, Chemicals, Cosmetics, colors, Dyestuff, Food product etc. it also finds application in Pesticides, Spices, Detergents, Insecticides, Plastic and Resins Industries.

Cleated Belt Elevator, u type screw conveyor, Pvc Pulverizer

• Rotor Speed: 750 / 1500 / 2300 / 2800 RPM
• Output *: 50 to 200 Kgs./Hr.
• Rotor Assembly Diameter: 250 mm. Approx.
• Screen dimension: Inner Diameter 265 mm. / Height 140mm
• Motor: 3HP. / 1440RPM / 3ph.
• Material Charging Height: 1460 + 5 mm.
• Material Discharging Height: 760 + 5 mm.

Designed for continuous wet or dry granulation. Beaters & scraper blades made of SS 304 (SS 316 Optional) Easy to dismantle and Clean Beater drive equipped with reversible Switch. Castor Wheels Provided for mobility. Flameproof electrical components can be provided at extra cost.

Backed by a team of highly experienced professionals, we are involved in providing a wide range of multi mill & sand mill.

• Capacity: 50 to 300 kg /hour
• Automatic Grade: Semi-Automatic
• Design: Standard
