N a Exports Vatva, Ahmedabad, Gujarat

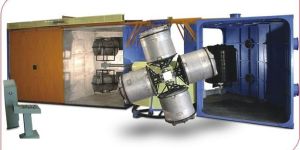

Three Arm Machine is Mainly Used in Application Where the Process Time for Each Arm Require Equal like One Heating Chamber One Cooling Chamber and One Load/unload Area. also Available in Different Application like Four Station Where One Heating,One Precooling, One Cooling and One Loding/unloding Area. Four Station Where One Pre Heating,One Heating, One Coolling, and One Loading/unloading Area. Four Station Where One Heating Chamber, One Cooling Chamber, Two Load/unload Area. features special Design Heating Chamber for Energy Efficient Heat Transfer to the Moulds for Fast and Short Cycle Time insulation Material for Better Working Environment. straight Arm with Two Spacious Spiders (optional) to Accommodate Different Size Moulds for Convenient Working. straight Arm with Four Mould Individual Carreir for Uniform Thickness. provision for Second/third Charging Manhole On the Top of Oven for Charging Polymer Without Opening the Oven Doors. oven Controls are Equipped with Necessary Interlocking and Safety Devices with Alarm micro Processor Based Machine Control Panel with Digital Display (plc On Request) enclosed Cooling Chamber with High Performance Industrial Cooling Fan. variable Speed A/c Drive for Major and Minor Speed. mould Positioning and Balancing Facility Inbuilt range Available from 60 to 237 Inches (1.5 to 6 Mtr.) with Multi Arm as per Custom Requirement. environment Friendly Burner Suitable for Lpg/cng/oil/duel Fuels.

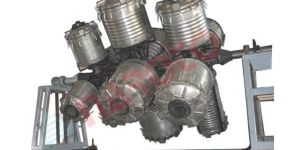

We offer Shuttle Type Rotomoulding Machine. overview: shuttle type rotomoulding machines are available in two version like (1) moving oven with moving carriage [shuttle] (2) fix oven with moving carriage [shuttle] application: shuttle type rotomoulding machines are specially designed to hold heavy moulds as well as multiple moulds with various capacities. provision for such heavy mould carrier plates and arms are provided both side support for sturdy comfortable operation instead of cantilever type station arms, which is a special feature for the shuttle type machines.

Basic Frame: made from Heavy Mild Steel and Tripodal Supporting Structure with all Required Accessories. easy to Operate: machine Operating Function Through Digital Control Panel economic: low Cost More Prdouction for Big Size Hollow Product. electric: all Motors are Ac with Speed Variable Drive for Rocking and Rolling Actions So that the Speed Can Be Control Through the Panel Board. Smooth Running Without Jerking. heating: low Pressure Outside Individual Adjustable Burners are Designed User Friendly for Adequate Use By Operator with Little Knowledge and to Ensure for Effective Burning, Low Consumption of Fuel, Trouble Free Services for Long Time. Its Construction is Simple But Robust and No Frequent Repair is Necessary. also Flexbility to Change from Gas Fired to Diesel Fired System. cooling: cooling Station with Rolling Drive, Steel Structure, and High Efficiency Industrial Cooling Fan for Fast Cooling. 0% Rejection: process Fully Visual So that Very Less Chances in Rejection of Products. Higher Production and Less Break Down & Maintenance. accessories :- [optional ]penumatic Second Charging [pneumaticaly Operated] Unit for Adding Second /third Layer Resin By Operators Comfortably..

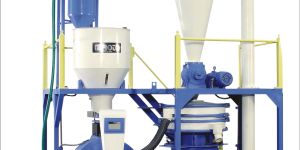

Application: typical Applications of Npu/k-10 Pulverisers are the Grinding Varietes of These Granulated Material Including High and Low Density Plastics Like: ldpe (16 Ma 400 Ipcl Grade for Textile and Wire Coating), lldpe, Hdpe (26500 Reliance Grade for Master Batch) lldpe (36ra 0345 Ipcl Grade) rpvc, Pc, Abs, Eva,Ps, Etc. features: disc & Mill Body: the Disc is Made from Graded Material Tested Quality and Dynamically Balanced for Smooth Running. Inspection Windows (2 Nos.) are Provided On Both Side of Mill Body for Visually Checking the Disk Gap and Assist the Gap Setting. Several Options are Available to Simplify the Cleaning Process. Long Service Life of the Discs Between Resharpenings. cooling: for Mill Body, Bearing Housing and Mill Door for Better Result. bearing Housing: bearing Housing Water Cooled. metal Detector: high Efficeincy Hopper Magnet Provide with the M/c. To Detect the Metalic Inclusion Parts from the Polymer. Optionally, Metal Detector Sensor Will Be Provided On Request. feeding: feeding Hopper Showing Low Level Indicator. Auto Tripping System Availabae in Case of Overload Feeding. Main Motor Ampere and Feeding Device Synchronised to Avoid Tripping of Motor Due to Over Feed cyclone: our Cyclonic System is Well Designed for Easy Cleaning. With Bag Filter (on Request)arrange Ment. hopper Loader: pneumatic Hopper Loader Will Provide On Request. performance: uniform Particle Size for Better Distribution optimum Material Distribution homogeneous Material in Case of Coloured Powders. Low Energy Consumption and High Throughput. Powder Temperature Monitoring Device .

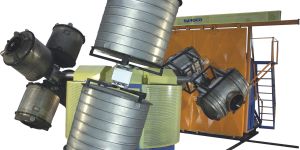

OVER VIEW / PROCESS: Naroto offer bi axial three/ four arm an ideal machine for high volume production, even complicated sizes with similar working cycles. Moulders will appreciate its wide swing diameter from 60 to 240 inches. Sturdy steel structure with high efficiency out put and less maintenance are its principal features. APPLICATION: Naroto three arm machine is mainly used in application where the process time for each arm require equal like one heating chamber one cooling chamber and one load/unload area. Also available in different application like Four station where one heating,one precooling, one cooling and one loding/unloding area. Four station where one pre heating,one heating, one coolling, and one loading/unloading area. Four station where one heating chamber, one cooling chamber, two load/unload area. FEATURES: Special design heating chamber for energy efficient heat transfer to the moulds for fast and short cycle time Insulation material for better working environment. Straight arm with two spacious spiders (optional) to accommodate different size moulds for convenient working. Straight arm with four mould individual carreir for uniform thickness. Provision for second/third charging manhole on the top of oven for charging polymer without opening the oven doors. Oven controls are equipped with necessary interlocking and safety devices with alarm Micro processor based machine control panel with digital display (plc on request) Enclosed cooling chamber with high performance industrial cooling fan. Variable speed a/c drive for major and minor speed. Mould positioning and balancing facility inbuilt Range available from 60 to 237 inches (1.5 to 6 mtr.) With multi arm as per custom requirement. Environment friendly burner suitable for lpg/cng/oil/duel fuels.

features: naroto offer shuttle type rotomoulding machines with heavy duty arms and mould supporting at both ends, rather then one side cantilever type stations. oven chambers are provided with burner and blower for fast heating of moulds in large volume chambers. straight arm capable of holding up to 12 nos. of moulds with three numbers of four moulds carriers. on floor level portable type high efficient axial flow cooling fans for fast cooling. provision for second /third charging man hole on top of the oven. oven controls are equipped with necessary interlocking and safety devices . micro processor based machine control panel with digital display . both major and minor axis rotations are controlled by a/c inverter drive motors. mould positioning and indexing facility for second charging. machines available from 1,000ltrs to 20,000ltrs capacity.

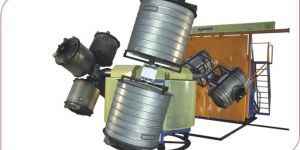

Product Specification Moving Oven Type Rotational Moulding Machine: - Specially Designed for the Energy Saving Environmental Friendly Heating Chambers with Efficient Heat Transfer Technology. - State of the Art Technology in Designing the Insulation Panels for Better Working Environment. - Straight-arm with Four Mould Carrying Carrier Plates for Economical Working. - Machine Controls are Equipped with Necessary Interlocking, Safety Devices with Indicators and Alarm. - Microprocessor Based Machine Control Panel with Digital Display. - Plc On Specific Request. - Variable Speed A/c Motors are for Major and Minor Speed Controls. - Mould Indexing Facility. - Environment Friendly Burners Suitable for Lpg/ Cng/ Oil/ Duel Fuels.
