Newtech Equipment Madhupura, Ahmedabad, Gujarat

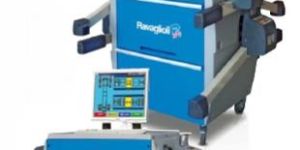

We offer Truck Wheel Aligners (TD 8080T-8060T BTHR) in the market. The Truck Wheel Aligners are fabricated using the best quality components. Our Truck Wheel Aligners provide high efficiency with low maintenance service. Customers can avail our Truck Wheel Aligners at market leading rates. Details Aligner 8 CCD (TD 8080 TBTHR)6 CCD (TD 8060 TBTHR)Bluetooth transmission between front heads and cabinetInfrared transmission between sensor headsdouble inclinometer to allow caster adjustment without steeringwe recommend the new no run out clamps STDA92 enabling to skip run-out compensation procedurenot suitable for car wheels (minimum wheel diameter 760mm) Technical FeaturesParametersAccuracyMeasuring RangeTotal Measuring RangeFront axleTotal toe+/- 2'+/- 20+/- 50Partial toe+/- 1'+/- 10+/- 2030'Set-back+/- 2'+/- 20+/- 50Camber+/- 2'+/- 30+/- 100Caster+/- 5'+/- 100+/- 180King-pin+/- 5'+/- 100+/- 180Rear axleTotal toe+/- 2'+/- 20+/- 20Partial toe+/- 1'+/- 10+/- 2030;Set-back (TD 8080)+/- 2'+/- 20- 50Camber+/- 2'+/- 30+/- 100Thrust angle+/- 2'+/- 20+/- 50

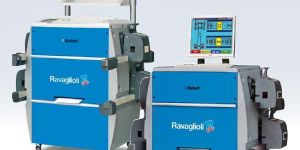

We offer Truck Wheel Aligners (TD 8080T-8060T BTH) to our valuable customers. The Truck Wheel Aligners provide superior efficiency. The Truck Wheel Aligner has much faster operating times without any loss of accuracy. The Truck Wheel Aligners are simpler system to learn and user-friendly. We offer Truck Wheel Aligners as per customer̢۪s requirement within specific time. Details Aligner 8 CCD (TD 8080TBTH)6 CCD (TD 8060TBTH)Bluetooth transmission between front heads and cabinetInfrared transmission between sensor heads double inclinometer to allow caster adjustment without steeringworks on car and van with optional accessories Technical FeaturesParametersAccuracyMeasuring RangeTotal Measuring RangeFront axleTotal toe+/- 2'+/- 2

Owing to our rich experience, we are offering a wide assortment of High Pressure Car Washer. The High Pressure Car Washer reduces the consumption of water and offers easy and efficient cleaning. Apart from this, High Pressure Car Washer is manufactured using the latest techniques and machinery as per industrial standards. The High Pressure Car Washer is highly durable and further performs various heavy duty cleaning operations in an efficient manner. Specifications Water Output : 750 LTRS./ HR Operating Pressure : 110 bars/ 1600 Psi Motor Rating : 3 KW Standard Accessories High Pressure Hose : 10 mt. Spray lance : 500 mm long High Spray Nozzle : 25 Extra Accessories Spray Nozzle : 0 Spray lances : 75 mm, 150 mm, 1040 mm Pressure regulator Trolley

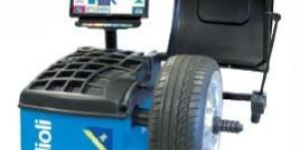

We offer Graphics Wheel Balancer with microprocessor. The Graphics Wheel Balancer is designed with accuracy using the best quality components and material to ensure unmatched range. The Graphics Wheel Balancer is highly efficient, durable and has low maintenance. We offer Graphics Wheel Balancer as per customers̢۪ requirements within stipulated time.

With our state-of-the-art manufacturing facilities, we are engaged in offering a range of Glass Paint Booth. The Glass Paint Booth keep environment clean and provides good space for painting glasses. The Glass Paint Booth, offered by us, is unmatched quality spray painting booth. As Glass Paint Booth is made in panel construction, it is easy to assemble and maintain Highlights Superior qualityPrecise designAvailable in various sizesEconomical rates

We provide a wide range of Digital Wheel Balancer to our esteemed customers. The Digital Wheel Balancer has self-calibration and self-diagnostics features. The self-calibration program of Digital Wheel Balancer enables easy and accurate operation. The Digital Wheel Balancer offers smoother ride by minimizing tyre bounce and improving traction and steering control. Technical Data Power Supply : 220VMotor Power : 0.25 kwRim width : 1.5" / 12"Rim diameter : 12" / 24"Rim center hole diameter :_

We are one of the topmost Manufacturers, Exporters and Suppliers of Car Wheel Aligner. The Car Wheel Aligner is fabricated using the best quality material with the aid of cutting-edge manufacturing facilities to ensure flawless range. The Car Wheel Aligner is designed specifically for the wheel aligning of the car. The Car Wheel Aligner is robust and helps in aligning the wheel in different direction easily. Technical FeaturesParameter Accuracy Measuring RangeTotal Measuring RangeFront axleTotal toe+/- 3'+/- 2o+/- 20oPartial toe+/- 1'30'+/- 1o+/- 20oSet-back+/- 2'+/- 2o+/- 5oCamber+/- 2'+/- 3o+/- 10oCaster+/- 5'+/- 10o+/- 18oKing-pin+/- 5'+/- 10o+/- 18oRear axleTotal toe+/- 3'+/- 2o+/- 20oPartial toe+/- 1'30"+/- 1o+/- 20oSet-back+/- 2'+/- 2o+/- 5o

We are engaged in offering a range of Automatic Tyre Changer to our esteemed clients. The Automatic Tyre Changer is widely used in garages and service stations. The Automatic Tyre Changer, offered by us, is fabricated from superior quality materials that ensure durability and long working life. We offer Automatic Tyre Changer as per customers̢۪ requirements with on time delivery. Technical Data External Rim Clamping : 10 min. 18 max.Internal Rim Clamping : 10" min. 20 max.Wheel Rim Width : 10"Max. Chuck rotating to torque : 100. 110 KgDrive Motor : 0.75 Kw./1 HP 3 Ph. 415 V or 0.75 Kw. /1 HP 1 Ph.230 VBead Breaker Opening : 13 (325 mm)Max. Wheel dia. : 40" (1010 mm)Bead breaking : 16.5 Kn at 12 Bar.Compressed Air required : 6 to 12 bars.Floor Space (L W x H) : 960 x 730 x 1560 (in mm)Net Weight of Machine : 200 Kgs. Approx.Gross Weight of Machine : 230 Kgs. Approx.

We are one of the prominent Exporters and Suppliers of Automatic Brake Tester. The highly reliable Automatic Brake Tester is widely used for testing the brake system of automobiles. The Automatic Brake Tester is available as per customers̢۪ specifications at the market leading prices. Owing to user friendliness, precise design, durability and low maintenance Automatic Brake Tester is highly in demand among our customers. Technical FeaturesTechnical DataUnitRT615RT622RT630RT630NPNPFFPNPFFPVFVFPMax. transit weight per axkg16000200002000020000Max. test weight per axiskg13000150001600015000MotorkW2x102x152x202x7,5/15Power supply-3ph 400V-50HzMax. braking forcekN3040507.5/40Test speedkm/h2,22.6/5,2Roller diametermm242Roller lenghtmm1100Outside roller distancemm3000Height difference of rear rollermm50Roller Covering-(A)Coefficient of Friction->0,6Max. wheel diametermm1500Min. wheel diametermm500

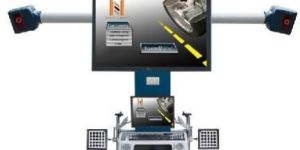

We bring forth a range of 3D Wheel Aligner for our esteemed customers. The 3D Wheel Aligner is easy to use and offers wide field view. With the help of 3D Wheel Aligner, vehicles can rise promptly and height is adjusted easily. The 3D Wheel Aligner aids to target and console without cables or electronic signals between the transmissions. Features It has the latest 3D alignment software which is easy to operate, 32"/â‰Â¥17" LCD dual-screen display.Mini-Printer is optional, which will save 4/5 consumables (international leading).Windows XP operating system and international standard interface, easy to understand and learn.Software and hardware of the alignment machines reserve 15 years upgrade room.The repeated measurement error is within the international standard ±0.04o, which rightly meet the need of luxury cars, more accuracy.The handheld auxiliary monitor is optional.Zero calibration software is optional; the sensors can be self-calibrated after the warranty period.It has man-machine interactive interface, and operating procedures can be traced by animation demos, the dynamic instructions make you feel on the scene.Adjustment in-phase between console and sensor intervals 0.5 seconds only, achieving high efficiency and speed.Super-low chassis vehicles can be detected.It has professional adjustment program (Volkswagen VAG special procedures) for AUDI A6&PASSAT B5 together with video demos.Voice function and alert tones for leveling are newly added. More convenient and quickerSpecial alignment procedures for converted flat tire are added.Special alignment procedures for ESP vehicle models are added.No moving parts, no maintenance, target without calibration, no electronic components on the wheel, if the target falls, there will be no damage to the circuit, continue to work after installed.
