Nik-San Enterprises (Mfrs. Of Oil & Gas Pipeline Products) Naroda, Ahmedabad, Gujarat

Material : Metal

Thickness : 10-15mm

Application : Liquid Use

Grade : ANSI, AS, ASME

Feature : Corrosion Resistance, Durable

Surface Finishing : Polished

Nik-San's pumps have a proven continuous heavy- duty performance record indicating long intervals between servicing. This assures you of the best return on your investment.   Triplex Design One of the most cost-efficient ways to ensure extra long life for your high pressure system is to use a Nik-San pump with its three- cylinders design. This triplex design gives you much smoother flow (approximately 1/7th the pressure variations of comparable two – cylinder pumps) and minimizes the possibility of system failure due to excessive pulsation.   Bearing Antifriction steel-tapered roller bearing provide extended bearing life.   Plunger The triplex plunger pump perform smoothly and quietly. The natural lubricity of the pumped fluid cools and lubricates the seals. The hardened, polished ceramic coated plunger provide extremely durable wear surfaces, abrasion resistance and maximum seal life.   Gland Packing The stuffing box assemblies are individually bolted to the fluid cylinder for easy accessibility, for disassembly and assembly. Reduced maintenance costs and downtime.   Valve Assembly All Valve assemblies are completely independent of and are clamped between manifolds and fluid cylinder. Easy valve inspection and replacement without ant clean-up or rematching of mating components.   Power End Pressure Imbrication provided by externally mounted lub oil pump - driven directly off crank shaft end opposite main drive end, or separate motor driven. Recommended for pump speed below 165 rpm. Overhead motor mounting on pump frame complete with belt adjustment jack-screws.   Power End Mechanism For each Nik-San pump, the POWER END engineered out of selected materials and it is designed for the rated horse power.   Power Frame Power frame is totally enclosed. Dust and oil tight enclosure eliminating contamination from the outside elements. Reduced maintenance cost and increased reliability.   Connecting Rods Accurately machine and honed for longer life I- section design for rigidity and light weight. Split bolted marine type crank-pin end for any assembly and disassembly. Refle-drilled oil passage.   Cross Head Fully cylindrical crossheads and guides utilize maximum possible bearing area. Less waste through greater disbursement of bearing loads. Assures greater reliability with low replacement costs.   Crank Shaft Forged hardened and ground crankshaft provides unmatched strength and surface hardness for long life.   Lubrication Splash type lubrication system for all power and bearing contained within sealed chamber.   Material of Construction for Liquid Contact Parts: AISI-304, AISI-316. Alloy-20 Hastelloy- 'B' or 'C Parts consisting of special materials can specially manufactured against specific needs. Available in ceramic coated or Hard chrome plated or calumny coating plungers. Gland packing flushing, cooling lubrication can also be provided against specific orders.

Country of Origin : India

Type : Triplex High Pressure Plunger Pumps

Certification : ISO 9001:2008

Application : Industrial

Weight : 40-50kg

Condition : New

Power : 10hp

Pressure : High Pressure

Warranty : 1year

Automation Grade : Manual, Semi Automatic

High Pressure Triplex Plunger Pumps

Driven Type : Electric

Condition : New

Application : Industrial

Shape : T Shape

Grade : ANSI, AS, ASME

Surface Finishing : Polished

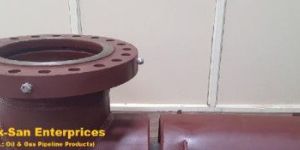

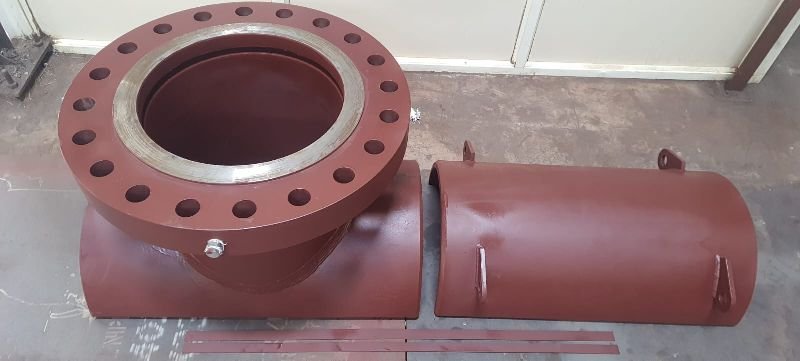

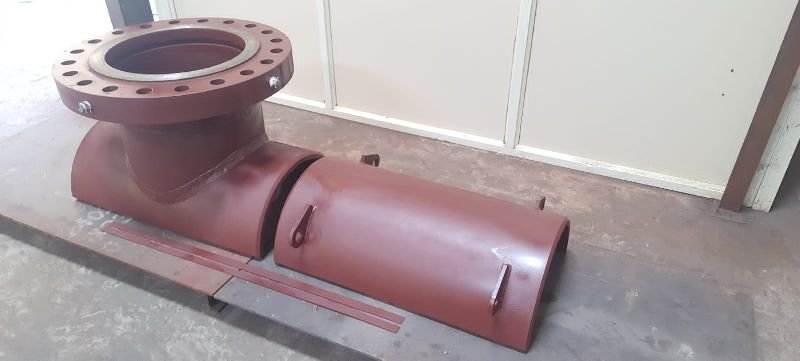

Hot Tap Tee Split Tee / Hot Tap Fittings / Line Stop Fittings ASTM A 516 Gr.70 / SA 537 CL-1

Country of Origin : India

Brand Name : NIK-SAN

Material : Metal

Thickness : 20-40mm

Certification : TPI

Color : Grey Brown

Material : Stainless Steel

Thickness : 10-20mm

Application : Caping Pipe

Grade : AISI, ASTM, BS

Feature : Corrosion Proof, Excellent Quality

Finishing : Polished

Automatic Grade : Manual

Material : Metal

Finishing : Polished

Packaging Type : Carton Box

Warranty : 1 Year

Speciality : Easy To Fit, Perfect Shape

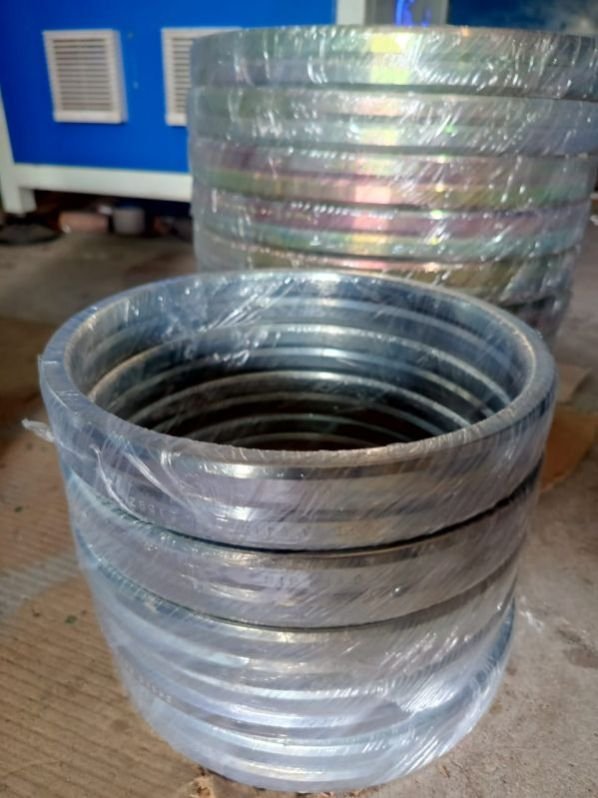

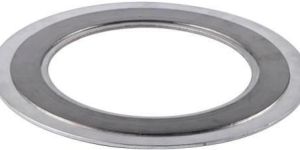

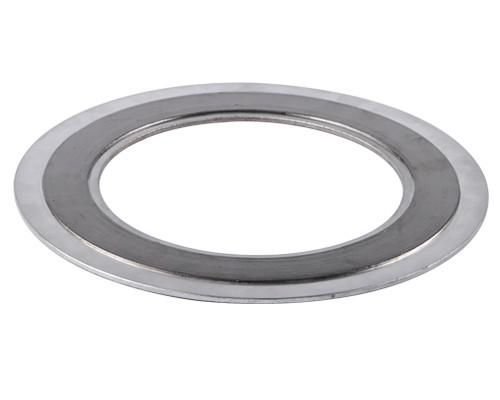

Nik-San Enterprises is offering a full range of Spiral Wound Gaskets. Spiral wound gaskets are used in Refinery, Petrochemical, Chemical, Steam lines and Process Industries, where they have many advantages over older types of gaskets. The spiral wound gasket is suitable for use across a wide pressure range and is therefore virtually applicable. The spiral wound gasket can be used to seal fluid pressures up to 250 bar and cryogenic temperatures as low – 200ºC and up to elevated temperatures 550ºC. Due to its sturdy design the spiral wound gasket is simple to install without causing damage Manufacturing of Spiral Wound Metallic Gasket (although extra care should be taken during transportation and installation of large diameter gasket without guide rings). The outer guide ring serves to locate the spiral element centrally on the flange faces and prevent blow-out. By combining different winding materials and metals the gasket can be tailored to a wide variety of operating conditions. Due to its non-adhesive character the gasket is easy to remove after service. The gasket does not cause damage to the flange faces.   Benefits of The Centring Ring The spiral wound gasket outer centering ring provides the following benefits: Prevents radial-flow of soft fillers, such as P.T.F.E. Reduces turbulence-minimizing flow resistance and crevice corrosion. Acts as a heat shield when the spiral wound gasket is subjected to high temperatures. Inner and outer rings are particularly recommended for use on spiral wound gasket sexceeding class 600lbs, but specifically recommended for high temperatures and pressures to optimize the operational reliability of the spiral wound sealing element. The gasket does not cause damage to the flange faces.   Material Selection Material selected for the inner ring and winding metal is usually the same as the flange metal, in order to prevent corrosion and differential expansion problems. The outer centering centering ring is generally generally manufactured manufactured from carbon steel with an anti- corrosion treatment; however, the ring may also be manufactured in the same metal as the flange to prevent corrosion problems.   Standard Fillers GRAPHITE is universally applicable, high-quality, asbestos-free material with the following characteristics: very good chemical resistance, resistance to ageing, good gast-ightness. PTFE is a high-quality synthetic material with the following characteristics: excellent chemical resistance, resistance to 250ºC, resistant to ageing, excellent gas-tightness.Non-standard materials are available on request

Material : Rubber

Feature : Corrosion Resistance

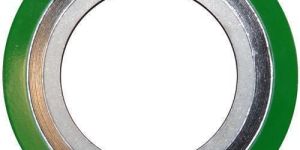

Spiral Wound Metallic Gasket:Nik-San Enterprises is offering a full range of Spiral Wound Gaskets. Spiral wound gaskets are used in Refinery, Petrochemical, Chemical, Steam lines and Process Industries, where they have many advantages over older types of gaskets. The spiral wound gasket is suitable for use across a wide pressure range and is therefore virtually applicable. The spiral wound gasket can be used to seal fluid pressures up to 250 bar and cryogenic temperatures as low – 200ºC and up to elevated temperatures 550ºC. Due to its sturdy design the spiral wound gasket is simple to install without causing damage Manufacturing of Spiral Wound Metallic Gasket (although extra care should be taken during transportation and installation of large diameter gasket without guide rings). The outer guide ring serves to locate the spiral element centrally on the flange faces and prevent blow-out. By combining different winding materials and metals the gasket can be tailored to a wide variety of operating conditions. Due to its non-adhesive character the gasket is easy to remove after service. The gasket does not cause damage to the flange faces.

Brand Name : Nik-San

Material : SS304 / SS316

Color : Green

Style : Spiral Wound

Certification : AMSE B16.20

Country of Origin : India

Temperature : 1000 Deg C

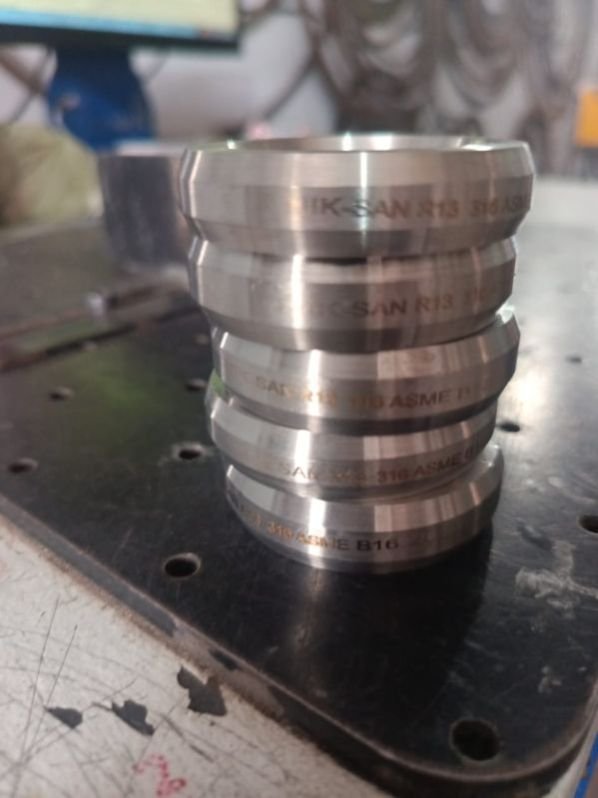

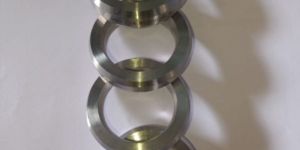

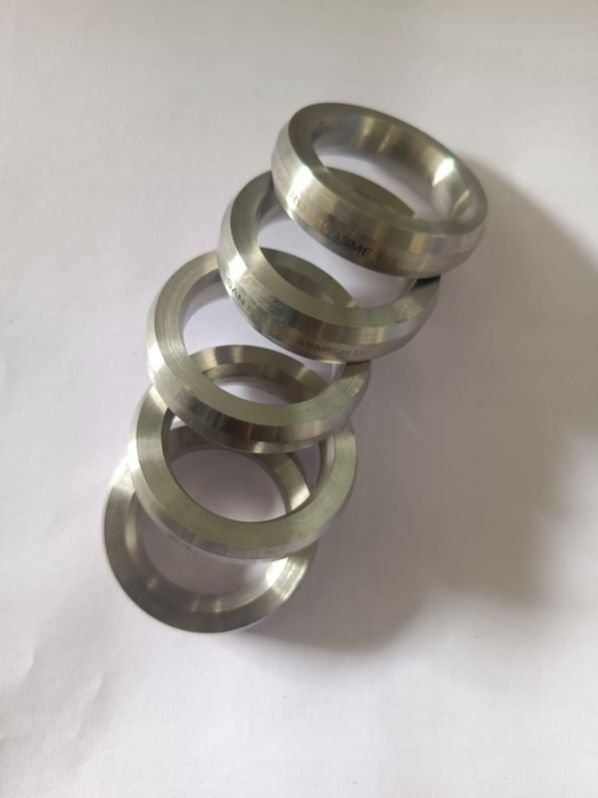

The ring type joint was initially developed for use in the petroleum industry, where high pressure/temperature applications necessitated the need for a high integrity seal. They are mainly used in the oil field on drilling and completion equipment. Ring type joints are also commonly used on valves and pipework assemblies, along with some high integrity pressure vessel joints.Dimension Standard : ASME B16.20 From 1/2"- 24" of all Classes Gaskets Suitable for ASME B16.5 Flange & From 26" - 60" of all Classes Gaskets Suitable for ASME B16.47 Series A Flanges or B Flanges. API 6A - Suitable for API 6B Flanges, Sizes : Mainly following Ring Groove No according to the Size / Ratings - 60" for Various Class / Rating 150#, 300#, 600#, 900#, 1500# & 2500# Ring Type Joint Gasket Types R Type - Oval & Octagonal Shape RX Type - With or without passive holes BX Type - With passive holes Material - Soft Iron, SS 304, SS304L, SS 316, SS 316L, SS304H, SS316H, Ss321, SS410, Duplex 31803, Duplex 32205, Duplex 32750, Duplex 32760, Inconel 600, Inconel 625, Inconel 800, Inconel 825 & Monel 400 etc. as per customer requirement.

Brand Name : NIK-SAN

Material : Soft Iron,Soft Iron

Finishing : Coated

Shape : Round

Color : Silver

Condition : New

Automation Grade : Manual

Usage : Industrial

Size : 1/2" to 80"

Certification : ISO 9001:2008 Certified

Pattern : Plain

Density : 90 BHN

Width : ASME B 16.20

Dimension : ASME B 16.20

Packaging Type : Std.

Outer Diameter : ASME B 16.20

Working Pressure : upto ANS 2500#

Specialities : Resistant To Oil

Type : Ring Joint Gaskets,Octagonal

Thickness : 2-16mm

Weight : std. as per size

Tensile Strength : 90BHN

Working Temperature : upto class 2500#

Warranty : 1 Year

Country of Origin : India,India

Elongation : 20% min.

Inside Diameter : as per gasket

Operating Pressure : as per class

Tolerance : Std.

Chemical Resistance : Yes

Shore Hardness : 90 BHN

Warranty : 12 months

Country of Origin : India

Material : Pu

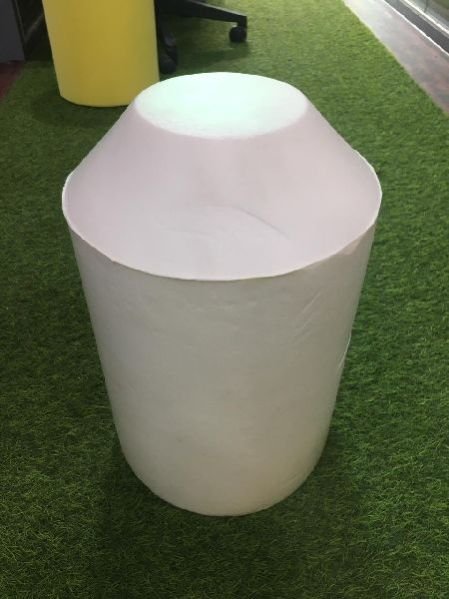

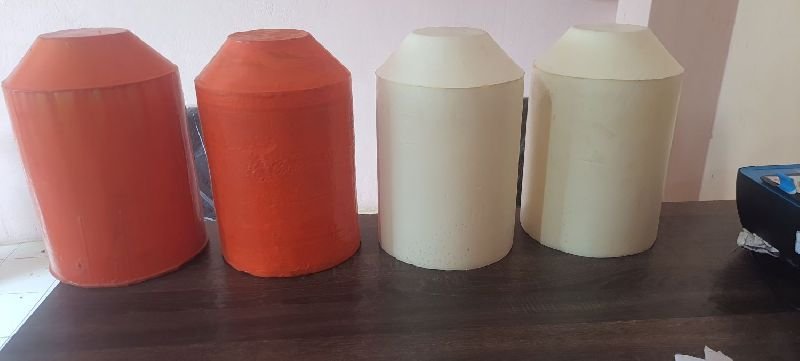

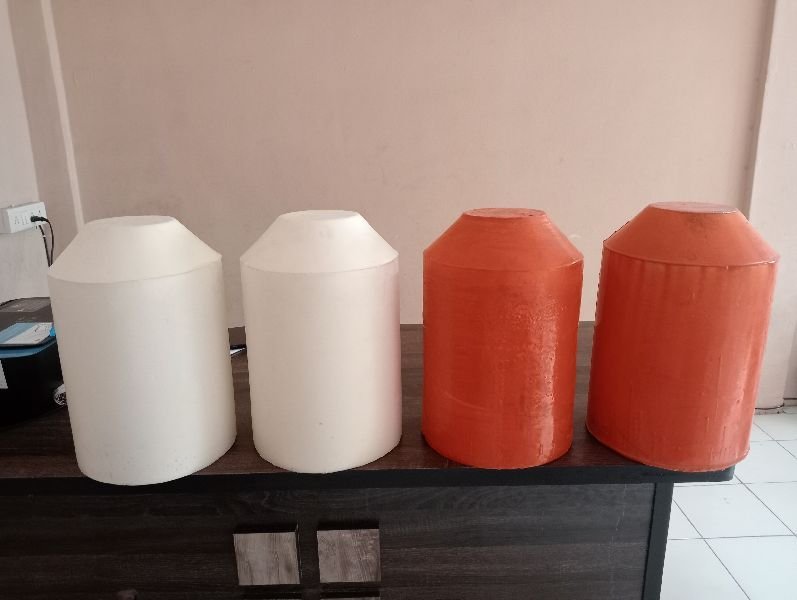

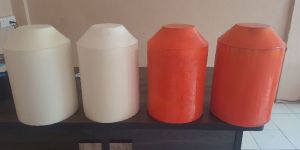

High Density Foam Pigs / HD Bare Foam Pigs

Country of Origin : India

Size : 2" to 60"

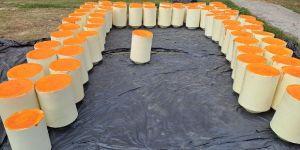

Type : Pipeline Pigs

Material : Pu

Certification : ISO 9001:2008 Certified

Color : White

Pattern : Plain

Condition : New

Automatic Grade : Manual

Pressure : High Pressure, Low Pressure, Medium Pressure

Country of Origin : India

Type : Pipeline Pigs

Color : Red

Feature : Durable

Pattern : Plain

Condition : New

Type : Roller Pipe

Material : Steel

Thickness : 10-20mm

Application : Industrial

Finish : Paint Coated

Features: Roller Cradles are designed to use one single length of cable throughout the four loops of rollers to facilitate complete load equalization. Rollers are covered with molded polyurethane or nylon to eliminate metal contact with the pipes Roller Cradles lift Pipe section while Polyurethane/Nylon Rollers protect pipe coating, pipe damage and easy to line travel operation Protect pipe and wrapping, eliminates pipe creasing and scarring Provide support for line travel of equipment and lowering of Pipe Each Cradles permits use of multiple pipe sizes Model are available for Pipe Sizes 6” to 60” The design provides quick disassembly for transit and storage Forms continuous roller surrounding lower half of pipe, keeps pipe on centre Pipe can be kept close to ground, allowing operators more control and mobility

Brand Name : NIK-SAN,NIK-SAN

Material : Nylon Polamide-6, MS Plate and Pipe

Country of Origin : India

Design Standards and Specifications ANSI Pressure classes 300#-1500# Design based on API 6H. Design calculation ASME Sec. VIII Div. I Body materials A516 Gr. 70, ASTM A105 PTFE coated bolts and nuts, bolt material A193 Gr. B7 and nut material A194 Gr. 2H Standard coating yellow epoxy 100 microns Gaskets (H) NBR or Viton Weldable option is available with heat insulating gaskets Double row sealing is available on request Sacrificial anodes can be installed on the sleeves for long term cathodic protection Non-standard lengths are available on request Full MTC document will be supplied with the order   Material Material: ASTM A 516 Gr.70 / ASTM A 105 Fasteners: ASTM-A-193-B7 & ASTM-A-194-2H Seal: Buna “N‟ Paint: Epoxy Coating Yellow 100 Microns Vent Port + Plug: Yes Lifting Lug (8” & above) Hinge Assembly: (8” & above)     Yes Design Temperature: 65ºC N.D.T. 100% RT Butt Weld - 100% U.T. of vent plug welds. (Fillet) 100% MPI of Hinge welds. (Fillet) Certification:  EN 10204 3.1 Design Calculation: ASME Sec. VIII Div. I

Warranty : 1 Year

Shape : Round

Technics : Hot Dip Galvanized

Material : Metal

Surface Finishing : Polished

Usage : Connect Pipe Flange

Packaging Type : Carton Box

Material : Metal

Type : Wall Mounted

Specialities : Optimum Durability

Surface Finishing : Coated

Packaging Type : Corrugated Boxes

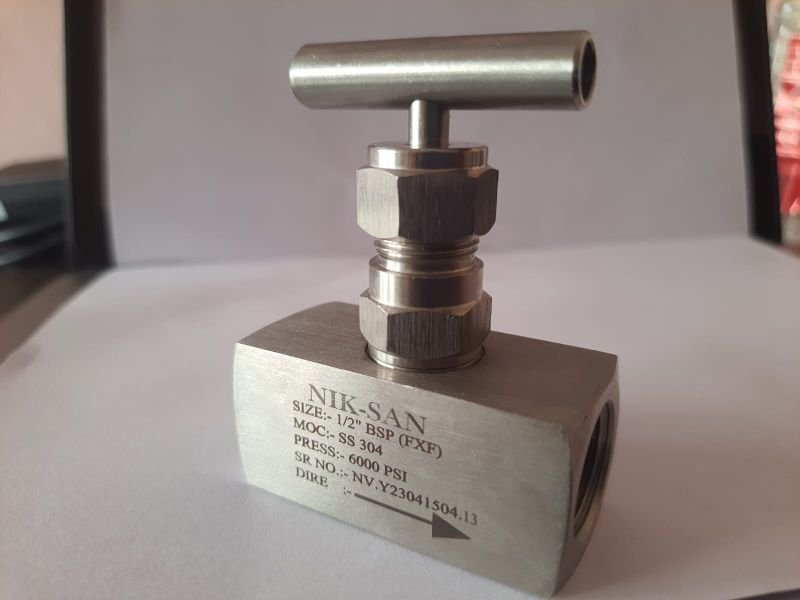

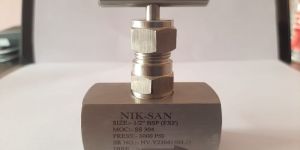

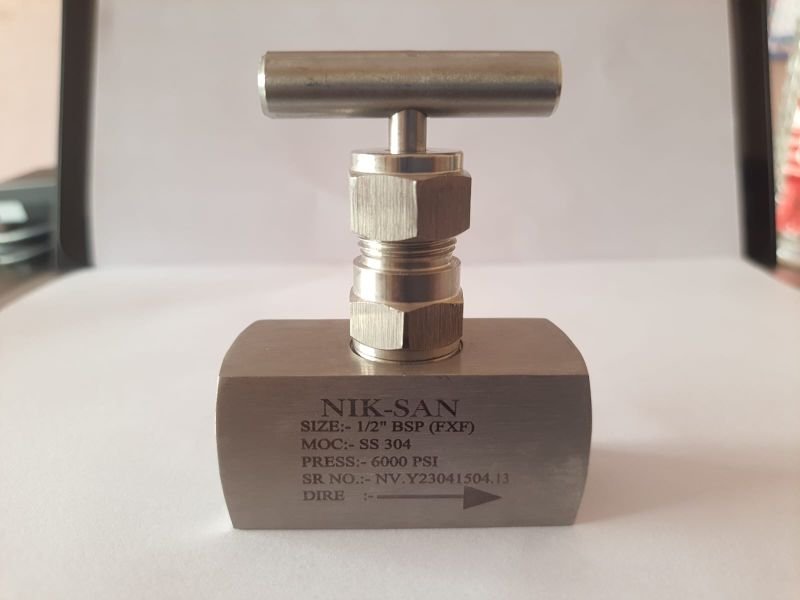

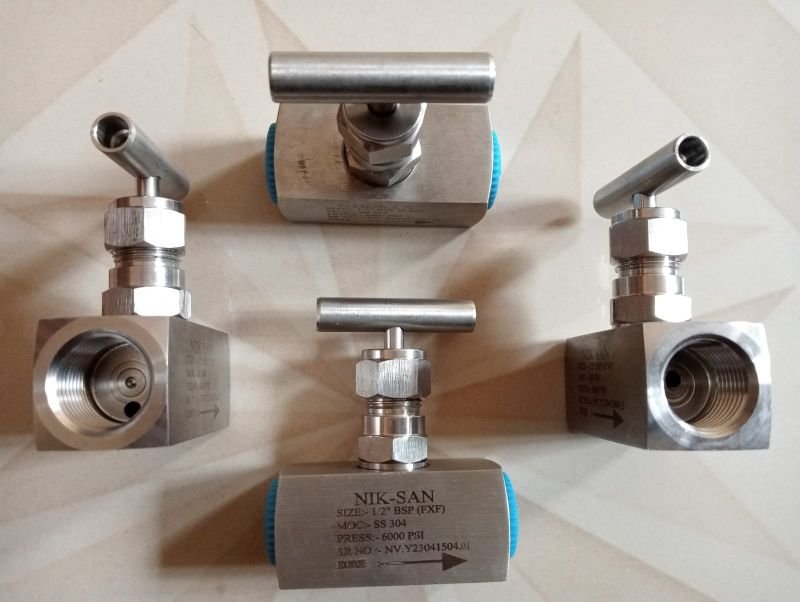

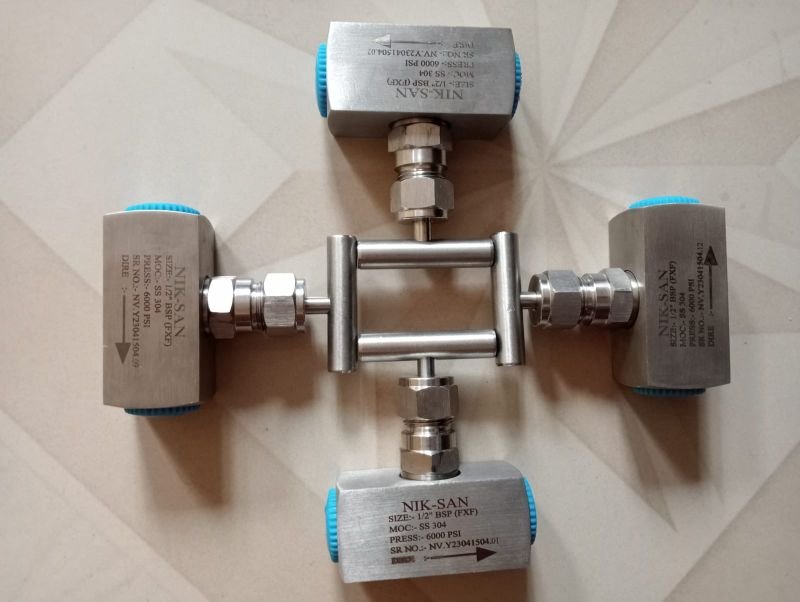

SS Needle Valves

Material : Stainless Steel

Condition : New

Size : 1” to 48”

Application : Pipe Fitting

Insulating Joints are used on pipelines to provide electrical isolation to prevent corrosion. Theyprovide current spreading on cathodic protection systems. They provide electrical separationbetween pipeline section and the adjoining neighbouring structures and pipelines. Whereverpractical, the NSE insulating joint is intended to be installed above the ground, or in aninspection pit in dry conditions to limit the possibility of electrical bridging across the joint. It isintended to be girth welded between two pipeline sections. BENEFITS & ADVANTAGES• No loss of integrity due to thermal expansion or ground stress as is common with flangeisolation gasket kits.• In-factory tested hydrostatically and electrically, to 1.5 times their working pressure.Non-destructive testing is also available.• Maintenance-free, reliable cathodic isolation of equipment in required isolationapplications such as compressor stations.• No labor intensive, complicated installation procedure required as is the case withisolation gasket kits,• No inspection pits, vaults or maintenance needed - weld into place and direct bury -reliable, worry-free cathodic isolation.• Non-conductive epoxy coatings help prevent shorts, both internally and externally.• Isolation stray currents impressed on the pipe from exterior forces such as electricaltransmission systems, earth currents and currents flowing from point to point.• Excellent bending and torsional resistance.• Earthquake resistant - acts as a thrust block or joint.

Country of Origin : India

Type : Monolithic Insulating Joint

Material : Mild Steel

Shape : Round

Application : Pipe Fitting

Color : Yellow

Feature : Corrosion Resistant, Durable, Fine Finished

Condition : New

Finishing : Polished

Packaging Type : Corrugated Box

Size : Standard

Usage/Application : Hydraulic Hose Fitting

Material : Mild Steel

Surface Finishing : Polished

Country of Origin : India

Type : Pipeline Pigs

Material : Pu

Color : Red, White

Feature : Durable

Pattern : Plain

Country of Origin : India

Type : Pipeline Pigs

Color : Blue, Red, Yellow and Red

Feature : Durable

Pattern : Plain

Condition : New
