Nivz Valves & Automation Nikol, Ahmedabad, Gujarat

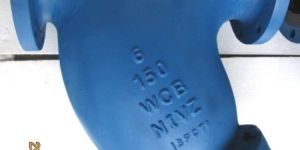

Boltd Cover Y Type Strainer Manufacturing Size Range:  DN25/25mm/1"/One Inch, DN32/32mm/1-1/4"/One and Quarter Inch, DN40/40mm/1-1/2"/One and Half Inch, DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch, DN150/150mm/6”/Six Inch, DN200/200mm/8”/Eight Inch, DN250/250mm/10”/Ten Inch, DN300/300mm/12”/Twelve Inch, DN350/350mm/14”/Fourteen Inch, DN400/400mm/16”/Sixteen Inch, DN 450/450mm18”/Eighteen Inch, DN500/500mm/20”/Twenty Inch, DN550/550mm/22”/Twenty Two Inch, DN600/600mm/24”/Twenty Four Inch Size and big more large size of strainer can manufacture and supply on order basis. A Strainer is basically mechanical product which has a provision to remove hard particle of pipe line subject to selection of perforated punched hole sheet or wire mesh degree of filtration, pipe line process media can be in form of liquid or gas. Y Type strainer is a one types of filter – strainer which uses to remove a foreign particle of industrial process line. As a design look of this Strainer is English Alphabet Y shape, so it is called a Y Type Strainer and the same also familiar by the name of Y Type Filter too. Selection of Strainer is base on Net Filtration Area; however net filtration is more pressure drop less. General practice minimum 3 times filtration area is required to proper function of strainer and reduces cleaning time. For special viscous media filtration area will increase for satisfactory performance of strainer. Bolted Cover Y Type Strainer has inside perforated sheet duly wire mesh lined & spot welded cylindrical shape heavy duty element, if it cleans media above 200 Micron then called Strainer and Filtering finer than 200 micron it is a Filter. In both case body material of y strainer remain same just inside wire element change as per customer required degree of filtration or mesh size. Selection of wire mesh size is very important for a life of Y Strainer element and process equipment. Over fine mesh results frequent clogging, overload on wire mesh element, reduce life of element and pressure drop increase of pipe line. In case of course selection it damage costly equipment and meaningless to install strainer. Advantages of use Y Strainer is to save and increase a life of Pump, Pressure Equipment, Mechanical Seals, Expensive Control Valves, Pressure Reducing Valve, Flow Meter and gives foreign particle less final product. An advantage to Y strainer is, it can be mount in either vertical or horizontal but in both case cover portion must be on down side to collect foreign particle and easy to clean at time of cover opening. Nivz each Bolted Cover design Y Strainer have provision of blow down plug at cover which allow to clean cylindrical screen element without removing from body and without disturbing a process. Nivz Valves & Automation manufacturing of y type strainer in broad combination of body materials, pressure rating and screen mesh size. Nivz Y Type Strainer Manufacturer - Exporter, Supplier, Stockist, Bolted Cover Y Strainer, Y Type Filter,  SS304L, 316L, Duplex Steel, Super Duplex Steel, Alloy 20, Hastelloy C22, Hastelloy C276 Material Y Type Strainer in Flanged End, Quick Open, Low Pressure Drop Y Strainer. Our product range cover Duplex Steel - D2205 / 4A, A 890 GR 5A, 1.4470, 1.4462, CD4MCU, Hard Rubber Lined, Steam Jacketed & Fabricated body Y Type Strainer for high filtration area.

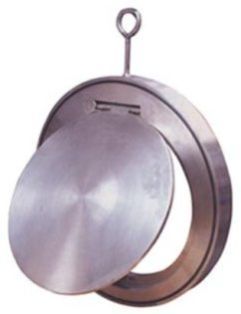

Nivz Check Valves type combines a simple but robust construction with reliability. They are specially designed and developed for applications where a low pressure loss is essential. Nivz Wafer Type Swing Check Valve has short face to face dimensions and low weight allows a simple space saving installation between the companion flanges. The valves are suitable to mounting between weld neck or slip on plate type companion flanges of different standards. The short face to face dimensions and the low weight guarantee a simple and space saving installation between the bolts of the connecting flange. The eccentric disc shaft connection in combination with the disc seat guarantees positive shut-off of the returning medium. Wafer check valves are becoming the preferred type of check valve for most applications, due to their compact design and relatively low cost. Nivz Valves a leading Wafer Type Swing Check Valve Manufacturer, Flangeless, Sandwich Type, Single Plate Check Valve Exporter, Stockist, Supplier Wafer Type Check Valve also can avialble with Spring Loaded version on spcific request.

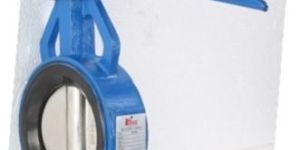

Nivz Wafer Type Center Disc Rubberlined Zero Leakge Butterfly Valve have been developed with extensive application, design and manufacturing expertise. Nivz High Performance Slim-Seal, Concentric design Butterfly Valves are reliable, maintenance free shutoff with permanently gas-tight seal with an integrally moulded elastomer body liner. Nivz Butterfly Body having two nos. flange locating holes for sizes up to 12” and from size 14” and above 04 nos. for easy alignment of valve during installation. Flange locating hole confirm to as per ANSI B 16.5 Class 125 & Class 150 / BS 10 Table “D”, “E”, “F” / PN 6, PN 10, PN 16 or other international standard. Nivz High performance butterfly valves are also available with Full-Lugs type body with raised faces and flanged ends connection on request. Nivz Butterfly Valves are Wafer Type, Slim-Seal design, center disc, maintenance free shutoff. This wafer butterfly valves excess other conventional valves such as gate valve and globe valves in all aspects, especially in terms of light weight, less number of component, no flange gaskets required and economical operation and maintenance costs. Nivz Slim Seal design flangless sandwich type Butterfly Valves body seat mechanism have a very low torque, tight shut off with zero leakage, compact actuator selection, and long life smooth easy operation. The slim-seal, center disc design valves are widely available with different combination of body, seat & disc materials to satisfy the need of most industrial application. We manufacture and exporting zero leakge concentric disc butterfly valve with variety of elastomer rubber seat to suit various industrial application. Our seat range of elastomer covers EPDM, NBR, Buna-N, Nitirle, Silicon, Viton, Hypalon, PTFE, FEP, PFA etc. Our Size range of Butterfly Valve cover up to 24" (DN600) Size. Nivz Valve & Automation also manufacturing butterfly valves in special grade of material like Alloy20, Nickel Aluminium Bronze, NAB2, Hast Alloy C22/276, Monel, SS304L, SS 316L, SS317L & Super Duplex Steel for Sea Water & Corrosive application. We have broad experience of valve in a same field. Nivz suppying valves with Stainless Steel Hand Lever, Stainless Steel Gear & Stainless Pneumatic Actuator body for very corrosive application on customer special requirement. Butterfly Valve Various Operation Option Nivz make Slim seal design center disc zero leakge wafer type body Butterfly Valves are generally supplied with manual flow control hand lever operation up to 8”(DN200) and above size valve quarter turn worm gear unit operated. Nivz Valves & Automatin also offering Butterfly Valves with either Pneumatic or Motorized Electrical actuator (single phase or three phase) operated for automation. Remote operated butterfly avaliable for ON/OFF as well praportional modulating control function with required all accessories. We are also manufacturing of Quarter Turn Worm Gear Operated Butterfly Valve, Pneumatic Actuated Butterfly Valves, Pneumatic Actuator Operated Rubberlined Butterfly Valves, Double Acting Actuator Operated Center Disc Butterfly Valve, Single Acting Spring Return Actuator Operated Wafer Type  Butterfly Valve, Electrical Actuator Operated Butterfly Valve, Motorized Butterfly Valve, Remote Operated Butterfly Valve, On-Off Butterfly Valve, Butterfly Control Valve, Modulating Type Butterfly Valve, We can do provide any of automation in Butterfly Valve.  We have more then 17 years of experience industrial process system field automation. Butterfly Valve can also available with accessories like Gear Box, Solenoid Valve, Air Filter Regulator, Silence, Manual Override, Valve Positioners, Relay etc. We are one of the leading Butterfly Valve Manufacturers Exporters Supplier Stockiest in India. Nivz Valves a best quality Wafer Type Butterfly Valve Manufacturer, Stockist, Supplier, Exporter, Importer. Rubber Lined, Elastomer Rubber Seat, Resilient, Concentric, Center Disc, Flangeless, Sandwich Body, Slim Seal Design. Butterfly Valves. Butterfly Valve Tightness Check EN 12266 (Leakage Rate A) ISO 5208, Category 3 API 598 Table 5 ANSI B 16-104, Class VI Salient Features of Wafer Body Center Disc Butterfly Valve Concentric, Slim-Seal Design Greater Sealing Capacity Soft Seat Design Lower Torque with any fluid Permanently tight closure Bi-Directional Valve Optimum operation under Vacuum Condition Suitable for On-off as well as Throttling Service Materials for almost all media Short Face To Face Dimension Wafer Design Body Long Service Life Smooth, Easy Operation Maintenance Free Version Less Weight, Easy To Install Leakage Class VI (Zero Leakage) Application of Wafer Body Center Disc Butterfly Valve Water Treatment Plant Paper Industry Sugar Industry Breweries Chemical Industry Waste Effluent Treatment Plant Drilling Rigs Gas Plant Cooling Water Circulation Heating & Air Conditioning Pneumatic Conveyors Compressed Air Cement Plant Air Silo

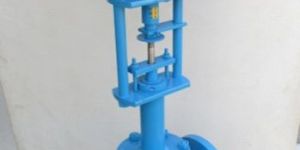

Three Way Globe Valve Body as per Design Standard BS 1873/ASME B 16.34/DIN EN 13789End Connection - Flanged End, Pressure Rating - 150# / 300# / 600# / PN16 / PN25 / PN 40 / PN64 / PN100Three Way Globe Valve Operation - Hand Wheel / Pneumatic Cylinder / Spring and Diaphragm Type Actuator Operatd / Electrical Actuator Operated / Motorized Actuated Spring and Diaphragm Actuator Operated 3 Way Pneumatic Globe Valve (Diverting Type) - Model: 3WDCV-DSpring and Diaphragm Actuator Operated Pneumatic 3 Way Globe Valve (Mixing Type) - Model: 3WDCV-MMotorized Electrical Actuator Operated 3 Way Globe Valve (Diverting Type) - Model: MOV15/3WDMotorized Electrical Actuator Operated 3 Way Globe Valve (Mixing Type) - Model: MOV15/3WMPneumatic Cylinder Actuator Operated 3 Way Globe Valve (Diverting Type) Model Series: 3WPCV-DPneumatic Cylinder Actuator Operated 3 Way Globe Valve (Diverting Type) Model Series: 3WPCV-M Three Way Globe Valve Manufacturing Size Range:  DN25/25mm/One Inch, DN40/40mm/One and Half Inch, DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch, DN150/150mm/6”/Six Inch, DN200/200mm/8”/Eight Inch, DN250/250mm/10”/Ten Inch, DN300/300mm/12”/Twelve Inch size and more can manufacture and supply on request. Nivz make steam, water, thermicl fluid hot oil, chilled water, cooling waterm, gas, chemical application Three Way Globe Valves are Bolted Bonnet Construction, Flanged End, Rating Class 150/300/600. 3 Way Globe valve body seat ring is shoulder type, threaded body seat ring which has large taper area that is for ample seating. Two nos. slots are provided on body seat ring, which is for easy removal for servicing at site. Welded type seat ring or Integral seat ring are also available in on request. All Globe Valve stem is made from solid one piece construction. The standard range of Nivz 3 Way Globe Valve is sizes from 1/2" (DN15) to 12” (DN300). We are manufacturers and exporters of Mixing Type 3 Way Valve, Diverting Type 3 Way Valve, 3 Way Ball Valve, L Port 3 Way Ball Valve, T Port 3 Way Ball Valve, Three Way Globe Valves. Our manufacturing range covers, Steam Globe Valve, Jacketed Globe Valve, Extended Bonnet Globe Valves in material of ASTM A 216 GR. WCB/ASTM A 352 GR. LCB/LCC/ASTM A 351 GR. CF8/CF8M/CF3/CF3M/CN7M Globe Valve, Duplex Steel, Hastelloy, Alloy 20 Globe Valve Exporter.

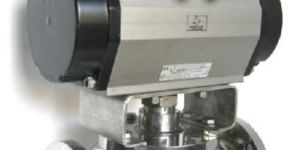

3 Way Multiport Ball Valve Manufacturers Mixing and Diverting type Three way L and T Port Full Bore Ball ValveEnd Connection - Flanged End, Pressure Rating - Class 150 / 300Valve Operation - Manual Hand Lever / Worm Gear / Pneumatic Rotary Quarter Turn Actuator 3 Way T Port Ball Valve Class 150 / 300 Series: F308T / F408T (Four Seat Supported, Square Body) Size - 1/2" (DN15) to 8" (DN200).3 Way L Port Ball Valve Class 150 / 300 Series: F508L / F608L (Two Seat Supported, Round Body) Size - 1/2" (DN15) to 12" (DN300) 3 Way (Three Way) Ball Valve Manufacturing Size Range:  DN25/25mm/1"/One Inch, DN32/32mm/1-1/4"/One and Quarter Inch, DN40/40mm/1-1/2"/One and Half Inch, DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch, DN150/150mm/6”/Six Inch, DN200/200mm/8”/Eight Inch, DN250/250mm/10”/Ten Inch and DN300/300mm/12”/Twelve Inch Size. Nivz Valves & Automation offers a tremendous value in Three Way Ball Valve. 3 Way Ball Valve is a Specialty of “Nivz”, a leading manufacturer, supplier and exporter of Ball Valve and Actuation. We have a wide Range/Model of Three Way Ball Valve in Carbon Steel, Stainless Steel, Cast Iron and others metal on special request. Our 3 Way Ball Valve selection covers Full Port, Flanged End with Manual Hand Lever, Gear Box, Pneumatic, Electrical Actuator Operation. Three way ball valves have an L or T Shaped Port Hole through the middle for suitable service condition. The different combinations of flow are shown in the figure. It is easy to see that a T valve can connect any pair of ports, or all three. Mixing and Diverting Type Three Way Ball Valves are also available. The L valve can connect the center port to either side port, or disconnect all three, but it cannot connect the side ports together. Nivz 3 Way Ball Valve features Four/Two seats for equal seat loading. Multiple Gland Packing V Seal & Spring Tension Washer gives zero leakage from gland portion. Our 3 Way Ball Valves are best suitable for all industrial applications. Nivz 3 Way Ball Valve application covers for Lube Oil Cooler 3 Way Ball Valve, Lube Oil Filter 3 Way Ball Valve, Duplex Heat Exchager 3 Way Ball Valve, Duplex Type Basket Strainer 3 Way Ball Valve, Duplex Filter 3 Way Ball Valve, Mixing and Diverting Type 3 Way Ball Valve, Multiport 3 Way  Ball Valve, Pump By-Pass Line 3 Way Ball Valve, Diverter 3 Way Ball Valve, Extened Stem 3 Way Ball Valve & Jacketed 3 Way Ball Valve can also available on special request. For screwed end type we provide BSP/BSPT/BSPP/NPT Female Thread as per customer choice. Socket weld end Nipple End Valve also can manufactuing on order basis. Multipor Valve available in Cast Carbon Steel (C.S - ASTM A216 GR. WCB), S.S. 304/316/304L/316L (ASTM A 351 GR. CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel - LTCS (ASTM A 352 GR. LCB/LCC), Alloy 20, Monel and Others of request. 3 Way Ball Valve application is for Mixing, Diverting & Blending. Our manufacturing range of 3 Way Ball Valve starts from size 1/2" to 12", Pressure Rating - 150# / 300# / PN10 / PN16 / PN25 / PN40 / PN64. Nivz all 3 Way  Ball Valves are supplieed with PTFE V Ring gland packing for long life zero leakages from gland area. For High Pressure application and Oil-Gas application we also do provide Fire Safe type design for better performance of valve. Nivz multiway ball valves are satisfactory perfrom in various Power Plant in Lube Oil Cooler and Filter Application. This application covers both valves operate by single Hand lever or Gear mechanism, Lube Oil cooler can be vertical or horizontal position and center distance between both valve up to 5 meter. Our lube oil 3 port valve performs at present in three Captive Power Plant at Cement Industries (major install by Thermax Ltd. / HTC China), one in KSK Power Energy and one more in Godavari Green Energy Ltd. Satisfactory performance report give by customer. Nivz Valves & Automation Three Way Ball Valve Manufacturer, 3 Way Ball Valve Exporter, Supplier, Stockist, Importer. L Port / T Port / Diverter Type / Multiway / Multiport / Lube Oil Filter / Lube Oil Cooler Changeover Ball Valve with Pneumatic Rotary Actuator, Motorized and Electrical Actuator Operated.

Nivz make Thermal relief valve is being use to relieve the pressure, which is generated by increasing in the liquid volume caused by an increase in temperature. Thermal relief valve also used at Pipe Line, Pressure Vessel or Tanks to relief a pressure which generated by Thermal Expansion. Nivz Valves & Automatino Thermal Relief valves manufacturing range start from ½” (15NB) Size to 2” (50NB) Size. Manufacturing Size Range of Threaded End Connection Pressure Thermal Relief Valve 1/2" x 3/4" (DN15 x DN20) 3/4" x 1" (DN20 x DN25) 1" x 1" (DN25 x DN25) Manufacturing Size Range of Flanged End Connection Pressure Thermal Relief Valve 1/2" x 3/4" (DN15 x DN20) 3/4" x 1" (DN20 x DN25) 1" x 1-1/2" (DN25 x DN40) 1-1/2" x 2" (DN40 x DN50) 2" x 3" (DN50 x DN65) All types of Thermal Relief Valve Manufacturer, Pressure Relief Valve Exporter, Safety Relief Valve Stockist, Importer by Nivz Valves and Automation.

These types of valve (Non Return Valves) are used to stop back flow to the upstream side of the valve. The design of Check Valve (Non Return Valve) is very simple. A hinged door is placed inside the Swing Check Valve body. With the pressure coming upstream the door is held open; when pressure increases on the downstream side, it forces the door to valve close, stopping any back flow. Mostly all pump discharge line check valves being used. Swing type check valve is performing in vertical and horizontal both line. Lift check valve have have vertical and horizontal both type of design to suit as per line. Nivz Flanged End, 150# & 300# Check Valves are Swing Check type and the 800# class check valves are Piston Type Lift Check Valves. The piston type valve works up and down providing a strong, firm seal under high pressure conditions.Nivz all check valves are self actuating type. Nivz Valves & Automation manufacturing & exporterting of variety of Industrial Check Valve (Non Return Valve) to suit various industrial application and requirments. Our range also cover Steam Jacketed Swing Check Valve, Full Jacketed Non Return Valve for molten sulphur, asphalt, coltar, bitumen etc for any sticky and viscous media. Nivz make Double Flanged End Swing Type Check Valves - Non Return Valve are Swing type disc and Bolted cover design Construction. The one piece disc body construction is securely fastened to the hinge by means of a lock nut & pin. The Disc is free to rotating type to avoid any other wear. The hinge pin offers excellent wear resistance properties. Swing Check Non Retrun Valves also can be supplied with Titling disc design, Dash pot arrangement and outside lever & weight design for use where control of the disc is desires. Swing Non Return Valves can be mounted on Horizontol & Vertical both line. Nivz Valves & Automation also manufacturing P.T.F.E. (PFA / FEP) Lined Ball Type / ”Y” Type & Rubber Lined Flap Type Check Valves for high corrosive application. We have facility at our works for supplying of valves with 3rd Party Inspection i.e. Bureau Veritas  / BV, TUV, DNV, SGS, IRS, PDIL, LLOYDS, TATA and others on request. An ISO 9001 certified quality Swing Type Check Valve Manufacturer, NRV, Swing Type Non Return Valve, Exporter, Supplier, Stockist. Duplex Steel, Super Duplex Steel, Alloy 20, Hastelloy C22, C276, Austenitic Stainless Steel Material Check Valve Manufacturers. Salient Features of Swing Type Non Return Check Valve Body & Cover made from high quality casting with liberal sections. The castings are precision machined for high performance of valve. Bolted Cover design Body Seat Ring & Disc machined to close Tolerances providing smooth action and accurate seating. Seat Ring sealweld to the body Replaceable (Renewable) type Seat Ring & Integral Seat can also available on special request. Stellited Hard Face F6 Seat Ring & Disc also supply on requirement. All the disc have double lock nut or cotter pin fixed In built wear life for long duration of service.

Nivz Spring Loaded Disc Check Valves - Non Return Valve feature a wafer type, compact and rugged design Cast Carbon Steel (ASTM A 216 GR. WCB) or Stainless Steel (ASTM A 351 GR. CF8/CF8M/CF3/CF3M/SS304/SS316/SS304L/SS316L) construction and are suitable for any process liquid, air, gas, steam etc. The Single Disc Check Valve (Wafer Type Single Disc Check Valve) consists of four main components: the body, a disc, a star guide and a spring. The Disc check valves are opened by the pressure of fluid and closed through compression spring as soon as flow stops thus preventing reverse flow. The design of Wafer Design, Sandwich Type, Flangeless Single Disc Spring Loaded Check Valves allows them to be installed between any flanges of different standard and in any position; including vertical pipelines where the fluid flows downwards. Wafer Type Spring Loaded Disc Check Valves is also available with Zero Leakage by the use of Soft Seat. Nivz Valves & Automation has cover Disk Check Valve up to 6” (DN150) Size and Pressure Rating up to PN40. Nivz Valves a leading Spring Loaded Disc Check Valve Manufacturer, Disc Check Valve Exporter, Stockist, Importer, Supplier. Flangeless - Wafer - Sandwich Type Disco Check Valves, Non Return Valve -    Salient Features of Disc Check Valve Investment Casting Body Construction Compact & Rugged Design Stronger, Lighter and Smaller than Conventional Swing Check Valve, Hence Less Expensive to Install and Maintain Single Disc Type Spring Loaded Disc to Prevent Reverse Flow in Pipe Lines Easy To Installation between Two Pipe Flanges Metal To Metal or Soft Seat option Maintenance Free Design Zero Leakage (In Soft Seat) Full Port Opening Less Pressure Drop Wafer, Flangeless, Sandwich Type Shorter Length, Required minimum space Offer any 3rd Party or Client Inspection

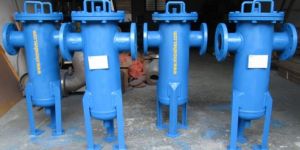

A Strainer is basically mechanical product which has a provision to remove hard particle of pipe line subject to selection of perforated punched hole sheet or wire mesh degree of filtration, pipe line process media can be in form of liquid or gas. Baket Type strainer is a one types of filter – strainer which uses to remove a foreign particle of industrial process line. Inside element of strainer body element shape is like a basket so it called Basket Type Filters & Strainers. Selection of Strainer is base on Net Filtration Area; however net filtration is more pressure drop less. General practice minimum 3 times filtration area is required to proper function of strainer and reduces cleaning time. For special viscous media filtration area will increase for satisfactory performance of strainer. Nivz bucket type strainers remove damage causing particulate matter from the process media, protecting system components such as flow meters, pumps, mechanical seals and spray nozzles. Basket type filter feature top removal of the screen. The screen is in the form of a basket, with a lifting handle, so that all particulate captured and retained by the screen can be easily removed for disposal. The particulate matter is captured in the strainer basket. The line is then temporarily shut down and the basket removed for cleaning or replacement. Advanced dynamic flow path and large filtration area elements ensure low pressure drops and reduced maintenance periods. These strainers reduce downtime for cleaning due to their construction of bolted cover and easy removal of screen. They are ideal for very fine straining. Nivz manufacture basket type strainer with high filration area which help to reduce pressure drop and less clearning period. We have broad experience to Manufacture, Export and Supply of Industrial Y Type, Basket Strainer - Filter in application of Chemical, Oil, PNG, LPG, CNG, Gas, Petrochmical, Hot Oil, Lube Oil, Water, Air media with Differential Pressure Gauge. We exported our manufacturing range of Basket type Strainers to country Saudi Arabia, United Arab Emirates, Iran, Egypt, Indonesia, Jordan, America, Australia, Zimbabe, Tanzania, Mobaza, Dar Es Salaam, Luxembourg, Lime Peru, Japan, Pakistan, Sri Lanka, Nigeria, Vietnam, Romania, Scotland, Kuwait, Malaysia, Qatar, Iraq, Thailand, Cuba, Singapore, Mexico, South Africa, Kenya, Yemen, Bahrain, Philippines, Zambia, Australia, Poland, New Zealand, Switzerland, Oman, Holland, Portugal and Belgium. Nivz supply Gun Metal, Bronze, Brass, Duplex Steel, Super Duplex Steel, Alloy 20, Hast Alloy C, A 106 GR. B, IS 2062, A 516 GR. 60-70, Carbon Steel NACE MR0175 Standard Casted Body Strainer also do manufacuring and exporting by Nivz. Basket Type Strainer cover options are Bolted Cover, Davit Arm, Hinged Cover and Quick Open Type in Fabricated Body Basket Strainer. Nivz Valves & Automation manufacturing of basket type strainer in broad combination of body materials, pressure rating and screen mesh size.

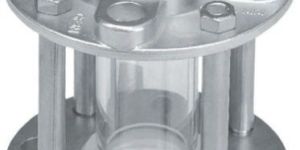

Sight Flow indicators - Sight Glass is used for monitoring flow in pipelines for a wide range of applications. Nivz Sight Glass suitable for various rugged industrial applications. These Sight Flow Indicators are bi-directional type and easy to install in any orientation. Sight Glass - Sight Flow Indicators provides a quick, reliable and economical way to verify the flow of liquids through industrial process pipe lines. Nivz  Tubular Type Sight Glass available with different length of glass from 4” (100mm) to 8” (200mm) long. Nivz Sight Glass - Sight Flow Indicators has been designed with outstanding quality and the feature you need to streamline your operations. Full view types Sight Glass - Sight Flow Indicators are widely used for corrosive chemicals, acids and colored liquids. Sight Glass (Sight Flow Indicators) are generally used in processes, where spot required to detect presence of media, or to visual inspect color, clarity, turbidity, or other critical characteristics. Sight Glass can be installed vertically or horizontally in the middle of any kind of non transparent pipeline and are very convenient & easy to observe the flow from any direction. Nivz Valves offer Tube Type Full View Sight Glass, Sight Flow Indicator - Manufacturer, Exporter, Supplier, Stockist, Large View Type Tubular, Toughen, Borosilcate, Soda Lime Glass in Ready Stock   Salient Features of Tubular Type Full View Sight Glass Flow Indicator Easy Maintenance Lower Cost Wide View Area to Inspect the Fluid Tempered Borosilicate glass standard Available in all most all M.O.C. Glass Length available from 100MM To 200MM Sizes Range from 15MM To 200MM Pressure Rating PN 6 Design & Testing As Per Mfg. Standard Flange Drilling as per ANSI B 16.5 / BS 10 Table / DIN / IS Std.

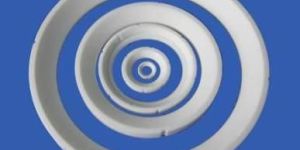

Seat Rings have slots provide to relieve the pressure past the upstream seat and prevent it from being forced against the ball. These type of design help to achieve lower torque and allow high differential pressure and reduce wear, besides extending.

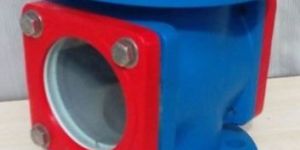

Nivz Valves and Automation a eading Manufacturers and Exporters of PTFE / FEP / PFA / Teflon® lined Sight Flow Indicator with Double Window which available from 1”(25NB) to 6”(150NB). We do manufacturing, exporting and Supplying PTFE-FEP-PFA-Teflon Lined® Double Window Type Sigh Glass in various grade of lining to suit temperature application in Flanged End Connection. Our manufacturing range of PFA-FEP-PTFE Lined Sight Flow Indicator used for corrosion & acidic application. FEP-PFA-PTFE Lined Jacketed Sight Flow Indicator can install in either Horizontal or Vertical Line as per requirement. Wide range of Body Material selection available like Grey Cast Iron, S.G. Iron, Malleable Iron, Ductile Iron, Cast Carbon Steel, Cast Stainless Steel 304 & 316 along with PTFE, PFA, FEP, Teflon®lining. Nivz PTFE Lined Sight Flow Indicator face to face (flange to flange distance) dimension is as per ASME B 16.10 standard and flange drilling as per ASME B16.5, 150 Class. Nivz a #1 Quality FEP, FPA, PTFE Lined Sight Flow Indicator Manufacturer, Exporter, Supplier, Stockist. Mostly  PTFE Lined Sight Flow Indicator available in Ready Stock.

Nivz Valves & Automation manufacturer and exporter of PTFE Lined Butterfly Valves for corrosion & acidic application. Nivz Valves manufacturing plant is located in Ahmedabad, Gujarat, INDIA.  Our PTFE/FEP/PFA Teflon® lined valves are available from 3”(80NB) to 12”(300NB). We also supply PTFE Lined Butterfly Valve with Quartern turn Gear Box, Motorized Electrical Actuator Operated (Single or Three Phase for modulating control as well ON/OFF application with or without manual override) or Pneumatic Spring Return Single / Double Acting Actuator Operated quarter turn valves. Nivz make PTFE Lined Butterfly Valves are compact in size, light-weight and are ideal to use in wide pressure range. They may be used in a wide variety of chemical services; they are superior corrosion resistance over a wide range of corrosive chemicals. Nivz Teflon® lined butterfly valve design is center disc, split body, wafer type, flangeless. Nivz Valve also manufacture lined butterfly valves in various material like SS304L, SS 316L, SS317L, Nickel Aluminium Bronze, NAB2, Hast Alloy C22 - C276, Monel, CN7M/Alloy20,  CD4MCU & Super Duplex Steel for Sea Water & Corrosive media. Nivz suppying valves with Stainless Steel Hand Lever, Stainless Steel Gear & Stainless Pneumatic quarter turn rotary actuator body for very corrosive application on customer special order. We manufacturing and exports soft seated zero leakge centric disc butterfly valve with variety of elastomer rubber seat to suit various industrial application. Seat material of elastomer covers EPDM, NBR, Buna-N, Nitirle, Silicon, Viton, Hypalon etc. Rubber seated butterfly vlave size range of Butterfly Valve cover up to 24" (DN600) Size in wafer, lug and double flanged end type. We are Nivz regsistered brand FEP, PFA, PTFE Lined Butterfly Valve Manufacturer, Exporter, Supplier, Stockist.   Salient Features of PTFE/Teflon(R) Lined Center Disc Butterfly Valve Low Operating Torque Superior control of fugitive emissions Low fluid friction loss Maintenance Free Design Compact Design Compact in size & suitable to use in wide pressure range Lower friction loss & suitable for control applications i.e. dry powder handling system Superior corrosion resistance over a wide range of corrosive chemicals Zero Leakage (Leakage Class VI) Application of PTFE Lined - Seated Butterfly Valve Clean Liquids and Gases Corrosive Liquids and Gases Hazardous Liquids and Gases Dry Materials Food / Pharmaceutical Viscous Liquids Fibrous Slurries

  Nivz Valves & Automation manufacturer and exporter in india of PTFE Lined Ball Valves for corrosion & acidic application. Nivz PTFE/FEP/PFA Teflon® lined valves are available from 1”(25NB) to 6”(150NB) We also supply PTFE Lined Ball Valve with Motorized Electrical Actuator Operated or Pneumatic Actuator Operated quarter turn valves., Nivz PTFE Lined floating ball Ball Valves are two piece design construction with integral stem with ball. Wide range of Body Material selection available like Cast Iron, S.G. Iron, Ductile Iron, Cast Carbon Steel, Stainless Steel 304 & 316 along with PTFE, PFA, FEP, Teflon® lining. PTFE Lined Ball Valve design short pattern face to face dimension is in as per ANSI B16.10 and ANSI B16.5, 150 Class. Application Acid & Chemicals Corrosive Liquids and Gases Hazardous Liquids and Gases Dry Materials Food / Pharmaceutical Viscous Liquids Fibrous Slurries Features of PTFE/FEP/PFA Lined 2 Piece Design Ball Valve Ball with Integral Stem design construction Valve Design Standard confirms to BS EN ISO 17292/BS531/ASME B 16.34 Face to Face as per ANSI B 16.10 Flange Drilling as per ANSI B 16.5/BS 10 Table D or E Manufacturing Size Range 1" to 6" Fully Body + Ball Lined with PTFE/FEP/PFA/Teflon® Body Construction in 2 Piece Construction Minimcum Cavity Body and Full Bore Design Low Operating Toruque Zero Leakage MOC option WCB/Ductile Iron/CF8/CF8M/CF3/CF3M

ivz Valves & Automation manufacturing range all Pressure Safety Relief Valves are designed as per API 526. They also conform to ASME Section – VIII. Dimensions of valves meet to API 521/521. Metal seated Safety Valves Testing is carried our as per API 527 for Set Pressure & Leakages. A Safety Relief Valve is a mechanical, self actuating, pop design, spring loaded angle type valve, which is being used for the automatic release (on a set pressure) of a substance from a Pressure Vessel, Boiler, Overpressure of Pipeline or any Industrial System when the Pressure or Temperature exceeds required limits. Pressure Relief valves also being used to Control the Pressure in an Industrial System, Process Pipeline or Pressure Vessel which can develop by a failure of equipment, instrument or process upset. Safety Valve also known by the name of Pressure Relief Valve (PRV) and Pressure Safety Valve (PSV). Other names of Safety Valves are Safety Relief Valve, Thermal Relief Valve, Relief Valve, Spring Loaded Safety Valve, Angle Type Safety Valve, Pilot Operated Safety Relief Valve and Low Pressure Safety Relief Valves. The difference in between Pressure Safety Valve (PSV) and Pressure Relief Valve is Pressure Safety Relief Valve have provided a manual lever with a cap to relieve the pressure in case of emergency. Mostly two types of protection encountered in Industries which are Flow Protection & Thermal Protection. Flow protection is done by the using of Safety Relief Valves and Thermal Protection by Thermal Relief Valve. Safety Relief Valve Application Oil & Gas Application Chemical & Petrochemical Plant Boiler & Steam Pipe Line Power Plant Thermal Relief Application Fertilizer Plant Pressure Vessel/Reactor/Tanks Fire Fighting Plant Pressure Reducing System/Station Cryogenic Services

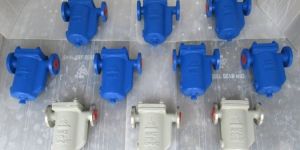

Nivz Pot Type Casted Body Basket strainer remove damage causing particulate matter from the process media, protecting system components such as flow meters, pumps, mechanical seals and spray nozzles. The particulate matter is captured in the strainer basket. The line is then temporarily shut down and the basket removed for cleaning or replacement.  Nivz Valves & Automation manufacturing Basket Type construction with suitable material. Basket filter provide ease of cleaning the element without interruption to the process. Simplex basket filters in cast construction are called pot strainers or bucket strainer. Filters are manufactured up to 8” NB (DN200) size and filtration down up to 5 micron. Low press drop, large dirt holding capacity, ease & low cost of maintenance are some special features of Flair Basket Filters. These strainers reduce downtime for cleaning due to their construction of bolted cover and easy removal of screen. Self cleaning type basket filter also do manufacturing by Nivz Valves & Automation. Nivz Valves a leading Pot Type Simplex Basket Strainer Manufacturer, Cast Steel Body Basket Strainer Exporter, Supplier, Stockist, Importer, Pot Type Strainer - Filters.   Salient Features of Pot Type Simplex Basket Strainer (Cast Body) Compact Size and Medium weight Large dirt holding capacity, long cleaning cycle time. Low pressure drop across the filter Adequate strength of element and housing Permits rapid servicing i.e. ease of cleaning or replacing the element Low cost – Initial as well as service cost Component or parts suitable for and compatible with hydraulic fluid concerned. Interchangeability of component with another of same type.

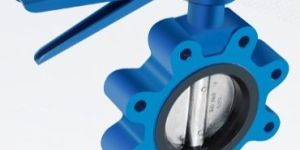

Full Lug Body Pattern Butterfly Valve Design Standard - BS 5155 / API 609 / AWWA C 504End Connection - Flangeless, Sandwich Pattern, Lug Body (mounting between two flanges)Pressure Rating - PN10 / PN16 / 150# Manufacturing Size Range of Lug Type Butterfly Valve:  DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch, DN150/150mm/6”/Six Inch, DN200/200mm/8”/Eight Inch, DN250/250mm/10”/Ten Inch, DN300/300mm/12”/Twelve Inch, DN350/350mm/14”/Fourteen Inch, DN400/400mm/16”/Sixteen Inch, DN 450/450mm18”/Eighteen Inch, DN500/500mm/20”/Twenty Inch, DN550/550mm/22”/Twenty Two Inch, DN600/600mm/24”/Twenty Four Inch Size and more big size of Butterfly Valve can manufacutrer on order basis. Slim Seal Design, Center Disc, Lug Type Butterfly Valve Flow Control Lever Operated - Model Series: LBFSP1/6Slim Seal Design, Center Disc, Lug Type Butterfly Valve Gear Operated - Model Series: LBFSP1G/6GSlim Seal Design, Center Disc, Lug Type Butterfly Valve Pneumatic Actuator Operated - Model Series: LBFSP1P/6P   Nivz Valves Lug Type Butterfly Valve body seat design have a very low torque, tight shut off with zero leakage, which is very useful to select compact model of actuator, and long life smooth easy operation. The Lug type, center disc design, rubber lined Butterfly Valves are widely available with variety of body, seat & disc materials to suit most industrial application. Lug Type Butterfly Valve is available size from 1-1/2” (40MM) to 24” (600MM) in various body, disc & seat materials. Center Disc Lug Type Butterfly Valves also available with Worm - Gear, Pneumatic Actuator or Electrical Actuator Operated. Our Lug Type Center Disc Butterfly Valves are always manufactured with the strongest, durable and long-life materials, like: Stainless Steel 304/316/304L/316L/317/317L, Carbon Steel/Low Temperature CS, Ductile Iron, Cast Iron, Aluminum, AB2, Aluminum Bronze, Duplex Steel, Super Duplex Steel, Hast Alloy C/22, Alloy 20 etc and more available in different metal. We have wide experience to supply of Butterfly Valves in a Sea Water, Corrosive Chemical, Cooling Water, Effluent Plant, Raw Water and DM Plant. The difference between a Wafer and Lug type body Butterfly valve is only the provision of mounting of valve at pipeline. Lug type valve has lugs that are used to mount the valve to lugs that are attached the flanges on then ends of sections of pipe so that each length of pipe can be removed and replaced independently. Lug Type Butterfly Valve have main advantage is you can disconnect any flange of pipeline. Lug Type Butterfly Valve Various Operation Option Nivz make Zero Leak, Center Disc, Slim seal design, full lug type body Butterfly Valves are mostly with flow control hand lever operation up to 8”(200MM) and above size of valve with quarter turn worm gear operated. We also manufacturing Butterfly Valves with either Pneumatic or Electrical Motorized actuator (single phase or three phase) operated for plant automation. Remote operated butterfly valve also avaliable for ON/OFF as well praportional modulating control function with accessories on order. Our manufacturing range covers Quarter Turn Worm Gear Operated Full Lug Type Body Butterfly Valve, Pneumatic Actuated Lug Type Butterfly Valves, Pneumatic Actuator Operated Rubberlined Center Disc Lug Type Butterfly Valves, Double Acting Actuator Operated Wafer Lugged Body Pattern Butterfly Valve, Single Acting Spring Return Actuator Operated Butterfly Valve, Electrical Actuator Operated Fully Threaded or Drilled Lug Type Butterfly Valve, Motorized Lugged Butterfly Valve, Remote Operated Lug Type Butterfly Valve, On-Off application remote type Log body Butterfly Valve, Butterfly Control Valves, Modulating Type Butterfly Valves. Nivz valves have basic all to provide any types of automation in Butterfly Valve.  We have more then 17 years of experience industrial process system field automation. Lug Butterfly Valve can also available with accessories like Gear Box, Solenoid Valve, Air Filter Regulator, Silence, Manual Override, Valve Positioners, Relay etc. We are one of the leading Butterfly Valve Manufacturers Exporters Supplier Stockiest in India. Nivz Valves Lug Type Butterfly Valve Manufacturer, Exporter, Stockist, Importer, Supplier. Wafer Full Lug Body, Concentric, Center Disc, Flangeless, Slim Seal Body Design, Elastomer Rubber Seated Butterfly Valves. Salient Features of Lug Type Body Butterfly Valve Concentric, Slim-Seal Design Greater Sealing Capacity Soft Seat Design Lower Torque with any fluid Permanently tight closure Bi-Directional Valve Optimum operation under Vacuum Condition Suitable for On-off as well as Throttling Service Materials for almost all media Short Face To Face Dimension Wafer Design Body Long Service Life Smooth, Easy Operation Maintenance Free Version Less Weight, Easy To Install Leakage Class VI (Zero Leakage) Application of Lug Type Body Soft Seat Butterfly Valve Water Treatment Plant Paper Industry Sugar Industry Breweries Chemical Industry Waste Effluent Treatment Plant Drilling Rigs Gas Plant Cooling Water Circulation Heating & Air Conditioning Pneumatic Conveyors Compressed Air Cement Plant Air Silo

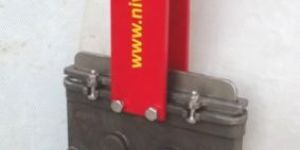

Knife Gate Valve mostly uses to handle powder; high viscous or slurry type thick media service to cut throughout and close the valve. Nivz Valves & Automation is Knife Gate Valve manufacturers and exporters in Unidirectional and Bi-Directional type, Rising Stem and Non-Rising Stem with Metal to Metal Seat & Soft Seat which mostly use in service of Isolation and On-Off service. The valve sliding plate (gate) has knife edge, so it is called Knife Gate Valve or Knife Edge Gate Valve which both are same. Previously it was mostly use in service of Powder, Slurry, Pulp and Paper Mill now it use in many more industrial applications. Some user also asks for Slide Gate Valve in place of Knife Edge Gate Valve. Nivz Valves & Automation and leading manufacturer and exporter of valves to Dubai, Kuwait, Kingdom of Saudi Arabia, Jeddah, Jubail, Malaysia, Thailand, Singapore, Australia, Brazil, Italy, Romania, Azerbaijan, Sharjaha, Abu Dhabi, United Arab Emirates, Egypt, Turkey, Sri Lanka, Yemen, Pakistan, Bahrain, Indonesia, Zambia, Uganda, Netherlands, Philippines, Vietnam, Dominican Republic, Oman, West Africa, Finland and Jordan. Knife Edge Gate Valve has very simple construction and assembly is with very few parts like Body, Knife Gate, Seat, Gland Flange, Gland Packing and Yoke - Bonnet Assembly. Each knife gate valve body design is single piece casted heavy duty construction, slide gate plate grinded with lapped and seat integral with body or renewable type as customer request.   Knife Gate Valve use of application in Corrosive Service, Pulp - Paper Mill, Abrasive Slurry, Power Plant, Steel Plant, Mining & Mineral Plant, Dry Material Handling, Sugar Mill, Cement Industries, Waste Water Treatment Plant, Process Chemical Plant and others. For more detail specification data sheet, technical data sheet, cross section drawing, product catalogue, operation and maintenance manual of Knife Edge Gate Valve contact us. Nivz manufacture knife gate valve with Manual Hand Wheel Operated, Pneumatic Cylinder Operated, Motorized Actuator Operated, Electrical Actuator Operated, Hydraulic Cylinder Operated, Worm Gear Operated and Chain Wheel Type Gear Operated. Knife Edge Gate Valve Material of Construction Body Design – Unidirectional and Bi-Directional (flow can be from either or side) Body Construction – Single Piece Casted, Rugged, Heavy Duty  Knife Gate – Knife Gate Plate supply in Stainless Steel (S.S.) 304/316/304L/316L, other special grade on request. Knife Gate both side fully machined, grinded, buffed and lapped at seat contact side with beveled edges to extend life of Gland and Seat. Stem – Single Piece from heavy duty round bar with quality square thread and brass or gun metal stem nut to extend life of stem. Seat –   Integral Metal to Metal seat as per MSS SP-81 Standard Renewable Type Seat: Elastomer, Rubber Seat (NBR, EPDM, Nitrile, Neoprene, Viton, Silicon Rubber O-Ring) Renewable Type Seat: PTFE (Teflon) Soft Seat Deflection cone with Stellite Hard Face – F6  Port Opening – Full Round Port / V – Notch Type

A single stoppage for all types of Industrial Jacketed and Non Jacketed Ball, Plug, Flush Bottom, Globe, Gate, Swing Check, Non Return Valve, Y Type Strainer, Basket Type Strainer, Double Window Type Sight Glass and Double Window Sight Flow Indicator Manufacturer, Stockist, Supplier, Exporter & Import by Nivz Valves. Jacketed Ball Valve, Thermal Hot Oil, Steam Jacketed Valve Manufacturers, Molten Sulfur, Sulphur, Coal Tar, Pitch, Bitumen, Asphalt, Resin, Polymer Valves, Thermic Fluid Oil Jacketed Valve Exporters, Hot Oil Jacketed Valve Stockist, Therminol Jacketed Valve Suppliers and Thermal Oil Jacketed Valve Importers.

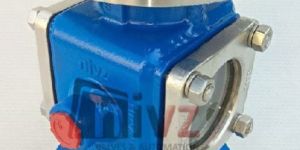

Cast Heavy Duty Body Design as per ASME B 16.34/BS EN 12516-I StandardEnd Connection - Flanged End, Raised FacePressure Rating - 125# / 150# / 300# / PN6 / PN10 / PN16 / PN25 / PN40Flange Drilling - As Per ASME B16.5 / PN10 / PN 16 / PN25Jacketed Sight Flow Indicator and Sight Glass Manufacturing Range - DN25/25mm/1"/One Inch, DN32/32mm/1-1/4"/One and Quarter Inch, DN40/40mm/1-1/2"/One and Half Inch, DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch, DN150/150mm/6”/Six Inch, DN200/200mm/8”/Eight Inch, DN250/250mm/10”/Ten Inch, DN300/300mm/12”/Twelve Inch and more big size on order basis.  Jacketed Sight Flow Indicator (Size 1" to 4" - Investment Casting Body) - Model Series: FJKDW16Jacketed Sight Flow Indicator (Size 5" to 12" - Fabricated Body) - Model Series: FJKDW16   Jacketed Sight Flow Indicator is a very easy assembly of two glasses on single piece body at two opposite size, on average body looks like a cross and it has two side flanges as per customer requested flange dimensions and another two side installation of round toughened, soda lime or tampered borosilicate glasses. As the body have two sides inspections view arrangements by the help of glass window so it is called as Double (Dual) Window Type Sight Glass Flow Indicator, after that providing a Steam or Hot Oil Jacket to maintain temperature during process and to keep fluids at a lower viscosity to flowing media smoothly and we can check easily. By the use of very few parts total assembly of double window type jacketed sight flow indicator complete.  Jacketed Sight Flow Indicator and Sight Glass body length (flange to flange / face to face distance) we provide as per DIN EN 558-1 standard and tailor made on order basis. Sometimes customer also request for single window design jacketed sight glass assembly to suit their process requirements. Use of these types of sight flow indicator is for spot inspection and view of process parameter. Depend on process media, its working temperature and working pressure thickness of glass select and selection of the glass is base on DIN 7080 International Standard.     Jacketed double window type sight glass better performs against vibration, pressure, temperature, continuous performance in industries like power plant, fertilizer industries, chemical plant, textile industries, steel plant, pharmaceutical sector, petro-chemical unit which 24 hour working plant and maintenance schedule is big headache for them. Our technical engineering team consider minimum factor of safety 7 at the time of selection of glass and body shell thickness minimum as per ANSI/ASME B 16.34 Standard. Steam – Thermal Hot Oil Jacketed Sight Glass size up to DN50 (2”) have square shape cover with 04 No. of bolt & nuts, for size DN65 (2-1/2”) & DN80 (3”) have flower type rounded shape cover with 06 No. of bolt & nuts, for DN100 (4”) also have flower type rounded shape cover with 08 No. of bolt & nuts to tight cover + glass + gasket assembly. In our standard manufacturing range up to DN100 (4”) Jacketed Sight Flow Indicator Body & Cover casting quality are Investment Casting (Lost Wax Process) method type, which gives superior surface finish at everywhere in small component too and from big size like DN125 (5”) sand casting method casted body. Casted Body material of Jacketed Sight Flow Indicators are NACE MR 0175, ASTM A 216 GR. WCB (Cast Carbon Steel), ASTM A 352 GR. LCB / LCC (Low Temperature Carbon Steel), ASTM A 351 GR. CF8/CF8M/CF3/CF3M (Stainless Steel 304/316/304L/316L), ASTM A 351 GR. CN 7M (Alloy 20), Duplex Steel D2205-4A, CD4MCU, Super Duplex Steel, Hastelloy C22, Hastelloy C276, Inconel, Monel and others grade on client request. All varieties of Double Window Type Sight Glass Manufacturer, Sight Flow Indicator - Exporter, Supplier, Stockist, Importer by Nivz Valves & Automation. Hot Oil Jacketed, Hot Water Jacketed, Steam Jacketed, Therminol Jacketed Sight Glass & Flow Indicators manufacture and export by Nivz. For corrosive chemical application Plastic / PTFE / FEP / PFA lined Jacketed Sight Flow Indicator and Double Sight Glass also manufacture by us.       Salient Features of Jacketed Sight Flow Indicator Easy Maintenance type Jacketed Sight Flow Indicator Available in all most all Material of Construction Manufactured to the Highest Standard Durable Construction Tempered Borosilicate glass standard Large View Area Fully Jacketed Double Window Type Sight Flow Indicator Special Face to Face Dimension Jacketed Sight Flow Indicator Sizes Range from 25MM To 300MM Working Pressure up to 25bar Material Test Certificate & Pressure Test Certificates furnished on request. Tailor Made Dimensions & Design Jacketed Sight Flow Indicator on order basis Big Large Size of Jacketed Sight Glass Flow Indicator

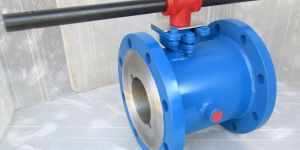

Single Piece Heavy Duty Body with Full Jacket design as per Design Standard ASME B 16.34/ISO 17292/7121/BS 5159End Connection - Flanged End, Pressure Rating - 150# / 300#Valve Operation - Hand Lever / Pneumatic Actuator Operated Full Jacketed Ball Valve Class 150 Series: FJK80Full Jacketed Ball Valve Class 300 Series: FJK81 The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Jacketed Ball Valve (Heating Jacket Ball Valve) with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid. This applies especially to media like bitumen, asphalt, chocolate, liquid sulfur, molten sulphur, Lactum & Soap application. In addition, the efficient flow of media is ensured through the elimination of pockets. Nivz Valves & Automation offers a variety of Jacketed Ball Valve. The Jacket covers the body from one flange to the other flange. Jacketed Valve body is modified by adding oversize flanges. As example: 4" x 6" Steam Jacketed Ball Valve has the nominal bore of 4" (DN 100) and the flange size is 6"(DN 150). It allows enough space for bolting clearance after jacket fabricated on valve body. Full Jacketed ball valves being used to handle highly viscous materials or materials that solidifies at ambient temperatures. Steam, Thermic Fluid Oil (High Temperature Oil) or Hot Water can be used as carrier for heating media. Following quality assurance rules, every valve is tested again after the Jackets have been welded (Fabricated) to the body. Jacket Hydraulic & Air Test is carried out at 6.0 Kg. /Cm2. Generally standard Jacketed Ball Valves are delivered in cast carbon steel (ASTM A 216 GR. WCB) and different types of stainless steel (ASTM A 351 GR. CF 8/8M/3/3M) materials. Other special materials are available upon special request. Body Material S.S. 304/316/304L/316L with M.S./S.S. Jacket option available. Jacket connection Flanged End or Female Threaded End as per customer choice provide. Nivz Valves & Automation Jacketed 25% Glass Filled Teflon (25% GFT) seated Ball Valves gives Zero Leakage, Tight Shut-Off and Low operating Torque with easy smooth operation at temperature ranging from -200 C. to +2200 C. Electro-Polished, Buff Finish & Ultra clean valve also provided for Food & Pharmaceutical Industries on special request. Nivz Valves & Automation an ISO 9001 certified company - Jacketed Ball Valve Manufacturer, Exporter, Supplier, Stockist, Importer. Bitumen, Sulfur, Asphalt, Coal Tar Valve. High Temperature Application Metal Seated Jacketed Ball Valve. Features High Quality with High Performance Jacketed Valve ISO 5211 Mounting arrangment Locking Provision in Open/Close Position Gland Type Sealing Arrangement Longer Smooth Life Positive Shut Off Quick in Action No Lubrication Compact Design & Simplicity Jacket In / Out with Drain Connection Option Heating / Cooling Jacket Varities of Body & Jacket Material   Operation of Jacketed Ball Valve Nivz Valves & Automation Jacketed Ball Valves are generally supplied with manual hand lever operated up to size of valve 4" x 6" (DN 100 x 150) above size provided with worm-gear type quarter turn gear box. Nivz Valves & Automation also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation, which is specialty of ours. Pneuamatic Type quarter turn rotary actuators are available with option Single Acting - Spring Return type or Double Acting. Jacketed Ball Valve Seat Option Nivz Valves & Automation Hot Oil - Steam Jacketed Ball Valves are available with different type of Seats  Seals & Packing material such as P.T.F.E. (Virgin) / 25% Glass Filled Teflon / Carbon Filled Teflon / PEEK / Metal Seats to suit various industrial applications. (Teflon is registered trademark of E.I. Dupont). PTFE Virgin - 200 Deg. C. Temperature with Pressure 10 Bar Maximum 25% Glass Filled Teflon - 225 Deg. C. Temperature with Pressure 10 Bar Maximum PTFE filled with PEEK - 250 Deg. C. Temperature with Pressure 40 Bar Maximum (Glass Free) PEEK - 260 Deg. C. Temperature with Pressure 200 Bar Maximum PEEK with Polymer - 300 Deg. C. Temperature with Pressure 120 Bar Maximum

Material : CS, SS

Pressure : HIGH

Each Metal Seated Jacketed Ball Valve body construction replace by adding minimum one size higher flanges to achieve proper tighten space of bolt and nut. As example: for Metal Seated Jacketed Ball Valve Size DN50 x DN80 (2” x 3”), Jacketed Ball Valve has the nominal bore of DN50 (2” – 50MM) and the flange size DN80 (3” – 80MM), which allows enough space for bolting clearance after jacket fabricated (welded) on modified valve body. These types of jacketed ball valve termed as a Full Jacketed Ball Valve and due to inside metal seats called as Metal Seated Jacketed Ball Valve.

Size : DN50 x DN80 (2” x 3”)

bolted bonnet, rising stem, globe valve cast heavy duty body as per design standard bs 1873/asme b 16.34/din en 13789end connection - flanged end, pressure rating - 150# / 300# / 600# / pn16 / pn25 / pn 40 / pn64 / pn100valve operation - hand wheel / pneumatic cylinder / diaphragm type actuator operatd / electrical motorized actuated cast globe valve bs 1873 - model series: gl15/gl30/gl60cast globe valve din/nd - model series: glp16/glp25/glp40forged steel globe bs 5352/api 602 model series: fgl80  globe valve manufacturing size range:  dn25/25mm/one inch, dn40/40mm/one and half inch, dn50/50mm/2”/two inch, dn65/65mm/2-1/2”/two and half inch, dn80/80mm/3”/three inch, dn100/100mm/4”/four inch, dn125/125mm/5”/five inch, dn150/150mm/6”/six inch, dn200/200mm/8”/eight inch, dn250/250mm/10”/ten inch, dn300/300mm/12”/twelve inch size and more can manufacture and supply on request. nivz make steam, water, oil, gas, chemical application globe valves are rising stem and hand wheel operated, bolted bonnet construction, threads are away from the line fluid and easy to lubricate. nivz manufacturin range of globe valves are generally available with plug type disc, which is designed to give leak tight seating over a long period of in built wear life. globe valve body seat ring is shoulder type, threaded body seat ring which has large taper area that is for ample seating. Two nos. Slots are provided on body seat ring, which is for easy removal for servicing at site. Welded type seat ring or integral seat ring are also available in on reqiest. all globe valve stem is made from solid one piece construction. The yoke bush of globe valve has a long thread engagement for accurate stem alignment. The standard range of nivz globe valve is sizes from 1/2" (dn15) to 12” (dn300). we are manufacturers and exporters of globe valves and our manufacturing range covers, steam globe valve, jacketed globe valve, extended bonnet globe valve, astm a 216 gr. Wcb/astm a 352 gr. Lcb/lcc/astm a 351 gr. Cf8/cf8m/cf3/cf3m/cn7m globe valve, pneumatically globe valve, 3 way globe valve manual as well actuated, forged carbon and stainless steel globe valve, hot thermal oil jacketed globe valves. globe valve manufacturer, duplex steel, hastelloy, alloy 20 globe valve exporter. 3 way pneumatic globe control valve, mixing and diverting three way valve, motorized, electrical actuator operated globe valves, full jacketed globe, steam jacketed globe valve, hot oil jacketed bitumen - sulfur, asphalt, coat lar application globe valve, austenitic stainless steel globe valves stockist.

This valve has inside a gate that moves up-down perpendicular to the flow of the service. In the up position it will open and vise versa in the down position it will be closed. The flow is straight through, and does not lend itself for use as a metering valve. The Gate valve is also available different types of Disc-Gate such as Double Disc Gate, Solid Gate, Flexible Gate, Parallel Slide Gate, Conduit Gate etc. to suit industrial various applications. The gate valve is used mainly as an on /off valve. This Gate Valve is also called as a Bi Directional Gate Valve. Mostly API 600/603 standard Gate valve contructions are bolted bonnet with rising spindle Pressure seal design bonnet design used for high pressure application from class 900 pressure rating. Rising StemOutside Screw & Yoke (OS & Y) design keeps the stem threads outside the valve and is recommended where high temperatures, corrosives, and solids in the line might damage the stem threads inside the valve. When Gate Valve will open, the stem extends above the hand wheel indicates the position of the gate. Valve TrimA trim means internal working parts of valves. In Gate Valves the Stem (Spindle), Seat Ring, Back Seat Bush, Gland Bush is trim. Integral SeatThese types’ seats are integral with body casting. Machined into the body casting. Renewable SeatSeparate Seat Rings that screw into the valve body, which is called as Renewable Seats. Nivz Gate Valves are Outside Screw, Rising Spindle, Bolted Bonnet design, threads are away from the line fluid and easy to lubricate. Gate Valve body ports are streamlined, permitting unobstructed flow, reduces turbulence, results in lower pressure drop and lower erosion. Nivz Gate Valves bonnet castings are of one – piece construction, where the yoke is integral with bonnet up to 6” Size.Our manufacturing range also cover Half and Full Jacket Thermic Fluid Hot Oil Jacketed Gate Valve & Steam Jacketed Valve for sticky, viscous, molten sulphur, bitumen, asphalt application. In full jacketed gate valve flange size will be higher then valve bore size. As like in 3" (DN80) gate valve flange dimensions as per 4" (DN100), face to face distance as per ANSI B 16.10 Standard, valve size 3" (DN80). Nivz An ISO 9001, ISO 14001 & OHSAS 18001 certified company Gate Valve Manufacturer, Alloy 20, Duplex Steel, Hastelloy, API 600, API6D, API 603 Standard Gate Valve Exporter, Supplier, Stockist, Importer. Rising Stem, Bolted Bonnet, Austenitic Stainless Steel Gate Valves, Flanged - Butt Weld End.
