NK INDUSTRIES Vatva, Ahmedabad, Uttar Pradesh

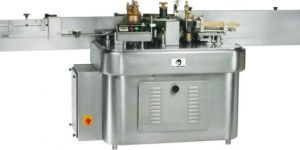

30 to 50% Glue Saving on each Label due to Strip Gluing System No Label – No Gluing System eliminating wastage of Glue No Bottle – No Label System eliminating wastage of Labels No Label – No Coding System eliminating wastage of Ink Built in online Coding System for printing B.No. Etc. Using Rubber Stereos and suitable ink for Labels to be provided by customer only Easy to Change Label Application height on Bottles Built in Vial Jamming Sensor to avoid damagebreakage to the Vials at in feed Synchronized speed of Label application with Gluing, Printing and Vial Feeding Fully Gear Drive System – No Chain Drive Easy Change over system – No Setting of Master or Cam for timing Least Change over time for Bottle and Label Change Parts Suitable for any type of Grooved Surface of Product Suitable for Partial, Full Wrap Around and Overlap Labeling. Fully Stainless Steel finishes Machine.

Total cGMP model. Parts coming in contact with the vial aluminum cap exposed to the atmosphere are made out of stainless steel. Single motor synchronizes conveyor, star wheels and platform turret and speed can be varied by the % speed pot on operating panel. A Special clutch device is incorporated on the in feed worm and Star wheel system for stoppage of machine in the event, vial is over turned or over diameter. A photo sensing device stops machine automatically in the event, there is no aluminum cap in delivery chute. “No Stopper on Vial, Machine Stops System”, eliminates chances of sealing of vial without rubber stopper on sealing machine. Spring loaded free spinning sealing rollers eliminates any damage to aluminum caps and also allows greater flexibility of variation in the container neck diameter. Sealing Pressure can be varied to suit different gauges and sizes of aluminum caps. Imported Gear Motor for Main drive. A.C. Frequency drives for Main drive. Digital Counter for counting number of sealed vials. “No Seal in Chute, Machine Stops System” “No Stopper on Vial before Sealing, Machine Stops System”.

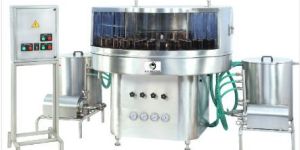

Geneva mechanism. Four inner, one outer and one air wash Sequence of washes of washes to customers choice With 96 Pocket for bottle holding Output :64 to 100 bottles per minute, Easy operation. Stationary nozzles eliminate contamination of water cycles. Easy loading and unloading with two rows. Individual solenoid valve for each washing sequence, which eliminates carbon plate and other accessories, reduces leakage and maintenance to minium. Higher capacity centrifugal pumps to was bigger bottles (500 & ml) The stationery nozzles avoid chipping of bottle necks. Pumps and tanks are mounted on portable stand for easy maintenance. Bottle guide system especially for light weight bottle.

Rigid vibration free construction for trouble free performance. S.S. Top, covers, conveyor guides and other parts for longer life . Elegant and Easy reach control panel for total control on operation. ‘No container machine stops’ saves valuable liquid and down time for cleaning. Steel frame is elegantly and systematically painted for corrosion resistance. Self centering device to take care of non concentricity of container to certain extant. High precision manufactured syringes to achieve high accuracy in fill size and drip proof performance. Minimum change overtime, from one size of container or fill size to another. Long Liquid collection tray with outlet below conveyor to Safeguards assemblies. Special designed nozzle and syringe in order to prevent liquid spillage in from on drop.

Completely stainless steel Construction. capable of vacuum capping of the bottles with lug or twist-off caps as well as of those not necessarily to be vacuumed. decreases the air pressure inside a bottle by high-speed steam injection, tightens the bottle cap and then vacuums the bottle by flushing cold water Specially designed Vibrator unit to keep the uni direction of cap. Machine clutch in case of any jamming of bottle during the machine operation.

Completely CGMP Model. Simple structure, Stable function, Easy operation and Virtually low maintenance cost. Very Compact & modular construction suitable for handling wash of 60ml to 250ml Bottles (without any change parts). Machine also suitable for different size of bottles up to 3 Litter Bottles. Machine is fitted with two emergency switches i.e one at out feed and other at infeed. Totally fabricated from SS materials with basic frame (cGMP Model). All parts coming in contact with washing zone are made from SS materials Machine equipped with safety devices to ensure smooth and silent operation with HIGH rated output. Machine totally rigid and withstands continuous operation for long working hours without any trouble. Washing chamber having various spray zones. The machine will be provided with SS pumps and SS tanks

The single head injectable powder filling machine model NKPF-120 is the most suited system for the round vials with a speed of 100 vialsmin, depending on the shape and size of the vials. Constructed completely with stainless steel, our machines have built-in turn tables and a “no vial, no fill” system. Our model NKPF-120 can be the engineering solution to the powder filling industries.

High Production Capacity in High Filling Quantity also. M.S. Molded structure duly powder coated to avoid any vibration with adjustable Screws to adjust conveyor height as per in feed tunnel. Total Compact Monoblock CGMP model. All parts and assemblies coming in contact with powder are made of S.S.316 “NO BOTTLE, NO FILL” System eliminates wastage of costly powder. Spring loaded Teflon top seal for powder hopper reduces the friction between and top seal and avoid chance of white particle shading during production. Doctor blade and wiper blade can be adjusted from outside also without disturbing any production, which saves lot of time, powder wastage and chances of area condition disturbance. All assemblies under top plate are positioned as for easy cleaning or maintenance. All driving is through High quality imported Gear motor. Machine speed can be adjusted through A.C. Frequency drive, which is time saving. Machine is provided with Delrina conveyor belt to avoid sticking of bottle on conveyor. Special clutch devices are provided on Star wheels for safety purpose. Air filter will be of S.S.316 housing with Nylon cartridge for proper removal of particle of 0.22 micron having 10″ length. Vacuum filter will be of PVC transparent material with nylon cartridge having length of 10″ of 5 micron. Machine can fill 10 grams to 70 grams powder in single stroke.

S.S. 304 Constructions. Facility to incorporate the Batch coding printing like Inkjet printing or hot foil coding & contact coding. In built Speed Indicator & Counter No Change Parts for Label size, Feed Worm and Pocket System required for change in product size Single Pot On-line Speed Variation control Synchronized speed of Label Dispensing, Conveyor and Top Hold Belt System Virtually Maintenance free machine Easy to change label application height User Friendly Label Placing Adjustments Suitable for On-Line Inkjet and Contact Coding System Suitable for Partial, Full Wrap Around and Overlap Labeling Built In A.C. Variable Frequency Drive System. Fully Stainless Steel finish Machine

Sticker labeling machine has following inbuilt feature. A total cGMP model High Production Speed up to 120 containersmin depends upon the type of container. S.S. 304 Constructions. Accurate label dispensing. Secondary Pressing unit. Facility to incorporate the Batch coding printing like Inkjet printing or hot foil coding & contact coding. In built Speed Indicator & Counter Automatic Label Length Detection

Machine manufactured as per cGMP standards. Machine fitted with one set of change parts suitable for 5ml to 30ml vials. Various models available from 60 VPM to 400 VPM. (Please have a look at technical specification column) Machine is suitable for 2ml to 100ml Vial Sizes with the help of minimal change parts. Water recycling arrangement is possible as per requirement. Basic Frame of the Machine totally fabricated from SS-304 materials. All parts coming in contact with washing zone are made from SS 316L materials Machine equipped with safety devices to ensure smooth and silent operation with HIGH rated output. Machine totally rigid and withstands continuous operation for long working hours without any trouble. Washing chamber having various spray zones. Spray duration is electrically controlled by magnetic valve. HIGH pressure spray nozzles entire into the vials during washing time to insure perfect wash of vials. The machine will be provided with SS-316L pumps and SS-316L tanks All contactor and relay from Telemechanic. Main Drive: Gear Motor Make-MGM Varvel Conveyor Drive: Gear Motor Make-MGM Varvel Solenoid Valve from ROTEX Make. Conveyor Belt made from SS 304 Material. Wirewooven Type. All pipe fittings made from SS 316L Materials. The emergency stop button is provided with both ends (In feed & Out feed Side).

The unit is made compact & versatile S.S. elegantly matt finished body. Built in front control panel. Quick setting. Motorized head movement. No change parts require for different container diameter. Low noise level, low power consumptions. Adjustable bottle height gauge for easy and quick setting. SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion. Sealing pressure can be varied to suit different gauges and size of caps

A total cGMP model High Production Speed up to 450 containersmin depends upon the type of vial. S.S. 304 Constructions. Accurate label dispensing. Secondary Pressing unit. Batch coding printing like Inkjet printing can be accommodating. No Change Part for Label Size.
