Overhead Cranes Dealers in Vatva, Ahmedabad

• Type: Crane
• Certification: CE Certified
• Color: Multi Colour
• Feature: Capable For Load, Customized Solutions, Easy To Use
• Automatic Grade: Hydraulic, Mechanical
• Power: 100-300bhp, 300-500bhp
• Load Capacity: 10-50Tons, 100-150Tons
• Warranty: 5years

We are a well-known Manufacturer, Exporter and Supplier of precision made Overhead Crane. Overhead Crane, available with us, is fabricated with the highest level of perfection using top grade components. The Overhead Crane is in accordance with the highest quality standards. Features Simple and optimum Design ensuring minimum dead weight, Wheel Load Headroom and easy to maintenance Easy to installation Reliable structure Available in Pendent control type or radio remote control type Single or double speed type Safe and reliable hoisting and traveling Higher efficiency to save power Chipper in cost Fail safe type brakes (which are applied when power supply is off and release when power supply is on.) All motion are protected with limit switches Rubber buffers are provided to extra protection against collision in case of limit switch failure Dustproof panel box with reputed make switch gear or as per customers approval 110 V Control voltage selected for protection of Crane operator against any electrical shock With electrical Interlocking to prevent simultaneous operation of opposite motion Available with Radio remote Control operated type. Available in Class-I, Class-II, Class-III, and Class-IV, Duty

A goliath (gantry) crane is similar to a top running crane except that the crane bridge is supported by legs and the rails are at ground level. The additional leg structure makes the crane more expensive, this is offset by the considerably cheaper low level rails. That advantage increases with increased track length making them particularly suitable for large outdoor stockyards. There is an additional safety hazard arising from travelling on low level rails which must be considered, but this can usually be taken care of easily and ground level rails can be advantageous compared to the obstruction caused by the building structure columns. They can be of single or double girder design with similar construction methods. Furthermore they can be designed with a cantilever at one or both ends.A semi-goliath (semi-gantry) crane is a hybrid of a goliath and a top running crane with one end of the bridge supported by a high level gantry and the other by a leg running on a low level track. Typically they are used in an area adjoining a building and the high level gantry is integral with the building structure. They are therefore suitable for outdoor stockyards alongside a building but also for indoor use where a full span of the building is not required.Outdoor duty goliath cranes are checked for stability under storm condition. Special storm anchors are provided to prevent toppling of crane under storm condition.   RANGE OF SPECIFICATIONS:  Safe Working Load: 500 kgs to 50,000 kgs  Span: 20 mtrs  Height of Lift: As per customer specifications  Class of Duty / Standards: M5 to M8 as per IS 3177 / IS 807  Speeds: As per clients� specification / application.  Crane Control: From floor through Pendant Push Buttons, Optionally through Radio Remote Control / cabin with master control  Drive System: Twin Drive through Squirrel Cage Induction Geared Motors with built-in fail safe brakes  Motors: Squirrel Cage Induction / Slipring Crane duty motors, IP 55 enclosure, S4 duty, 40% CDF  Brakes: ACEM / DCEM disc type brakes, Shoe type brakes for Hoist, CT & LT motion  Power Supply System: To Hoist and Cross Travel through C-Rail Cable system / Cable Drag Chain To Crane through Shrouded Bus Bars / Trailing Cable / MS Angle Iron Conductors / Bare Copper Conductors (depending on customer's choice and application)

• Type: Double Girder
• Material: Cast Iron, Mild Steel
• Certification: CE Certified
• Application: Construction, Industrial
• Color: Yellow
• Automatic Grade: Semi Automatic
• Power Source: Hydraulic

• Type: Electric
• Application: Industrial
• Color: Yellow
• Power Source: Electric
• Load Capacity: 1 to 10 Ton
• Warranty: 1 Year
• Phase: 3 Phase

• capacities: 25 tones

Under Slung Cranes is an ideal solution, in places where supporting steel work under the crane is not an option. It is best used for minimized loadings, as Underslung Cranes are supported from the roof structure. Consequently most Under Slung Cranes are Single Girder design, although we offer a double girder option.

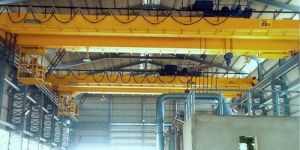

Japs Project is an ISO 9001:2015 Certified Company engaged in manufacturing and exporting of Single/Double Girder Overhead Cranes, in SWL's ranging from 0.5 MT to 70 MT. EOT Cranes manufactured using quality raw materials by JAPS Project are extensively used in the warehouse, workshop, and stock ground of industrial and mining enterprises for loading, unloading or relocating heavy load. ​ We can offer a very large range of Spans and Height of lift as well as high speeds. We can also provide multiple hoisting trolleys running on the same bridge. Our products pertain to global standards of quality and suffice the various requirements of the clients. We employ stringent quality checks to ensure that we deliver flawless products to the customers.

• Power Source: Electric
• Power Source: Hydraulic , Diesel
• Color: Red, Orange, Yellow, Green
• Capacity: 10-15 ton, 20-25 ton, 15-20 ton, >25 ton, 0-5 ton, 5-10 ton
• Max Height: 0-20 feet, 80-100 feet, 20-40 feet, 40-60 feet, 60-80 feet
• Features: Flawless performance, Remarkable resistance to corrosion

We are well recognized manufacturer and supplier of Single Girder EOT Cranes. It is also known as the single girder electrical overhead travelling cranes. It is manufactured with confirming IS-3177. It is suitable to all types of working space. Its flexible fitting arrangement helps it to fit in odd type of working space. It is made to utilize maximum working space. It is used in so many industries for material handling unit. We offer our range of craned with many options. We offer hand operated trolleys and electric trolleys. It is manufactured and checked according to international standard. It is provided with latest control system. It is used in many industrial applications like cement, ware houses and automobile industry. It is also used in heavy engineering applications.

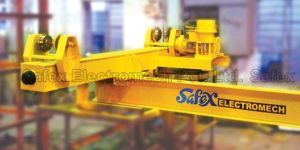

We are a leading underslung crane manufacturer and supplier in India that can design, manufacture and supply customized underslung cranes. Suitable to handle loads from 250 kg to 10 MT, our underslung cranes are known for less dead weight and low head room hoist. Clinging to the roof of a structure, underslung cranes can work wonders at a site with limited headroom.

TACKLERS brand Single Girder Underslung Crane (Underhung Cranes) are an ideal solution, in places where supporting steel work under the crane is not an option. It is best used for minimized loadings, as Underslung Cranes are supported from the roof structure. Consequently most Under Slung Cranes are Single Girder design, although we offer a double girder option.    Techno Industries Manufactures a standard range of Single Girder Underslung Cranes in capacities 0.25 Ton to 25 Ton. Typically, the Under Slung Cranes find their application in the motor vehicle and aerospace industries where the production process demands a large clear area. However Underslung Cranes can be used appropriately in many other industrial processes as well.

Neelkanth offers Gantry crane having a very economical solution for lifting materials compared to overhead cranes. They ore both durable and portable. Wide ranging capacities, spans & lifting speeds are offered as per client requirements. They are ideal for Warehouse, Construction sites, Garages, Loading docks, etc. where port utilization of workshop is required, semi-gantry cranes are provided. We also offer cranes With overhanging on one or both sides. An auxiliary hoisting mechanism can also be fitted on the crab. They hovel on rails which is installed on ground level. They are available as single/double girder and for both indoor S outdoor duty.

• Capacity: 1000 Kgs. to 50,000 Kgs.

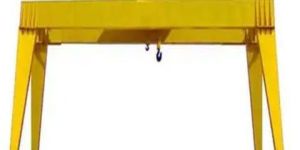

EAGLE make Goliath Cranes are having wide applications. These type of cranes are having high speeds, high cantilever arm,  heavy capacity and a good height. These cranes are used in Shipping, Power, Ports, Heavy and Minning Sectors.

• Capacity: Available in capacities as required by customer

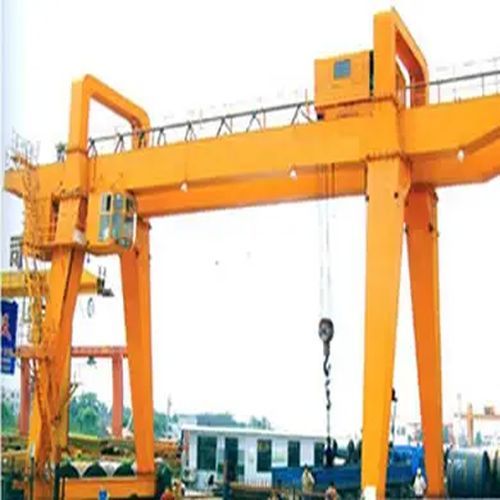

Goliath cranes, also known as Gantry or Portal cranes are free standing factory cranes that run on fixed rails on floor. Safex Electromech goliath cranes are available in single girder and double girder designs. We also manufacture semi-goliath design, where one end of the crane is overhead gantry supported and one end is floor mounted. Well suited for outdoor use as well as in buildings where existing structure cannot support an overhead crane, Safex Electromech Goliath and Semi-Goliath cranes provide ideal lifting solutions.

ADORN manufactures Single Girder as well as Double Girder Underslung cranes that find its application where the headroom in a factory is limited or the structure does not allow any other means of supporting the crane other from the roof. Typically, Underslung cranes ranges from 1MT to 10MT, however higher capacity Underslung Cranes can also be manufactured as per clients requirement. Precise control of the up/down motion and/or travel motion can be achieved by fitting Variable Frequency Drives in the panels (optional). Control can be either through a Pendant Push Button station or a Radio Remote Control (optional).

• CAPACITY: 1 TON to 25 TON
• SPAN: 5.0 Mtr. to 23.0 Mtr.
• HIGHT OF LIFT: 3.0 Mtr. to 50 Mtr.

Stalmac manufactures Single Girder EOT cranes. The Crane Girders are fabricated box type structures. The cranes are designed as per IS 3177/ IS 807. The Cranes supplied by us are robust in design and combine compactness with safety. we also manufacture of Fabricated from rolled steel sections or plates and welded together to form a box with suitable stiffening wherever required. We can supply cranes with multiple hoists to ease operations. Hoisting STALMAC make Wire Rope Hoist for Single Girder or Crab for Double Girder Crane End Carriage consist two nos. double flanged solid forged wheels for long travel motion. These wheels are mounted on axle with anti-friction spherical roller bearings. PRODUCT FEATURES CRAB WITH AUXILLIARY HOIST FLAMPROOF CRANE WIRE LESS REMOTE CONTROL SYSTEM DUST PROOF PANEL ANTI CORROSION DEVICE VARIABLE FREQUENCY DRIVE CABIN OPERATED CRANE WITH MASTER CONROL OPERATING PRODUCT RANGE

Safex electric overhead travelling cranes are designed manufactured in accordance with IS 3177 conidering adequate factor of safety with respectto appropriate duty classifications.

Goliath / Gantry Crane which most ideal Material handling equipments to handle heavy loads in Open Yards or indoor where don’t required columns for gentry. It is generally used for Outdoor application same time form place in Indoor Application also.It runs over floor on rail. Generally these Cranes are used at   Ship Yards / container depo Granite & Marble cutting and polishing Industries Steel yard Cemet Pipe Industries All cranes are basically fabricated out of standard rolled Steel sections and plates by using adequate size to suit the requirement. The entire structure can be divided into three main parts. Main Bridge, End Carriages and Crab. In case of Gantry/Goliath Cranes the Bridge Girders are fixed on the top of four gantry Legs which are connected to two under carriages. The salient features of above three parts are as under. MAIN BRIDGE :The main bridge Girders are fabricated from high quality steel plates forming a rectangular box section. The girders are provided with the required camber so that the Girder deflection in full load condition will remain well within its allowable limit of 1/900. Internal surface of the box girder is free from corrosion as the box is welded and there is not contact with outside atmosphere.Maintenance - It is easy to carry out maintenance of the crane and clean it. Here provide hand railing platform for easy maintenance in one side or both side as costumer requirement CRAB:The crab is manufactured from M.S. Plates and rolled steel sections. This is also provided with cross traverse wheel running on L-block type bearing housing assembly similar to that of L.T. wheel assembly. For heavy duty application, entire crab is fabricated out of M.S. Plate. The crab is carrying hoisting and cross traverse unit with necessary brake assembly. Salient features of these areas under. GEAR BOX: All the gear boxes which are used in Hoisting, L.T. and C.T. are horizontal shaft helical gear type with robust and sturdy M.S. fabricated housing. The entire gear assembly is running on anti-friction bearing. The pinions which are used in the gearbox are integral and solid one piece pinion. All gears and pinions are duly hardened to with-stand the heavy loads for the life span depending upon the class of application. Provision is kept for the filling the lubricating oil with level indicator. ROPE DRUM:Rope drum is fabricated out of M.S. plate or made out of seamless pipe. The drum is accurately machined and grooved to accommodate the desired size of rope. The length of the drum is selected in such a way that the entire rope can be wound in one layer. LONG TRAVEL: For long travel arrangement following methods are used.CENTER DRIVE ARRANGEMENT:. In this system of long travel arrangement, long travel motion is availed through centrally located helical gearbox. The power is transmitted through L.T. Shaft running on pedestal bearing and connected with the Gearbox, Floating shaft and Universal joint assembly. The floating shaft is connected to the L.T. wheel and gear box by means of flexible geared coupling. The motor and gear box are connected by means of universal joint. TWIN DRIVE ARRANGEMENT:.In this arrangement L.T. Drive system is provided at each end carriage by individual driving system. Both the drive comprises of a Motor, Gearbox, Floating shaft and Universal joint assembly. The floating shaft is connected to the L.T. wheel and gear box by means of flexible geared coupling.The motor and gear box are connected by means of Universal joint.In case of goliath/gantry crane only twin drive arrangement possible. CONTROL PANEL: The cranes can be controlled by cabin / pendant / radia remote & combination OD these. The components are enclosure in sheet metal box standard contactors, over load relays, fuses, timers, transformers and accessories. For smooth jerk less drive and micro speed or two speeds drive VVFD drive installation in hoisting, cross travel, long travel as per costumer requirement. MOTORS:In cranes two types of motor uses crane duty induction motor or slipping motor. As per class of crane or costumer requirement. BRAKES:In cranes many types of brakes are use. Selection of brake is depends on class of crane and costumer requirements. Shoe Type Electromagnetic Shoe Type Hydro Thruster Brake Disc Type Electromagnetic Brake

Single Girder Eot Cranes, Double Girder Cranes, Wire Rope Hoists
