Packaging Testing Equipment Dealers in Ahmedabad

• Max. Force: 200 kg (2KN)
• Stoke: 900mm including fixture
• Load cell Resolution: 1/100,000
• Load Precision: ≤0.5%
• Test speed: 50
• Data display: Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc

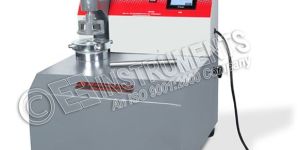

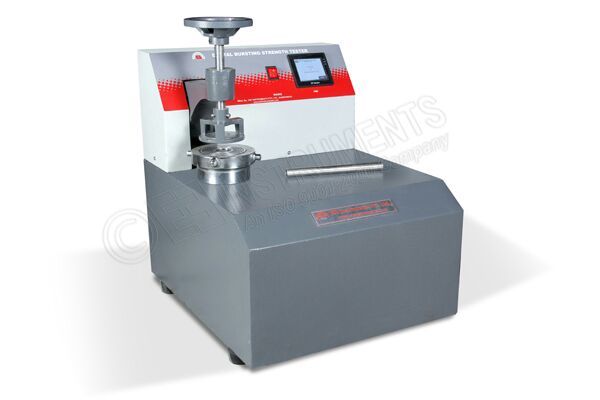

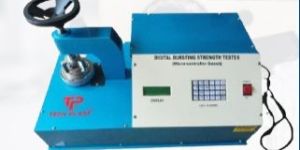

BURSTING STRENGTH TESTER-CAPACITY-DIGITAL MODEL - 35KG /sq.cm for determining the bursting strength of paper, fabric, etc under a rubber diaphragm of a specific area. In this model you can check BS & BF ALSO if you know GSM of sample. Accuracy-0.1kg/cm2

The Benz Pipe Burst Tester tests pipe, tube and hose from 18" to 12.0", measuring burst pressure up to 3000 psi. Custom burst pipe testers can measure higher pressures and larger diameter samples.The Benz Pipe Burst Tester is unique, with a push-button, dial-in control panel and a dedicated microprocessor controller designed specifically for testing pipe, tube and hose.

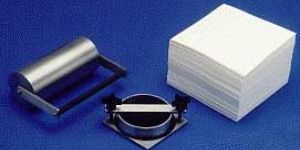

Purpose of list Water absorptiveness of paper board or other materials is a function of various characteristics such as sizing, porosity, etc. The Gurley-Cobb sizing test can be used to test absorption or resistance to absorption of water, oil and other liquids. Principle This procedure determines the quantity of water absorbed by a sample of paper or other sheet material in a specified time and under standardized conditions. Other liquids such as ink, beverages, oil and water based solutions may be used instead of water. The standard area is one hundred square centimeters (cm2), into which 100cc of liquid are poured to reach a specific height of 1 cm. For smaller samples, proportionately smaller areas (25 and 10 cm2) can be tested. Description The Gurley-Cobb Sizing Tester consists of a hollow metal cylinder or ring (100, 25 or 10 cm2 inside area); a metal base plate with a clamping device to hold the ring against the sample and a Neoprene mat. Neoprene gaskets also are supplied to seal off the cylinder when testing uneven materials where an ungasketed seal is difficult to maintain. A critical component of this test is a solid stainless steel roller having a smooth face 20cm wide and weighing 10.0+ 0.5kg. Also required for the test are a 100ml graduated cylinder, a balance with sensitivity of 0.01g or better, blotting paper and a timer or stopwatch.

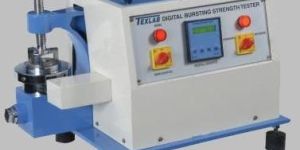

• Type: Digital Bursting Strength Tester
• Application: Strength Testing,Paper Strength Testing
• Color: Grey
• Voltage: 220V
• Condition: New
• Power: 1-3kw,Electronic
• Driven Type: Electric
• Warranty: 1year
• Certificate: ISO 9001:2008 Certified
• Country of Origin: India
• Weigth: 20-40kg
• Automation Grade: Automatic,Fully Automatic,Semi Automatic
• Brand Name: EIE
• Weight: 30 Kgs
• Accuracy: 0.1 KG/CM2
• Place of Origin: Ahmedabad
• Model Number: PT-101SH25

• Features: Power efficient, Offer long term service, Procured from established manufacturers .
• Test Fluid: Glycerin
• Rate of fluid displacement: 95 cc / Minute
• Power: 220 Volt AC 50 Hz 100 W
• Maximum Capacity: 35 Kg/ cm2
• Capacity of Test Fluid tank: 160 ml
• Opening of lower clamp: 30.5 mm
• Motor poiwer: ¼ HP Geared Motor
• Opening of upper clamp: 31.5 mm

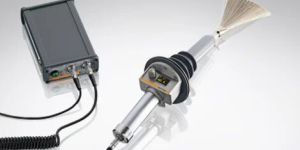

• Features: Simple and intuitive operation, Portable porosity testing device for detecting pores and fissures in surfaces, Anti-corrosion

• Voltage: 220 AC
• Country of Origin: Made in India
• Brand Name: Asia Vision Instrument

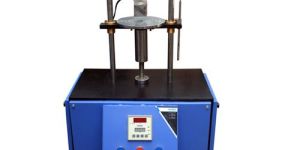

The Crush / Compression tester is used to check whether the sample withstands crushing / compression load. This is one of the mechanical properties which need to be checked for the stress likely to occur during transportation, storage etc. as per the given standard. Specification : 0-500kgs load with Resolution of 0.1 kg Digital Display Instrument for load Indication Geared Mechanism 440 Volt AC 50 Hz. Table Top Model Paint : Powder Coating

• Voltage: 220 V
• Country of Origin: Made in India
• Accuracy: 0.10 Kg/cm 2
• Display Type: Analog
• Brand: Techplast
• Frequency: 50 Hz
• Bursting Capacity: 40 Kg/cm2
• Phase: Single Phase

Burst Strength Apparatus: The Equipment is known as Burst Strength Apparatus, Burst Strength Tester, Bursting Strength Apparatus, Burst Strength Testing Equipments, Plastic Burst Strength Tester, Apparatus for testing the burst strength, Bursting Strength Testing Machine, Carbon Bursting Strength Tester, etc.

Salient Features Proven and reliable performance Scientifically calibrated through our own In-House calibration laboratory Sturdy in construction Noise-Less functioning Stepper motor with automatic fluid pump Logical detection of sample failure Capacity : 25kg/cm2 or 50kg/cm2 Display resolution : 0.1 kg/cm2 Unit selection : kg/cm2, PSI, Bar Stores data upto last five readings Gives Average Value, Min Value & Max value of Performed results Also, gives readings for BS (Bursting Strength) & BF (Bursting Factor) Reset function to initiate new batch testing

• Application: Laboratory
• Automatic Grade: Automatic
• Feature: Easy To Use
• Use: Testing of Specimen
• Quality: Optimum Quality

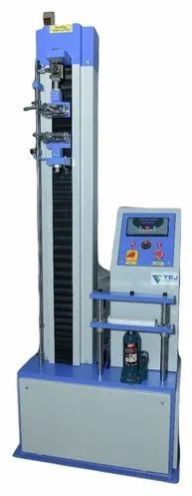

• Load Frame: Two column type with variable speed motorized type
• Horizontal Test Span: Suitable for Samples upto 375 Mm Length
• Vertical Span: Max. 800 Mm

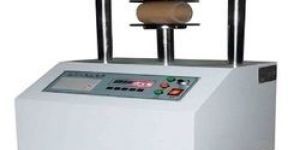

Product description: We have marked a dynamic position in the market by providing the finest quality range of Paper Core Compression Strength Tester. Descriptions: We manufacture and supply Pneumatically Operated Paper Core Compression Strength Tester which is used for testing the core collapsing strength It has adjustable testing area to accommodate specimen sizes and shapes It is pneumatically operated piston to apply the pressure Maximum pressure to crush the test sample recorded on a gauge with peak pointer Other details: Other Details: Paper tubes and bobbins are used as yarn carriers while paper cores are generally used for paper plastic film reels The collapsing force, which the carriers are capable of resisting, is dependent upon the following factors Quality and Quantity of paper Quality and Quantity of adhesive Manufacturing process Moisture content in the carrier Physical size and dimensions It is very difficult for a user to know all the above factors and their influence on the strength of the carrier It is equally difficult for a manufacturer to know the effect of each variable quantitatively But it is very easy for both the user and manufacturer to differentiate between good and bad and adopt a suitable standard of monitoring the quality of the carrier Collapsing strength tester is designed in such a manner that gradually increasing force is generated applied on the surface of the carriers The sharp collapsing point can be easily detected with the help of a Loadcell and Microprocessor based digital indicator Since this machine directly measure the collapsing force, no calculations are required and hence, the readings are direct and most accurate For Paper Tubes 1 Cores used as Winding Medium I Carrier, Radial Crush Test is performed For Paper Tubes 1 Cores used as Packing Material, Flat Crush Test and Vertical Crush Test can be performed

Standard ASTM 3786 Suitable for Fabric/Paper/Leather & LDPE/HDPE Products & Corrugated Boxes Equipped with Microprocessor Based LCD Display Controller Suitable to test sample upto 60kg/cm² Displays Resolution of 0.1 or 0.01 kg/cm² Digital Indication for accurate reading Controller having Facility to Adjust Unit Selection viz Kg/Sq.cm,Bar,PSI,KPa & MPa Stores data upto last Ten readings & gives Average Value, Max. Value & Min. Value of the Tests Facility to perform batch testing up to 10 test and record data in memory Quick,Easy, Accurate & User Friendly Operation- As M/c. Stops automatically on completion of the test and also having Auto Reverse facility. The machine is equipped with 1/4th H.P.Geared Ele. Motor. Also Equipped with Variable Speed Drive to control flow of Hydraulic Fluid
