PANCHVATI ENGINEERING WORKS Dudheshwar, Ahmedabad, Gujarat

We have numerous dealers and distributors associated with us to make our products available to buyers with ease and make timely delivery. We have compartmentalized our facility into different units and one of them is packaging unit in which we meticulously pack our products to ensure safe and swift deliveries.

Type : Pillar Drill Machine

Certification : ISO 9001:2008

Weight : 100-500kg

Color : green

Voltage : 220V, 440V

Condition : New

Automatic Grade : Manual

Driven Type : belt

Warrenty : 1year

Country of Origin : India

We are acknowledged as a trustworthy name based in Ahmedabad(India) and offering products to diverse Ahmedabad(India)s. As quality is our topmost concern, we give maximum priority to the stringent checking of the entire range of products.   Details : Tapping Capacity in Steel - 6 MM No. Of Spindle Speed - N/A Spindle Nose Taper - Solid Spindle Center to column - 87 MM Spindle Travel - N/A Maximum Distance Between Spindle to Table - 260 MM Maximum Distance Between Spindle To Base - N/A Working Surface of Table - 157 x 129 MM Working surface of Base - N/A Column Diameter - 47 MM Base Of Machine - 378 X 223MM Overall Dimension of M/C. - 635 X 360 X 495 Motor Speed - 1440 RPM Motor 3 Phase Induction A.C. - 0.5H.P. Weight Of Machine (Approx) - 45 Kg.

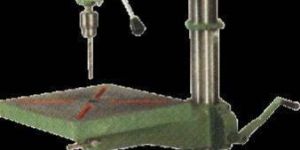

To maintain the high-quality standards, we follow strict quality standards throughout. Now procure 20/ 385 PCR Drill Machine at extremely reasonable prices from us. Our organization is its famous supplier.   Details : Drilling Capacity in Steel - 20 MM No. Of Spindle Speed - 85-154-260-460-617-1100-1880-3360 Spindle Nose Taper - MT-2 Spindle Center to column - 385 MM Spindle Travel - 130 MM Maximum Distance Between Spindle to Table - 560 MM Maximum Distance Between Spindle To Base - 960 MM Working Surface of Table - 440 X 305 MM Working surface of Base - 405 X 405 MM Column Diameter - 87 MM Base Of Machine - 660 X 375 MM Overall Dimension of M/C. - 1520 X 410 X 970 Motor Speed - 1440 RPM Motor 3 Phase Induction A.C. - 1 H.P. Weight Of Machine (Approx)

Drilling Capacity in Steel 13 MM No. Of Spindle Speed 500-950-1625-2525 Spindle Nose Taper Solid Spindle Center to column 153 MM Spindle Travel 75 MM Maximum Distance Between Spindle to Table 250 MM Maximum Distance Between Spindle To Base 480 MM Working Surface of Table 207 X 190 MM Working surface of Base 208 X 208 MM Column Diameter 47 MM Base Of Machine 375 X 235 MM Overall Dimension of M/C. 920 X 400 X 300 Motor Speed 1440 RPM Motor 3 Phase Induction A.C. 0.5 H.P. Weight Of Machine (Approx) 45 Kg. Request for Quotation

The Column Pillar Drilling Machine manufactured and exported by us are widely used in different industries worldwide. These bear motors of 1 HP capacity and a column diameter of 75 mm. Efficient in drilling In M.S. and C.I. of 20 mm and 22 mm capacity respectively, these machines are of 480 x 330 x 1300 mm size and can also be customized adhering to the designs and specifications of our esteemed clients. Features: Machine base is reinforced by ribs, for extra rigidity & stability Pillar bracket is made in octagonal shape which acts like rib giving more rigidity Spindle in all the machines have six spline and supported through taper roller bearings to withstand thrust load Drive to the spindle is through six splined sleeve inside in all machines Rigid machine structure for vibration free machining The RAM is made from special alloy steel pipe of more thickness. Easily & readily available spare parts

Type : Bench Drilling Machines

Weight : 80-100kg

Color : Light Green

Voltage : 220V, 440V

Condition : New

Automatic Grade : Manual

Driven Type : Mechanical

Warranty : 1year

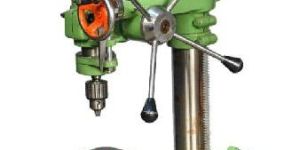

Backed by an efficient network and trustworthy resources, we have emerged as a dominant supplier of 38mm Pillar Drill Machine in the market. We are a quality driven and make sure that the offered lot is prepared using the premium grade raw material. Also, we make sure that it is sourced from the certified vendors.

Feature : Accuracy, Easy To Operate, Hard Structure

Voltage : 440V

Condition : New

Automatic Grade : Manual, Semi Automatic

Certifications : ISO 9001:2008

Country of Origin : India

Brand Name : PANCHAL

our huge product basket commensurate to the international quality standards and thus, customers can rely on us for the quality. being a supplier of 32mm pillar drill machine, we strive to deliver high quality and cost effective products in the market.   details : drilling capacity in steel - 32 mm no. of spindle speed - 115-210-325-520-660-1090-1750-2890 spindle nose taper - mt-4 spindle center to column - 254 mm spindle travel - 158 mm maximum distance between spindle to table - 625 mm maximum distance between spindle to base - 930 mm working surface of table - 326 x 326 mm working surface of base - 347 x285 mm column diameter - 87 mm base of machine - 570 x 365 mm overall dimension of m/c. - 1600 x 650 x 520 motor speed - 1440 rpm motor 3 phase induction a.c. - 1 h.p. weight of machine (approx) - 250kg.

Type : Pillar Drill Machine

Certification : ISO 9001:2008

Weight : 100-500kg

Color : green

Condition : New

Automatic Grade : Manual, Semi Automatic

Power : 1-3kw

Country of Origin : India

Brand Name : PANCHAL

32mm drill machine Drilling Capacity in Steel - 32 MM No. Of Spindle Speed - 115-210-325-520-660-1090-1750-2890 Spindle Nose Taper - MT-3 Spindle Center to column - 254 MM Spindle Travel - 158 MM Maximum Distance Between Spindle to Table - 625 MM Maximum Distance Between Spindle To Base - 930 MM Working Surface of Table - 326 x 326 MM Working surface of Base - 347 X285 MM Column Diameter - 87 MM Base Of Machine - 570 X 365 MM Overall Dimension of M/C. - 1600 X 650 X 520 Motor Speed - 1440 RPM Motor 3 Phase Induction A.C. - 2 H.P. Weight Of Machine (Approx) - 250 Kg.

Type : PILLAR TYPE

Brand Name : PANCHAL

Certification : iso

Weight : 250 kg

Condition : NEW

Application : MANUAL

Power Type : 3 ph

Function : drilling

Warranty : 1 year

After-Sales Service Provided : yes

Drilling Speed : 8

Country of Origin : India

25 mm Heavy Duty Drill Machine No. Of Spindle Speed 115-210-325-520-660-1090-1750-2890 Spindle Nose Taper MT-3 Spindle Center to column 385 MM Spindle Travel 158 MM Maximum Distance Between Spindle to Table 530 MM Maximum Distance Between Spindle To Base 950 MM Working Surface of Table 403 x 406 MM Working surface of Base 443 X 297 MM Column Diameter 87 MM Base Of Machine 652 X 385 MM Overall Dimension of MC. 1600 X 1030 X 520 Motor Speed 1440 RPM Motor 3 Phase Induction A.C. 1 H.P. Weight Of Machine (Approx) 235 Kg.

We are identified as one of the commendable names in the market offering 25/254 Drill Machine at affordable prices. Buyers are required to place orders; timely deliveries of consignments are our primary concern.   Details : Drilling Capacity in Steel - 25 MM No. Of Spindle Speed - 115-210-325-520-660-1090-1750-2890 Spindle Nose Taper - MT-3 Spindle Center to column - 254 MM Spindle Travel - 158 MM Maximum Distance Between Spindle to Table - 625 MM Maximum Distance Between Spindle To Base - 930 MM Working Surface of Table - 326 x 326 MM Working surface of Base - 347 X285 MM Column Diameter - 87 MM Base Of Machine - 570 X 365 MM Overall Dimension of M/C. - 1600 X 650 X 520 Motor Speed - 1440 RPM Motor 3 Phase Induction A.C. - 1 H.P. Weight Of Machine (Approx) - 195 Kg.

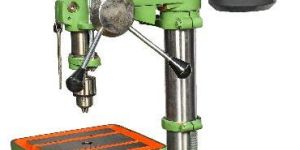

Engaged in the industry as a prominent Supplier of 25/ 385 PCR Drill Machine, we present the finest range of products. We have adopted secure payment methods that are approved by authority and featured with options that facilitate quick transfers.   Details : Drilling Capacity in Steel - 25 MM No. Of Spindle Speed - 115-210-325-520-660-1090-1750-2890 Spindle Nose Taper - MT-3 Spindle Center to column - 385 MM Spindle Travel - 158 MM Maximum Distance Between Spindle to Table - 530 MM Maximum Distance Between Spindle To Base - 950 MM Working Surface of Table - 403 x 406 MM Working surface of Base - 443 X 297 MM Column Diameter - 87 MM Base Of Machine - 652 X 385 MM Overall Dimension of M/C. - 1600 X 1030 X 520 Motor Speed - 1440 RPM Motor 3 Phase Induction A.C. - 1 H.P. Weight Of Machine (Approx) - 235 Kg.

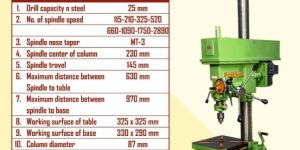

Clients can make payment through online and offline payment methods, with which they are comfortable. Our payment policies are transparent and we do not impose hidden charges. In order to deliver qualitative lot of products, we have hired a team of quality examiners who strictly check the product quality at several stages.   Details : Drilling Capacity in Steel - 25 MM No. Of Spindle Speed - 115-210-325-520-660-1090-1750-2890 Spindle Nose Taper - MT-3 Spindle Center to column - 230 MM Spindle Travel - 158 MM Maximum Distance Between Spindle to Table - 625 MM Maximum Distance Between Spindle To Base - 930 MM Working Surface of Table - 325 x 325 MM Working surface of Base - 318 X 296 MM Column Diameter - 87 MM Base Of Machine - 570 X 400 MM Overall Dimension of M/C. - 1600 X 650 X 520 Motor Speed - 1440 RPM Motor 3 Phase Induction A.C. - 1 H.P. Weight Of Machine (Approx) - 155 Kg.

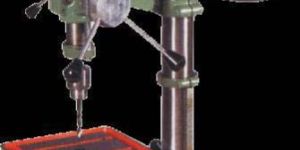

The company is acknowledged as a reliable name based in Ahmedabad(India) and offering products to diverse locations. We are positioned amongst the eminent Suppliers owing to the best in class 20mm Drill Machine that we offer.   Details : Drilling Capacity in Steel - 20 MM No. Of Spindle Speed - 85-154-260-460-617-1100-1880-3360 Spindle Nose Taper - MT-2 Spindle Center to column - 203 MM Spindle Travel - 130 MM Maximum Distance Between Spindle to Table - 340 MM Maximum Distance Between Spindle To Base - 645 MM Working Surface of Table - 225 X 250 MM Working surface of Base - 275 X 275 MM Column Diameter - 73.8 MM Base Of Machine - 490 X 330 MM Overall Dimension of M/C. - 1170 X 390 X 710 Motor Speed - 1440 RPM Motor 3 Phase Induction A.C. - 1 H.P. Weight Of Machine (Approx) - 100 Kg.

Acquiring our premium and high-grade range of product is hassle free as our organization is located in Ahmedabad(India), which is easily accessible by road, rail, and air. Known as the trustworthy suppliers, we are offering only the finest quality 13mm Drill Machine at reasonable price.   Details : Drilling Capacity in Steel - 13 MM No. Of Spindle Speed - 500-950-1625-2525 Spindle Nose Taper - Solid Spindle Center to column - 153 MM Spindle Travel - 75 MM Maximum Distance Between Spindle to Table - 250 MM Maximum Distance Between Spindle To Base - 480 MM Working Surface of Table - 207 X 190 MM Working surface of Base - 208 X 208 MM Column Diameter - 47 MM Base Of Machine - 375 X 235 MM Overall Dimension of M/C. - 920 X 400 X 300 Motor Speed - 1440 RPM Motor 3 Phase Induction A.C. - 0.5 H.P. Weight Of Machine (Approx) - 45 Kg.
