paras Engineering. co. Ramol, Ahmedabad, Gujarat

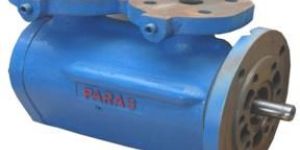

The screw pump of series P 3S FP for a pump and up to 40 bar are three screw rotary positive displacement pump for handling lubricating fluids. They must not contain any abrasive particles nor chemically attack the pump materials. The pump are designed as flange mounted pump and via an intermidate lantern connected with the driving motor.

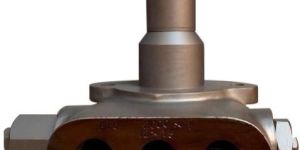

We are offering all types of three connection fig pump that are available from us at very nominal rates.

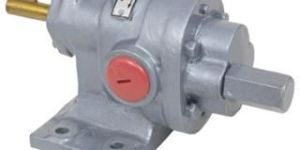

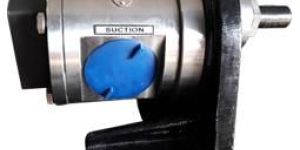

We are offering “Paras Group” brand Rotary Gear Pump Model “PRG” which is self priming, foot mounting type positive displacement Rotary Gear Pump. Model “PRG” having all Stainless Steel (SS-316) in three piece construction with investment cast. Due to three piece construction, it can be easily cleanable and maintainable that is why it is highly used in all kind of food industries. These pumps have SS-316 Gear and shaft that are nitrated to give long life and trouble free performance. The shaft is supported on self lubricating type Teflon coated DU Bushes and the sealing is done with Teflon based “GFO” pack sealant which gives zero leakage. The right angle mounting brackets facilitates foot mounting of the pump on base plate with Electric Motor of appropriate ratings. These pumps have sturdy design and construction for long trouble free service. The suction and delivery connection are available in 14 to 2 ½” size. These Gear Pumps can be operated up to pressure of 10 kgcm² with 8.33 LPM to 300 LPM flow capacity and has suction lift of 1m to 5m at rated speed of 1440 RPM. These pumps are designed up to maximum Viscosity of 1, 00,000 SSU and maximum temperature up to 200ºc.

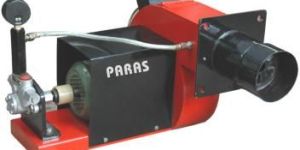

Single phase b 40, l.d.o burner, single phase, double shaft 2800 rpm motor 50 l 2800 r.p.m, 4.5 monark nozzle 100*75 mm ignesar rod.

Single phase b 40 diesel burner : . 12 hp single phase motor . D 57 suntec pump . 14*14 solvonit valve . 3.5 dempos nozzle . Ignechar rod 100*75

PARAS Shaft Mounted Speed Reducer are compact designed for direct mounting on the drive shaft of the equipment to be driven and also totlly enclosed. This principle assures positive and permanent allignment of the speed reducer and driven machine. And it permits convinient location of the motor, reduces space requirements and layouts problems.

The Capacity of the pump varies directly with speed but remain constant against pressure. however due to running clearance between the casing & impeller some liquid always bypasses to suction causing sleep which depend upon the deferential pressure viscosity of the liquid & of course the workman-ship. the pumps are capable of handling any viscosity. the sleep reduced with viscosity but the viscosity power increases. the pump has sed priming capability however some net positive to avoid cavitation depending upon the viscosity of the liquid to be pumped & the pump speed

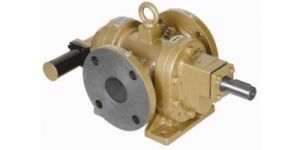

Ourt PARAS Brand positive displacement external rotary gear pump are most efficient and has special features like simple 7 compact design, low noise and easy to maintain. The pumps are ideal for handling Oil, Fuel Oil, Vegetable Oil, Mineral Oil, Loading Unloading and Transfer Application.

We are the main supplier of this product.

Type : Vertical

Certification : CE Certified

Application : Industrial

Voltage : 220V

Fuel : Electric

Power : 1-3kw

Warranty : 1 Year

All fig pumps manufacturer

Condition : New, Other

Automatic Grade : Manual

Rated Power : Other

Pressure : High Pressure, Low Pressure, Medium Pressure, Other

Warranty : 1year

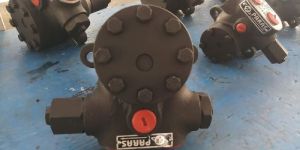

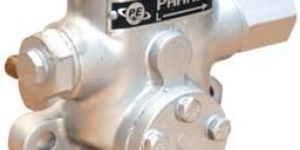

Each model provided port size being 38 bsp suction 38 bsp delivery capacity. Being 60lph, 90 lph & 120 lph provided with internal by pass and 14 bsp external bypass. They are availble both in clockwise-r and anticlockwise-l direction.

Each model provided port size being 12" suction x 12" delivery being 150lph,300 lph, 450 lph and 600 lph. Also provied with internal by pass and 14" bsp external by pass. They are available both in clockwise-r and anticlockwise-l direction. Speed allowed for these pumps are both 1440 rpm and 2880 rpm

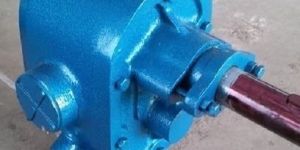

We are engaged in manufacturing and supplying of various types of bitumin pump that are available at very nominal prices in the market.

We are deal in various types of burner that are available at market leading prices.
