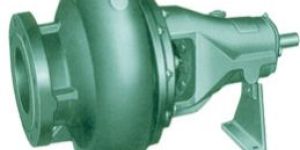

Design: Horizontal, radial split, volute casing pumps according to DIN 24255 std. with closed impeller, end suction, top centre line discharge. Back pull out design enables to remove the rotor without disturbing the pipelines. Application: . For handling clean or slightly turbid non-aggressive liquids. . Suitable for pumping condensate, general water supply in agriculture, trade, and industries with favourable NPSH cond ition. Materials:Cast Iron and Bronze.

Design: Vertical suspended pumps with closed and open impellers, for wet pit or dry pit applications, wear resistant design, overhung impellers upto 2 metres submersion depth, intermediate bush bearing support for submersion depth over 2 metres. Self-priming, simple mounting. Application: . Recommended where space economy matters . Vertical pumps are reliable alternatives to horizontal pumps . Suitable for clear liquids, acids, alkalis, hydrocarbons, slurries, waste water, sugar melts, detergents etc

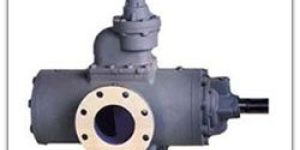

Three Screw Pumps" already in 1970's. Foreseeing the growing demand for totally reliable fuel and lube oil pumps for Thermal and Hydel Power Plants, Fertilizer, Chemical and Steel Projects a beginning was made by importing critical components and building pumps locally. Over decades, thousands Three Screw pumps have been manufactured and delivered. Three Screw pump technology but equally in the other types - namely Twin Screw, Single Screw Progressing Cavity - as well as the conventional types like Shuttle Block, Internal Gear, External Gear, Trochoidal and Vane types.

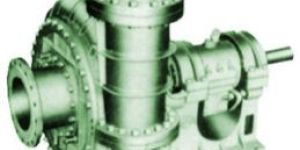

Design: Armoured centrifugal pumps, heavy duty, single stage with axial inlet, and overhung mounted impeller. Pump has TWIN casings i.e. outer and inner. Outer casing is in CICarbon Steel to withstand the required hydrostatic pressure and inner casing in special Ni-hard materials to take only the entire wear. In case of replacement, the inner casing alone with set of wear plates need to be replaced. Application: . To handle particularly liquids containing abrasive and coarse grained solids such as magnetite pulp, ferro silicon pulp, coal slurries, floatation tailings, out size material middling, sand water mixtures, coarse grained material in mining cocking plouts, ash slurry in thermal power stations, iron ore in beneficiation plants etc.

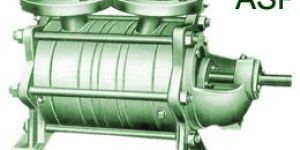

Design: Segmental type, horizontal side channel self-priming pumps equipped with unshrouded, vaned wheel impellers. Main objective of the design is for low discharge under high heads with reduced noise. Castings are manufactured by investment casting method. Application: . Used when liquids and condensates without abrasive matter are to be handled trouble free under high heads. . These pumps, also used to handle gas during normal liquid duty, are of noiseless operation, in industries running boilers for the handling of condensate and boiler feed water. . For the construction of washing, cleaning, and spraying plants, and for the construction of fire-extinguishing equipment.

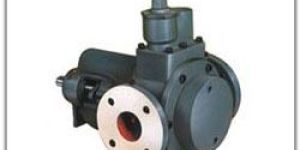

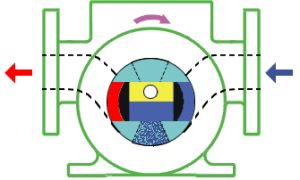

WORKING PRINCIPLES AND SALIENT FEATURES : Unique pumping principle - a combination of Rotary and Piston pump- two double acting pistons in their respective cylinders at right angles to each other. Rotation of rotor causes reciprocating movement of shuttle and piston. Self priming Single shaft design with long sleeve-bearing support and external ball bearing. Single gland construction reduces leakage to minimum. Choice of Mechanical seal and oil seals available. Specially designed for transfer applications. Front pull out design permits inspection of parts without disturbing the pipe connection, couplings or prime mover.

Rotation of rotor causes reciprocating movement of shuttle and piston.Single shaft design with long sleeve-bearing support and external ball bearing.Single gland construction reduces leakage to minimum.Front pull out design permits inspection of parts without disturbing the pipe connection, couplings or prime mover.Slow speed operation contributes to high reliability and less maintenance.Product is pumped without shear, foaming, agitating, heating, emulsifying or chewing.Pumping elements are of simple geometric form. Parts can be manufactured locally in any part of the world by a small repair shop.

Foreseeing the growing demand for totally reliable fuel and lube oil pumps for Thermal and Hydel Power Plants, Fertilizer, Chemical and Steel Projects a beginning was made by importing critical components and building pumps locally. Over decades, thousands Three Screw pumps have been manufactured and delivered. Valuable experience gained and modern manufacturing and testing facilities established under joint collaboration from world-renowned German company.

Supply in standard graded C. I. Construction Non-clog type c.I. Impeller with double mechanical seal and shredding device having free passage of particles in suspension.

Head : 20 meter

We are offering paper stock pumps. Design: horizontal, single stage, radial split centrifugal pump with back pull out design. Pumps stock like water resulting in substantial power saving. Wear plate - impeller gap is externally adjustable, hence pump performance and efficiency remain high. Open impellers are specifically designed for stock up 8%. Dynamic seal can handle stock upto 8 % without external sealing water. Mechanical sealpacked stuffing boxes are also available. The prefixed rotor with heavy-duty bearings eliminates seal and bearing problems. Application: . Used for continuous operation in process industries, for the pumping of clean, abrasivecorrosive liquids and various stocks up to 8% consistency.

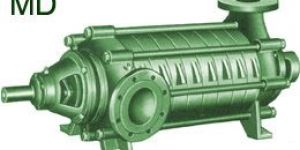

Design: Horizontal, barrel type construction, multi-stage pumps with single suction closed impellers. Axial thrust is compensated by a balancing disc. Application: . For boiler feed water service, for main and auxiliary condensate extraction, for general water and fire-fighting systems Materials: Graded cast iron WCBCF8CF8M (SS-316)

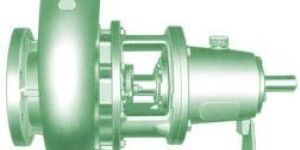

Design: Horizontal, single stage, volute casing pumps with discharge branch arranged tangentially upwardshorizontal, flanged to a bearing pedestal. The pump is normally provided with open impeller. Application: . Pumping of clean, turbid or slightly contaminated liquids against medium and low heads in water works, sewage works, for irrigation and drainage, dewatering, pumping sea water and sugar industry, for spray pondinjection water applications. . Suitable as coolant pumps in power stations and steel works pumping low concentration cellulose suspensions. Materials: Graded cast iron, Bronze and CF8M (SS-316). Mixed Yellow Pumps

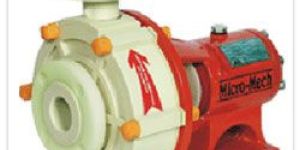

Series mipp industrial centrifugal plastic pumps are designed and manufactured to meet the stringent requirement for handling corrosive liquids including moderate slurries. The pump design confirms to is-5120 standard, which gives higher efficiency. All wetted parts coming in contact with media are injection molded, which can withstand in higher pressure. The pump shaft is protected from corrosive media with reliable sealing arrangement. Our pump manufacturing program ensures quality, reliability and trouble free operation for long duration.

Working Principles And Salient Features : . Only two rotating parts matting externally having principle of gear within gear. . Single gland construction reduces leakage to minimum. . Gears are well supported with the help of 4 bearings. . Self priming in nature

Design: Horizontal, radial split, volute casing pumps according to ANSI B73-1 specifications with open impeller, end suction, top centre line discharge. Simple external axial adjustment for impeller wear. Back pull out design enables to remove the rotor without disturbing the pipelines. If a spacer coupling is used, the motor does not have to be removed from the base plate. Only four bearing beds cover the entire 32 models. This means that the shafts, sleeves, bearings, and bearing beds are identical in and interchangeable for a large number of pump sizes

We are offering axial split volute case pumps. Design: horizontal, axially split single stage, inline design volute casing pumps with double suction, radial impeller according to api - 610 7th edition. Application: . this process and transfer pump has been developed for the most exacting conditions and can be used for a multitude of operations such as for pumping crude oil, oil and liquid hydrocarbons, furthermore for pumping cooling water, hot water, river water, brackish water as well as sea water, and also acids and alkalis. This type can also be used for loading in tank farms and as fire water pumps in fire fighting systems.
