Parshva Enterprise Amraiwadi, Ahmedabad, Gujarat

Manifolds are common auxiliaries in a plastics injection molding shop. They are key components of mold water cooling circuits. Their primary function is to route cooling water from the tower or chiller to the water passages in the mold, then collect the warmer water leaving the mold, at turbulent flow rates, and return it to the external cooling water loop. In contrast, manufactured manifolds are engineered products that provide a convenient means to neatly arrange multiple water hoses. More importantly, they are designed to supply the mold water passages with adequate cooling water, then collect the warmer turbulent water flowing from the mold and return it to the external cooling water loop. Properly sized supply and return manifolds keep the backpressure effect from the return manifold leg of the cooling loop to a minimum.

Our water flow regulators WFR series allow make a precise and individual control in each of the zones. New design, high quality components make it one of the most competitive in the market.Two models are available:ZS model bottom body with pipe connections Ø 12ZR model bottom body with 3/8 socket connections Main Technical Features 1. Tube made of polyamide (Standard).2. Bodies made of PA 6 with 30% fiberglass.3. Regulating Taps in brass.4. Thermometer (Standard).5. Vitrilic rubber o´rings in vitrilo (hardness 70 SHA).6. Brass inlet and oulet valves are inserted in the body.7  Maximum working temperature 95ºC

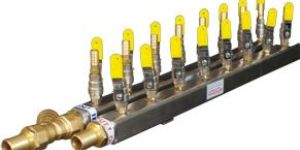

Stainless steel manifolds are typically made from 304 square tubing. Pipe fittings for supply, return and distribution ports are welded to the tube. SS manifolds are often specified for highly corrosive cooling water applications. Manifolds are equipped with Brass Hose nipple, pre-drilled mounting holes and screws for ease in pairing and installation.

A quick connect fitting is used to provide a fast, make-or-break connection of fluid transfer lines. Also called a quick disconnect or quick release coupling. Operated by hand, quick connect fittings replace threaded or flanged connections, which require wrenches. When equipped with self-sealing valves, quick connect fittings will, upon disconnection, automatically contain any fluid in the line. • couplings up to 140 Mpa for high pressure applications• Brass & Stainless Steel for best quality • compact products for installation in restricted areas• non spill couplings to protect the work place and the environment• stainless steel fittings & couplings for use with dangerous and corrosive fluids

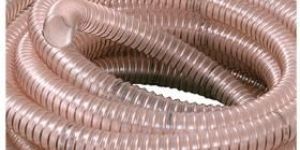

We have PU Hose also in wall thickness of 1.2mm & 2.5mm. This Heavy Duty PU Hose mainly use to convey some material like powder, granules some chemicals etc. Inner surface for these PU Hoses is smooth so better conveying of materials. This product is also Made in Germany.

In order to operate hydraulic systems without failure, hydraulic systems are equipped with precise high-tech components. Sludge, resin & dirt in the oil cause friction, wear and malfunction of the hydraulic systems. More than 80% of hydraulic failure s are caused by impurities in the oil.The mechanically oil cleaner removes sludge & dirt particles from hydraulic oil and other mineral oil which is as clean as with NAS value 8. Malfunction of hydraulic oil is extended. The cleaned hydraulic oil is much cleaner than new oil. Features and Benefits 1. Fast return of investment.2. Precise operation of your hydraulic system.3. Improved process reliability.4. Less production cost.5. Improved availability of your machine.6. Less cost for maintenance, repairing and oil change.7. Up to 70% less downtime.8. Up to 95% less consumption of hydraulic oil.

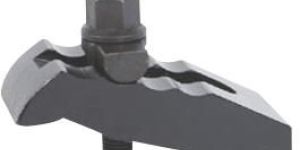

Mould Clamp is designed specially for low height applications only such as clamping of moulds on plastic injection moulding machines & pressure die casting machines. The compact front portion of the clamp enables it to penetrate into the limited clamping area of the mould and clamp it. The positioning of forged swival washer on required curved groove enables the operator to set the center distance between the clamping portion and the clamping bolt as per the nearest tapped hole available on platen (where there are no T-slots). No supports are required at the rear of the clamp as the rear portion rests on the platen and front holds the mould. Flanged nut is tightened on the swival washer which takes care of the positioning of clamp body. These clamps are equally useful on pressure die casting machines, hydraulic presses & power presses where low height clamping is done. Clamps are supplied complete with swival washer, flanged nut & clamping stud or T-Bolt as shown in tables below.

Mild steel manifolds are typically fabricated from MS square tubing. Pipe fittings for supply, return and distribution ports are welded to the tube. MS manifolds are Powder coated with PU Paint specified for highly corrosive cooling water applications. Manifolds are equipped with Brass Hose nipple, pre-drilled mounting holes and screws for ease in pairing and installation. Features and Benefits of both type manifolds 1. Various port sizes available.2. Brass Y Strainer attached.3. Pre-drilled mounting holes.4. Single or parallel manifold.5. Pressure gauge attachments (optional).6. Leakage proof.

Our Hopper Magnets provide a properly configured, high-density magnetic field to trap and hold ferrous fines, fragments, and small metal objects. Stainless steel tubing and frames are welded into strong, integral units. They can be installed – or simply laid – inside hoppers, housings, and bins – and easily removed for cleaning. Grates are built for low-abrasion applications and should measure at least twice the size of your outlet opening, so as not to restrict product flow. Parshva Hopper Magnets come in a variety of shapes and sizes for use in round, square, or rectangular hoppers, chutes, housings, and bins. They are ideal for trapping ferrous objects in free-flowing materials conveyed by gravity. Standard Magnet dimensions range from 6” to 36”.

A manifold is the hub of a plumbing system that distributes supply water to distribution lines throughout a home. Parshva manifolds are easy to install and are growing in popularity throughout the India and Africa . There are a variety of Parshvamanifold systems available. Each manifold system has a variety of adapters, end caps, and fitting assemblies that can be purchased to customize the manifold to various applications.
