Pendulum Impact Testing Machine Dealers in Ahmedabad

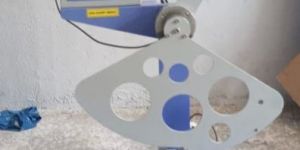

We are well reckoned as one of the distinguished impact tester suppliers in India. The API pendulum impact testing machine determines the impact strength of standard tension-impact specimens. This high-precision pendulum impact tester measures the performance of plastics and composites according to ASTM and ISO test methods for Izod, Charpy and Tensile Impact. The automatic break prevents secondary strike impacts and allows variable starting angles to ensure optimal impact velocity. Siemens-based PLC and operator interface used for all calibration and test functions. ISO / ASTM conformance for all sample types. Izod, Charpy and Tensile Impact Testing available for high energy Impact. Testing up to 50 joules. Automatic brake system. Computerized operator interface. Cold box low temperature impact testing (optional). Digital clamping force adjustment for Izod testing (optional). Test reports available through serial printer port. Instrumented Impact hammers available for R & O applications. ISO 179,180,8256. ASTM 0256, 06110, 01822 and others.

• Brand Name: Techplast
• Voltage: 220V
• Driven Type: Electric
• Material: Mild Steel
• Weight: 100-500kg
• Country of Origin: India
• Type: Charpy Impact Testing Machine
• Color: White
• Condition: New
• Operating Mode: Semi Automatic
• Warrenty: 1 Year
• Corrosion Resistance: Yes
• Machine Structure: Vertical
• Reverse Rotation: No
• Is It Variable Speed: No
• Packaging Type: Wooden Box, As per customer requirement
• Finishing: Polished, Chrome Finish, Powder Coated
• Width: 600 mm
• Phase: Single Phase
• Overall Length: 1000 mm
• Specialities: Rust Proof, Long Life, High Performance, Easy To Operate
• Dimension (LxWxH): 1000x600x800mm
• Usage: Impact Loading, Industrial

The new model of Pendulum Impact tester is built with versatility, ease of operation and display of information with high resolution. These machines are capable of determining the impact strength using Charpy, Izod or Tensile Pendulum Impact methods by changing the pendulum striking tab. By using the appropriate striking tab and the specimen clamps on the base of the machine, plastic samples can be tested in accordance with - Pendulum capacity can be easily change & increased by adding the optional weights on Pendulum Hammer Device. The energy absorbed for breaking can be configured in different units of measurement and the same is displayed by an optical encoder mounted on the shaft of the machine. FEATURES Selectable energy units - J, in.lbf, ft.lbf, kgf.m, kgf.cm . Selectable strength calculation in J/m, Kj/m², kgf.m/m2. Auto calibration for bearing wind edge and friction.
