Pillar Drilling Machine Dealers in Ahmedabad

• Feature: Accuracy, Easy To Operate, Hard Structure
• Voltage: 440V
• Condition: New
• Automatic Grade: Manual, Semi Automatic
• Certifications: ISO 9001:2008
• Country of Origin: India
• Brand Name: PANCHAL

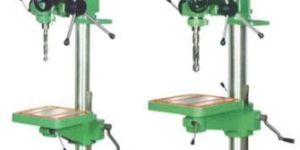

Backed by an efficient network and trustworthy resources, we have emerged as a dominant supplier of 38mm Pillar Drill Machine in the market. We are a quality driven and make sure that the offered lot is prepared using the premium grade raw material. Also, we make sure that it is sourced from the certified vendors.

Used for boring to create holes in different work materials. Provides consistent boring. Durable and reliable tool. Economic in pricing when compared to other boring instruments. Accuracy in making hole. No compromise made in quality of machine components. Requires less or low maintenance but provides excellent machining performance. Can drill maximum of 38mm. Creates less noise and less vibration. We present wide range of drill equipments made according to industrial requirements. Pillar drills remain one of the most preferred boring equipments presented by us for several reasons. We have high precision pillar drills designed to serve precise boring operation for various industries and we provide high precision boring instrument with different boring capacities which can be selected matching the hole making requirement in different industries. Our hole making tool is an exclusive device designed to serve deeper bore operation up to 38mm. We have designed by considered the latest technology which can produce better results in machining with greater focus on hole accuracy. Our boring instruments are convenient for operating and adaptable in nature for applying in variety of materials. BMT-38 is capable of making a hole up to 38mm and the diameter is 106mm. The spindle nose to table and spindle nose to base distance is 625mm and 1000mm respectively. It is provided with MT.4 taper in spindle and the spindle speed is 70x2000 rotations per minute. It is designed with 415x415mm table size and 400x350mm of base size to make it convenient for making hole broad range of materials. The spindle travel distance is 225mm and the length is 1425mm. This device weights about 300kgs. BMTL-38’s making hole capacity is similar to that of BMT-38 and it differs in the following specifications such as 121mm of diameter, 830mm spindle nose to table distance, and 1000mm of spindle nose to base distance. It is designed with MT.4 tapper in spindle. The spindle speed is 70X2000 similar to that of BMT-38. The table size and base size are 400x400mm and 415x350mm respectively. The spindle travel is slightly higher than that of BMT-38. The height is about 1450mm and the device weighs approximately 325kgs. Specification of Machine ComponentsWhen it comes to device components, we have never compromised in selection of higher grade device component while constructing machining tools. Our 38mm high precision instrument is not an exception from this. It is provided with the following features such as, Arm, gear, work head and the column are made from closed grain cast iron. The main spindle and pinion are supplied in EN forged steel. The spindle ram is provided in alloy steel. All the moving parts are finished with close tolerance. The main gear and pulley are ensured of appropriate balancing before they are assembled. Finishing aspects are done with the help of imported instruments.  All Parts Finished on Imported Machines Closed grain Cast Iron Column, Arm, Work Head & Gears EN Forged Steel Main Spindle & Pinion Alloy Steel Spindle Ram Parts Finished on Imported Grinding M/c. All Moving Parts Finished to Close Tolerance. Parts properly balanced prior assembly. Main Gear & Pulley Column, Arm, Work Head & Gearsare made out of Closed Grain Parts Properly Balanced Prior Assembling of Main Gear & Pully Parts Finished on Imported Grinding M/c. All Moving Parts Finished to Close Tolerance. Spindle Ram is made out of Alloy Steel, ain Spindle & Pinon are Made out of EN Forged Steel.

• Type: STANDARD
• Certification: ISO 9001:2015 CERTIFIED COMPANY
• Weight: 100-500kg
• Color: SPECIAL GREEN & YELLOW
• Voltage: 415v
• Condition: New
• Automatic Grade: Manual, FINE FEED TYPE
• Power: 0.75kw/1.0hp/3phase/1440rpm
• Driven Type: Electric, Pulley drive
• Warrenty: 6 month
• Type\: Pillar Drill Standard Model
• Country of Origin: India

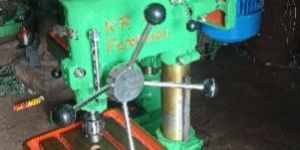

• Brand Name: KR PANCHAL
• Application: INDUSTRIAL WORKSHOP USAGE, FABRICATION, VALVE ANY MANY MORE OTHER INDUSTRIAL COMPANY
• Capacity: 25MM CAP.,
• BEARING SET: KYK MAKE
• CAST MATERIAL: S.G IRON, C.I, M.S, ALUMINIUM
• PACKING: WOODENCASE, GOONY, PLASTIC BAG

• Drilling Capacity: 32 mm
• Range of Spindle Speed: 3200 RPM Maxi.
• Distance from Spindle Nose to Pillar Surface: 650 mm
• Type of Drilling Machine: Pillar
• Spindle Travel: 130 mm
• Material: Mild Steel

The spindle gear box has 8 mechanical speeds from 90 to 885 RPM. The gears are made from steel. The totally enclosed 2 H.P. Motor is direct coupled with gear box. The levers for changing the speed are avoided by means of providing special gear system. The speed can be changed in the running.

• Country of Origin: India
• Type: Pillar Drilling Machine
• Weight: 100-200kg
• SIZE: 13 MM

13 MM | 20 MM | 25 MM | 32 MM | 38 MM | 50 MMPillar drill machine Our extensive supply network consisting of manufacturers, distributors, resellers, valued-added service providers, rejoinders, tool modifiers, and coaters, coupled with one of the industries’ most skilled and experienced sales forces give our customers the competitive edge required in today’s manufacturing environment.

• Drilling Capacity: 32
• No of spindle speeds: 8
• Range of speed: 105 to 2651 rpm
• Distance Between Spindle Center & Columm Face: 250 mm
• Max. Distance of spindle to base: 1100 mm
• Max. Distance of spindle to work table: 770 mm
• Table Travel: 450 mm
• Table Size: 330x330 mm
• Base Size: 650x460 mm
• Working surface of base: 370x470 mm
• Column Diameter: 87 mm
• Columm Height: 1500 mm
• Spindle Nose Bore: MT-4
• Motor Recommended: 0.75KW (1 H.P.) 1440 RPM
• V-Belt Size: B-48

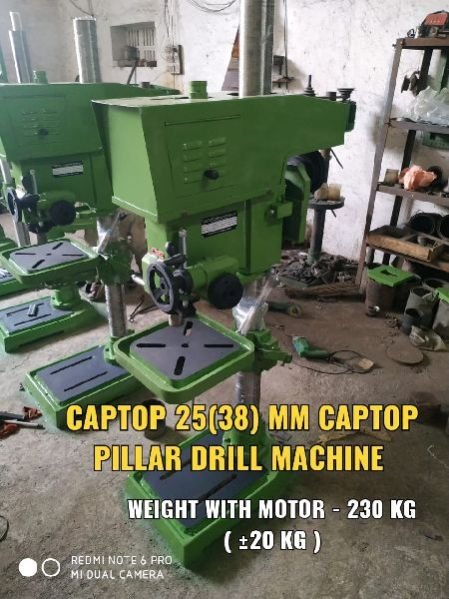

• Weight Of Machine (Approx): 230Kg

We are the celebrated manufacturer, supplier and exporter in domestic as well as global market, serving the world with the best in class quality pillar drill machine, is a fixed style of drilling machine that can be mounted on a stand or work bench to achieve the desired operation effectively. The offered pillar drill machine is being a first choice in the market for its far more accuracy, unlikely to hand held drill machine, which is also famous in the industries with the drill press, pedestal drill or bench pillar drill machine. This pillar drill machine is manufactured by our sharp witted team of engineers with the help of the latest methodologies under strict quality control processes. This pillar drill machine is also checked with respect to several quality measures later than completion of manufacturing to ensure its highest standards. The offered pillar drill machine is available in an exhaustive range and entire is capable in drilling M.S and C.I work piece profoundly and precisely. The range of the pillar drill machine mentioned below can be availed in the standard specification at the industry leading rates, whilst customized range of the same is also available on the customer request. Both ranges of the pillar drill machine are guaranteed for outstanding performance and long life expectancy.

We have carved a niche as an eminent Manufacturer, Exporter and Supplier of Pillar Drilling Machine from Rajkot, Gujarat. Quality approved raw components are used for manufacturing Pillar Drilling Machine at our product house. High efficiency, low maintenance and robust construction are some of the key highlights of our Pillar Trading Machine. Customers can get in touch with us for obtaining Pillar Drilling Machine at nominal rates.

Spindle Gear Box : The spindle gear box has 8 mechanical speeds from 90 to 885 RPM. The gears are made from steel. The totally enclosed 2 H.P. Motor is direct coupled with gear box. The levers for changing the speed are avoided by means of providing special gear system. The speed can be changed in the running.   Feed Gear Box : The feed gear box has 2 feed, 0.05 7 0.1, for the vertical movement of the Ram.   Automatic Feed With Auto Stop : As the usual hand feed is with the machine, the Automatic feed arraignment is provided. As the feed engagement handles are pulled out automatic feed is engaged.   Drill Spindle : The Drill spindle is made from best quality steel. The taper roller bearing is inserted.   Drill head & Table Arm : Both can be raised, lowered and turned round the columm.

We bring forth Pillar Drill Machine (BMT-13/20/25), which is manufactured in compliance with international standards. Further, Pillar Drill Machine can be availed at market leading price. Technical Specifications ModelBMT 13BMT – 20BMT – 25BMTL – 25Drilling Capacity13mm20mm25mm25mmPillar Dia.47mm75mm90mm90mmSpindle NoseSolidMT – 2MT – 3MT – 3Spindle Travel75mm125mm152mm250mmSpindle Center To Pillar Surface155mm200mm228mm250mmNo. Of Spindle Speed4888Spindle Speed (RPM)500-280087-320096-260070-2000Base To Spindle Nose445mm925mm980mm1000mmElectric Motor0.5H.P.1H.P.1H.P.1H.P.

• Feature: High quality, durability, corrosion resistance and excellent finish

• Drilling Capacity: 20 Inch
• Spindle Travel: 125 mm
• No of Spindle Speeds: 8
• Range of Speed: 86 to 3326 RPM
• Distance Between Spindle Center and Columm Face: 215 mm
• Max Distance of Spindle to Base: 950 mm
• Max Distance of Spindle to Work Table: 650 mm
• Table Travel: 250 mm
• Table Size: 270 x 270 mm
• Base Size: 510 x 330 mm
• Working Surface of Base: 250 x 300 mm
• Column Diameter: 75 mm
• Columm Height: 1100 mm
• Spindle Nose Bore: MT - 3
• Motor Recommended: 0.75KW (1 H.P.) 1440 RPM
• V Belt Size: A - 43
• Weight of Machine: 125 kg

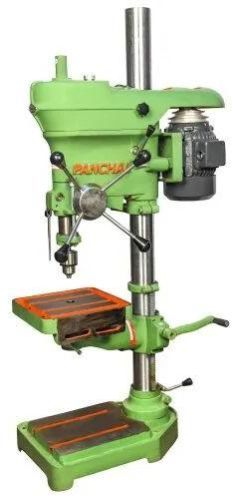

• Brand Name: PANCHAL
• Drilling Capacity: 20mm
• Type of Drilling Machine: Pillar
• Distance from Spindle Nose to Pillar Surface: 203mm
• Phase: 3 PHASE
• Spindle Travel: 130mm
• Range of Spindle Speed: 85 -2800 Rpm

Drilling in Steel 38MM, Drilling in C.I. 40MM, Tapping in Steel 25MM, Range of spindle speeds 80-2600MM, Max. dist. between spindle centre to column face, 270, Max. dist. between spindle nose to base plate 1035, Overall dimension of machine 1760x730x560, Wooden Case Dimension 1810x780x610.

We are offering pillar drill machine. Heavy duty pillar drill machine.

• Features: Precisely engineered, Low power consumption, Long functional life

• Drilling Diameter: 20 mm
• Spindle Travel: 75mm
• Spindle Speed: 500 - 2800RPM
• Main Motor Power: 0.5HP
• Drill Depth: 225 mm - 250 mm

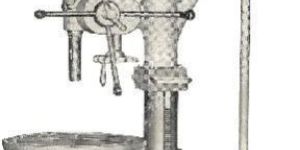

NILAMANI INDUSTRIES Ahmedabad had a broad experience for highly precision parts of machinery, die, Jig & fixture since last 27 years. Our large experience now introducing a 20 mm and 13 mm capacity Pillar Type Drilling Machine for workshop in new design & technology. Applications Automobile Auto Parts Transmission Tower Steel Plants & Steel Fabrication workshops Chemical Factories                   Quality Assurance Ever since the time of inception, we have given maximum importance towards maintaining the supreme quality of our range of products.
