Plug Valve Dealers in Ahmedabad

• Brand Name: Allines
• Size Range: 1”NB to 8”NB
• Feature: Lining Standard as per ASTM F 1545,Flow characteristics for control application etc.
• Place of Origin: Ahmedabad
• Applications: Industrial Organic Chemicals,Detergent production,Alkali’s & Chlorine,Bromine Production etc.
• Pressure Range: 0 to 6 Bar
• Temperature Range: -60oC to +200oC
• Packaging: Bulk

With the aid of diligent professionals and smart packaging system, we can easily render bulk and customized packaging requirements of the patrons. Also, we ensure that the packed lot has shock sustainability to circumvent loss during transit. Since, we have a widespread supply chain network; we can satisfy buyers by catering to bulk requirements and making delivery within the stipulated time.   Salient Features : Meet design specification as per B 16.34 / Flange dimensions as per B 16.5. Testing Standard as per BS - EN 12266 - 1 / DIN – EN - 588 – 1 Lining Standard as per ASTM F 1545 A one piece top entry PFA Lined Encapsulated taper plug design provides maximum corrosion resistance The PFA body liner cover all wetted surface in the body and the plug extends are sufficiently cover as well The solid taper anchored PFA Plug liner material ensures a strong adhesion “T” – Slots matching will be a tight and perfect fit of the liner and additional support during vacuum service The Interface between the tapered outer plug and the tapered linear body provides a 360 primary sealing area There are no cavities where flow media can accumulate or contaminate In additional to large seating area the valve is fully bi-directional and the seal is totally independent of pressure Large sealing surface from a port to port bubble – tight shut-off A static eliminator which provides a positive electrical ground between the body and plug A Secondary dynamic self adjusting PTFE “V” Rings prevents stem leakage In line adjustment - when seal presence adjustment is required due to sleeve wear, slight rotation of cover adjustment bolts. Pushes the plug downwards thereby providing extra sealing pressure / extra service life Flow characteristics for control application Full Port are assures low pressure drop and high flow characteristics   Technical Data : Size Range - 1”NB to 8”NB Pressure Range - 0 to 6 Bar Temperature Range - -60oC to +200oC Vacuum resistance : Full (Vacuum up to 16 Bar) Tightness - BS-EN-12266-1 Leakage rate - D, Test Media: Gas Leakage Class - as per Class VI shut off. Body Material - S.G. Iron (NOD CI) / WCB / CF8 / CF8M / CD4MCu + Lined Lining Material - FEP / PFA / PVDF / Ceramic / Antistatic PFA Lining Spark Test - Thick liner 100% Inspected at 20 KVA Optional Features : Locking arrangement available on request Extended stem design available on request Gear box / Pneumatic or Electric Actuator available on request Applications : Industrial Inorganic Chemicals Industrial Organic Chemicals Plant protective agent production Alkali’s & Chlorine Detergent production Water treatment Bromine Production Sulfur recovery Nitrogenous & Phosphorus Fertilizers Food Processing Pharmaceutical Preparation Sugar Industries Petroleum Refining

• Country of Origin: India
• Body: DI/WCB/SS +PFA/FEP/PVDF/PP LINED
• Plug: DI/WCB/SS +PFA/FEP/PVDF/PP LINED
• Diaphragm: PTFE
• Shim: MS/SS
• Wedge Ring: PTFE
• Washer: PTFE
• Thrust Collar: MS/SS
• Cover Plate: DI/WCB/SS
• Adjusting Nut: SS
• Cap & Handle: MS
• Fastners: MS/SS
• Visual Test: As Per API 598
• Hydro Test For shell: 20 Kg/cm
• Hydro Test For Sleeve: 10 Kg/cm
• Pneumetic Test: 6 Kg/cm
• Spark Test: 15 KVDC

• Country of Origin: India
• Type: Plug Valves
• Material: Stainless Steel
• Usage: Water Fitting
• Temperature Pressure: High Temperature Pressure
• Number Of Way: 2way
• Finishing: Polished
• Specialities: Investment Casting
• Packaging Type: Carton

A plug valve is a type of quarter-turn valve that is used to control the flow of fluid through a pipeline or process system. The valve consists of a cylindrical or conical plug that can be rotated inside a body to control the flow of fluid.

• Material: Ductile Iron
• Power: Hydraulic
• Size: 2 Inch
• Condition: Good
• Surface: Polished
• Pressure Rating: PN10-PN420

We are offering plug valves, jupiter controls valves manufacturer & exporter of wide range plug valves the taper plug valve is manufactured in sizes 12 inch thru 12 inch and is used on a wide variety of liquid, gaseous, and slurry services. The tapered plug is held firmly into its tapered seat but can be adjusted so that complete leak tightness is achieved together with smooth valve operation. the tapered seat surfaces of the plug and body are not exposed to the line fluid when the valve is in the open position, so that the effects of corrosion and erosion are confined to the less important parts of the valve. also since there is a straight flow path through the valve, there is very little resistance to flow and pressure loss is minimized. All carbon steel taper plug valves, sizes 1-12 inch and above, have plugs with flowserve audco super lomu treatment. in this unique process, low friction ptfe is incorporated in the surface structure of the valve plug metal. this gives easier operation and enhanced resistance to taper lock over thousands of operations or many years of service. The taper plug valve is not a pressure balanced plug valve and therefore is supplied only up to ansi #300. For higher pressure classes or more critical services the super-h valve shall be selected.

• Brand Name: Flow Line Valve
• Material: Cast Steel
• Media: Water
• Thickness: 5 to 10 mm
• Lined Material: FEP
• Minimum Order Quantity: 1 Unit

• Brand Name: Zebco
• Material: Cast Steel
• Finishing: Coated
• Color: Silver
• Condition: New
• Automatic Grade: Manual
• Usage: Water Fitting
• Certification: ISO 9001:2008 Certified
• Operating Temperature: Temperature up to 450
• Packaging Type: Wooden Box
• Valve Size: 1inch,1/2inch,1.1/2inch,2inch
• Working Pressure: PN16/25/40 or CL150/300/600
• Packaging Size: 1
• Specialities: Investment Casting
• Type: Plug Valves
• Warranty: 1 Year
• Country of Origin: India
• End Connection: Flange End
• Media: Water
• Number Of Way: 3way
• Temperature Pressure: Low Temperature Pressure
• Threaded End: Flange End

• Material: Stainless Steel
• Application: Gas Fitting, Oil Fitting, Water Fitting
• Weight: 10-20kg
• Pressure: High Pressure
• Feature: Blow-Out-Proof, Durable
• End Connection: Socket Weld Ends

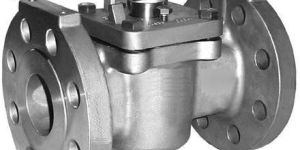

We are counted among the top Manufacturers and Exporters of PTFE Lined Plug Valves in the market. Our PTFE Lined Plug Valves are not affected by rapid changes in chemical concentration or processing temperature. Not only this, these PTFE Lined Plug Valves are lined with a non-corrosive polymer and are able to resist any type of chemical at various temperatures. Besides, the fluorocarbon lining is locked into the valve body in a fully-lined valve. With us, you can avail reasonably priced PTFE Lined Plug Valves. Specifications : Available from 25 mm to 400 mm

• Country of Origin: India
• Material: Cast Iron
• Certification: ISI Certified
• Application: Gas Flow
• Color: Blue
• Feature: Blow-Out-Proof
• Rubber Sleeve: Yes

Our clients can avail from us a quality-assured range of Open Body Pinch Valves. These valves are the modified version of laboratory pinchcock. The rubber sleeve in these valves are protected under the iron casting. These are made using latest machines and technologies as per the set industry standards. We also offer these products in customized forms as per the needs of the clients. Features: * Durable* Resistant to corrosion* Easy maintenance

• Spark Test: 15
• Working Temperature: -30 degree to 160 degree

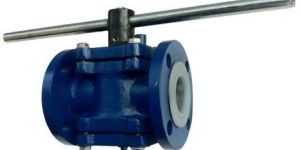

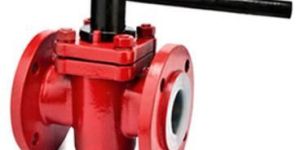

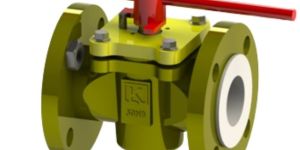

FEP and PFA lined, Ductile Iron,Cast Carbon Steels- ANSI Class 150 flanged Plug Valve It can be equipped with a manual handle or with pneumatic or electric actuators. A full range of accessory items are available including limit switches, solenoid valves, positioners and manual override devices

• Brand Name: Shaan
• Material: Ductile Iron, FG, CI
• Media: Air, Water
• Price Range: 3000 - 7000 INR
• Sample Policy: Sample costs shipping and taxes has to be paid by the buyer
• Main Domestic Market: All India
• Sample Available: Yes

• Manufacturing Std:: BS 5353 / API 599 / API 6D
• Face to Face, End to End:: ASME B16.10 / Regular Patten
• End Connection:: Flanged Ends to ASME B16.5, RF As Per Requirement
• Inspection and Testing Std:: API 598 TEST PRESSURE
• BODY: 150 PSIG
• SEAT: 150 PSIG

• Size: 100-150mm, 150-200mm
• Type: Dairy Plug Valve
• Material: Aluminium, Cast Iron
• Application: Gas Fitting
• Pressure: High
• Feature: Blow-Out-Proof, Casting Approved
• Valve Type: Automatic
• Weight: 15-20kg, 20-25kg

We are known to be one of the chief Plug Check Valve Manufacturers in Ahmadabad, India. Plug Valve is used within the structure to control the flow of fluids and gasses. The well Lubricated Plug Valve that we manufacture is used in various industries and also in household natural gas pipelines. Features Made from best quality steel Highly efficient and durable Available in various specifications and also customized as per the client’s requirements Have a simple design Proves to be highly economical

• Material: Water,Air,Gas
• Media: Coal
• Size: 15mm to 500mm
• Pressure: Low Pressure,High Pressure,Medium Pressure
• Power: Manual
• Temperature Range: -25 to 400 Degree Celsius

Quality being the major concern of our organization, we keep a stringent check on the production, packaging and delivery processes. It is Supplier & Manufacturer of Plug Valve. Designed and developed using the best quality material, we pack them meticulously so as to ensure hassle free deliveries. Also, we make sure that only premium material is used for packaging. Our premium quality plug valves are designed for high strength, easy installation, convenient use and long service life.

• Size: Multisize
• Material: Cast Iron
• Application: Oil Fitting
• Weight: 10-15kg
• Feature: Blow-Out-Proof, Casting Approved
• Pressure: High
• End Connection: Screwed / Socket Weld / Flanged
• End Connection Type: Flanged
• Finishing Type: Polished
• Automation Grade: Manual
• Surface: Galvanized

• Sizes: DN50 to DN300 (NPS 2 to NPS 12)
• Pressure Rating: Class 150
• Design & Manufacturing Standard: BS 5353, API 599, API 6D
• Face to Face Std.: ASME B16.10
• End Connection Std.: ASME B16.5
• Testing Standard: API 598
• End Connection Type: Flanged Ends etc.
• Operated Type: Wrench Operated

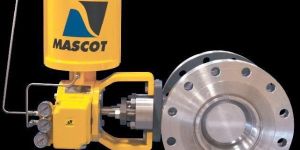

Plug Valves seat and plug face are offset from the shaft center line to provide tight shut off and wear resistance.  Our Plug Valves have a specially designed plug moving in and out of the seat with minimal contact, resulting in low operating torque. Eccentric Plug Valves are for systems where slurries, grit or solids are present. It is a quarter turn valve allowing cost effective solution with low torque actuation for pump control, shut-off and throttling operation.

• Material: Stainless Steel
• Size: 20-100mm
• Corrosion Resistance: Yes
• Hardness: 50-60 HRC
• Temperature: Upto 750 Degree Celsius
• Tolerance: +/-0.01mm-0.1mm
• Casting Method: Lost Foam Process

• ALL SS: CS

Plug valves are valves with cylindrical or conically-tapered "plugs" which can be rotated inside the valve body to control flow through the valve. The plugs in plug valves have one or more hollow passageways going sideways through the plug, so that fluid can flow through the plug when the valve is open. Plug valves are simple and often economical. When the plug is conically-tapered, the stemhandle is typically attached to the larger diameter end of the plug. Plug valves usually do not have bonnets but often have the end of the plug with the handle exposed or mostly exposed to the outside. In cases like that, there is usually not much of a stem. The stem and handle often come in one piece, often a simple, approximately L-shaped handle attached to the end of the plug. The other end of the plug is often exposed to the outside of the valve too, but with a mechanism which retains the plug in the body. The simplest and most common general type of plug valve is a 2-port valve, which has two positions, open to allow flow, and shut (closed) to stop flow. Ports are openings in the valve body through which fluid can enter or leave. The plug in this kind of valve has one passageway going through it. The ports are typically at opposite ends of the body; therefore, the plug is rotated a fourth of a full turn to change from open to shut positions. This makes this kind of plug valve a quarter-turn valve. There is often a mechanism limiting motion of the handle to a quarter turn, but not in glass stopcocks.

• Material: Ductile Iron
• Set Contain: Grease, plug, inserts & Seal Kit
• Size: 15 - 300 (mm)
• Pressure: 1.6 Mpa
• Finish: Coated
• Technics: Forged

• Country of Origin: India
• Type: Plug Valves
• Brand Name: TIRTH
• Material: Cast Iron
• Condition: New
• Warranty: 1 Year
• Media: Water

• End Connection: Flanged End, Screwed End
• Type: Plug Valves - Two way, Three Way
• SIZES: 1/2" TO 8"
• MOC: Cast Iron, Carbon Steel, SS 304 / 316 / 304L / 316L, PTFE Sleeved / PTFE lined
• DRILLING: ANSI B 16.5 BS 10 TABLE "D", "E" & "F"
