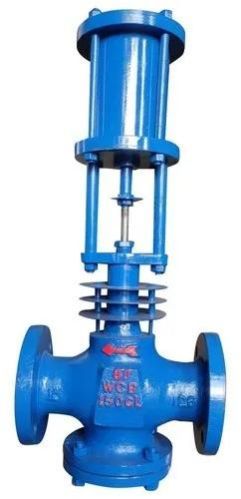

Pneumatic Control Valves Dealers in Ahmedabad

• Country of Origin: India
• Material: Carbon Steeel, Stainless Steel
• Certification: ISO 9001:2008 Certified
• Application: Gas Fitting, Oil Fitting, Water Fitting
• Color: Blue, Red, White
• Feature: Blow-Out-Proof, Casting Approved, Durable, Investment Casting
• Automatic Grade: Automatic
• Number Of Way: 2way, 3way
• Brand Name: DEVAAM
• Type: Pneumatic Control Valves
• Pattern: Plain
• Pressure: High, Low, Medium

We are manufacturing and supplying 32 22 way pneumatic diaphragm operated control valve, engineered for multiple onoff operation in the down stream. Its popular among clients because of its long lasting life, performance and customers trust on our products. Salient features:- precise regulating with high flow capacity large type of trim top operating designs for various duty conditions in line repairable design for easy maintenance tight closure even in extreme operating conditions multi action type actuator (direct reverse acting) wide range of actuators to meet different application

• Size: 1.1/2inch, 1.1/4inch, 1/2inch
• Material: Metal
• Application: Gas Fitting, Oil Fitting
• Color: Blue
• Feature: Casting Approved, Durable
• Automatic Grade: Manual
• Pattern: Plain

• Material: Stainless Steel, Cast Steel
• Port Size: 15 MM TO 500 MM
• Feature: Non corrosive, Highly durable, High endurance, Sturdy construction
• Size: 25NB - 400NB
• Application: Petrochemical Plants
• Working Pressure: 05 KG/CM2 TO 150 KG/CM2

Our products are formed under the supervisor of experienced quality control managers utilizing only premium materials and the latest technologies. Supported by an industrious network, our organization is able to serve to patrons all over Ahmedabad(India) and other marketplaces without problem.

• Material: C.I., W.C.B.
• Size: 1/2"TO 24"

MATERIAL : C.I., W.C.B.( INTERNAL PART S.S.410, S.S.304, OR S.S.316 )

• Size: 2-3 Inch
• Material: Stainless Steel
• Brand Name: Worth
• Connection: Two Way
• Air Connection: Barbed Fitting for 1.4 Inch O D polytubing
• Packaging Type: Carton Box
• Media: Air, Water, Gas

We design and manufacture a wide range of pneumatic controls valve, designed to operate in the demanding environments, ranging from aerospace to mining and military uses.

We make available the pneumatic y-type control valve also known as 2/2 way pneumatic operated 'y' type on/off control valve. The wide assortment of pneumatic y-type control valve manufactured at our unit is highly demanded by the clients situated across the globe. We ensure the pneumatic y-type control valve we export in the market are of outstanding quality and sophisticated technology is used in the production process.

• Material: PU
• Packaging Type: BOX
• Brand Name: FITO
• Usage/Application: Pneumatic

• Size: 15 mm(1/2”) to 200 mm(8”)
• Pressure Rating: ANSI B16.5 Cl.150, Cl. 300
• Model: RD3
• Body/Bonnet: ASTM A216 Gr. WCB/ASTM A351 Gr. CF8/CF8M
• Type of Plug: On-off or linear
• End Connections: Flanged Ends ANSI B16.5 Cl.150, Cl. 300, PN 16 & PN25 (600 available on request)
• Temperature Rating: Max 400°C
• Gland Packing: Teflon/Grafoil
• Seat: Metal Seated
• Plug Material: S.S. 304, S.S. 410
• Stem Material: S.S. 304, S.S. 410
• Actuator: Diaphragm type Single Acting
• Diaphragm: Nylon inserted high nitrile, roll form type

Pneumatic Control valve diafarm type for process engineering and industrial applications These Pneumatic Control Valves are manufacturer by high grade of material and using latest technology.   Features:   High performance Reliable Durable Specification:   Materials: A216 WCB, WC6, WC9, CF8, CF8M, Pressure Rating: ANSI Class 150lb, 300lb, 600lb Normal Size- 1"~12" Neoprene rubber round beat type diafarm

• Size: 25NB - 400NB
• Material: Cast Steel, Stainless Steel, Alloy Steel, Hastalloy, etc.
• Rating: 150, 300, 600, 900 & 1500 Class

Pneumatic control valves, Globe type Control valves are available for any control application. Built to take the punishment imparted by many processes, including extreme pressure drops, the valve is backed by the most respected name in the valve industry.

• Application: Air, Water, Oil, Gas, Steam & Hydraulic Oil
• Model: CHD & CLD
• Actuato: Spring return type, Heavy duty Pneumatic Diaphragm
• Type: Normally Close / Open
• Size Range: 1/2
• Body: WCB
• Diaphragm Cover: M.S. (Sheet Metal)
• Working Press: 150# / 300# / 600#
• Working Temp.: 450 °C & 220 °C
• Seating: Metal to Metal & Soft Seated

• Size: DN15 to DN200
• Application: Steam, Thermic Oil, Water, Chemicals
• Rating: ASA 150#
• Body Material: C.I.IS 210 Gr FG 200/ASTM A216 Gr WCB/ ASTM A 351 Gr CF8/CF8M
• Type: 2 way, 3 way
• Yoke: SG Iron
• Bonnet: Standard Carbon Steel Fabricated. Extension Column & Radiation Fins for 3 way Valves
• End Connections: Flanged according to ASA 150#
• Seat: S.S.304/316 Screw in Type
• Plug: S.S.304/316/410 ‘V’ Port Characteristics/Teflon Filled
• Shaft: SS.304/316 screwed in the Actuator Stem
• Sealing Type: Metal-to-Metal Seal/Soft Seal
• Packing Box: Preformed Rings in Graphoil Packings/Teflon Rings Combinations of Both
• Valve: Normally closed. Normally open on request
• Working Pressure: 10Kg/cm²
• Maximum Temperature: 180°C for 2 way & 400°C for 3 way Valves
• Testing & Inspection: Standard
• Seat Leak Test: 12.5Kg/cm² for 150#
• Body Hydraulic Test Pressure: 20Kg/cm² for 150#
• Valve Mounting: Horizontal
• Industries: Textiles, Plastics, Dairy, Pharmaceuticals, Food-Processing Petrochemicals, Lamination, Leather, Etc.

• Media Air, Gas, Water, Fuel Valve Size 1/2" to 4" Material Stainless Steel Brand Rangers Pressure 10 bar: Media
• Air, Gas, Water, Fuel: Valve Size
• 1/2" to 4": Material
• Stainless Steel: Brand
• Rangers: Pressure

• Features: Sturdy built , Precisely designed , Compact size.

• Pressure Rating: ASME B16.5 CL 150 / 300 / 600
• End Connection: Flanged Ends ASME B16.5 CL 150
• Model: CKD
• Valve Design: 3 Way/2 Way Pneumatic Diaphragm Operated Control Valve
• Actuator: Diaphragm & Multi Spring type.Air to Open /Air to Close(Piston/Elecrical Actuators On Request)
• Size Range: 1/2" to 12"
• Body / Bonnet: ASTM A216 Gr.WCB / ASTM A351 Gr.CF8/CF8M
• Stem: S.S. 304, S.S. 316
• Gland Packing: Teflon / Grafoil
• Seat: PTF
• Temperature Rating: Up To 200 ° C

• Size: 1/4", 3/8", 1/2", 3/4",1"
• Body: Aluminium Pre. Die Cast
• Pressure: Up to 10 Kg/Cm²

Airmax Pneumatics Ltd. Also Manufacturer Accessories for Pneumatic Product Such as RM Series Flow Control Valve.

• Material: Carbon Steeel, Metal, PP, PVC, Stainless Steel, UPVC
• Application: Gas Fitting, Oil Fitting, Water Fitting
• Color: Black, Blue, Red, Sky Blue, White
• Automatic Grade: Automatic, Manual
• Feature: Blow-Out-Proof, Casting Approved, Durable, Investment Casting
• Number Of Way: 2way, 3way
• Type: Pneumatic Control Valves
• Pattern: Plain
• Pressure: High, Low, Medium

We are the main supplier of this product.

• Material: Cast Steel
• Color: Blue
• Size: 25MM-200MM
• Country of Origin: Made in India
• Brand Name: NM Engineers
• Pressure: 7 KGS/CM2
• Type: Control Valve,Diaphragm type
• Automation Grade: Automatic
• Usage/Application: Oil, Hot air, Gas
• I Deal In: New Only

• Size: 1/2
• Material: ss
• Pressure: 10kg

Type : Normally Closed Normally Open. Size : 12" to 2" (15mm to 50mm). Mat. : SS 304, SS 316 (CF - 8 CF - 8m). Oprating Pressure : 3.5 to 7 BAR. Working Pressure : 12 BAR Max.Temp : 180° C Max. Media : Air, Gas, Water, Steam, Chemical, Oil etc.

• Brand Name: PROLINE VALVES MAKE
• Material: ALL TYPES OF MATERIAL
• Application: Waster treatment plants, water works, power plants, steel plants, cement plants, agriculture industr
• Color: BLUE, YELLOW AND ORANGE
• Country of Origin: AHMEDABAD
• Type: ALL TYPES AVAILABLE
• Model Number: PROLINE MAKE
• Power: ALL TYPES OF POWER AVAILABLE WITH ELECTRICAL ACTUATOR OPERATION
• Pressure: PN 05, PN 10, PN 16, 150 #, 300# 600#
• Port Size: 15 MM TO 500 MM
• Temperature Of Media: UPTO 450 DEGREE
• Working Pressure: 05 KG/CM2 TO 150 KG/CM2
• heavy design: long functional life
• LESS PRICES: quick delivery

pneumatic operated control valves, Gas Pressure Regulator

pneumatic operated control valves, Gate Valve, nrv valves, Industrial Valves

We are offering pneumatic control valves, specially designed for use in air, steam, water, gas, vapor, process and other application.

Pneumatic Control Valves, thermal relief valve, Flush Bottom Valve

Pneumatic Control Valves, Safety Valves, Pressure Regulators

pneumatic cylinder control valves, industrial control valves
