PRECIOUS MINERAL PROCESSING SYSTEMS PVT.LTD Vatva, Ahmedabad, Gujarat

Precious Vibrating screens are constructed from M.S prime plate with perforated woven screens, supported on 8 heavy springs at its 4 legs, drive through eccentric shaft. The discharge chutes are separate for each deck of screen and suitable feed hopper at one of the end

Precious Vibrating screens are constructed from M.S prime plate with perforated woven screens, supported on 8 heavy springs at its 4 legs, drive through eccentric shaft. The discharge chutes are separate for each deck of screen and suitable feed hopper at one of the end

Very widely preferred machine for mixing and blending solid-to-solid different powders or to blend a small quantity of liquid with huge quantity of powder. Most economical way of mixing the powder if the moisture contain is not high. Available in different construction like SS 304, SS 316 etc. If require, heating or cooling jacket may be provided.

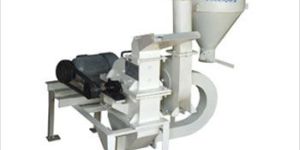

A specially designed Pulveriser with cyclone and dust collector suitable for spices and material like ayurvedic herbs etc. Easily changeable screen is provided to get material of different fineness. Specially shaped ‘M’ type hammers give high production under cool condition. Pollution free working due to properly designed cyclone.

Component Size : 300 x 100

Two series of Jaw Crushers are available. Single toggle and Double toggle type. Single toggle Jaw Crushers have bearings with grease lubrication have simple construction, easy to maintain and economical. Single toggle Jaw Crusher give higher percentage of fines, hence usually used as Pre Crusher. Double toggle Jaw Crushers has forced oil lubrication with the help of oil pump and nozzles. Since it works with the help of two toggles, it generates less fines and particles come with sharp edges, hence used mainly for making grits for road, railway track, civil construction etc. Both type of Jaw Crushers are available in high range of production capacity. These are supposed to be most economical with highest ratio of size reduction. Application: Stone, Coal, Various Minerals, Ores etc.

Sigma Mixer that we provide is suitable for uniformly mixing thick material, pasty. There are two shafts that consist of �Z� shaped blades which moves at different speeds in opposite directions. The Sigma Mixer that we offer is available at industry leading prices. Available In : Also in stainless steel construction Jacketing for heating or cooling provided Suitable for : MineralAgro ProductsAgricultural ProductsMixing of ChemicalScreen of Powder StoneCeramic RefractoryOreSpicesCoalSandChemicalGyratoryMineralSpiceAyurvedicPharmacyCeramicTobaccoSaltCattle FeedPoultry Feed

Brand Name : Precious Mineral Processing Systems Pvt. Ltd.

We provide to our esteemed client�s superior quality Screw Conveyor System. These Screw Conveyor Systems are made out of best quality components for high efficiency. Our Screw Conveyor Systems are equipped with the advanced technology and are very efficient. These Screw Conveyor Systems are meant for superior long term usage. Features : Heavy duty roller bearingsCapacity : Up to 20 ton per hourSub-drive through Worm Reduction Gear BoxPre-assembled with heavy duty Screw Flights Specifications : Suitable for : belt widths up to 1,500 mmCapable of handling materials at the rate of 500 tphIdlers are toughing idlers, impact idlers and garland idlers; Capacity up to 1,000 tphMinimum 25,000 working hours assuredSuitable pulley for conveyors of belt varying width from 400 mm. to 1500 mm; for capacities up to 500 tph

Brand Name : Precious Mineral Processing Systems Pvt. Ltd.

Pre-assembled with heavy duty Screw Flights. Heavy duty roller bearings Sub-drive through Worm Reduction Gear Box. Capacity : Up to 20 ton per hour Conveyor System is suitable for belt widths up to 1,500 mm. and capable of handling materials at the rate of 500 tph. Idlers are impact idlers, toughing idlers, garland idlers. Capacity up to 1,000 tph. Guaranteed for minimum 25,000 working hours.

Loading Capacity : 0.25 ton/hr to 20 ton/hr.

We are designing and manufacturing high production capacity Crusher and Shredder for Mineral, Chemicals, Coal as well as metal scrap. PRECIOUS MINERAL PROCESSING SYSTEMS PVT. LTD., a company that believes in innovation. lt is this lust for innovation that brings to you SHREDWELL -metal scrap shredding machine. In last half decade, survival in steel industry has become a game of imagination and skill to economical input costs. SHREDWELL is what that every furnace needs. A machine that make your scrap economical.

Rotery screen constructed out of perforated plate alongwith center shaft supported on heavy bearings, drive through crown and pinion gear covered at top with discharge chute.Coolers also have a rotating shell but they are of smaller size does not require refractories since they are being used to cool the material; usually the material is received from Rotary Kiln for cooling. Mostly air is being used, and sometime water is also being spread on shell keep the shell cool.

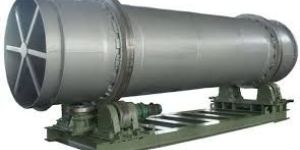

A Rotary kiln is a processing device used to raise materials to a high temperature (calcination) in a continuous process. Materials produced using rotary kilns include: Cement Lime Refractories Metakaolin Titanium dioxide Alumina Vermiculite Iron ore pellets

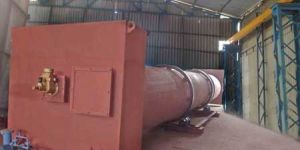

We bring forth a fine range of Rotary Calcinator which is highly in demand. Our Rotary Calcinator is appreciated for the better performance and perfect construction. The best quality components used in the production process of the Rotary Calcinator ensure durable nature. These Rotary Calcinators are tested by the experts under strict industry parameters. Attributes : EfficientDurableHigh performanceLow maintenance Used for : CementLimeRefractoriesMetakaolinTitanium dioxideAluminaVermiculiteIron ore pellets

Application : Cement, Lime, Refractories, Metakaolin, Alumina etc.

Most suitable machine for getting granules out of the brittle and hard material with very low fines generation. Very hard rolls of alloy steel to crush even the hardest material. Tooth types of Roll Crushers are also available with the same roll sizes. Separate drive for each roll is given so that rolls break the particles with minimum friction. No RCC foundation is required if fixed on a specially designed AVM pad frame. Application: Emery, Glass, Quartz, Ceramic in granule etc.

We manufacture, export and supply an array of Roll Crusher. These Roll Crusher that we provide are very efficient and durable in nature. We make sure that we use only high quality components in the production process so as to get a higher level of performance. We provide these Roll Crushers at economic prices. Attributes : No RCC foundation is required if fixed on a specially designed AVM pad frameTooth types of Roll Crushers are also available with the same roll sizesSeparate drive for each roll is given so that rolls break the particles with minimum frictionVery hard rolls of alloy steel to crush even the hardest material Suitable For : Making granules from the brittle and hard material with very low fines generation Applications : EmeryQuartzGlassCeramic in granule etc Technical Specifications ModelRoll Dia. Width in m.m. *Two Motors each H.P. *Approximate Production PRC-3012 3001203-5 HP2 T.P.H. PRC-4020 4002005 - 7.5 5 T.P.H. PRC-4040 4004007.5 - 10 8 T.P.H. PRC-6040 600400Oct - 1512 T.P.H. PRC-6060 60060015 - 25 18 T.P.H. PRC-8040 80040015 - 25 18 T.P.H. PRC-8060 80060025 40 25 T.P.H. PRC-8080 80080040 - 50 35 T.P.H. PRC-80100 800100040 - 60 45 T.P.H. PRC-10040 100040020 - 30 35 T.P.H. PRC-10060 100060030 - 50 35 T.P.H. PRC-10080 100080040 - 60 45 T.P.H. PRC-100100 1000100050 - 70 60 T.P.H.

Brand Name : Precious Mineral Processing Systems Pvt. Ltd.

Type : Roll Crushers

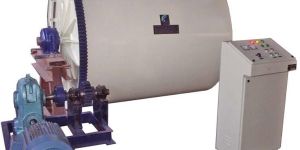

Precious Fab Cast is manufacturing Batch type as well as Continuous type of Ball Mills which may be used to pulverize even the hardest material to a very fine powder. The pulversing may take place either in dry stage or in wet condition. Many a times Ball Mills are used for mixing and blending also. Precious Continuous balls are preferred over the batch type of ball mills as it saves lot of labour, process time, makes the process continuous and convenient. It works in a dust controlled environment. Moreover since the process is continuous this facilitates the system to match with the production / process of other machines as well. In the Precious Continuous Ball Mill there are two system of flow of material. One is the pneumatic with the help of flow of air (called closed flow system ) and another one is the overflow system called open flow system.

Type : Ball Mills

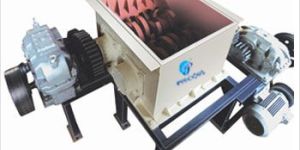

Very much suitable to break the lumps into small pieces and when the material is brittle or soft. A versatile and economical machine when size reduction ratio is high but the required production is low. Most suitable range for the lumps which are to be broken is between 5 to 30mm. Different material of construction is available like high manganese steel, stainless steel etc., to suit the material physical properties.

Precious Pneumatic Conveying Systems are designed to convey dry powder or grains from one place to another, which may a combination of horizontal as well as vertical conveying, even through some intricate path. While conveying material it may be lifted from one or more than one place and similarly may be dropped at one or at many places.

A heavy duty machine to pulverize Medium hard rocks, Minerals and Chemicals.High fineness is possible from 100 mesh to 350 mesh (150 to 40 microns) and in some cases up to 500 mesh.In built fan, cyclone and dust collector ensure dust free operation.Application - For soft and medium hard Minerals, Chemicals, Bulk drugs, Coal, Paint material, Dyes & Pigments, Ayurvedic herbs, Seed etc.

The remain material is to be sent to Pellet mill. Palletizing is a process to compact finely pulverized material into firm mass of a required shape and size by extruding it through a metallic ring die. Finely Elevator fed the material into the Pellet Mill through a feeder and then pressed into a rotating ring die with the help of two press rolls free to rotate on their respective shafts. The resulting pressure compresses the material and extrudes it through the holes in the die. Steam is mixed in the feed to decrease the friction and to better cohesion. High temperatures of steam results in gelatinization of raw starch present in Cattle ingredients.

Poorest quality of scrap unsuitable for furnace may be converted into graded one by Shred well.Produces totally rust & dust free very compact and small prices of 2-4" size out of voluminous loose or bundled commercial scrap.very selected different alloys of steel are used for different parts of Shredwell.Plumer blocks, to bear the jerks, are mad our made out of cost steel.All assembly work are carried out under the supervision of qualified technicians and engineers, Cheeked by quality control department.

We have designed high production capacity Metal Scrap Shredder for Chemicals, Mineral, Coal and metal scrap. Our Metal Scrap Shredder is robustly constructed and comes in perfect finish. These Metal Scrap Shredders are made with fine quality components and are well tested under stringent industry parameters. Benefits : Produces totally rust & dust free very compact and small prices of 2-4" size out of voluminous loose or bundled commercial scrapPoorest quality of scrap unsuitable for furnace may be converted into graded one by Shred wellRobust constructions for its trouble free continuous working with a very long lifevery selected different alloys of steel are used for different parts of ShredwellTwo fly wheels are given for smooth running with greater momentum; Extra fixed blades are gives inside for higher production.Heavy Duty Bearings of internationally renowned makes are used.A removable grating (jali) is provided of easy maintenance.Beaters and Jali (Grating) is of high megnese alloy steel which has a life approx. three times times that of M.S.Plumer blocks, to bear the jerks, are mad our made out of cost steelCheeked by quality control departmentAll revolving parts are precisely balancedBeaters and Jali (Grating) is of high manganese alloy steel which has a life approx. three times that of M.SAll assembly work are carried out under the supervision of qualified technicians and engineers Application : Furnaces Technical Specifications ModelPower RequiredHousingFeeding MouthOut put sizeProduction/ShiftSW 300 300 H.P. 60"60" x 60"2 to 4"45 to 50 TonsSW 200 300 H.P. 45"45" x 52"2 to 4"30 to 35 TonsSW 150 150 H.P. 38"38" x 48"2 to 4"28 to 30 TonsSW 100 100 H.P. 30"30" x 36"2 to 4"18 to 20 TonsSW 60 60 H.P. 24"24" x 30"2 to 4"13 to 15 Tons CRUSHWELL Crushers are also available for turning and boring scrap, in two models : ModelPower Olit put sizeProduction/ShiftCW 100100 H.PY to 2"16 to 18 TonsCW 6060 H.P.1" to 2"12 to 14 Tons

Brand Name : Precious Mineral Processing Systems Pvt. Ltd.

We provide our esteemed clients with high quality Jaw Crusher,Stone Jaw Crusher which is manufactured from best quality components for superior functioning. The Jaw Crusher that we provide is highly efficient and is manufactured with the help of cutting edge technology. Our Jaw Crusher Manufacturers are available at industry leading prices. Types available : Single toggle- having bearings with grease lubrication and higher percentage of finesAnd used as Pre CrusherDouble toggle- has forced oil lubrication with the help of oil pump and nozzles. it generates less fines and particles come with sharp edges, hence used mainly for making grits for road, railway track, civil construction etc Attributes : EconomicalHighest ratio of size reduction Applications : StoneVarious MineralsCoalOres etc Technical Specifications ModelSize of CrusherMax. Feed *Motor H.PRPMInches mm.JP - 08048" x 4"200 x 100 3"5280JP - 100610" x 6"250 x 150 5"10280JP - 120712" x 7"300 x 175 6"15325JP - 160916" x 9"400 x 2258"25325JP - 201020" x 10�500 x 2509"30325JP - 300930" x 09"750 x 2258"30325JP - 301530" x 15"750 x 37514"40325JP - 360836" x 08"900 x 2007"50300JP - 362036" x 20"900 x 50016"60300JP - 362436" x 24"900 x 60021"75300

Brand Name : Precious Mineral Processing Systems Pvt. Ltd.

We manufacture, export and supply highly demanded Impact Pulverizer. Our Impact Pulverizer is equipped with advanced technology and is appreciated for efficiency and endurance. Our Impact Pulverizer has best quality components and demand low maintenance. Working : There are encased rotor carrying swing hammers, Blower Fan mounted on a solid shaft, and classifier. Crushing chamber is fed with the raw material through automatic rotary feeder and hopper. The constant hammer impacts convert it into the fine powder. Ground material is then taken to the classifier and the over sized particles are separated. Classified material is carried into cyclone for bagging and collection. Dust collector assures no loss of the powder. Uses : Carbon & GraphiteCoal Agricultural ChemicalsCokeCoconut Shell & Wood Saw DustClay Dye Stuff & PigmentsFerro Alloys FertilizersPharmaceuticalsDetergentsFood ProductsKathaHerbs & SpicesFillersMarine feedsMineralsPlasticsInsecticides and PesticideResins etc Specifications : A heavy duty machine to pulverize Medium hard rocks, Minerals and Chemicals.In built fan, cyclone and dust collector ensure dust free operation.Since a Screen less classifier is used, the possibility of chocking or jamming is ruled out.Adjustable feed drive with the help of standard gear box.No RCC foundation is required if fixed on a specially designed AVM pad frame.High fineness is possible from 100 mesh to 350 mesh (150 to 40 microns) and in some cases up to 500 mesh Applications : ChemicalsBulk drugsSoft and medium hard mineralsCoalPaint materialAyurvedic herbsDyes & pigmentsSeed etc Specially designed for : PlasticSpicesSaltTobaccoAyurvedic herbsMineralAgro ProductsWheatRiceMaizeCoconut shellPlaster ofPulsesParisCarbonGraphiteGypsumSoap stoneGramLime stoneCharcoalTobacco industries etc Technical Specifications ModelGrinding Chamber dia.*Power Required*Capacity Kg. / Hr.PLP-1212�5-7.5 HP40 -75PLP-1818�10-15  HP125-200PLP-2525�22-25  HP300-500PLP-3232�30-40  HP400-650PLP-3636�50-60  HP  850-1000PLP-4242�75-100 HP1000-1500PLP-4848�100-150HP1500- 2000

Brand Name : Precious Mineral Processing Systems Pvt. Ltd.

Usage : Carbon & Graphite, Coke, Pharmaceuticals, Detergents,Minerals etc.

We manufacture, export and supply high quality Hammermill that are known for durability and efficiency. These Mill Manufacturer are made with the use of best quality components and are available at economic prices. Functioning :The material is moved to the Hammer Mill once it is out from the second hopper. The principle involved is that materials get crushed with the impact of the swinging hammers. The material reaches out to the grinding chamber after it is fed from the top of the Hammer Mill. Rotating hammers made up of manganese come in contact with the material which is then crushed to the desired extent and then are made to pass through the perforated screen. Then the material is sent to the screw conveyer and is transported to second bucket for storage silo. Attributes : Robust construction Efficient High performance Low maintenance Used for : Grinding different types of free flowing materials

Type : Mill Crusher

Brand Name : Precious Mineral Processing Systems Pvt. Ltd.

Specialities : Robust construction, Efficient, High performance, Low maintenance
