Prism Pharma Machinery Vatva, Ahmedabad, Gujarat

Brand Name : Prism

Vacuum Homogenizer Mixer is applicable for a wide variety of viscosity product, i.e. emulsions and semisolid. It integrates with pressure, heating, cooling and vacuum for Agitating, Mixing, Emulgating, Dispergating, Suspending, Homogenizing & agglomeration functions into single machine, Two low speed agitator; Counter rotating mixer with outer anchor stirrer with self pressure Teflon scrappers and contrs rotating inner paddle blade.Ultra Mixer is a combination of counter - rotating inner paddle agitator and outer anchor agitator, generating a disturbance in the normally circular flow pattern and dampens vortex formation. The blades of paddles are pitched to promote top - to bottom flow. In addition, self adjustable scrapers are utilized to prevent the build-up of a stagnant film between the agitator and the vessel, and assure efficient heat transfer to product during heating and cooling steps.

Brand Name : Prism

Application : Industrial

Tablet Inspection Machine is used for visual Inspection of Tablets, both coated and uncoated type of all sizes, most conveniently and at a very high speed, ensuring strict Quality control at the same time maintaining good checking rate.The tablet to be inspected are filled in the Hopper and is automatically placed on the Conveyor belt through vibration, while at One end of the belt an operator inspects the 'Front' side of the tablet and at the other End the second operator inspects the 'Reverse' side of the tablet. Further, the Machine consists essentially of an Endless Nylon Conveyor Belt, driven by a variable speed motor and designed to offer for inspection the front and Reverse of a Tablet.

The prism compact NewLABOcoata- Lab Automatic tablet coating is high efficiency and intelligent automated film & sugar coating advance technology is mainly used in pharmaceutical and food industries. Featuring mechatronis and confirming to the requirement of cGMP. It is a high efficiency, energy saving, safe and clean equipment for film & sugar coating of tablets, Pills and candies with film - organic solvent and aqueous coating.

Conventional coating machine are used to sugar coat tablets, pills, etc in for a variety of industries such as Pharmaceutical, Confectionery, Food and others. They are also used for rolling and heating beans and edible nuts or seeds. The product is to be filled inside the pan. During the rotation motion, coating material is sprayed by spraying system according to the technological process and rational technological process. So process materials (product) are coated due to rotating pan. The coating round pot is rotated by variable speed. At the same time hot air is supplied through inbuilt Hot air blower system which dries rapidly (heating or cooling) and evenly thus forming a solid and smooth surface.

Automatic Grade : Automatic

sugar coating. The machine is available with 12”, 14”,16”, 18” and 20” size of stainless steel coating pan. The machine is designed with fabricated structure fitted with SS enclosure and drive unit of motor and reduction gear box. Machine has variable speed drive to achieve 5 to 15 RPM by variable speed pulley. The machine is mounted on anti vibration pads which avoids foundation and vibration.

Material : Stainless Steel

Power Source : Electric

Color : Silver

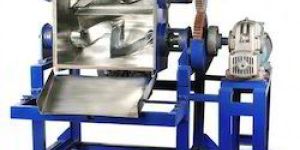

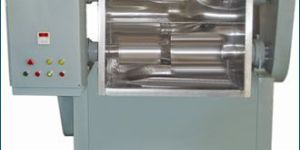

The Sigma Mixer is used for mixing and kneading for mixing, kneading of highly viscous mass, sticky and dough like products, Mixing of pastes, rubber, and heavy plastic masses, applications in Food, Rubber, Pharmaceutical, Chemical and agro industries, Dry powder to wet phase mixing. This mixer is most suitable for highly viscous material and dough like masses. The sigma kneader is a double arm mixer, the two “Z” blade rotate towards each others at same or different speed inside a W- shaped product container. The twin screw basin kneading machine with two horizontally arranged kneading blades, which are deeply geared into one another and strip themselves reciprocally.

The Sigma Mixer is used for mixing and kneading for mixing, kneading of highly viscous mass, sticky and dough like products, Mixing of pastes, rubber, and heavy plastic masses, applications in Food, Rubber, Pharmaceutical, Chemical and agro industries, Dry powder to wet phase mixing. This mixer is most suitable for highly viscous material and dough like masses. The sigma kneader is a double arm mixer, the two “Z” blade rotate towards each others at same or different speed inside a W- shaped product container. The twin screw basin kneading machine with two horizontally arranged kneading blades, which are deeply geared into one another and strip themselves reciprocally. Each blade moves the material in opposite direction thereby providing excellent cross mixing of all raw materials. The blades pass the trough walls and each other at close clearances resulting in good mixing. The close clearance produces a shearing and tearing action that is beneficial to the size reduction of solids. Selection of appropriate blade shape and speeds result in excellent mixing

Semi Automatic ROPP Cap Sealing Machine is used to sealing bottle in pharmaceuticals, food, dairy, agro chemicals, Beverages industries.The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body, consists of, drive unit with Single head with cam and gear motor. Head is moves up & down with rotation to thread on cap to sealing of bottle. Bottle is manually loaded in position for sealing and unloaded after capping.

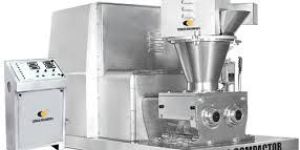

Rollercompactor machine is used for dry granulation of pharmaceutical ingredients in pharmaceutical industry, in food as well as chemical industry for densification and granulation of powder. The dry compaction of the powder between two rollers on high pressure for increased bulk density, making granules, dust free processing and reducing packing size. The material in form of powder passes through the two counter rotating rolls of roller compactor under very high pressure. As the volume decreases through the region of maximum pressure, the material is formed into a solid compact sheet or flakes of ingredients. These flakes or compact sheet of ingredients are reduced in size to obtain the desired grain size. The machine takes extra care to prevent the generation of fine during this process.

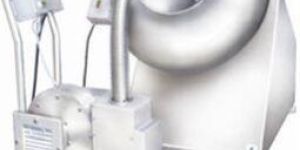

Revolving coating pan. The coating round pot is rotated by variable speed. At the same time hot air is supplied through inbuilt Hot air blower system which dries rapidly (heating or cooling) and evenly thus forming a solid and smooth surface.

Automatic Blister Packing Machines are ideal tools for the pharmaceutical industry for the packing of Oral tablets, capsules, hard and soft gelatin and ampoules. AII machines are manufactured under stringent quality control process to ensure years of trouble free production. Special design of machine ensures total synchronization of timings between sealing of Aluminum foil and PVC base web. The machine works on the flat forming & rotary sealing principle for delivering higher outputs.Completely fully automatic operations and designed as per cGMP - Current Good Manufacturing Practices compliance, Capacity Max. 100 stroke per minute for round Shape & Average 70 stroke per minute for Oblong shape.

Capacity : 500-1000 L, 20-100 L, >10000 L, 0-20 L, 1000-10000L, 500-1000 L, 100-500 L

Storage Material : Water, Chemicals/Oils, Milk/Dairy

Feature : Leg Support, Horizontal Orientation

Material : Stainless Steel

Brand Name : Prism

The Turbo Sifter is used to combine process for sieving and milling. The turbo sifter mainly used in pharmaceutical formulation for raw material sifting and milling process. The turbo sifter is having two chambers for sifting and milling with separate drives. The separation of coarse and fine product size happens in the sifting chamber. The sifting chambers having rotary sieve with drive so fed material powder after entering the turbo sifter is pushed towards the sieve area by screw in the sieve chamber gets sifting so, fine powder falls in to directly discharge pot. While coarse particles are proceed to the adjacent milling process. There are sieve and blades with rotary drive in milling chamber, which while rotating push and mill the material against the sieve so coarse particles are broken in to fine and falls to the discharge pot, thus attaining the uniform product size.

The Mass Mixer is designed for uniformly mixing of dry and wet material and especially suitable for powder of Pharmaceuticals, Food, Herbals, Agro Chemicals & Chemicals. The mass mixer consists of a rigid fabricated structure motor, gear box, mixing drum, stirrer and tilting device. Specially designed self adjusting sealing arrangement of unique design is provided to ensure that no black particle enters into the mixing drum. The material under mixing process can be monitoring through acrylic dust cover and its controls dusting and contaminations. The tilting device is provided to make easy the unloading of the material and easy cleaning of the mixing drum.

Material : Stainless Steel

Packaging Type : Bottles

Brand Name : Prism

Condition : New

The Vacuum transfer system is unique dry material transfer system for dust free and avoid to human touch. The vacuum transfer system is used in Pharmaceutical, Food, Agro Chemical, Sugar Industries and chemical. The system is use full for inline milling, sifting, blending, loading and unloading. The principle of vacuum transfer has been proven to be a better way to move many types of material and a giant step over manual handling. The technology exists for moving virtually any material that can be pulled through a hose or tube. The system is consisting of Blower, Vacuum receiver system with filter, cyclone filter and Pipe. The vacuum conveying systems designed specifically for the direct charge loading of blenders, mixers, sifter, milling, reactors or any vessel capable of withstanding a vacuum. The vacuum system can be provided mobile type with lifting provision to move one room to another room for loading and loading any machine.

Detachable polishing pan for use with Tablet Coating Pan Cat.No.2247 is made of mild steel painted and provided with inner lining of superior canvas cloth, inner dia 12"x8" high with opening of 7" dia neck used for polishing tablets.

Pharmaceutical coating machine, The spraying system is consists of Atomized spray nozzle, High Precise Peristaltic pump, Stand for Gun, Solution holding tank and automatic controls system. The complete system is work on based on auto coater machine technology for film coating.

Apart from online payment processing methods, we also facilitate payment through offline mediums. Located in Gujarat(India), we have made our distinguished position in the market since our products are qualitative and of utmost standards.
