PRISM PHARMA MACHINERY Vatva, Ahmedabad, Gujarat

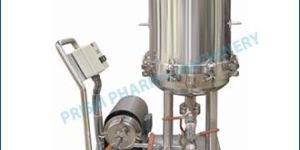

Filter Press - Zero Hold up Liquid- Solid Filtration & Separation Process The filter press is a solid liquid separation device using the principle of pressure feeding. It is highly efficient, compact, dewatering device for separating solids from liquid slurries in the form of compressed cake. It has wide range of applications by several industries like Pharma, bulk drugs, distilleries, beverages & other industries. The unfiltered liquid is fed into the filter under positive pressure, where liquid travels in downwards direction and finds its way through opening on sides of the Filter Plates. As the liquid pressure increases, the Filter media holds the foreign particles and allows only clear filtrate to pass through the central channel formed by interlocking pressure cups to the outlet. Filtration is continued until the cake holding capacity of the unit is reached or until the filtrate rate becomes too slow owing to cake resistance. Salient Features : Design is cGMP with all contact parts AISI 316L Complete filtration of the batch without any hold up due to reverse flow of liquid. The cake, filtered & solids remain totally enclosed allowing filtration of toxic, hazardous & explosive liquids. No contamination of internal surface of shell. The top dome structure ensures fast & easy removal of cartridge assembly & cleaning of cake. Skid type unit with castor wheel.

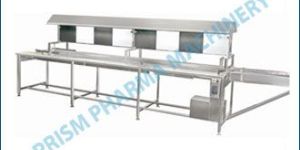

Visual Bottle Inspection Machine Application & Process : Visual Bottle Inspection Machine is used for visual Inspection of filled bottles to checked for non required foreign particles & leak checking and to ensures maintain quality standard of products as per requirements in Pharmaceuticals & Foods Industries. Inspection table is equipment consisting of a three-track conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color. Inspection table have stainless steel structure with moving S.S. slat chain. Structure made out of S. S. square pipe & supported on adjustable bolts. The central conveyor belt brings the bottle from the capping machine conveyor. These bottles are automatically bifurcated on the two adjoining conveyor belts & further on the side tables for operators sitting on either side of the table. The operators in turn pick up the bottles & visually inspect the bottles in the alternate white & black background to check for any partials in the liquid filled, sealed & breakage of bottle. After inspection, good bottles are placed in the central track, which is transfer for labeling. Salient Features : Designed as per cGMP - Current Good Manufacturing Practices compliance A machine structure is made from AISI 304 with matt finish. High-speed visual inspection with high output. Length can make as per customer requirement. PVC black & white board as per GMP norms Belt drives through gear motor with variable frequency drive. Provides guide for chain of UHMW self lubrication. Adjustable height of conveyor belt, to align with other machine of the line Self-alignment bearing for easy maintenance. Rigid Vibration free Construction for trouble free performance.

Application & Process : Compact Sieving & Grading Process Technic Vibro Sifter is used for screening, sieving, grading for solid-liquid separation, process to separate the desired elements and the undesired elements from the combination of solid to solid (where two solids are generally having different properties) and solid to liquid material. It used in various industries such as Pharmaceutical, Chemicals, Cosmetics, plastics, paints, plastic, minerals, rubber compounds, metal powders, detergents, pesticides and fertilizers, dyestuff and pigments Vibro sifter consists of a screen placed on the base plate attached centrally to gyratory motor. The material fed through the inlet located on the top is dropped on the screen. The particles smaller than the mesh size passes from the screen and the larger sized particles are released through an outlet. The combination of vibratory motor and the weights placed on top and bottom of screen gives the desired filtration or separation of the material. Total assembly is mounted on suitable springs so that it becomes an independent body which vibrates without parting any vibrations to the foundations. Salient Features : Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Powerful vibration by gyratory motion by special Vibro motor. Side outlet & fines discharge. Easy movable & clean. Noiseless operation. Lead free and Silicon seal sieve.   Optional Features : Inline loading/Milling process and transfer to bin/Blender by Vacuum transfer system. Double or triple deck sifting system

Design is cGMP with product contact parts AISI 316. Vacuumize shelves drying on low temperature system for high toxic. Hygroscopic & heat sensitive materials. Vacuumize closed system can be with condenser, Receiver for solvent recovery. Very low value of final moisture even at low drying temperatures. Safety feature: Vacuum relief valve, Safety pressure relief valve, Temperature Controller & Overload protection. Option for heating media can be steam hot water hot tharmic fluid. Option features: condenser & Receiver for solvent recovery & Evaporation cooling, PLC Controls, Explosion Proof Electrical

Design is cGMP – Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Capacity available 100 Kg to 5000 Kghr. Can be used for transfer of products having bulk densities up to 1.0gmcc. Total Discharge no Retention. No segregation or degradation of Product. No tool required for opening & cleaning. Transfer can be completely automatic to avoid the manual handling of the material Fully automatic system, with timing controls and automatic air blow back system for filter cleaning. Vacuum Blower and cyclone filter can be installed in out side production area. Avoids product waste, loss and contamination. Easy to clean and wash of contact parts. Option for Inline Milling, Sifting with Blender and Loading material to RMG, Tablet press& Vessel.

Vacuum Shelf Tray Dryer High precision low temperature vacuum Drying & Mixing Process Technology Application & Process : The Vacuum Shelf Tray Dryers are used to het and dry material under the state of vacuum is called vacuum drying and where difficulties in drying materials due to high toxic contents, hygroscopic in nature, heat sensitive. It is widely used in the pharmaceutical, Herbal, chemical & foodstuff. The Vacuum Shelf Dryer is basically a tray dryer working under vacuum conditions. Its use vacuum to pump air and humidity out from the closed heat chamber due to vacuum making the chamber on the vacuum state thus increased drying rate greatly and saved energy. The boiling point of the material to be brought down for drying and the entire system is in closed loops so, no contamination occurs. The evaporation's evolved during the drying process is cooled down through a connected condenser and collected in receiver. The vacuum shelf dryer when combined with solvent extraction system, ensures that almost all of evaporating vapors is recovered and condensed in to a receiver. Vacuum shelf dryer is closed chamber with heavy structure with air lock doors, Jacketed and insulated body. Inside chamber there are shelves for resting tray. Shelves are manufactured in hollow construction with baffles cum stiffeners, inlet and outlet nozzle. Hot media is passed through the Inlet Header to each shelf, so heat transfer to the surface, which in turn heats up trays placed on the shelves. The hot media flows out from the shelves through the Outlet Header. Salient Features : Design is cGMP with product contact parts AISI 316. Vacuumize shelves drying on low temperature system for high toxic. Hygroscopic & heat sensitive materials. Vacuumize closed system can be with condenser, Receiver for solvent recovery. Very low value of final moisture even at low drying temperatures. Safety feature: Vacuum relief valve, Safety pressure relief valve, Temperature Controller & Overload protection. Option for heating media can be steam/ hot water / hot tharmic fluid. Option features: condenser & Receiver for solvent recovery & Evaporation cooling, PLC Controls, Explosion Proof Electrical

Vacuum Powder Conveying/Transfer System Easy dust free Conveying with inline process Application & Process : The Vacuum transfer systemis unique dry material transfer system for dust free and avoid to human touch. The vacuum transfer system is used in Pharmaceutical, Food, Agro Chemical, Sugar Industries and chemical. The system is use full for inline milling, sifting, blending, loading and unloading. The principle of vacuum transfer has been proven to be a better way to move many types of material and a giant step over manual handling. The technology exists for moving virtually any material that can be pulled through a hose or tube. The system is consisting of Blower, Vacuum receiver system with filter, cyclone filter and Pipe. The vacuum conveying systems designed specifically for the direct charge loading of blenders, mixers, sifter, milling, reactors or any vessel capable of withstanding a vacuum. The vacuum system can be provided mobile type with lifting provision to move one room to another room for loading and loading any machine. Salient Features : Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Capacity available 100 Kg to 5000 Kg/hr. Can be used for transfer of products having bulk densities up to 1.0gm/cc. Total Discharge no Retention. No segregation or degradation of Product. No tool required for opening & cleaning. Transfer can be completely automatic to avoid the manual handling of the material Fully automatic system, with timing controls and automatic air blow back system for filter cleaning. Vacuum Blower and cyclone filter can be installed in out side production area. Avoids product waste, loss and contamination. Easy to clean and wash of contact parts. Option for Inline Milling, Sifting with Blender and Loading material to RMG, Tablet press& Vessel.

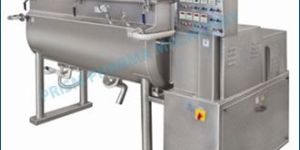

Low temperature Vacuumized drying process Technic Application & Process : The Vacuum Paddle Mixer Dryer is suitable for mixing and drying the material which can not operate at low Temperature easily oxidized, poisonous in nature. It operates at low Temperature efficiently under vacuum. It is used for raw materials drying and mixing powder or granules of Pharmaceutical Materials, Crystalline, Insecticides, Pesticides, and Food industry and heat sensitive products. Material that cannot undertake high temperature. Material that is easy to oxidize. Material that do not permit to destruct. To recover material with residual volatile. Material with vigorous irritative and toxicity The Vacuum Paddle Mixer Dryer consists of a jacketed cylindrical shell with rotating with specially designed Paddle Agitator type blade by rigid fabricated structure motor, gear box. There is provision for application of vacuumized inside the shell and circulation of heating media in the jacket during the rotation of the stirrer. The large heating surface area presented by the internals surface of the shell ensures uniform drying of the product, as the product gently moving & fluidized while the Paddle stirrer rotates. The diffusive action induced by the mixing stirrer constantly presents a fresh layer to come into contact with the indirectly heated walls of the shell. A well designed sealing system enable maintenance of deep vacuum inside the shell, and also ensures positive circulation of a heating media in the jacket. In operation, material is filled to the top of the shell. The shaft rotates at relatively low speed and the moving paddles push and fluidized the material back and forth mixing it. The outer Paddle rotation displaces the material from the ends to the center while the inner paddle rotations move the material from the center to the ends. This counter-current action results in homogenous blending. Mixing is achieved in 15 to 20 minutes with 90 to 95 % or better homogeneity. The bottom discharge provided for unloading of the material and easy cleaning of the mixing drum. Specially designed self adjusting sealing arrangement of unique design is provided to ensure that no black particle enters into the mixing drum. Salient Features : Design is cGMP- Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Continuous rotation of paddle stirrer, material will make continuous movement and fluidized in the container and reach to uniform mixing and drying at low temperature.. Dust free operation. High vacuum operation Fast and uniform homogeneous mixing & draying at low temperature. Solvent recovery Continues vacuum maintain during process.. Very low value of final moisture even at low drying temperatures. Option for two type design of shell 1. Cylindrical type and 2. "U" shape. Continues vacuum maintenance during process. Vacuumized closed system with condenser, Receiver for solvent recovery & Cyclone separator to recovery the solid particle. Rapid & Complete discharge / Zero holdup after discharge Heating media can be used steam/ hot water / hot oil. Rigid drive with reduction gear box, motor and stuffing box for shaft sealing. Charging pot, Vacuum connection,, sight glasses, Vacuum relief valve & gauge are provided on top of the shell. Connection at jacket will be provided for steam Inlet, safety valve, Pressure gauge and steam trap. The discharge with butterfly valve/Slide valve at bottom side of the shell Optional Features : Option for two type designed of shell 1. Cylindrical type and 2."U" shape. Option for Flame Proof Electrical. Option for Automatic Charging Option for lump breaker. Option for condenser, Receiver & Cyclone for solvent recovery. Option for advance PLC Controls with HMI touch screen..

Design is cGMP – Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Capacity available 100 Kg to 5000 Kghr. Can be used for transfer of products having bulk densities up to 1.0gmcc. Total Discharge no Retention. No segregation or degradation of Product. No tool required for opening & cleaning. Transfer can be completely automatic to avoid the manual handling of the material Fully automatic system, with timing controls and automatic air blow back system for filter cleaning. Vacuum Blower and cyclone filter can be installed in out side production area. Avoids product waste, loss and contamination. Easy to clean and wash of contact parts. Option for Inline Milling, Sifting with Blender and Loading material to RMG, Tablet press& Vessel.

Application : Lab

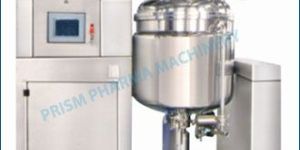

Ultra Vacuum Mixer - Vacuum Homogenizer Mixer- Vacuum Emulsion Mixer Vacuumized Mixing Technic Application & Process : Ultra Vacuum Mixer is applicable for a wide variety of viscosity product, i.e. emulsions and semisolid. It integrates mixing, vacuuming, heating, cooling and homogenizing functions into single machine, resulting in a considerably reduction in cycle time. Our range stretches from laboratory model of 10 liters up to production model of 6,000 liters working capacity. Application : Pharmaceutical: Ointment, Cream, Gel, Lotion, Paste Cosmetics: Cream. Gel, Lotion, Mascara, Wax, Lipstick, Sunscreen, Face masks Body Care Products: Toothpaste, Shampoo, Conditioner, Liquid soap Food: Mayonnaise, Ketchup, Sauce, Mustard, Dressing, Jam, Margarine Chemical: Adhesives, Grease, Shoe Polishing, Car Polishing, Lubricants, Household cleaner, Viscoplastics Substance, Lacquer, Putty, Paint Working Principle : The basis of mixing system of Ultra Vacuum Mixer is a combination of counter - rotating paddle agitator and internal homogenizer. Gate-type agitator with cross baffles rotates in anti-clockwise direction while counter paddle revolves in clockwise direction, generating a disturbance in the normally circular flow pattern and dampen vortex formation. The blades of paddles are pitched to promote top - to bottom flow. In addition, adjustable scrapers are utilized to prevent the build-up of a stagnant film between the agitator and the vessel, and assure efficient heat transfer to product during heating and cooling steps. The speed of the agitator and the counter paddle can be varied separately. Homo disperser, locates at the bottom of the vessel, accomplishes emulsification by physical action and centrifugal forces created by high speed rotation of the rotor. These actions would break up oil phase/ aqueous phase liquid stream into tiny and discrete droplets. Then they will be intensively and continuously mixed by counter - rotating agitator mechanism, and become final products. For versatility of use, interchangeable high viscosity and low viscosity homo disperser heads are provided with the system. Homo disperser speed is adjustable by inverter control. Conical mixing vessel is jacketed for heating / cooling and completely enclosed. All contact parts are stainless steel 316. The vessel is designed to operate under vacuum; mixing and emulsification can then be performed without entrainment of air. A temperature measuring probe, extending directly into the product, allows exact setting of the temperature with a view to process management. For process reproducibility, mixing time, product temperature, agitator speed, counter paddle speed and homogenizer speed can be controlled to the desired condition. Raw material feeding to Prism Vacuum Mixer can be manual through the fully open lid, or completely automatic through vacuum system. Finished product is discharges by manual discharge valve or through special design transfer pump on mobile trolley into product container. Design Features : Designed strictly compliance with the stipulation of cGMP Product contact parts AISI 316 Quality and Non contact parts S.S.304 Quality. Machine compact in designed single base structure to for simplicity in mounting. Top Ultra mixer agitator with extremely efficient shearing force. Contra Movement of the agitator blade means the both anchor stirrer move anti direction. The both agitator having nos. paddle with 45°C Homogenizer located at lowest point in the vessel for internal homogenization. Top lid is mounted with hydraulic lifting device. Integrated vacuum pump and vacuum equipments with manual controls. Tilt able product bowl to discharge product or clean. Top lid having connection for vacuum and charging of the material and visualize window. Manual operated valves Outer agitator is fitted with self pressure adjustment Teflon scrapper and drives through hollow shaft gear box with motor. Centre agitator is having separate drive with gearbox with motor. The scrapper is made from Teflon. Optional Features : A C Frequency Drive with variable speed for main agitator, counter agitator and homogenizer. Mixing bowl with heating / cooling jacket and insulated. Mixing bowl tilting type/ Wheel Mounting / Fixed. Type of Mixing Blade: Single Anchor/Double with contra action/ planetary motion with single /double blade. High speed homogenizer mounting from top/bottom. Safety Features : Emergency stop button Safety vacuum relief valve Limit switch at top lid Over load protection by relay. Semi automatic control system and safety equipments.

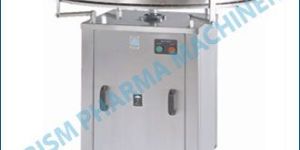

Turn Table / Unscrumbler Application & Process : Stainless steel scrambler & Un Scrambler, which is familiar as turn table. This is built on SS Square frame, solid guide rail & reduction gear box for jerk less & noiseless performance. Turntable is useful to Insure total synchronization, uniform flow of container and to take a turn at 90 degree to suit different machine and purpose in automatic liquid line. Container inputs in turn table by manually or automatic will rotate on disk of turn table and exit through outlet, during rotation of container will guided by a SS strip, which will guide the container towards outlet path. Salient Features : Design as per cGMP - Current Good Manufacturing Practices compliance Available different model with 20",30",36",48" diameter of turn Table. Machine structure is made from AISI 304. Three step pulley for different speed. Special self-aligning bearings ensure smooth and trouble free operation. Suitable for different type of container. S.S. Elegantly Matt Finished Body. Reduction gear motor 0.5 hp ensure jerk free and noiseless operation. Optional Features : Variable speed drive. Castor Wheel with lock Acrylic Cover Tray for loading or unloading of container.

Turbo Sifter Compact Combine Sieving & Milling Process Technic Application & Process : The Turbo Sifter is used to combine process for sieving and milling. The turbo sifter mainly used in pharmaceutical formulation for raw material sifting and milling process. The turbo sifter is having two chambers for sifting and milling with separate drives. The separation of coarse and fine product size happens in the sifting chamber. The sifting chambers having rotary sieve with drive so fed material powder after entering the turbo sifter is pushed towards the sieve area by screw in the sieve chamber gets sifting so, fine powder falls in to directly discharge pot. While coarse particles are proceed to the adjacent milling process. There are sieve and blades with rotary drive in milling chamber, which while rotating push and mill the material against the sieve so coarse particles are broken in to fine and falls to the discharge pot, thus attaining the uniform product size.   Salient Features : Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Sieving and milling process are in one operation. Easy movable Easy to dismantle contact parts for clean. Enclosed drive for safety. A C frequency variable speed for sifter and milling drive. Safety Features : Total drive transmission system enclosed Limit switch installed at the sifting and milling chamber. Overload relay Protection and Emergency stop button

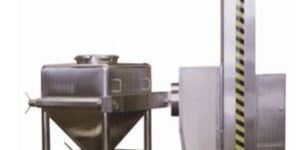

Design is cGMP – Current Good Manufacturing Practices compliance All Product contact parts AISI 316 316L & non contact parts AISI 304. IBC Bin Tumbler Blender for Ideal dry mixer for lubrication of granules and homogenization mixing and conveying of the material to further process. Interchangeable different capacity IBC Bin can be used on same machine use for mixing. This is a closed and contained system where by a single step transfer material from Container of the Conta blender is transferred to the tablet press hopper. In granulation room the dry granules enter to the container for blending through a dust free connection and the same container is loaded over to the blender for blending Totally dust free. Also another advantage is adaptability of this system to handle more than one size of bunkers or containers so processing of different sizes of production batches in single equipment.

Tube Filling Machine- PTFS-1 Application & Process : Tube Filling Machine is an used for fills of ointment, cream, tooth paste, gel and semi solid materials in aluminum or in plastic tube and sealing of the tube. Application of the machine is in pharmaceuticals, cosmetics, foods, adhesive, paint, chemicals and others industries. Tube filling and sealing machine is designed with filling and sealing process to be completely untouched and single machine process. The unit comes in various batch capabilities to handle a large range of tube sizes and shape by change of parts. Tube filling machine is equipped with high accuracy filling systems, provides clean and accurate filling at optimum speed providing high quality and product. Tube filling machine is have tube holding cups and manually tubes are positioned in cups and then fills, seals and ejected to discharge hopper. Filling volume can be easily adjustable as per desire weight and there are sealing option for aluminum tube by folding & crimping device and PVC tube seal by thermo heat sealing device. After sealing of tube then coding can be do on sealing area by coding device. Before filling tubes are to be clean by compressed air for removes of dust. Salient Features : Designed as per cGMP - Current Good Manufacturing Practices compliance All contact parts AISI 316 & non contact parts AISI 304. Completely fully automatic operations for filling, sealing & discharge. Tubes are manually load in cups. Simple Mechanism & Operator Friendly Machine. NO TUBE-NO FILL device. Charging Hopper is provided with jackets for heating and agitator assembly. Cup holder is made from nylon materials. Filling change parts for (1) 1 to 5 ml. (2) 10 to 50 ml (3) 50 to 100 ml. Air blow system for tube cleaning. Synchronize variable speed drive for rotary head and filling head. Folding & Coding at Individual Station.

Available in 24, 48, 96 & 192 Trays. Design is cGMP – Current Good Manufacturing Practices compliance. All contact parts AISI 316304 & non contact parts AISI 304 M.S. with painted. Highly effective uniform air re-circulating system by low speed fan. Inlet air filter and damper at inlet and exhaust air damper for air flow controls. Controls panel with Digital temperature controller and process timer controller. Mobile trolleys are provided which are used to load and unload the trays into the dryer.

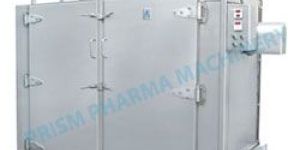

High Effective Hot Air Re-circulation - Tray Drying Technic Application & Process : Tray Drying Ovens are used for drying of pharmaceutical powders, granules, Pigments, Food, Bakery, Electrodes, Chemical, and Plastic etc in an effective and economical way by hot air re-circulation. Tray dryer is an enclosed insulated chamber in which trays are placed on top of each other. Heat transfer is done by circulation of hot air by electric heaters or any other heating media. Blower fans are installed inside to ensure proper circulation and transfer of heat.   Salient Features : Available in 24, 48, 96 & 192 Trays. Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316/304 & non contact parts AISI 304/ M.S. with painted. Highly effective uniform air re-circulating system by low speed fan. Inlet air filter and damper at inlet and exhaust air damper for air flow controls. Controls panel with Digital temperature controller and process timer controller. Mobile trolleys are provided which are used to load and unload the trays into the dryer. Optional Features : Heating system Electrical / Steam / Gas Heating. Separate Inlet AHU with HEPA Filtration. Perforated tray Standard Painted Model. Safety Features : Automatic Temperature & controls, Process cycle controls. Overload relay Protection and Emergency stop button

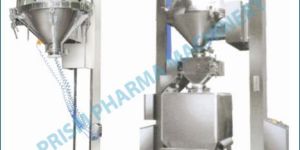

Tippler - Lifting & Tipping Device Easy dusts free unloading of FDB Bowl with inline size reduction technic Application & Process : The Tippler-Lifting and tipping device is a hydraulic device which is having an arm used for lifting and turning FBD bowl by 180. Thus it is used to unload fluid bed dryer bowl material in to Cone mill OR Multi millOR Oscillating granulator in a dust free way for down sizing or dry milling. The operation is completely dust free and eliminates manual handling or scooping. The FBD Bowl is placed beneath the Tipper. The inverted cone of the Tipper is lowered so that the brim flange of the bowl touches the inverted cone. Both are clamped together with quick fixing clamps. The whole assembly is raised. Salient Features : Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Capacity available 30 Kg to 600 Kg. Unloaded material with inline process with cone mill, granulator with IBC Bin for dust free process. Fully automatic system, with hydraulic lifting and tipping arrangement for quick and easy handling Eliminates tedious and unhygienic manual handling of products. Tilting arrangement with a single point pivot ensures GMP with ease of operations. 180 degree swiveling of vertical mast with vertical lift and tippling ensures motion in all three dimensions as required. Discharge cone is fitted with a 250mm diameter butterfly valve at bottom with silicon rubber seat. Can be provided with pneumatic actuator for opening or closing butterfly valve without reaching for it by pneumatic controls. Hydraulic power pack can be mounted over the service floor so the column of the tipper acts as pendent and through the hollow pivot shaft, hydraulic lines along with electric cables can travel above the working area slab. Suitable view glass window provided on the conical tapering portion of the tipper, which acts like a view window. Stainless steel lift yoke with integral rotation drives for rotation of discharge cone and container.

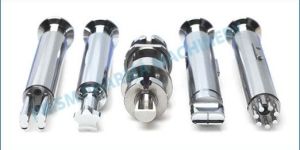

Tablet Press Tooling - Die & Punch Precise Perfect Finish Tablet Press Tooling Application & Process : Prism's Punches and dies are manufactured in-house with state of art machines. The raw material used in the production of tablets is compressed by a pressure of several tons on a small area of a few square millimeters, to produce a visually perfect tablet. There fore the Tablet press tooling is required harder and smoother and good finish surface. Prism has developed an advance technological system especially for manufacturing of precise, perfect and finished tablet tools. Salient Features : Choice for material of construction of Die and Punch- 1. OHNS (T) Oil Hardened Non shrinking steel (Tungsten) - AISI 012. HCHC - High carbon High chromium steel - AISI D3 Tooling size as per EURO, IPT Standards and Special tooling. Can be manufactured any shape of the tooling. Can be manufactured Multi tips and Polo type tooling. Careful matching of material and hardness. Trouble free fitting and removal Manufactured to the smallest tolerances. High Precision finish. Optional Features : Hard Chrome Plating.

Brand Name : Prism

Application : Industrial

High Accuracy Metal detector for Tableting Application & Process : The metal detector is designed for the detection and removal of minute pieces of ferrous, nonferrous and stainless steel contaminations in tablet. Such particles sometimes enter the product stream from deteriorating processing equipment components such as worm sieve wires or splintered dies. This metal detector removes metallic contaminants automatically and without production interruption from a stream of tablets or capsules. A metallic contaminant in the product change the high frequency field within the detector coil, which in turn activates a reject flap by pneumatic solenoids. The metallic contaminant is reliably rejected with very little loss of material due to the extremely fast and short activation of the reject flap. The metal detector chute can be quickly and easily dismantled for routine cleaning and product changeover. Conforms to the hygiene requirements of the pharmaceutical industry this system can be combined with all high performance Tablet Press with Deduster Unit. Flexible operating height, angle and frame with lockable castor to allow for easy integration to any production facility. The Metal detector incorporates a simplified and refined design of automatic Balance Coil Principle, which eliminates all setting up controls and permits long consistent performance. Salient Features : The Machine construction and components in accordance with cGMP standard. All contact parts AISI316 Quality and Non contact parts AISI304 Quality. Automatic Balance Principle. Manual set up of sensitivity all other parameters through potentiometers. Easy to install and operate. Easy changeable electronic module. Easy to cleaning and movability. Search head 180 º rotations and inclination 0-30º. Solid- state relays for arc free switching. Continuous operation Adjustable height Single pillar stand with 4 nos. castor wheel.. Food grade nonmetallic white chute having authentic certificate designed in one piece (closed) to avoid cross contamination.

Tablet Inspection Machine Application & Process : Tablet Inspection Machine is used for visual Inspection of Tablets, both coated and uncoated type of all sizes, most conveniently and at a very high speed, ensuring strict Quality control at the same time maintaining good checking rate. The tablet to be inspected are filled in the Hopper and is automatically placed on the Conveyor belt through vibration, while at One end of the belt an operator inspects the 'Front' side of the tablet and at the other End the second operator inspects the 'Reverse' side of the tablet. Further, the Machine consists essentially of an Endless Nylon Conveyor Belt, driven by a variable speed motor and designed to offer for inspection the front and Reverse of a Tablet. Optional Dust extractor provides collects the dust. Rejection tablet trays are filled to collect rejected and 100% perfect tablets fall into the collection drum. Salient Features : Fully automatic operations and designed as per cGMP - Current Good Manufacturing Practices compliance All contact parts AISI 316 & non contact parts AISI 304. Compact Design No change part required. High-speed visual inspection with high output. Both coated and uncoated tablets & caplets of all sizes can be inspected. Imported endless nylon belt. Magnifying lens provide for better viewing Complete tablet surface is inspected on both faces. Angular guides provided on the edge of the Conveyor make tablets to rotate to inspect the tablet edge. Perforated vibratory plate for dust extraction provides. Hopper & fluorescent inspection light are provided with height adjustment. Two foot switches are provided for operators. Optional Features : AC Frequency drive with variable speed. Inspection system of missing tablets could be incorporated to eliminate manual labour. Flame proof Electricals.

Tablet De-Duster Tablet De-dusting and De-Burring Process Application & Process : De-Duster is pharmaceutical processing equipment that removes the fine surface dust from tablets through using vibratory effect. This machine can be linked directly to any type of high speed tablet press. In spiral deduster there is vibrated spiral path perforated sieve. The tablets enter in centre of perforated sieve from directly Tablet Press then they are gently vibrated and the tablet to move forward, turning and rotating along the spiral path of perforated plate to outer peripheries. In Elevating Dedusterthere is vibrated up hill type sieves. The tablets enter bottom inlet of perforated sieve from directly Tablet Press then they are gently vibrated and the tablet to move forward, up ward , turning and rotating along the spiral up hill path of perforated plate to outer at top of the sieve. These remove the layer of surface dust and edges of tablet. The dust is collected by a dust extraction system through a hose pipe spigot connection and the tablet fall into the container. Salient Features : Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Geometrically designed tablet route to ensure remove dust and burrs. Easy to install with all types of Tablet Press with inline metal detector. Option for Spiral OR Elevating-Up hill type Deduster. Adjustable height. Easy to mobility. Easy and simple dismantle for cleaning of all contact parts.

Completely fully automatic liquid oral manufacturing plant with fully automatic operations and designed as per cGMP – Current Good Manufacturing Practices compliance • All contact parts AISI 316 & non contact parts AISI 304. • Capacity of Lab scale syrup plant is 10 Liters. • Fully Automatic liquid oral mfg plant consisting of 1. Sugar Melting Vessel – Jacketed, Insulated with mixing stirrer-Top Entry. 2. Cone Filter with Transfer Pump. 3. Syrup Manufacturing Vessel – Jacketed, Insulated with mixing stirrer- Top Entry 4. Filter – Final filtration is done in filter. 5. Storage Tank 6. Transfer pump – It is provide to transfer the syrup suspension. 7. Interconnecting Pipeline 8. Integrated Automatic Control Panel.
