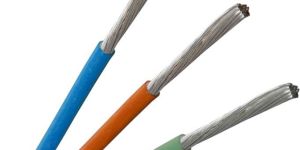

PTFE Cables Dealers in Ahmedabad

Used in high temperature zones, acidic zones & chemical areas. Conductor : annealed plain copper (apc) silver plated copper (spc) nickel plated copper (npc) insulation : ptfe fep shield : annealed plain copper (apc) silver plated copper (spc) sheath : ptfe fep standard applicable : mil - 27500 - g - us military standard jss - 51038.2002 - indian defence standard jss - 51034-92 general technical parameters : min. Bending radius : 10 x cable dia temperature range : -650c to +2600c insulation resistance : 2 gohms x kms radiation resistance : 3 x 107 cjkm tensile strength : 250 kgcm2 insulation radial thickness : et - 250 v ac rms grade - 0.15 mm nominal e - 600 v acrms grade - 0.25 mm nominal ee - 1000 v acrms grade - 0.40 mm nominal

PTFE Multi core cables for Instrumentation and control applications are manufactured as per MIL-DTL-27500H JSS 51038 specification to meet specific customer requirements. The primary wire are PTFF insulated meeting requirements of JSS 51034 MIL-W-16878BS3G210NEMA HP3. The cable possess all the unique electrical and mechanical properties of PTFE and are available in size from single wire screened or and jacketed up to cable with a maximum of 66 pairs twisted and or screened and or jacked as per required. Construction : 1. Conductor 2. Core insulation : Spiral wrapped and fused PTFE tape. 3. Braided shied 4. Jacket : PTFE tape wrapped & fused

We offer ptfe multicore cables. Ptfe multicore cables.

The primary wire are PTFF insulated meeting requirements of JSS 51034 MIL-W-16878BS3G210NEMA HP3. The cable possess all the unique electrical and mechanical properties of PTFE and are available in size from single wire screened or and jacketed up to cable with a maximum of 66 pairs twisted and or screened and or jacked as per required.

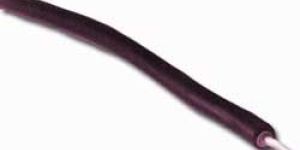

Teflon Cables, Hybrid Flat Elevator Cable, co-axial cables, Coaxial Cables
