PTFE Lined Ball Valves Dealers in Ahmedabad

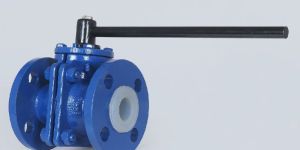

We are manufacturing wide range of the 2pc design ball valves. Manually lever operated, gear operated, actuatror operated.

Customers should not worry about the security of their payments with us as we follow secured Online and Offline Payment Processing. Our complete range of product is wrapped in strong, nontoxic, and superior-grade packs that protect the contents inside from damage, moisture, logistic movement, etc. Furthermore, the packaging has product details printed on it.   Electrical Actuator Details: Manufacturer- Cair Euromatic Automation Pvt. Ltd. Brand / Model - Cair / Mod Approvals     - Design (Tuv) / Iso 9001:2008 / Ce / Iec Characteristic  - On - Off Type / Modulating Type Travel Angle - 90 Degree Indicator     - Continuous Position Indicator Supply - 220v Ac , 50 Hz Body Material - Aluminum Alloy Ambient Temperature = -10°c ~ 55°c Motor Insulation - Class F Protection Class  - Ip 67 – Weather Proof Limit Switch - 1 No + 1 No Output Of 220v Ac Position On Power Fail - Stay Put Manual Override - Provided   Details Size - ½” to 8” MOC - WCB / CF8 / CF8M Lining - FEP / PFA – STD. Thickness Seals - PTFE / CFT/ GFT Pressure - 150# Temp = FEP - 180°C / PFA - 230°C Class - 150# Ends - Flanged Type

• Material: Forged Steel
• Application: Water Fitting
• Weight: 10-20kg
• Feature: Corrosion Proof, Investment Casting
• End Connection: Butt Weld
• Pressure: Medium Pressure

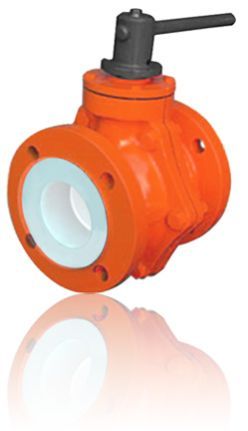

We are a well-known Manufacturer and Exporter of PTFE Lined Ball Valves in the market. The PTFE Lined Ball Valves that we offer have smooth operation and are easy to install. The interior body surface of these PTFE Lined Ball Valves as well as the ball and stem are lined as individual components. We provide high quality PTFE Lined Ball Valves at the most reasonable rates. Details : Available from 25 mm Nb to 200 mm Nb Low torque Quarter-turn operation Bubble tight shut off Minimum pressure drop

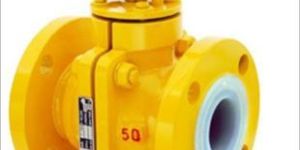

We offer ptfe lined ball valves. Jupiter controls valves ptfe lined ball valves for corrosion & acidic application. Jupiter controls ptfefeppfa teflonlined valves are available from 1”(25nb) to 6”(150nb) we also supply ptfe lined ball valve with motorized electrical actuator operated or pneumatic actuator operated quarter turn valves., jupiter controls ptfe lined floating ball ball valves are two piece design construction with integral stem with ball. Wide range of body material selection available like cast iron, s.g. Iron, ductile iron, cast carbon steel, stainless steel 304 & 316 along with ptfe, pfa, fep, teflon lining. Ptfe, fep, pfa teflon® lined ball valve flow control lever operated, ptfe, fep, pfa teflon, lined ball valve gear actuator operated,ptfe, fep,ptfe, fep, pfa teflon,lined ball valve pneumatic actuator operated, ptfe, fep, pfa teflon, lined ball valve electrical actuator operated

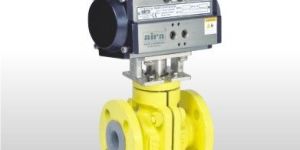

AMTECH offers PTFE lined ball valves in FEP/FPA lining. Ball valves always bidirectional valves. The ball shaft in centre can be optionally connected to a pneumatic/electric actuator over an adapter or equipped with a manually operated lever. Ball is sealed in the PTFE lined body with exchangeable seat rings –PTFE . The ball shaft is sealed with a maintenance-free. Fail-safe position Depending on the version of the single-acting rotary actuator, the ball valve has two fail-safe positions which become effective when the actuator is relieved of pressure as well as when the supply air fails: Control valve CLOSED without supply air The ball valve closes when the supply air fails when single acting actuator.But in Double acting actuator valves required air supply to pen and close valve each time. We have variety of materials of construction, two piece design valves, ASA 150#,PN10,PN 16.   Specification

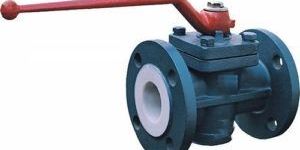

  Nivz Valves & Automation manufacturer and exporter in india of PTFE Lined Ball Valves for corrosion & acidic application. Nivz PTFE/FEP/PFA Teflon® lined valves are available from 1”(25NB) to 6”(150NB) We also supply PTFE Lined Ball Valve with Motorized Electrical Actuator Operated or Pneumatic Actuator Operated quarter turn valves., Nivz PTFE Lined floating ball Ball Valves are two piece design construction with integral stem with ball. Wide range of Body Material selection available like Cast Iron, S.G. Iron, Ductile Iron, Cast Carbon Steel, Stainless Steel 304 & 316 along with PTFE, PFA, FEP, Teflon® lining. PTFE Lined Ball Valve design short pattern face to face dimension is in as per ANSI B16.10 and ANSI B16.5, 150 Class. Application Acid & Chemicals Corrosive Liquids and Gases Hazardous Liquids and Gases Dry Materials Food / Pharmaceutical Viscous Liquids Fibrous Slurries Features of PTFE/FEP/PFA Lined 2 Piece Design Ball Valve Ball with Integral Stem design construction Valve Design Standard confirms to BS EN ISO 17292/BS531/ASME B 16.34 Face to Face as per ANSI B 16.10 Flange Drilling as per ANSI B 16.5/BS 10 Table D or E Manufacturing Size Range 1" to 6" Fully Body + Ball Lined with PTFE/FEP/PFA/Teflon® Body Construction in 2 Piece Construction Minimcum Cavity Body and Full Bore Design Low Operating Toruque Zero Leakage MOC option WCB/Ductile Iron/CF8/CF8M/CF3/CF3M

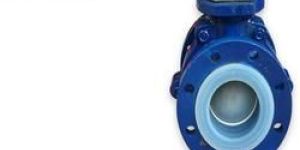

We are engaged in manufacturing and supplying PTFE Lined Ball Valve that is manufactured using premium grade raw material and modish technology in line with set industry standards. The offered ball valve is available in different sizes and can also be customized as per the client’s detailed specifications. In addition to this, our clients can avail the offered ball valve from us at market leading prices. Features: Least maintenance Dimensional accuracy Optimum durability

• Size Range: 1" to 6" Flanged
• Temprature: 180°C (For FEP), 230°C (For PFA)
• Ball: WCB / CF8

We Manufacture Quality Valves of almost all types for a wide spectrum of users in the Process & Chemical,Refineries & Petrochemicals,Fertilizers,Drugs & Pharmaceuticals,Thermal Power Stations, Nuclear & Atomic Power Stations,Textiles,Dyes & Intermediates, Paints & Varnishes, Sugar,Breweries & Distilleries,Soaps & Detergents, Steel Plants,Food & Oil Industry, Solvent Extraction Plants, Sewage, Effluent & Water Treatment, Cooling Water,Ship Yards and Marine Management,Water Works,Pulp & Paper,LPG Bottling Plants, Onshore & Offshore platforms, Slurry & Ash handling.

ptfe-lined ball valve, Ball Valve, pvdf lined valves, PTFE Lined Valves

PTFE Lined Ball Valves, Actuator ball valve, Pp Solid Ball Valve

PTFE Lined Ball Valves, Stainless Steel Ball Valve, Pvc Ball Valve

PTFE Lined Ball Valves, Ptfe Products, PTFE Bellows

PTFE Lined Ball Valve, Lined Valves, Lined Ball Valve

PTFE Lined Ball Valves, PTFE Lined Valves, fep lined ball valves

Lined Ball Valve with PFA PTFE MFA, PFA / PP Lined Diaphragm Valves

Teflon Lined Ball Valve, Butterfly Valve, Plug Valve

PTFE Lined Ball Valves, Ball Valve, Disc Check Valve, Dual Plate Check Valve
