Pump Set Dealers in Ahmedabad

Naigra Industries is one of the leading Manufacturers, Suppliers, and Exporters of Water Filled Submersible Pumpset (100mm) in Ahmedabad, Gujarat. The pumpset has a superior design, optimum efficiency, and low power consumption. Due to its light weight and easy installation, buyers prefer to buy it, and we receive bulk orders for it. These pumpsets are manufactured from high-quality raw materials, and guarantee trouble-free services. The pump is available in radial and mixed flow designs, and it can used for irrigation, sprinkler, ornamental fountains, among others.   Special Features of Motor : Motor suitable for wide voltage 180/230V for 1 Ph & 380/415V for 3 Ph 3000 RPM (Syn) speed. Cap Start & Run (PSC), totally enclosed, water filled, squirrel cage induction motor suitable for 1 Ph & 3 Ph AC supply in 50 Hz. Stainless steel stator body-rust preventive. Winding wire poly propylene with insulation Class-B Stainless steel rotor shaft - rust preventive and longer life. Powder coated rotor and baked for rust prevention. Rotor dynamically balanced-longer life. Specially designed carbon thrust bearing set more life. Ease in rewinding - serviceability.   Special Features of Pump : Multistage pumps with new hydraulic design offers high level of performance, mechanically build to last long and provide un-interrupted service. Suction and discharge outlets are made of Cast Iron with nickel coating. Also available in Stainless Steel on request. Carefully designed impeller and Diffusers are made of resin impregnated thermoplastic. This material ensures high performance and longer life cycle of pump. Pump casing is of PPO 20% GF & PC 10% GF Pump shaft in SS410. Hexagonal Bearing bush and Stainless Steel Sleeve with hard chrome increase the wear resistance of this pump against sand. Efficiently designed check valve guarantees trouble free service. even in most critical application. Cable guard and strainer in stainless steel.   Standard Specification : Power range - 0.37 kw to 2.2 kw - Single Phase / 0.37 kw to 5.50 kw - Three Phase Speed - 2880 RPM Version - A.C. Single Phase, 180-230 V. 50 Hz Capacitor Start & Run [CSCR], A.C. Three Phase, 380-415 V. 50 Hz Direct on Line [DOL] Type of Duty - S1 [Continuous] Flow Rate upto - 0.20 to 7.0 Lps (Redial Flow) Head Range upto - 8 to 180 mt. (Redial Flow) Nominal Outlet Size - 25, 30, 40, & 50 mm Maximum Liquid - Temperature - 35o C   General : Better design - Optimum efficiency - Low power consumption. Light weight - Ease in installation. Silent running. Reliable in operation. Pumps & Motor Couplings are according to NEMA Standard For Export.   Applications : Irrigation and Drip Irrigation. Sprinkler, Gardening and Nursery. Domestic water supply. Bungalows. Housing complexes. Ornamental fountains. Small farms. Industrial water supply schemes.   Advantages and Specification Naigra submersible pump suitable on 4" NEMA standard motor. Naigra submersible pump sets are manufactured from high-quality raw materials, having passed through stringent quality control to offer trouble-free performance year after year. Naigra 4" multistage pumps with new hydraulic design offers high level of performance mechanically build to last long and provide un-interrupted service. Suction and discharge outlets are made of Cast iron with nickel coating. Also available in Stainless Steel on request. Pump casing in S.S 304. Pump shaft in S.S 420. Hex rubber bush and stainless steel sleeve with hard chrome increase the wear resistance of this pump against sand. Efficiently designed check valve guarantees trouble free service even in most critical application. Can be easily dismantled and repaired. Cable guard strainer in stainless steel. Pump available in radial and mixed flow designs. Connecting according to NEMA standard. Extremely hardwearing parts. Dynamically balance. Pumped liquids. Clean, thin, non aggressive, non explosive, clear, cold, fresh water without abrasives, solid particles of fiber. Clear cold water means water having the following characteristics.   Details : Temperature --33o (max). Permissible Amount of sand - 50 gm/m³ (max). Chlorine ion density -500 ppm (max). Allowable solids - 3000 ppm (max). Specific gravity - 1.004 (max). Hardness (drinking water) - 300 (max). Turbidity -50 ppm silicon scale (max). pH - 6.5 to 8.5.   Operating range Head Range - 6mtr to 278 mtr Flow rate - 10 lpm to 500 lpm Immersion - 1 mtr, Minimum   Minimum level sand content : 50gm/m³   Application : These pumps are for domestic, agriculture & industrial Usage.000000000000000000000000

• Speed: 2880RPM
• Bore size min.: 6”(150mm)and above
• Power Range: 3.0 to 30.0 HP
• Voltage Range: 340V- 440V, AC Three phase , 50Hz
• Motor Type: Water filled Water Cooled motor
• Coupling: Key / NEMA
• Head: Maximum 420 M
• Discharge: Maximum 500 LPM
• Liquid temperature: Maximum 35ºC
• Sand content in water: Maximum 50 PPM

We Procure the Three Phase Open Well Submersible Pump Sets from Highly Reliable Manufacturers Who Fabricate Them Using Finest Quality Material and Advanced Technology. Besides, We Offer the Three Phase Open Well Submersible Pump Sets At Reasonable Prices in the Market.

We are providing a comprehensive range of Submersible Pump Sets for our esteemed clients. These pumps are designed with an integral motor and liquid handling section in a water tight casing that can be lowered directly into the liquid to be pumped. These make sure that the pumps are designed in tandem with the set industry standards that meet the requirements of constructions, textile chemicals and steel industries. Our offered products are manufactured by using special high-grade raw material, which can be availed from the most trusted vendors in the field. Moreover our pumps are quality tested before its delivery to make sure that they are perfectly finished products. These pump sets are well-known for its non overcapacity power characteristics to ensure trouble free operation in the whole operating sequence. Features of Submersible Pump Sets Lower number of operating stages for a given performance Light weight and compacted design Higher competence and lower operating cost Exclusive design of impellers and diffusers leading to reduction in axial thrust on motor shaft Easy assembling, dismantling and repairing: because of hexagonal shaft design Strainer is inside the housing, hence no chance of damage Usage in agricultural, industrial, domestic & gardening Power of endurance in pressure bowl design

• Color: MUlticolor
• Automatic Grade: Automatic
• Power: 5 HP
• Power Source: AC Powered
• Pressure: Medium Pressure
• Motor Power: 5 hp to 150 hp
• Horse power: 5 hp to 150 hp
• Motor Horse Power: 5 hp to 150 hp
• Application: Industrial, Domestic, Agriculture
• Certification: ISO 9001:2008
• Voltage: 440V
• Discharge Outlet Size: 2 To 3 In
• Type: Submersible Pumps
• Fuel: Electric, Solar
• Theory: Centrifugal Pump
• Structure: Multistage Pump
• Warranty: 12 Months
• Country of Origin: India
• Head: 51 To 100 M
• Warrenty: 1 Year
• Motor Phase: Three Phase
• Maximum Discharge Flow: 100 - 500 LPM
• Number Of Stages: Multi Stage Pump
• I Deal In: New Only
• Installation/After Sales Service: No

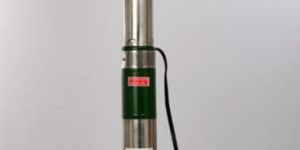

We are offering v4 submersible pumpset with s.s. Pump and s.s. Motor.

The V6 Radial Flow (K-Type) Submersible Pump Set, provided by us, has high work efficiency. Backed by a well-established warehouse, we are able to store the products in a secured manner. Thus, we ensure complete security of the products from any kind of damage. Committed towards satisfying our customers, we are involved in delivering quality V6 Radial Flow (K-Type) Submersible Pump Set.

Head: up to 32mtr. Discharge Size: 25 mm to 100 mm Power Rating: 0.5 hp to 3.0 hp three phase 0.5 hp to 3.0 hp single phase Voltage Rating: 380 V to 415 V three phase 200 V to 240 V � single phase Speed: up to 2880 rpm M.O.C: C.I, C.S., SS-304, SS-316, Bronze, etc� Features High discharge with low power consumption Self priming& shallow well pump with built in Non Return Valve Fitted with Thermal Overload Protector (TOP) to prevent motor burning Metal shielded double walled bearing, no need of external lubrication Chrome plated steel shaft for a long life which avoids rusting Sturdy motor body Locked impeller for better and consistent performance Rigid handle for easy lifting Motor can withstand wide voltage fluctuations (180v � 240v) TEFC, Capacitor start and run motor B�F� Class insulation Application Gardening and irrigation Agriculture, farms, civil, application Industries for clear water handling, cooling tower. Water supply for domestic use in apartments, hotels, swimming pools, Automobile service station, hospitals, clubs, hostels, power plants, firefighting.

• Type: PH
• Head Range: Up to 88 Meter
• Capacity Range: Up to 4000 Ipm
• Sealing Arrangement: Mechanical Seal / Gland Packing
• Operating Temperature: Up to 70° C
• Rating: 0.75 Kw to 22.5 Kw (2 Pole)
• Supply Sysytem: 3 Ø - 380 / 415 Volts - 50 / 60 Hz - A.C.
• Insulation: Class B / F
• Protection: IP 44 / 55
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Rotor Type: Squirrel Cage Rotor (SCR)
• Operational Duty: S1
• MOC: Grey Cast Iron, Bronze, Stainless Steel SS 316/304
• Custom Built Design: Motors with different supply voltage and supply frequency can be offered on request.

Description: Maruti Pump Ind. Incorporates the latest technology, to ensure trouble-free operation. It has built-in –facilities to provide freedom from trouble caused by possible voltage fluctuation. Its high technology guarantees years of service. You will always find water at the touch of a button.The pump is protected against corrosion and its impeller/bowl provides higher hydraulic efficiency. Its construction and general performance are according to IS 8094-89. Its impellers too are balanced perfectly. The motor is completely enclosed, and is of the squirrel cage induction type. The polyesters coated wining wire has high conductivity, in accordance with IS 8783. The rotor I perfectly balanced and also conforms to specifications. Enriched with a vast industry experience, we are capable of manufacturing and supplying a qualitative assortment of Submersible Pumps. Easy to install, these are widely acknowledged among the patrons we have. Moreover, the range of submersible pumps offered by us is highly regarded for its rigid construction, hassle free operation and non-corrosive properties. We are the prominent manufacturer and supplier of wide range of Submersible Pumps that are manufactured using excellent quality of raw material. These include Commercial submersible pump, SS submersible pump and v3 submersible pump. We trade these Submersible Pumps in various small scales to large scale industries throughout the world at competitive prices. Market Feedback:Satisfied  customers in the market testify to the superior quality of Submersible Pump sets and Open well Pumpset.   Features: Compact design Low maintenance Long service life Rust resistance

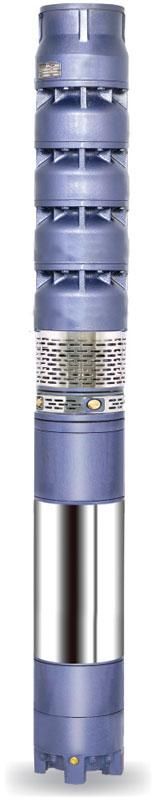

We are offering 9" water lubricated pumpsets hp rating 15 to 125 hp 11.0 to 93 kw flow rating upto 4200 lpm (252m3hr) dynamic head upto 209 m application : water supply in irrigation, hotels, hospitals, industries & multi-storied buildings.

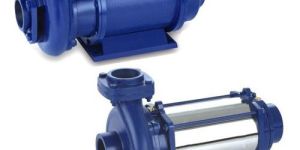

We are manufacturer and exporter of Open Well Submersible Pumpset.

We are offering our clients V6 Deccan Submersible Pump Set, that are manufactured with strict quality control for years of efficient and reliable operation. The V6 Deccan Submersible Pump are unique in their design and conform to international standards.

SALIENT FEATURES Low noise operation and low maintenance Better efficiency by high discharge and low power consumption Good resistance against sand and silt Light weight and compact design Built-in NRV valve for protection against sand and water hammering Available in NEMA standard SS splined shaft construction Clean and spatter –proof Impeller Blade weld assembly provides smooth flow of fluid

• Size: 1” X 1” To 4” X 4”
• Volt: 230 Volt

Accredited with ISO certificate, Most of the models with ISI mark, Available with Stainless Steel & Bronze MOC, Optimum head & discharge with lower power consumption, Withstands wide voltage fluctuations.

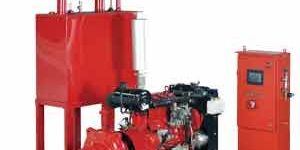

Lubi brand offers fire pumpsets like horizontal split case fire pumpset electric motor driven, end-suction fire pumpset diesel engine driven, end-suction fire pumpset electric motor driven etc.

Main fire pump package motor driven set consists of following main fire pump - fm approved or ul listed motor - as per nfpa 20 ul listed motor controller - fm approved or ul listed all above equipments are mounted on a common skid flow in m3hr head type of pump model reco motor 97.2 70 hz back pull out end suction db 6526 30 kc 2 137 70 hz back pull out end suction db 8026 45 kc 2 137 80 hz back pull out end suction db 8026 45 kc 2 137 88 hz back pull out end suction db 8026 55 kc 2 137 70 hz multistage split casing dsm 10036 45 kc 4 137 80 hz multistage split casing dsm 10036 55 kc 4 137 88 hz multistage split casing dsm 10036 55 kc 4 171 70 hz back pull out end suction db 10026 55 kc 2 171 80 hz back pull out end suction db 10026 75 kc 2 171 88 hz back pull out end suction db 10026 75 kc 2 171 70 hz multistage split casing dsm 10036 55 kc 4 171 80 hz multistage split casing dsm 10036 55 kc 4 171 88 hz multistage split casing dsm 10036 75 kc 4 273 70 hz back pull out end suction db 10026 75 kc 2 273 80 hz back pull out end suction db 10026 90 kc 2 273 88 hz back pull out end suction cphm 15052 110 kc 4 410 105 hz split casing up 15030 a(n) 180 kc 2.

Mascot offer the best in class V3 & V4 Submersible pump set with widest range of Flow and Head, designed to work in Sandy Water as well as Clear water. Construction : 3” & 4” Submersible Borewell Pumps or Deep Well pumps suitable for Borehole of 80 & 100 mm. Coupled with Water filled Submersible borewell motor with NEMA Standards (for Spline Coupling) & Key Type Coupling (Indian Standards). The Glass Filled Noryl Borehole Submersible pump are designed to resist sand in water for long lime Features High Efficiency Design  All Submersible borewell Pump are designed for Best Hydraulic Efficiency in the Range. This help to Pump water in large volume and Low Power Consumption of Motor. Mascot Pumps Ltd, Provide special Glass Field Noryl Diffuser & Impeller. Designed for Sand Resistance Special Glass Field Noryl that Resist Sand wear to maximum. Stainless Steel shims on the Neck Ring and Diffuser Bush Area for long life. Stainless Steel Hardware and Tube used in all submersible deep wells Non Return Valve (NRV)  All Mascot Pumps are provided with NRV to avoid effect of Water Hammer in Deep well Pump and prevent Reverse Rotation of borehole Pump. Dynamic Balancing  All Rotary Components Rotor of motor etc are dynamically balance as per the ISO specified Standards Application  Pumping Clear Cold Drinking Water from Bore Hole / borewell for use as Water supply Pump, Irrigation Pump, Agriculture Pump, Sprinkler & Garden Application.
