PVC Cable Dealers in Ahmedabad

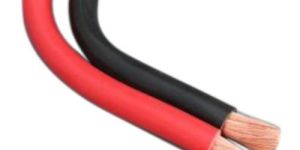

Our firm is a key manufacturer, supplier and exporter of a broad assortment of PVC Insulated Battery Cables. These types of cables are developed to supply high range current requirement so as to operate the starter motor in trucks, Cars, tractors and electric traction vehicles, off-road vehicles and so on. Built of the finest raw material with sophisticated method, these PVC Insulated Battery Cables can be availed in various sizes and technical specifications at reasonably affordable prices. Specifications Used to supply power to battery for various application With sequential foot meter marking Features: Single & Twin Battery Cables with choice of PVC, Rubber & XLPE jacket SQ MM sizes (European style) 10 sq mm to 240 sq mm and AWG sizes (North American style) 6 AWG to 40 AWG With sequential foot meter marking Conforming to International Standards IS 2465, SAE J1127, ISO 6722, BS 6862, IEC 60245, ASNZS 5000.1 Wide temperature range: -40oC to 105oC Tough & flexible cable with excellent resistance to motor oils, battery acid, fuel, cooling agents, Ozone, weathering & hydrolysis and high abrasion and cut-through resistance Applications To supply high current necessary to operate the starter motor in Cars, trucks, tractors and off-road vehicles, electric traction vehicles. Also used for battery connections for telecommunication, power inverters, computers, solar & wind power battery. etc. Conductor: High purity electrolytic grade bright annealed flexible bunched bare copper conductor confirming to International Standards such as IS-8130, BS-6360, IEC 228 & VDE-0295. Insulation Specially developed dielectric grade PVC Compound which is resistance to oil, water, petrol

• Color: Red
• Application: Power Cable
• Voltage: 220 V
• Number of Cores: 3 Core
• Current Rating: 32 A
• Conductor Size: 1.5 sq mm

.1 kV, 1 cores AL CU conductor, PVC insulated, unarmoured cables as per IS 1554 Part – 1. Conductor : AL up to 10 Sq. mm conductor are solid Cl.1 as per IS 8130. And above 10 Sq. mm conductor are stranded round or compact Cl. 2 as per IS 8130 In CU 4 & 6 Sq. mm conductor are solid Cl.1 or stranded Cl. 2 as per IS 8130. 10 Sq. mm & above stranded round or stranded compact Cl. 2 as per IS 8130 Insulation : PVC Type – A, as per IS 5831. (Option : HR PVC Type – C, as per IS 5831) Core Color : Red or yellow or blue or black or natural Outer Sheath : PVC Type ST-1 as per IS 5831. (Option : PVC Type – ST 2 as per IS 5831 FR Type FRLS Type ) Cable Color : Black (Options : Any other color as per requirement)

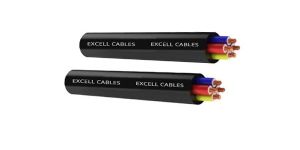

We have earned great success in offering the premium quality of PVC Multi Core Flexible Cablesin the market. Our offered PVC Multi Core Flexible Cables are made accessible to the clients at industry leading prices and are offered as per the set industrial norms and protocols as well.  These PVC Multi Core Flexible cables are having thick layer of protection that is utilized to connect the optical transmitter, receiver and the terminal box. This is known as interconnect-style cabling. Clients can benefit from us a scope of PVC Multi Core Flexible Cables. These exactness designed items are produced by the experts utilizing bleeding edge innovation and propelled advances.   We offer these adaptable wires to the clients running from 0.25mm to 50.0 sq. mm x 4 center. In addition, our offered adaptable wires are sufficiently extreme to withstand outer mechanical wear and tear. We offer our customers an extensive variety of wires at advertise driving costs. Our offered cables are generally utilized for wiring in machines, control panels and assorted other electrical connections. As well to this, we offer these cables to the clients within a set time frame. Salient Features :-     This Multicore Flexible Cable is Chemical Resistant Abrasion Resistant Oil Resistant Multicore Flexible Cable Water Resistant Multicore Flexible Cable Multicore Flexible Cable with Ozone Resistant Multicore Flexible Cable with Mechanical Protection Low Smoke Zero Halogen Choice of Multicore Flexible Cable dimensions

• Color: White
• Packaging Type: Roll
• Shape: Round
• Wire Size: 90 m
• Crossectional Size: 1 Sqmm.
• Usage/Application: House Wiring
• Insulation Thickness: 0.7 mm
•  :

  Armoured / Un-Armoured Power & Control Cables DP DEELUX POWERCAB is manufacturer of  a wide range of Armoured Cables, Armoured Power Cables, Armoured Electrical Cables, PVC Armoured Cables and XLPE Armoured Cables. XLPE means cross-linked polyethylene or vulcanized polyethylene. The basic material is low density polyethylene. Polyethylene is a thermoplastic material consisting of long chain of hydrocarbon molecules. At elevated temperatures these molecules tend to move relative to one another so that the material becomes increasingly deformable and will eventually melt at the temperature around 110°C. The process of rubber the polyethylene molecules can be cross-linked. The process of cross-linking or vulcanization consists of producing chemical bonds at interval between the long molecular chain to give a ladder effect which prevents slippage between molecules as a result of cross-linking the material becomes heat resistant and does not soften at higher temperatures. Further it has better resistance to stress cracking and good resistance to ageing in hot air. With the change of structure there is no adverse effect on electrical properties. CONDUCTOR The most acceptable metals are copper and Aluminium due to their higher conductivity & ductility.As Copper has got higher affinity for sulphur, it corrodes in the atmosphere where sulphur fumes are present. In these conditions tinned copper should be used. Aluminium oxide film which is always present on aluminum conductor surface acts as barrier and it protects the Aluminum conductor from corrosion in fumes laden atmosphere. CONDUCTOR CONSTRUCTION The most economical construction for conductor is solid conductor i.e. conductor made of one single wire. As the area conductor increases, solid conductor becomes stiffer and hence difficult to handle in this case stranded construction is adopted. Here the conductor is made of number of strands. This construction provides more flexibility. Where crimping of lugs is required, the conductor has to be of stranded construction only. To economies in insulating material, weight and overall diameter, shaped conductors are employed in bigger sized cables. Here the stranded conductor is shaped in to a segment of a circle so that when all the cores are laid, they form a complete circle. These segments are identified as 2 Core- 180 degrees, 3 Core- 120 degrees, 4 Core- 90 degrees, 3.5 Core- 100/60 degrees. I.S.1554 permits solid conductor construction up to 10 sq.mm in aluminium and up to 6 sq.mm in copper. It permits the use of shaped conductors for size from 16sq.mm onwards. INSULATION The PVC covering over conductor is called insulation and is provided by extrusion process only. The insulated conductor is called core.I.S.:1554 permits two types of PVC insulation as follows: 1)Insulation with type A PVC Compound as per IS: 5831 which is suitable for 70°C continuous operation. 2) Insulation with type C PVC Compound as per IS: 5831 which is suitable for 85°C continuous operation. LAYING UP The cores are laid up with suitable lay. The final layer always has a right hand lay i.e. if you look along the cable, the cores move to your right hand. INNER SHEATH Inner sheath is provided over the laid up cores. It is provided to give circular shape to the cable and it provides bedding for the armouring. I.S. 1554 permits following two methods of applying the inner sheath of any thermoplastic material i.e. PVC, Polyethylene, etc. EXTRUDED INNER SHEATH:Here the inner sheath is provided by extrusion of Thermoplastic over the laid up cores. This type of Innersheath is generally provided in cables having round cores i.e. in control cables and power cables upto 10 sq.mm sizes. This type of the inner sheath also acts as a water barrier between cores and outer sheath. Is case of a puncture in the outer sheath the water cannot reach to the cores and hence we recommend that cables for outdoor underground uses should have extruded inner sheath. TAPPED INNER SHEATH:Here the inner sheath is provided by wrapping a thermoplastic tape over the laid up cores. It is generally employed in cables having sector shaped cored i.e. multi core cables of 16sq.mm and above. This method saves a process and hence manufactures always provide this type of inner sheath unless the purchase specifications ask for extruded inner sheath. ARMOURING In case of armoured cables, generally galvanized steel wire / strip is provided over the inner sheath is multi core cables and Aluminium Round wire or Aluminium strip over the insulation in single core cables. It provides mechanical protection inside cores and it carries earth return current in case of short circuit of a core with armour. As per I.S. 1554 (Part-1) 1988, round wire armouring is provided in cable, where calculated diameter under armour is up to 13 mm. Above this the armouring is either with round wire or strip of size 4 mm 0.80 mm. As strip construction is economical, the manufactures always provide steel strip armouring unless wire armouring is specially specified. In long run of cables and in case of mines, round wire armouring is must, as strip construction provide higher resistance to earth fault current and sometimes this current may not be sufficient to operate the circuit breaker in case of earth fault. In mines, the resistance of the armour in no case should exceed the resistance of the main core by more than 33% for safety reasons. To achieve this, sometimes tinned hard drawn copper wires are required to be used along with galvanized steel wires. Sometimes two layers of Round steel wire or Steel Strip are applied in opposite direction with barrier tape in between are provided to give extra protection. In case of single core for use in AC circuits, the material for armouring has to be nonmagnetic, as in this case the return current is not passing through the same cable and hence it will not cancel the magnetic lines produced by the current. These magnetic lines which are oscillating in case of AC current will give rise to eddy current in magnetic armouring and hence armouring will become hot, and this may lead to the failure of the cable. Generally hard drawn aluminium wires / strip are used for armouring in this case. OUTER SHEATH The PVC covering the armouring in case of armoured cables and over the inner sheath in case of un-armoured cables is called outer sheath. I.S. 1554 specifies nominal and minimum thickness of outer sheath for UN –armoured cables and only minimum thickness of outer sheath for armoured cables. It permits the following types of outer sheath PVC compounds. Outer sheath with type ST1 PVC compound as per IS: 5831, which is suitable for 70°C continuous operation. Outer sheath with type ST2 PVC compound as per IS: 5831, which is suitable for 85°C continuous operation. PVC has got fire retardant properties due to its halogen content. The fire in the cable gets extinguished immediately on removal on the fire source. In the modern Power, Chemical, Fertilizer and Cement plants many PVC cables are bunched in the cable shaft or on cable trays. In case of fire in these cables, the fire becomes self sustaining. Moreover due to the burning of PVC a dense corrosive smoke is emitted which makes fire fighting very difficult, due to poor visibility and toxic nature of the smoke. HCL content of the smoke, not only damages other costly equipment lying nearby, but also penetrates the RCC and corrodes the steel reinforcement. Due to this there is an extensive to the property. To overcome these deficiencies FRLS i.e. Fire Retardant Low Smoke PVC was developed. If required, we can provide Fire Retardant Low Smoke (FRLS) PVC Inner Sheath and / or outer sheath. This PVC compound, apart from meeting the requirements of Type ST2 as per IS-5831, has got better fire retardant properties and it emits lower smoke and acid fumes when it catches fire.

• Length: 90 m
• Material: PVC
• Voltage (Volt): 220-440 Volt
• Flame Retardant: Yes
• Core Material: Aluminium

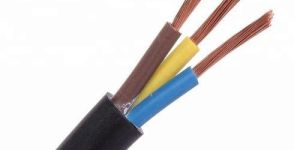

PVC Insulated & Sheathed Multi Core Flexible Round Wire, Volt 660-1100V with IS 694(90) Color of Inner Core In 2 Core Red & Black In 3 Core Red - Black - YellowGreen In 4 Core Red, Yellow - Blue - YellowGreen

* Heavy duty performance. * Offers the best combination of safety, efficiency and economy. * Sheath : PVC, HR, FR, FRLS 105º C PVC * Range : 1.5 to 2.50 sqmm upto 24 cores control cables * 1.5 to 35.0 sqmm upto 5 cores power cables

Generally conforms to, CENELEC HD 21, UL-83, IEC 60227, BS 6500, DIN VDE 0281, IS 694 , EC flexible copper Generally conforms to IEC 60228, DIN VDE 0295,IS 8131, Quality backed by 40 years experience in cable industry, Excellent resistant to moisture, abrasion, grace, oil, Longer Flex Life Excellent mechanical & electrical properties.

Cables with Aluminum and Copper conductor and polymer insulation are manufactured by Genus Electrotech. Essentially cables comprise of conductors, insulation, inner sheath, armour and outer sheath.

Jainflex CCTV Cables are designed to optimize the quality of video signals, which are transmitted through the braided video core. Topmost quality of construction of ATC Braided video core in Jainflex CCTV cables ensures distortion free video signals and thus a clear picture over complete low frequency bandwidth of transmitting in such applications.

We are one of the core supplier Flame Retardant (FR) PVC Insulated Industrial Cables is offered in Project Packing. PVC Insulated Copper Conductor Single core (Unsheathed) Cables in Voltage Grade up to and including 1100 V & generally conforming to IS 694 : 1990 Conductor The conductor is composed of high purity, bright annealed bare electrolytic grade copper wires complying to IS 8130:1984, which are drawn, annealed and bunched in high precision machines geometrically and appropriately to ensure apposite flexibility, uniform resistance and proper dimension.   Insulation The bunch copper is insulated with a specially formulated PVC compound having high insulation resistance and dielectric strength and conforming to the requirements of Type A of IS 5831:1984 & also suitable to use from -15c to +70c rated conductor temperature. The high speed & fully synchronized extrusion process with automatic on-line controls gives consistence high quality wire insulation. Improved Fire Performance Category C1 Wires are also available with following Fire Retardant properties. Specially formulated FR PVC Compound ensures additional safety against the fires because of its high Oxygen and Temperature index properties.

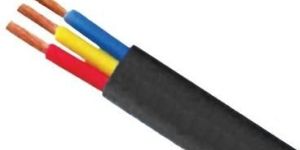

PVC Insulated & Sheathed Three Core Flat Cables as per IS 69490 are used to connect submersible pump motor with supply lines, these cables are made keeping in mind the severe operating conditions. The slot available in the tube well being narrow the shape of the cables has to be suited for such an application.

We are famous as the most popular organisations in this business, providing a wide and excellent confident range PVC Insulated Cable that is used greatly for wiring in machines, control panels and various power set ups.

• Red: Yellow
• Black: Blue
• Green: Green/Yellow

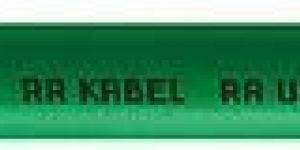

We are offering unilay fr pvc flame retardant cable - upto 1100v - india's 1st flame retardant rohs - compliant cable with unilay conductor - no loose contacts, no broken ends - no sparking & overheating applications: suitable for use in conduit and for fixed, protected installation. Ideal for high density wiring. Conductor: thin strands of electrolytic copper are multi - drawn simultaneously for uniformity of resistance, dimension, and flexibility. The drawn strands are uni-laid in high precision machines and compacted. A perfectly circular conductor is thus formed. This enables reduction in overall diameter for space saving in high density wiring. The strands do not get cut when stripping the insulation. The conductor offers perfect contact at pins, terminals and sockets. This eliminates spot heating and sparking. Marking:the cables are printed with generic marking of“unilay-fr. colours: red, yellow, blue, black, green, greenyellow, grey insulation: specially formulated lead free + flame retardant pucinsulation is used. The fr (flame retardant) property retards the propagation of flame, hence without compromising safety insulation conformity: 155831 type a, fr approvals: is 694 marked, fiatac approved - cml 7205255 packing: 90 mtrs. Coils packed in protective cartons note: rr kabel will not be liable for damages arising due to incorrect installations. The above data is indicative and may be revised without prior intimation.

• Material: PVC
• Color: Black
• Voltage: 750V
• Cable Type: PVC Flat
• Core: 4,8,12,16,18 and 24 Core

• Features: Good conductivity , High tensile strength , Long lasting

90 Mtr. Lengtht 100% Flame Retradant Longer Lex Life Excellent Insulation Resistance & di-electric strength Excellent Resistance to Moisture & Abrasion Protection from Grease & Oil 3mm Pure Electrolytic Copper Heavy Weight For Extra Protection

• Country of Origin: Made in India
• Insulation Material: PVC
• Conductor Material: Copper
• Wire Size: 2.5 sqmm
• Number Of Core: 3 Core
• Shape: Round
• Coil Length: 90m
• Packaging Type: Box

PVC Insulated & Sheathed Multi Core Flexible Round Wire, Volt 660-1100V with IS 694(90) Colour of Inner Core In 2 Core Red & Black In 3 Core Red - Black - Yellow/Green In 4 Core Red, Yellow - Blue - Yellow/Green Colour of Outer Sheathed: White or Grey or Black Disclaimer: This information is to the best of our knowledge & accurate but all recommendations or suggestions are made without guarantee since the conditions of use are beyond our control. The typical values given do not constitute specification for the product but represent typical analytical values.

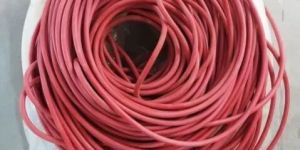

pvc insulated armoured cables, PVC Insulated Aluminum Cable, Elevator Cable

• Color: Black
• Country of Origin: India
• Size: 2-10yard

• Material: PVC
• Application: Home, Industrial
• Thickness: 4.5-5mm
• Color: Black
• Voltage: 110V
• Load Capacity: 1-3kw
• Innner Material: Aluminium

We manufacture LT XLPE PVC Power Cables which have found wide applications in various industries due to their technical superiority & economic advantages.

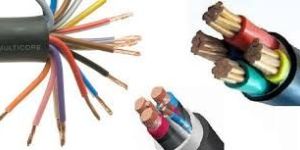

Pvc Insulated Power Cables, xlpe insulated cables, PVC Insulated Cables

PVC Power Cables, controls cables, Instrumentation Cables
