Raajratna Metal Industries Limited Usmanpura, Ahmedabad, Gujarat

The MIG Wires are supplied in Bright as well as in Matte finish and the wire is specially cleaned to avoid weld contamination. MIG wires can be supplied in plastic spools & metallic baskets. The wires have suitable cast helix to ensure perfect “pay-off”.

The Stainless Steel Spring wires can be supplied in ½ hard, ¾ hard & full hard conditions as well. We are using drawing lubricants from CONDAT and also of Japanese origin.

Raajratna manufactures clean & layer wound wire for submerged arc welding from 1.60 mm (0.062″) to 5.00 mm (0.187″) in various grades in bright as well as in matte finish. The wires tensile strength, helix and cast diameter is engineered to precise tolerance to ensure perfect “Pay-Off”.

Elongation : Aj = 100 mm marked before tension measured after tension to fracture measuring point 2.5 x diameter from fracture. A10 = Diameter x 10 marked before tension measured after tension to frature measured across fracture. Approval: We can also supply Stainless Steel rebars/coils as per ASTM A 955 / 1259 & EN standards. We are applying for German approved for Stainless steel rebars / Coils as per DIN 488 standard.   The grade of reinforcement steel will depend upon type of corrosive atmosphere For moderate atmosphere high yield reinforcement steel like 1.4301 (304) can be used. For more severe corrosive atmospheres 1.4401 (316), 1.4429 (316LN), 1.4436 (316) & 1.457 ( 316Ti) can be used. For high aggressive atmospheres duplex steel 1.4362, 1.4462 (2205) is recommended.

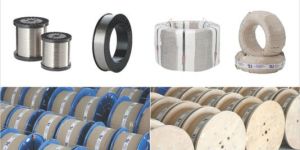

Raajratna manufactures high quality Spring Wires from 0.08 – 22.00 mm in various grades, finishes & packing.  We can also supply Ni-Coated wires from 0.08 to 2.00mm. The wires can also be supplied with Eddy Current testing. The Spring Wires are manufactured as per ASTM A313, EN 10270-3, JIS G4314, BS 2056 & DIN 17224 & also other equivalent international standards for producing various types of springs like Aerosol Spring, Compression Spring, Extension Spring and Torsion Spring as well as for Wire Form, Straight Pin etc. These products are used for Irrigation (Sprinkler), Hardware (Lock, Faucet), Automobile, Aerospace,  Electronic, office supply, etc.   The Stainless Steel Spring wires can be supplied in ½ hard, ¾ hard & full hard conditions as well. We are using drawing lubricants from CONDAT and also of Japanese origin. We also supply AISI 904L, Nitronic 50, Inconel X-750 and 904L emitting electrodes on request. Medical Implants : We can also supply optimum medical wire in 302, 304, 304V, 316, 316L, 316LVM & 420C grades & tempers as per ASTM F-138, ASTM A-313, ISO 5832-I, EN 10270-3 & IS 6528. This can be supplied in Soft Annealed – ¼ hard, ½ hard, ¾ hard, full hard (center -less ground or drawn finish).

Size Range:  0.03mm to 25.00mm (0.0012” – 1.00”) Grades: AISI 200, 300 & 400 series, High Nickel Alloy & Duplex Steel (Can also give other equivalent international grades) Finish:  Soft Annealed – ¼ hard, ½ hard, ¾ hard, full hard (Matte or Bright) Raajratna manufactures general purpose wire in various grades for different applications.

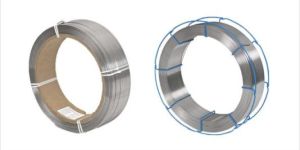

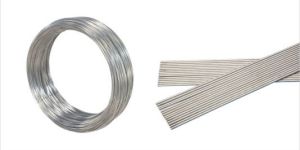

We supply the wires for welding applications viz. Fabrication, Railways, Automobiles, Pressure Vessels and for all general welding purpose.   We are TÜV certified and also supply high Nickel Alloy welding wires for the special purpose.   Stainless Steel MIG Wire   Stainless Steel TIG Bar   Stainless Steel Saw Wire Stainless Steel Core Wire

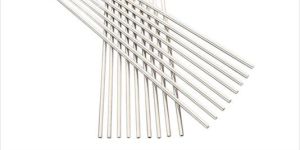

Size Range  : 2.00mm to 25.00mm upto 6 meters length. Grades         : Stainless Steel, High Nickel alloy & Duplex Steel Finish           : Polished Bars, Ground Bars & Chamfered Bars

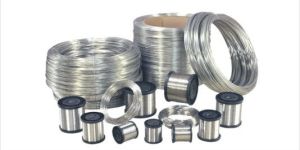

Raajratna manufactures all types of stainless steel & high nickel alloy wires for various applications. At Raajratna, we have a state of the art facility for manufacturing and maintaining stringent quality parameters, considering the end application of wires. We have now started manufacturing wide range of profiles with precise control on dimensions to meet the customers’ requirements and uses of different shapes in applications like Filtration in petrochemical, oil, water, paper, pulp and food industries, mining industries, architecture, home appliances, building industry, textile machineries, automobile industries and general purpose.   Product Range Our Standard range of Profiles : 1.00 mm² to 100.00 mm² Cross Section with a maximum width 25.00 mm. The shapes are produced on an Universal Cold Rolling Mill with following highlights : Continuous dimensional checks with CONTACT / LASER  type measuring system during rolling for highest accuracy. Close dimensional controls up to ±0.010 mm both on width & thickness can be achieved as per the customer’s requirement. Dimensional checks of the finished shapes are done on the latest Profile Projector. Dimensions are measured with LASER Caliper online and histogram reports can be provided on request       Shapes Following shapes can be produced as per the customer’s requirement : Flat / Rectangular Shapes :               Thickness           : Min. 0.70 mm to Max. 6.00 mm with Round or Flat edges               Width                  : Min. 1.00 mm to Max. 25.00 mm               Square Shapes  : Min. 1.30 mm to Max. 6.30 mm with Round or Flat edges. Triangle, Oval, Half Round, Hexagonal, Tear Drop, Diamond shapes with maximum width 15.00 mm. Other special complex profiles can be produced as per the drawings. We can supply profiles from Annealed to Hard condition. Profile & flat wires are packed in coil of 50-500 kgs, spools of 50-1000 kgs& bars up to 6 meters cut lengths.

Raajratna manufactures high quality stainless steel & high nickel alloy wire for welding electrodes in sizes 1.60mm (0.062″) – 5.00 mm (0.187″) in bright as well as in matte finish. The wire for welding electrodes are supplied in coil as well as in cut length as per AWS, DIN, BS, JIS and other equivalent international standards or as per the customer’s requirement. The commonly manufactured grades are AWS ER307, ER308, ER308L, ER309, ER309L, ER309LMo, ER310, ER312, ER316, ER316L, ER317L, ER318, ER347, ER430 with low and normal silicon contents.

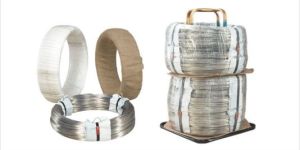

Raajratna manufactures high quality cold heading wires from 1.00 – 25.00mm with soap drawn skin pass uniform coating & from 1.00 – 10.00mm in annealed condition in various grades.The cold heading wires are manufactures as per ASTM A 493 & JIS G4315 standard and other equivalent international standard.   Raajratna manufactures high quality cold heading wires from 1.00 – 25.00mm with soap drawn skin pass uniform coating & from 1.00 – 10.00mm in annealed condition in various grades.The cold heading wires are manufactures as per ASTM A 493 & JIS G4315 standard and other equivalent international standard.

we manufactures high quality cold heading wires from 1.00 – 25.00mm with soap drawn skin pass uniform coating & from 1.00 – 10.00mm in annealed condition in various grades.The cold heading wires are manufactures as per ASTM A 493 & JIS G4315 standard and other equivalent international standard.

The wire for welding electrodes are supplied in coil as well as in cut length as per AWS, DIN, BS, JIS and other equivalent international standards or as per the customer’s requirement. The commonly manufactured grades are AWS ER307, ER308, ER308L, ER309, ER309L, ER309LMo, ER310, ER312, ER316, ER316L, ER317L, ER318, ER347, ER430 with low and normal silicon contents.
