Relays Dealers in Ahmedabad

  VIDYUT single phasing preventer model SSP, 3 is a unit using the combined principal of Voltage sensing and Current sensing to determine the Single phase in a 3 phase circuit. This prevents the motor running in a single phase due to any of the fault Phase failure, loose connections etc. the Indications are provided to know whether the motor is drawing  the  current in all 3 phase or not. The unit Is housed in a metal enclosure with base mounting facility. The single unit can control motor from 1 HP to 50 HP. Potential free contact of 230 VAC, 5 amps, is provided for the output for connecting in the trip circuit .

• Aux Supply: 110 VAC OR 230 VAC OR 415 VAC
• Mounting: Door Mount [Door Cut out 92 Xx 92 mm]
• Out put Contact: P-NO-NC [240 VAC
• Voltage Type: AC
• Current: Not Applicable
• Display: Line Voltage through 7 Segment LED
• Temperature: +10 TO 60 Degree C [ Operation]
•  :
•  :

Supported by a team of hardworking professionals, we have been able to offer a range of Motor protection devices. The products we offer are developed employing latest technology in accordance with international quality standards. Available in different sizes, designs and specifications for motor protecting , these products are widely used for having hassle-free functioning of boilers in various domestic and industrial purposes with wide range of controls and PLC nad DCS controls

• Voltage: 220 V
• Relay Type: Thermal Relay
• Number of Poles: 2 - 3 Pole
• Material: Plastic
• Frequency: 50 Hz
• Brand: KS
• Mounting Type: Panel

We are supplier, manufacturer from Gujrat, in India. As we want to maintain transparency in the business dealings, we offer an invoice stating all the necessary details of the payment and also ensure that the transactions should remain safe. Since our strict packaging guidelines, we make sure that the products are suitably packed assuring zero damage during transportation. Furthermore, our packaging professionals thoroughly check the whole batch before making the final transmit.

We have abundant dealers, distributors connected with us to ensure our goods are obtainable for purchasers, and deliveries are made on time. For our purchasers in Rajkot(India) and other marketplaces, we supply a wide array of the product at the lowest prices.

FEATURES :Available for Single Phase & Three Phase SupplyProtect Motor from Over LoadProtection against Dry RunningProtection against high/low cut off voltage (optional)Protection of reverse phase sequence

We have created a strong foothold in the field of exporting and supplying Over Load Relay 1A to 630A. The Schneider Switchgears offered by us are specially designed by highly qualified and experienced engineers. As a result, these Schneider Switchgears possess reliable performance and longer life than others available in the markets. These Schneider Switchgears are widely used at places where electric supply is required. Being procured from reliable vendors, our Schneider Switchgears are surely the right choice to rely upon. Schneider Switchgear Comprises Of AC/DC contactor,6A to 1600a 3 p & 4 p/, over load relay, electronic relay, molded case circuit breakers ( MCCB)/ 10a to 800a in 3p/4p 25ka/36ka/50ka/70ka range compact cvs /nsx range ,miniature circuit breakers(MCB),/power supply/, air circuit breakers (ACB) switch disconnected fuse( SDF)/, plug in relay/ timers,/ soft starters /, distribution board/ ,plug socket / Bar contactor/ ,cap duty contactor, ,modular enclosures etc.

• Features: Perfect finish, Perfect finish, Excellent strength .

• Brand Name: Mistura
• Material: Abs
• Color: Black
• Application: Indistrial
• Size: 96x96x50
• Certification: CE Certified

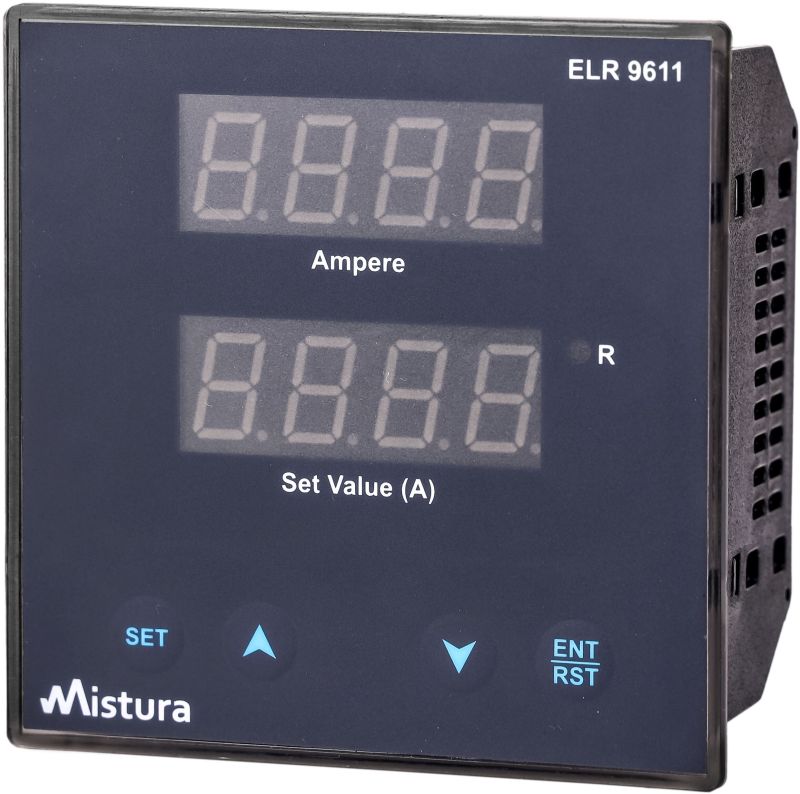

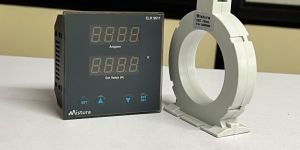

Model ELR-9611 Dimenssion (HxWxD) mm 96x96x50 Panel Cutout (mm) 92x92 Input  30mA to 3.00A AC30mA to 30.00A through External CBCT Output  Relay 1 For Tripping Accuracy Class 0.5 Supply 85-270VAC,50/60Hz

• Phase: 1 Phase
• Number of Poles: 4 Pole
• Current: 5A,10A,25A,50A
• Product Code: JPENG01
• Load: 25A, 50A
• Mounting: PCB Mounting
• Brand: Emtech
• Type: DC to AC,AC to AC,AC to DC,DC to DC
• Voltage Type: DC

Buyers can stay rest assured for damage-free products from our end as we make use of quality packing material. We also fulfill different packing requirements of the clients such as customized or standard. The well-structured warehouse is the reason behind the safety and year around availability of the products we offer. Besides, we have installed modern amenities necessary for the safe storage of the lot.   Feature : Voltage Sensing Spp Single Phasing Protection Led Indication For Healthy Supply Voltage Unbalance Protection Highgraded Abs Plastic Body Ampere Capacity 5amp

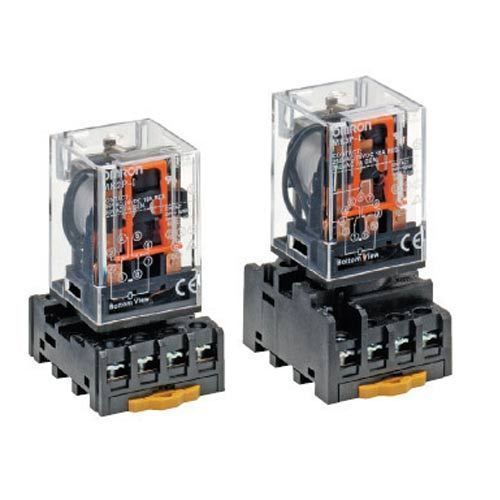

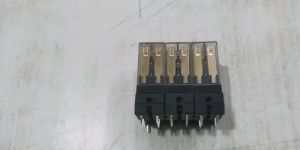

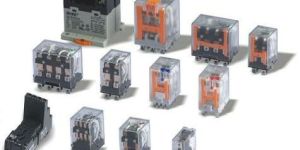

 MY2     MY2N     MY2IN(S)     MY2-02     MY2FMY2Z     MY2ZN             MY3     MY3N         MY3-02     MY3FMY4     MY4N     MY4IN(S)     MY4-02     MY4FMY4Z     MY4ZN     MY4ZIN(S)     MY4Z-02     MY4ZFMY4Z-CBG     MY4ZN-CBG             MY2-D     MY2N-D2     MY2IN-D2(S)         MY2Z-D     MY2ZN-D2             MY3-D     MY3N-D2             MY4-D     MY4N-D2     MY4IN-D2(S)         MY4Z-D     MY4ZN-D2     MY4ZIN-D2(S)         MY2-CR     MY2N-CR             MY2Z-CR     MY2ZN-CR             MY4-CR     MY4N-CR     MY4IN-CR(S)         MY4Z-CR     MY4ZN-CR     MY4ZIN-CR(S)          MY2K         MY2K-02  MYQ4     MYQ4N     MYQ4-02MYQ4Z         MYQ4Z-02MY4H         MY4H-0MY4ZH         MY4ZH-0  MY2MY2ZMY3MY4MY4ZMY4Z-CBGMY2-DMY2Z-DMY3-DMY4-DMY4Z-DMY2-CRMY2Z-CRMY4-CRMY4Z-CR  MY2NMY2ZNMY3NMY4NMY4ZNMY4ZN-CBGMY2N-D2MY2ZN-D2MY3N-D2MY4N-D2MY4ZN-D2MY2N-CRMY2ZN-CRMY4N-CRMY4ZN-CR  MY2IN(S)MY4IN(S)MY4ZIN(S)MY2IN-D2(S)MY4IN-D2(S)MY4ZIN-D2(S)MY4IN-CR(S)MY4ZIN-CR(S)  MY2-02MY3-02MY4-02MY4Z-02  ModelMY2FMY3FMY4FMY4ZF

• Transpernet: Verticale & Horizontal Mounting

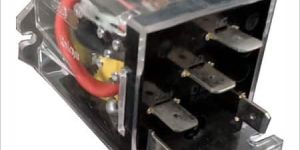

We are engaged in offering power relay that are widely used for controlling a circuit. These are fabricated using premium material and components and are known for features like unmatched quality, long functional life, high efficiency, durable finish and resistance to corrosion. The offered each power relays are quality tested and checked by our quality controllers on defined parameters, before their final dispatch. Our customers can buy these highly efficient power relays from us at industry leading prices. Few unique features are as follows : multiple mounting option (horizontal vertical) high temperature white standing base. 6.35mm male quick connect terminals. We are also manufactures single pole & double pole power relay

• Size (Inches): 98X98

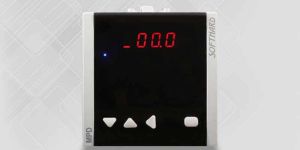

Features Single Phasing, Unbalanced, Over Lload, Earth Leakage, Locked Rotor, Short Circuit, Under Current Protection Phase Reversal, Thermistor over temp. Protection etc. Provides different curves for accurate overload tripping on the bases of starting time current of motor. Annunciation indicates the type of fault. Man - Machine Interface through Keypad & Display. Digital Ameter with Auto scanner for Three Phase Current and Earth Leakage Current. Available in different range from 0.8 to 2000 A. Top Optional Last Fault History Number of Motor Start - stop count to prevent motor heating Star - Delta Timer Detachable Display C0onsole Auto Restart Inbuilt Energy Saver as Automatic Delta to Start Convertor Serial Communication Port Rs.485 Real-Time Clock

The Aegis range of multifunction relay platform provides cost effective, integrated Numerical Protection, Control, Monitoring & Measuring with Communication functionality. The platform has stateof- the-art technology which ensures superior performance. The multifunction capability of Aegis finds application as main or backup protection in almost every area of power system protection.

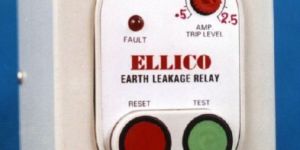

• Brand Name: ELLICO
• Supply voltage: 415 VAC , 50Hz ± 5%
• Output Relay Contact: 1 CO
• Unbalanced trip Setting: 50 v ± 10 VAC(fixed)
• Trip time delay for unbalanced: 1 to 2 sec ± 0.5 sec
• Resetting mode: Auto
• Output Contact Rating: 5 Amp 230 V AC (Resistive)
• Weight: 0.270 gms
• Dimension (HXWXD): (104 X 68 X 47)

Details : Voltage sensing unit Phase failure Protection Reverse phasing protection Base mountable Unbalance (fixed unbalance setting ) Auto Reset 1 C/O Output Relay Application : Agricultural Pump starters Machine tools Injection molding m/c 3 Ph Split AC machines Valve Actuator motor

• Voltage: 230 V
• Frequency: 60 Hz
• Phase: 2 Phase
• Ambient Temperature: 10 to 50 Degree Celsius
• Current: 5A
• Type: Protective Relay
• Power Source: Electric

Siemens overload relays provide accurate and reliable protection to motors against overload and supports both normal and high starting applications. We own sound quality system, owing to which we carry out a strict quality examination of the product basket. We are backed by a team of professionals who are proficient in their respective domains and ensure that the offered lot is meticulously packed. Also, we make sure that only high-quality packaging material is used for packaging.

• Application: FLAME SENSING FOR INDUSTRIAL BURNER
• Type: Industrial Relay
• Brand: HONEYWELL
• Model Name/Number: R 4343

Maximum communications ports: SEVEN (slim type) and FIVE (All-in-one),Build-in MODBUS Master and Slave protocols and ASCII communications, Floating-point math with double-word calculations, Class 1 Div 2 rated for hazardous location (UL0604) and Lloyd’s approval for marine applications.

This project monitors the frequency fluctuations in power system and detects them. therefore we have designed a microcontroller based underover frequency relay. the under-frequency relay is used for automatic load shedding and restoration. the frequency of the system is continuously monitored by using digital monitoring and data acquisition system. the monitored frequency is displayed and depending on the value of the frequency, the required decision is taken by the microcontroller. this project, hardware as well as software for frequency relaying, has been developed. in this project we have used microcontroller 8051 for detecting the frequency fluctuations. when frequency goes below or above from desired value appropriate trip signal is generated in the form of leds. frequency variation also decreases the life of the equipment and directly affects the overall production of the plant. we can give an overview of the complete operation with the help of microcontroller 8051 kit having internal 8255 programmable peripheral interfaces, a zero cross detector and a smps or switched-mode power supply. a zcd converts the input sinusoidal signal to a square wave of the same frequency

The AEGIS range of multi function relay platform provides cost effective, integrated Numerical Protection, Control, Monitoring & Measuring with Communication functionality. The platform has stateof- the-art technology which ensures superior performance. The multi function capability of AEGIS finds application as main or backup protection in almost every area of power system protection.   Features General Features :- Self Monitoring Graphic LCD (160*160 dots) to view/change setting, view events and analog information. Wide range of site selectable universal operating time curve (IEC & IEEE) or user defined curve Wide range of Auxiliary Supply Expandable input/output Modules. Outputs configurable to Self/Manual reset. Multi level password protection. Four Independent setting groups. User friendly setting and disturbance record analysis software. Programmable alarm/trip indication LEDs with text legend. Protection Functions:- Directional/Non-Directional Over Current Protection. Directional/Non-Directional Measured ground fault Protection. Under/Over Voltage Protection. Neutral Voltage Displacement Protection. Negative Sequence Over Current Protection. Cold Load Pick-up & Inrush restraint (68). Circuit Breaker Failure Protection. Application Feeder Protection Relay Motor Protection Relay Transformer Protection Relay

FEATURES   => Consistent reliability with high accuracy=> Trip setting through Front Panel Potentiometer=> Time Delay user settable=> LED indication for healthy / faulty status=> Compact size 17.5 mm DIN

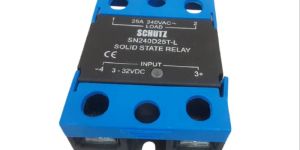

We are the dealers of an extensive array of solid state relay, which are of prominent companies. A solid-state relay (SSR) is an electronic switching device. It has a miniature control signal that excellently regulates load current or voltage. It comprises of a sensor which acts per proper input signal. We offer these products in different sizes as well as specifications.

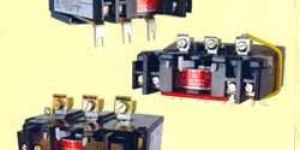

CE approved Over Load. Heavy duty, reliable, Manual & Automatic reset versions available. Can be used for Mono & Three Phase Equipment. 24V, 110V, 220V, 415V – 50/60Hz Coil available. Available in different Amperes settings.

• Voltage: 250 V
• Number of Poles: 2 Pole
• Current: 12A
• Coil Type: Latching
• Dimension: 96 x 96 mm
• Voltage Type: AC
• Panel Cut Out Flush: 90 x 90 + .1mm

• Voltage: 240
• Relay Type: Voltage Relay
• Color: Blue
• Frequency: 50 Hz
• Shape: Square
• Power Source: Electricity
