Resilient Couplings Dealers in Ahmedabad

• Type: Resilient Spring Grid Coupling
• Material: Metal
• Shape: Round
• Grade: AISI
• Color: Black
• Size: 1inch, 2inch, 3inch
• Thickness: 10-20mm, 20-30mm, 30-40mm, 40-50mm
• Application: Connecting Shafts And Pipes, Engines, Machinery
• Feature: Corrosion Proof, Crack Proof, Durable, Excellent Quality, Fine Finished

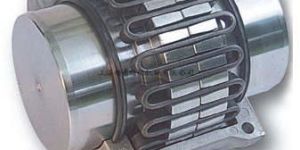

Resilient Couplings give you a combination of advantages of high power rating of a gear coupling and flexibility of elastomer coupling. They are easy to install and simple to maintain. The flexible grids are quickly replaceable without disturbing the connected equipment. Resilient Couplings are available in broad range of sizes covering from 0.45 kW to 1307 kW per 100 rpm and bores up to 267mm. CONSTRUCTION: A High torque Resilient Coupling basically comprises a grid spring which connects two hubs – one on the driving and the other on the driven shafts – through axially cut grooves around the peripheries of the two hubs. The spring, which is of special design compatible to the required characteristics of the system, forms a series of resilient bridges along the grooves. The grooves are flared to allow the grid members long flexible spans under normal loads as well as better support by the sides of the grooves under over load conditions. The stiffness of the spring and thus the coupling depends on the length of each flexible span not in the contact with the grooves. Subsequently, the contact length changes with every variation in torque, resulting in change in the stiffness of the coupling at every instant during a vibration cycle. Consequently this produces a powerful detuning action resulting in continuous alteration of the torsional vibration frequency and prevention of a buildup of resonance in the system. The principle of design adopted in Resilient Coupling, makes it capable to accommodate considerable axial, parallel and angular misalignment between a driving machine and a driven machine. Simultaneously, it can absorb considerable overloads due to high torque with consequent reduction in wear and tear on plants and machinery. With the use of resilient couplings, break-down and down time in any manufacturing unit, will be minimum.FEATURES: All metal construction having no fast wearing out components. Accurately machined. Dynamic balancing is normally not required. Torsionally flexible. Progressive torsional flexibility (due to curved profile) provides protection against shock load, impact load and vibration. Heat treated spring steel grid absorbs high impact shocks without loss of energy. Transmits full torque with dampened vibration and reduce peak loads. When over load occurs; grid fails and prevents failure of the shaft or machinery part connected to the coupling. When parallel misalignment is too severe; the related machine is protected by the virtue of shearing of Grid or Tooth. Extended life of parts of machines (Mechanical seal and Bearing etc.) Easy to install.

• Material: Metal
• Shape: Round
• Certification: ISI Certified
• Color: Black
• Application: Connecting Shafts And Pipes
• Feature: Excellent Quality
• Performance: Optimum

We are the main supplier of this product.

.

We are a global market leader in the field of manufacturing and supplying of Resilient Couplings.These resilient couplings are known for their shock absorbing features and detuning properties. These resilient couplings are increasingly finding application in the set-up of various industrial processesincluding steel rolling, cement, compressors, paper & sugar machinery, generators turbines, etc. These resilient couplings are used as per the requirement. We are providing these resilient couplings at affordable rates to our customers.

Bibby (Resilient or Grid or Spring) couplings can be used for applications with powers varying from as low as 1 h.p to about 100,000 h.p. per 100 rpm of the coupling. Correspondingly the couplings are available in varying sizes ranging from 100mm diameter to 4000mm diameter. Bibby couplings are capable of taking axial and radialmisalignments to a very small extent only. It is necessary for the user to ensure that both axial and radialmisalignments are kept to the minimum possible. All metal construction having no fast wearing out components,Accurately machined. Dynamic balancing is normally not required,Torsionally flexible.Progressive torsional flexibility (due to curved profile) provides protection against shock load, impact load and vibration,Heat treated spring steel grid absorbs high impact shocks without loss of energy,Transmits full torque with dampened vibration and reduce peak loads,When over load occurs, grid fails and prevents failure of the shaft or machinery part connected to the coupling, Extended life of parts of machines (Mechanical seal and Bearing etc.), Easy to install.

• Country of Origin: Made in India
• Packaging Type: Box
• Brand Name: SMI
• Material: MILD STEEL
• Weight: As per requirement/Size
• Surface Finishing: Blackodise
• Usage/Application: INDUSTRIAL

The new and modified foam of coupling is presented by us only for you, because we understand the requirement of your business. We are one of the prominent Resilient Torsional Coupling manufacturers in India. Its performance is simply incomparable.

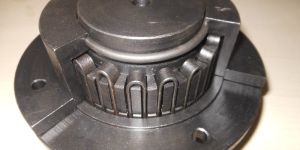

Our Resilient Grid Couplings are fitted in tapered grooves. This grid cut in the periphery of the driving and driven hubs is extensively used for heavy duty applications.

Resilient Coupling is also known as Grid Spring Coupling. Resilient Couplings have earned the reputation of being ideal for drives where trouble-free operation is essential. The coupling acts as a mechanical fuse for the drive system, helps in altering the torsional vibration frequency, and prevents build up of resonance in the system. Depends upon industry requirements AECOFLEX can make as per clients requirements or drawings.
