Bowed Roller
Get Price Quote
Buyers can get in touch with us for obtaining the top-notch Bowed Roller at modest rates. The effective Bowed Roller guarantees hassle free operation and can be relied upon for major industrial operations. Details : Bow roll is the commonly used wrinkle removing roller. Belmark is a pioneer in manufacturing and supply of bow rollers, which are also referred to as Expander Rollers, Banana Roll, Slat Expander roll, Spreader roll, Scroll Roll, Wrinkle Removing Roll etc. These rolls are supplied with mounting brackets, which could be either wall mounting or foot mounting. The bow Expander Rolls consist of bowed shafts, sealed ball bearings, abrasion resistant sleeve and metal segments. These are widely used as wrinkle removing devices in various industries and are available in various dimensions. The rolls are also supplied with gear box and mounting brackets which can either be Foot Mounted or Wall Mounted. Bow Rolls are available in rubber surface, hard chrome surface and also Teflon covering for non-sticking applications. Hard chrome surface Bowed Roller is used where speed is more than 300 meters per minutes. If the speed is more, the bigger diameter is used to reduce the rpm of the roll. Bow roll works only when there is proper lead-in and lead-out distance and kept in proper warp angle with web material. To make such warp angle adjustment all rolls are supplied with bow angle adjusting worm-worm wheel gearbox with hand wheel and counter pedestal bearing block. By use of this it is possible to adjust the bow angle at 360 degree warp angle. When the Roll get maximum wrinkle removing, stop the bow angle adjusting and put the roll on bow locked position. Do not make any change in the bow setting bow warp angle with web materials is set. On shaft bow position is indicated by an arrow showing the bowed position of the Roll. Metal expander with hard chrome plated surface is used for high speed application. Teflon sleeve is used for non-sticking application. Bow Rolls are also useful for removing of wrinkles, slack edges, spreading and slit separation. Most of the Bow Expander Rolls are driven by web tension itself without any extra drive, used in Textile processing machines, Plastic converting machines, Paper Industries, processing, printing, laminating, coating, batching, winding and re-winding. Bow angle adjusting worm-worm wheel gear box with hand wheel Metal is used for before high-speed Paper slitter re-winders for wrinkle removing and after slitting to separate slits. Big diameter Rolls having heavy weight and paper tension itself is not sufficient to drive the Roll. So extra pulley is provided to drive the metal bowed Roll. Teflon Expander roll is particularly used before size press where wet working condition and extra drive is required to get the roll rotate. Teflon rubber bow roll is used for application where sticking of substance on the roll is a problem. We have positioned ourselves as one of the major Bow Rubber Expander Roll Manufacturers and Exporters in India. Bowed Rollers manufactured by us finds applications in Industries like : Paper Industries HDPE Woven Sacks Industry Converting Industries (Printing/Lamination/Coating) Non-Woven Industry Aluminum Foil Industry Rotogravure Printing & Flexo Printing Industry Tarpaulins Industry Textile Industry Plywood & Laminates Industry Jute Industry Glass Industry Yarn Industry Fiber Industry Carpet Industry Artificial Leather Cloth / Vinyl Leather Industry TyreProcessing Industry Steel Industry Metalising Polyster Film Industry Industrial Beling & Conveyor Beling Fabrics Industry

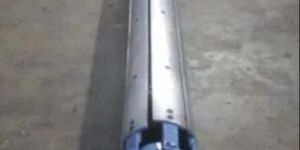

Slat Expander Roller
22,000 Per Piece
Best Deals from Rollers
Grooved Rubber Roller
Get Price Quote
RUBBER GROOVED SPREADER ROLLER These have a distinct groove pattern on rubber surface and are capable of handling delicate films without any damage during the entire wrinkle removing process. The rubber grooved rollers are very extensively used on Film Plants as a wrinkle remover, because these do not damage the film of any gauge due to resonance effect that delivers minimum stretch to the film and reduced contact area between film and the wrinkle remover.

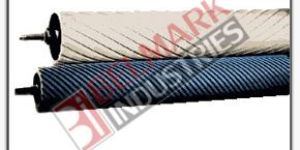

Rubber Grooved Spreader Roll
Get Price Quote
Many type of rubber grooved rolls are available as per specific requirement like diamond grooved rolls, helical grooved rolls, straight grooved rolls etc. For winder diamond grooved rubber roll required, helical and spiral grooved rubber rolls can be supplied as per application requirements.

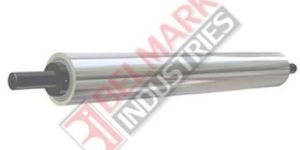

Hard Anodised Aluminium Roller
Get Price Quote
We are offering Hard Anodised Aluminium Roller to our customers across the world. As a renowned Manufacturer, Exporter & Supplier from Gujarat, India, we are committed in ensuring customers obtain a quality assured product. Hence, our quality auditors check the Hard Anodised Aluminium Roller on stringent quality parameters before approving for delivery. Details : We are engaged in the manufacturing of a wide range of Aluminium Roller Hard Anodized Aluminium Rolls which remains in ample demand among our global clientele. Fabricated by using best grade raw material, these Hard Anodized Aluminum Rolls have very high temperature tolerance, minimal wear & tear and are highly durable. Available in different sizes, Custom Colored Aluminum Roller are available in different coatings to prevent corrosion. In addition, we also make sure that these rollers are in compliance to the international standards of quality. We are reckoned among the leading Hard Anodized Aluminum Roller Manufacturers in India.
Cooling Rollers
Get Price Quote
Cooling Roll have hard chrome plated surface. Cooled water passing through its Rotary joint to cools the hard chrome plated surface area of the Roll. Cooling Roll cools the contact area that touches the web materials. There are different type Cooling Rolls like single shell, double shell jacketed type, spiral type. The surface cooling effect will be vary in different types cooling Rolls. Cooling Roll having shaft with inside hole to fix rotary joint. Bigger shaft diameter is recommended to avoid breakage of end shafts as end shaft having inside hole and uneven alignment or heavy tension on shaft result brakeage so bigger shaft diameter is recommended
anilox rollers
Get Price Quote
Anilox rollers in accordance with set industrial standards, these are known for their features such as superior strength, fine finish, and durable performance.
Brush Roller
Get Price Quote
We are offering brush roller. introduction: nissan clean india's vehicle washing brush aka brush rollers specially designed for the application of bus,car,truck and coach washing systems. since many years nissan clean india manufactures vehicle wash brushes for various vehicle cleaning machine, some features are mentioned below: •easy installation to ensure the right bush installs in its correct position on the column. •individual color coded brushes rely on each other to ensure the correct pressure is applied to the vehicle surfaces, while elimating damage, yet provide optimum cleaning efficiency from your wash equipment. •each brush represents a different colour of filaments for captivating looks and precise density of filamentsto accomplish a required washing action towards your vehicles. built-up of brush rollers: nissan clean india's manufactures its own heavy duty brush rollers. Mounted with other related equipments and measured density with the help of our plant and machinery. The rollers been peeled according to its dimensions to suit the types of vehicle washing systems. we balance our rollers with precise amounts of brush filaments to ensure balanced brushes for all the applications i.e. Both drives-through and gantry type roll-over washing systems. each brush are mounted with minimum of five locking lugs to ensure thousands of trouble free washes with virtually no maintenance and charges.

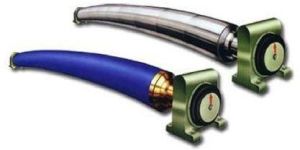

Bow Banana Roller
600 Per Piece

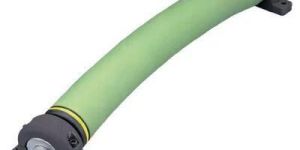

bow roller
12,800 Per Piece
Brush Rollers For Vehicle Wash Systems
Get Price Quote
Printing Rollers
Get Price Quote
Industrial Roller Manufacturer India, Different type of Industrial Rolls like, Calendar Roll, Cooling Drum, Double Jacketed Cooling Roll, Suction Rolls, Spiral Cooling Roll, Cooling Rollers, Dryer Cylinder, Hard Chrome Plated Roll, Hard Chrome Roller, Knurling Roller, Hard Anodized Aluminium Roll, Hard Chrome Roller, Stainless Steel Roll, M S Roller, Aluminium Roller. KEW ENGG. & MFG. PVT. LTD. manufacturer, exporter & supplier highest number of Industrial Roller, Printing Rollers and other Rubber Roller Manufacturer India, with more than 4000 installations all over India and overseas like Gulf Countries, Saudi Arabia, UAE, Dubai, Sharjah, Africa, South Africa, Nigeria, Ghana, Congo, Kenya, Zambia, Sri Lanka, Bangladesh, Malaysia, Pakistan, Nepal, Russia, Thailand, Indonesia, South America, Brazil, Colombia, Venezuela, Argentina, Mexico, Canada, America, etc.
Conveyor Roller
Get Price Quote
Customers can easily avail from us Conveyor Roller without spending much from the pocket. The Conveyor Roller manufactured by us brings repeated orders for the company along with huge appreciation from the clients. Additionally, the Conveyor Roller is supplied within the stipulated time frame for the convenience of the customers.
Grooved Roll
13,500 Per Unit
1 Set (MOQ)
We are the leading manufacturers, exporters and supplier of this products.
Rubber Roller
Get Price Quote
Our Rubber Roller is available with us in a wide range of specifications to suit varying demands of the clients. Our rubber roller is high in quality as well as durability.
Industrial Roller
Get Price Quote
Industrial Roller Manufacturer India, Different type of Industrial Rolls like, Calendar Roll, Cooling Drum, Double Jacketed Cooling Roll, Suction Rolls, Spiral Cooling Roll, Cooling Rollers, Dryer Cylinder, Hard Chrome Plated Roll, Hard Chrome Roller, Knurling Roller, Hard Anodized Aluminium Roll, Hard Chrome Roller, Stainless Steel Roll, M S Roller, Aluminium Roller.
Anilox Roller
Get Price Quote
Anilox Roller, Surface Cooling Roll, Polyband Expander, Web Guiding Systems
Banana Roller
Get Price Quote
We are a leading manufacturer, exporter and supplier of Banana Roll from last 25 years from India. Our Banana Roll is ideal for separation of slit webs, or the elimination of web wrinkles. Banana Rolls are widely used to removing wrinkle in various industries. We make Expander Rollers having very wide range of dimensions and suitable for equally wide range of applications and web materials. They are supplied with mounting brackets, which could be either wall mounting or foot mounting. The Expander Rollers we offer consist of bowed shafts, sealed ball bearings, abrasion resistant sleeve and metal segments. These are widely used as wrinkle remover devices in various industries and are available with us in various dimensions. Further, these are also supplied with gear set and mounting brackets which can either be Foot Mounted or Wall Mounted.

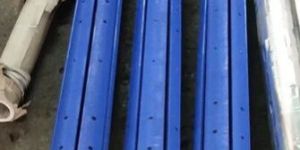

Slat Expander Roller
15,500 Per Piece
hot ink roller
Get Price Quote
Hot Ink Roll Coder Online Machine is use of automatic on-line contact coding machine for neat, sharp & registered print Batch Number, Date of Manufacturing, Expiry Date, Prices, best before dates, traceability codes, batch codes & other statutory information the with the help of the Characters with Aid of Brass Letters. The Print wheel equipped to Dry-Ink Coding Machine can be used for both R arrange and T arrange of characters.
