Dial Size : 63mm, 100mm, 150mm & 250mm. Accuracy : ±1% of full scale. Case & Bezel (IP-65) : SS 304 Snap Action Bayonet type & for 250mm Die cast aluminum. Movement : SS 304 Pressure Element : SS 316 ( ≤ 70 bar 'C' Type / > 70 bar Coil Type ). Socket : SS 304 / SS316 Dial : Aluminum white painted with 270 degree black scale marking. Pointer : Al. / Brass, Zero adjustment / Micro Zero Adjustment pointer. Window : Toughened / Safety glass. Blow Out Protection : 63mm on Top & 100 & 150mm on back side at 0.6 Kg/cm . Over Load Protection : 125% of f.s.d. for ≤ 150 Kg/cm2 /                                    115% of f.s.d. for > 150 Kg/cm2 . Joints : Argon arc welded. Mounting : Stem (Bottom), Surface, Panel Mounting, Flush Panel ( Bracket Type). Connection : ¼" / 3/8" / ½" BSP / NPT. Scale Range : Vacuum, Compound & Pressure up to 1400 kg/cm . OPTIONAL FEATURES• S S 316 Case & Bezel available on request.• Ammonia (NH ), Oxygen(O ), Freon Scale available on request. 3 2• Eco Model in M.S. & SS Case available on request.APPLICATIONChemical & Petrochemicals, Power generation, Pollution Control Equipment, Oil exploration and any other applicatio

CONSTRUCTION FEATURES Enclosure : Die Cast Aluminum Protection : IP, Flameproof Grade IIA, IIB & IIC Sensor Element : J, K, E, T, N ( Simplex or Duplex )                         : J ( Fe-CuNi)- 800° C                         : K ( Nicr - Ni )- 1200° C                         : E ( Nicr - CuNi )- 800° C                         : T ( Cu - CuNi ) - 400° C                         : N ( NiCrSi-NiSi)- 1200° C Cold End : Terminated in to ceramic terminal block Stem Material : SS 316 / SS 304, Inconel, Monel, Haystalloy Stem Dia. : 6mm, 8mm, 10mm & 12mm Stem Length : 300mm Standard Hot Junction : Ungrounded unless specified Configuration : 2 wire, 3 wire & 4 wire Connection : ¼", 3/8", ½" BSP / NPT Adjustable. Range : 0°C to 1200°C OPTIONAL FEATURES• Head mounted transmitter can be mounted• ‘L’ Shape or any other shape available on request. APPLICATIONMachinery, Plant & Tank, Construction, energy & power plant,

CONSTRUCTION FEATURES Dial Size : 100mm & 150mm. Accuracy : ±1% of full scale. Case & Bezel (IP-65) : SS 304 Snap Action Bayonet type. Movement : Brass / SS 304. Pressure Element : SS 316 Diaphragm / Compact capsule. Dial : Aluminum white painted with 270 degree black scale marking. Pointer : Al. / Brass, Zero adjustment / Micro Zero Adjustment pointer. Window : Toughened / Safety glass. Over Load Protection : 125% of f.s.d. for ≤ 150 Kg/cm /                                    115% of f.s.d. for > 150 Kg/cm . Mounting : Direct Bottom entry. Scale Range : For Schaffer Diaphragm: 760mmHg Vacuum,Compound, 0.6 to 21 Kg/cm . For Low Pressure Diaphragm : 250mmWc to 6000 mmWc. For Compact Capsule : 250mmWc to 6000mmWc.Upper Chamber Material : SS 304 / Carbon Steel Powder Coated. Diaphragm Material : Brass / SS 316, Teflon Coating can provided if required. Lower Chamber : SS 304 / SS 316, PTFE Lining provide if required.( Threaded / Flange type ). OPTIONAL FEATURES• Economic M.S. Model available on request.• Flanged connection available on request. APPLICATIONMedical & Vacuum Technology, environment &heating engineering, level indication & filter monitoring.

CONSTRUCTION FEATURES Enclosure : Die Cast Aluminum. Protection : IP, Flameproof Grade IIA, IIB & IIC. Accuracy : Class A & Class B. Sensor Element : PT-100 Simplex & PT-100 Duplex. Cold End : Terminated in to ceramic terminal block. Stem Material : SS 316 / SS 304, Inconel, Monel, Haystalloy. Stem Dia. : 6mm, 8mm, 10mm & 12mm. Stem Length : 300mm Standard. Configuration : 2 wire, 3 wire & 4 wire. Connection : ¼", 3/8", ½" BSP / NPT Adjustable. Range : -200°C to 600°C OPTIONAL FEATURES• Head mounted transmitter can be mounted• Cable RTD available• Cable insulation made of PVC, Silicon,• Teflon Coated & SS Braded. APPLICATIONPlastic processing machineries, Injection Moulding Machines, Engine Cylinder heads and oil pumps, bearing, pipelines & tanks. Energy & power plants, chemical industries, food & beverage industries, sanitary, heating & air conditioning technology.

Acrylic single limb manometer    Range : 50, 100, 150, 200, 250, 300, 400, 500 & 600 mmHzO-- Acrylic ' U ' Tube manometer    Range : 50-0-50, 100-0-100, 150-0-150, 200-0-200, 250-0-250 mmHzO-- Acrylic Indined manometer ( Easy reading of low pressure )    Range : 10, 12, 15, 25, 50, 75, 100 mmHzO-- Metalic single limb & Glass 'U' Tube Manometer    Wall & Stand mounted available    Range : 100, 150, 200, 250, 300, 400, 500, 700 & 1000 mmHzO

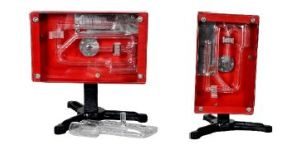

The Mcleod gauge is a scientific instrument used to measure very low Pressure , down to 10-6 mbar.The Mcleod gauge is used to measure vacuum by measuring the hight of a column of mercury supported by the gas whose pressure is to be measured , when this gas is trapped and compressed into a capillary tube

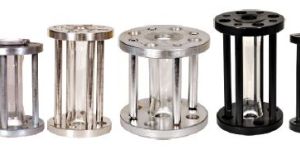

Sight glass is deviece used between any kind of non transparent pipelenes ta abserve the flaw of liquid. This can be used bath in harizantal well as vertical pipeline. sight glass is constructed in such a way that is gives a complete view from every angle Type : Check Nut Type , Allen Key Type Construction : S S 3004 , S S 316 & M. S. with Zinc Plated Glass Pipe : Barasilicate Pipe . It is highly heat resistant Packing : PTFE Flange : ASA , DIN , IS or Any Standard Sizes is Available

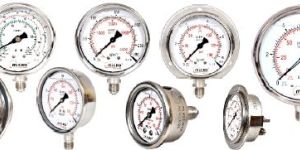

Dial Size : 63mm, 100mm, 150mm & 250mm.  Accuracy : ±1% of full scale.  Case & Bezel (IP-65) : SS 304, Crimp Type / Snap Action Bayonet type & for 250mm Die cast aluminum.  Movement : SS 304 / Brass (63 mm)  Pressure Element : SS 316 ( ≤70 bar ‘C’ Type / > 70 bar Coil Type ).  Socket : SS 304 / SS 316 / BRASS (63mm).  Dial : Aluminum white painted with 270 degree black scale marking.  Pointer : Al. / Brass with black finish.  Window : Acrylic / Safety glass. Blow Out Protection : On top at 0.6 Kg/cm2 . Over Load Protection : 125% of f.s.d. for ≤ 150 Kg/cm2                                               115% of f.s.d. for > 150 Kg/cm2 . Joints : Argon arc welded / Brass silver brazed. Mounting : Stem (Bottom), Surface, Panel Mounting, Flush Panel ( Bracket Type). Connection : ¼” / 3/8” / ½” BSP / NPT. Scale Range : Vacuum, Compound & Pressure up to 1400 kg/cm2 . OPTIONAL FEATURES• S S 316 Case & Bezel available on request.• Ammonia (NH3), Oxygen(o2), Freon Scale available on request.• Eco Model in M.S. Case & S S Case available on request.APPLICATIONAir Compressor, Hydraulic Presses, Pumps, Industrial Power Plants, Marine engines, Pipelines and Transmission Stations where Vibration & Pulsation are destructive factors.

Dial Size : 100mm & 150mm. Accuracy : + 1% of full scale. Case & Bezel (IP-65) : SS 304 Snap Action Bayonet type. Temp. Element : Mercury / Gas actuated. Stem & Bulb : SS 316 Stem & Bulb Dia. : 6mm, 8mm, 10mm & 12mm. Stem Length : up to 300mm. Capillary Material : M S / S S 316 Micro bore. Capillary Protection : SS 304 Tubing, PVC, SS Armored. Dial : Aluminum white painted with 270 degree black scale marking. Pointer : Al. / Brass, Zero Adjustment / Micro Zero Adjustment. Window : Toughened / Safety glass. Joints : Argon arc welded. Mounting : Stem (Bottom), Back & Surface with capillary extension. Connection : ¼" / 3/8" / ½" BSP / NPT ( Adjustable ). Scale Range : -30 to 50° C to 650° C or equivalent in °F OPTIONAL FEATURES• Anti vibration fitting, Dual scale °C & °F available on request.• Liquid filled case with Glycerin or Silicon on request.• Alarm contact type & Capillary extension on request. APPLICATIONPharmaceutical industries, Chemicals & Petrochemicals, Fertilizers & Refineries, Filters for liquid control systems and all Process Industries.

The paddle type flow controllers are specifically designed for use on liquid lines such as water , ethylene glycol or any other fluid which is not harmful to brass or phosper bronze and which is not classified as a hazardous fluid. Features :M O C : Brass / Phosphor Bronze / Mild Steel / Plastic Max. Operating Pressure : 10 Bar / 140 psi Media Temperature : 1 to 100° C Flow rate : M

lection of       Kg/Cm2, Bar, PSI, KPa, mm WC, Engineering Units : mm Hg, In WC, In Hg Enclosure : Aluminium Anodised, Light Weight / SS 304 Display : 8 x 2 Dot matrix display, shows Pressure, unit & low batt. Media : It works with any media that will not adversely affect SS 316 Accuracy : ± 0.15% & 0.5% or better of full scale at calibrated temperature Power : Standard 9 V 150 mAh, Ni MH with charger or 230 VAC, 50 Hz Connection : 1/4 BSP Male (others on request) Over pressure : 130% of specified range Temperature : Storage : -40 to 85°C Operating : -40 to 85°C 4-20 mA : Available (Optional) SPDT Relay output : Available (Optional) Provides 2 adjustable SPDT relay Diaphragm seals : Various size, style and MOC available

Dial Size : 63mm, 100mm, 150mm. Accuracy : ±1% of full scale. Case & Bezel (IP-65) : SS 304 Snap Action Bayonet type / Crimp type. Movement : SS 304 Pressure Element : SS 316 ( ≤ 70 bar ‘C’ Type / > 70 bar Coil Type ). Socket : SS 316 Dial : Aluminum white painted with 270 degree black scale marking. Pointer : Al. / Brass, Zero adjustment / Micro Zero Adjustment pointer. Window : Acrylic / Toughened / Safety glass. Blow Out Protection : On Top / On back side at 0.6 Kg/cm . Over Load Protection : 125% of f.s.d. for ≤ 150 Kg/cm                                     115% of f.s.d. for > 150 Kg/cm Joints : Argon arc welded. Mounting : Stem (Bottom), Surface, Panel Mounting, Surface with capillary extension. Scale Range : Vacuum, Compound & Pressure up to 420 kg/cm .Sealed Unit Upper Chamber Material : SS 304 Diaphragm Material : SS 316L / MONEL / HASTALLOY – C / TANTALUM or any other material. Teflon Coating can be provided if required. Lower Chamber : SS 304 / SS 316 / MONEL or any other material(Threaded / Flange type) Filling Fluid : Silicon Oil or suitable liquid as desired by the user APPLICATIONChemical, Petrochemical, Pulp & Paper, Food Processing industries, in water & sewage treatment plants and in electric power plant etc…OPTIONAL FEATURES• Different type of seals & connection available like :-• Different threaded type, Open Flange Type, Flush welded diaphragm type,• Sandwitch flange (cell) type, Extended welded diaphragm type,Capillary extension type.• SMS & TC Connection for food, Biochemical & pharmaceutical industries.• Homogenizer flange ( Round or Square) Type.• Special Connection for Pulp & Paper Industries.• Eco Model available on request.

CONSTRUCTION FEATURES Dial Size : 63mm, 100mm & 150mm. Accuracy : + 1.6% of full scale. Case & Bezel (IP-65) : SS 304 Snap Action Bayonet type & SS 304 Press Fit Type. Temp. Element : Wounded coil of Bimetal. Stem & Bulb : SS 304, SS 316 ( 6mm, 8mm, 10mm & 12mm ). Stem Length : SS 304, SS 316 ( up to 300mm ). Dial : Aluminum white painted with 270 degree black scale marking . Pointer : Brass with black finish. Window : Plain Glass / Toughened / Safety glass. Joints : Argon arc welded. Mounting : Stem (Bottom), Back & Every angle. Connection : ¼" / 3/8" / ½" BSP / NPT ( Fix or Adjustable ). Scale Range : -30 to 50° to 500° C or equivalent in °F BIMETAL TEMP. GAUGES OPTIONAL FEATURES• Dual scale °C & °F available on request.• Every angle mounting available on request.• Extra stem length on request,• TC Connection on request.BIMETAL TEMP. GAUGES APPLICATIONDomestic & industrial heating system, hot water boiler, power plant, food & beverage industries, pharmaceutical industry etc...
