Scaffolding On Hire Vastrapur, Ahmedabad, Gujarat

Offers u head jacks.

Our company offers universal jack . These universal jack are manufactured from optimum quality, which makes them durable with high efficiency. These universal jack are efficient in lifting heavy weights. The universal jack are available in various specifications at most competitive prices.The universal jack provides a method of adjustment which can be used at either the top or bottom of a scaffold support structure. It is used in conjuction with forkeads and adaptors and can accept the full loading capacity of cuplock when fully braced. These universal jack can be supplied with welded base plate as adjustable jack.

This is the name given to the vertical tubes. They are also known as uprights.Cuplock standards are manufactured from 48.3mm O.D. tube. They have cup joints at 500mm intervals. The captive mobile top cups are designed to endure rough site handling and welded bottom cups are made from high-quality steel. Integral spigots are provided at the top of each standard for making vertical connections. The spigots and the base of each standard incorporate 11/16mm dia. holes to enable use of locking pins to joinstandards where necessary.Available sizes for Scaffolding Standards : 3.0m, 2.5m, 2.0m, 1.80m, 1.50m,1.30m & 1.0m

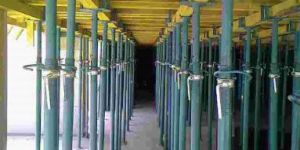

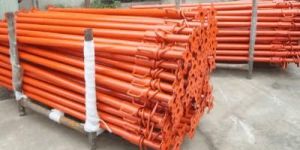

PROPS provide the ideal and the most economic method of support for all kinds of framework, slabs, beams, wall & columns. They are also invaluable for a wide variety of applications in general building construction and repair work. PROPS eliminate the costly labor and time consumer in cutting timber to length, wedging and nailing when used in the vertical as a prop. Unique Features: The high tensile steel pin is located through a slot in the outer section and a hole on the inner section for coarse adjustment. The cast collar located below the pin gives fine adjustment for lending and striking. A self cleaning device on the collar nut, which automatically clears the thread of concrete, and dirt where the nut is rotated thus assuring quick and easy adjustment. A hole boss on the collar nut which makes it easy to turn in confined spaces. By inserting a bar in the hole. Base plates and head plates are holed for use with slab form work.

we offer Scaffolding Props

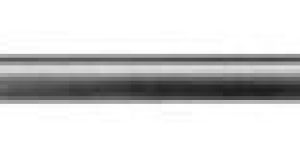

These are the horizontal tubes which run parallel to the building and are fixed to the standards. A row of ledgers is called a lift. The Ledgers are manufactured from 48.3mm O.D. tube with forged steel blade ends which locate into bottom cups of the standards and are locked in place by the corresponding top cups. Ledgers are available in various lengths to provide the desired grid dimension for scaffolding or formwork.Available sizes for Scaffolding Ledger: 2.50m, 1.80m, 1.60m, 1.30m, 1.20m,1.0m, 0.9m & 0.60m

Drop head - Drop Head Scaffolding System Drop head load bearing scaffolding system enables early dismantle of molds which provides speedy and high quality manufacturing with less labor, effort and fewer molds. The system is completed with easy to erect supporting scaffold and drop heads which allows early dismantle of molds, drop beams and slab forms placed on.We offer our client an excellent quality range of Scaffolding Drop head, which are manufactured from high grade quality raw materials. These Scaffolding Drop head can be customized as per our precious customers’ specifications. These Scaffolding Drop head are widely known for its durability and quality. Our Scaffolding Drop head can be availed at industrial leading price.

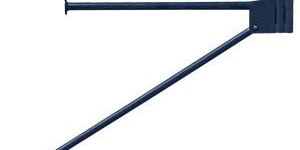

Scaffolding Cantilever frame system support the formwork beyond the external periphery of the slab. These cantilever frames have blade ends for locating in the cup joint and accept adjustable jacks in three positions of 1.2m, 1.25m and 1.3m. Moreover, these are engineered to support normal access loads and stop-end forms.

scaffolding base jacks

These are the horizontal tubes which run parallel to the building and are fixed to the standards. A row of ledgers is called a lift. The Ledgers are manufactured from 48.3mm O.D. tube with forged steel blade ends which locate into bottom cups of the standards and are locked in place by the corresponding top cups. Ledgers are available in various lengths to provide the desired grid dimension for scaffolding or formwork.

The combination of H-Frame and Scissor Cross Bracing can be used as Scaffolding for plastering of buildings, slab casting, Industrial structures, Glass Cladding and Maintenance work for industrial use. H-Frame and Scissor Cross Bracing are used as staging for floor slabs casting at more heights of commercial industrial buildings and also for Staging of Bridges, Flyover. However Cuplock Scaffolding is much better solution and latest development in scaffolding for its more reliability, safety, easy storage, availability, different sizes. Above qualities make cuplock system more preferable than H Frame Scaffolding.

Transoms are fabricated from twin structural angles fixed back to back with a drop forged blade attached to each end. The 1.8m and above Transom has an additional web member welded below the flange section for added strength. The transom blade locates into a bottom cup and is locked in position by the top cup. The outward standing bottom leg of the angles supports the steel planks in a captive manner. Available in various lengths to suit scaffolding and formwork applications.

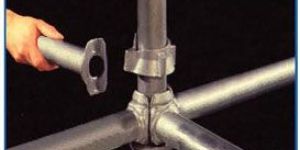

Cuplock system, Cuplok galvanized scaffold system. it is a well –proven heavy –duty support system. yet one which is relatively light and easy to assemble .it is as multi- purpose system, suitable not only for false work support but access as well, and is particularly suitable for building and civil engineering projects like motorway bridge as well as office and retail developments.

Offers cuplock standards.

Cuplok galvanized scaffold system. it is a well –proven heavy –duty support system. yet one which is relatively light and easy to assemble .it is as multi- purpose system, suitable not only for false work support but access as well, and is particularly suitable for building and civil engineering projects like motorway bridge as well as office and retail developments.

We are offering cuplock scaffolding.

we offer cuplock ledger

For diagonal bracing of scaffolding a range of longitudinal braces made with swivel forged blades at either ends to be fitted into cups of Cup lock standards are available.

Cuplock, Cuplok galvanized scaffold system. it is a well –proven heavy –duty support system. yet one which is relatively light and easy to assemble .it is as multi- purpose system, suitable not only for false work support but access as well, and is particularly suitable for building and civil engineering projects like motorway bridge as well as office and retail developments.

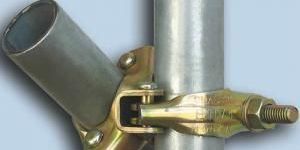

The company specializes in bringing highly acclaimed Coupler Rental Services in the market. We offer all kinds of Pressed Swivel Coupler for Hiring. You have access to as many coupler you can for your requirement through our services. Besides, we are one of the prominent companies dealing in Pressed Scaffolding Coupler Services in India.

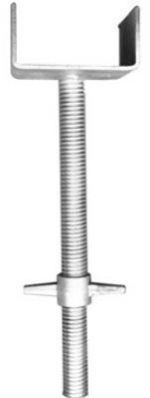

U-Heads are designed to be used in conjunction with Adjustable System Scaffolding. The main function of a U-Head is to hold timber beams in securely in place. The U -Heads Jack offered by us are of superior quality standards and these have a pure zinc plated finish thus adding shine to it. These are adjustable and thus is the biggest advantage of these products. These are made under the deep scrutiny of experts thus assure superior performance.

Type : HOLLOW – made of Tube - SOLID – Made of MS Solid Bar

U-Heads are designed to be used in conjunction with Adjustable System Scaffolding. The main function of a U-Head is to hold timber beams in securely in place.The U -Heads Jack offered by us are of superior quality standards and these have a pure zinc plated finish thus adding shine to it. These are adjustable and thus is the biggest advantage of these products. These are made under the deep scrutiny of experts thus assure superior performance.It has a solid stem of 35mm nominal diameter which has a nut restraint to ensure the stem always has a minimum engagement into the Standard of 150mm. The U-Head is capable of accepting twin 100mm. wide bearers.   Type:-HOLLOW – made of Tube- SOLID – Made of MS Solid Bar Available in Sizes: 750 MM650MM600MM450MM

Choose between different height-adjustable base plates with sturdy and self-cleaning round threads, with colour and notch markings to provide protection against overwinding. Swivelling base plates are available for sloping ground or uneven surfaces.
