shreenath industries Sardar Patel Ring Road, Ahmedabad, Gujarat

The permanent Magnetic Drum consists of stationery permanent Magnetic assembly having uniform and everlasting Magnetic field across the entire width of the drum, which is effective over approximately half the drum circumferences as shown in fig Drum shell made of non magnetic stainless steel revolves around the magnetic filed. As the material fed evenly from the chute falls over the drum ,powerful magnetic, field attract & holds ferrous particles to the revolving shell. As the revolving shell carries the iron particles through the stationery magnetic field, the non magnetic material falls freely from the shell while ferrous particles are firmly held until carried beyond divider and out of magnetic field The strength of the permanent magnetic drum is guaranteed to be greater than corresponding electromagnetic Drum .The permanent magnets used are everlasting magnets and its strength does not diminish during normal use and can be used through out the life of the installation. Size Range: The Permanent Drum Separators are available in standard drum diameters of 300 mm. 400 mm, 450 mm, 500 mm, 600 mm, 800 mm Drum width range from 300 mm to 1500 mm. Other sizes can be made as special to your requirement. the larger the diameter and width of the drum the greater is the volume of material which can be handled Magnetic Materials : Magnetic separators are offered with two different type of magnets: Ferrite Magnet : The magnetic separator with ceramic magnet are useful for the application where free and larger iron particles are to be separated. The average magnetic intensity on the magnetic drum surface will be 1500-2000 Gauss. Rare Earth Magnet : The magnetic separator with high intensity Rare Earth Nd-Fe-B (Neodymium- Iron- Boron) magnets are useful for removing magnetic contamination with low magnetic properties and fine iron particles are to be separated. The average magnetic intensity on the drum surface will be 3500 - 5500 Gauss.

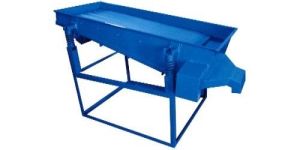

Shreenath Screen separator is a unique particle size gradable separator designed for greater capacity per meter square of screening area & over size material discharge with relatively much less percentage fine than other screening machines

SHREENATH Vibratory motors are Robust, Reliable, High Loadable Quiet Running and require no maintenance.SHREENATH Vibratory motors are totally enclosed 3 Phase, Squirrel cage induction motors with adjustable, eccentric weights mounted at both the ends of the shaft, to set up vibrations during rotation. The design of shaft and the selection of bearings has been carefully done to withstand heavy radial loads. APPLICATION These motors are used in various material handling equipments such as vibrating screens, conveyors, and feeder. They are also used on hoppers, silos to prevent congestion of material flow. Foundry shake - outs and compacting machines use these motors for fast and efficient operation.

Triple Drum Type Magnetic Separators are available for highest purity. The material passes through the magnet three time in Triple Drum type Machine. These are widely used for separation of iron contamination from Minerals, Chemicals, Refractory and many other products. High power permanent Magnetic plate is provided at material outlet. Modern an Isotropic Permanent Magnets are used having highest coercivity and everlasting magnetic strength. Machines are available with vibrating material inlet Hopper and totally enclosed design to avoid dusting and pollution.   Salient Features:DRUM CONSISTS OF HIGH COERCIVITY MODERN ANISOTROPIC PERMANENT MAGNETS. STRONG & RUGGED CONSTRUCTION. AUTOMATIC SEPARATION OF IRON IMPURITIES. COMPLETELY ENCLOSED DESIGN TO AVOID DUSTING AND POLLUTION.   Working Principal & Magnetic System :   The permanent Magnetic Drum consists of stationery permanent Magnetic assembly having uniform and everlasting Magnetic field across the entire width of the drum, which is effective over approximately half the drum circumferences as shown in fig. Drum shell made of non magnetic stainless steel revolves around the magnetic filed. As the material fed evenly from the chute falls over the drum ,powerful magnetic, field attract & holds ferrous particles to the revolving shell. As the revolving shell carries the iron particles through the stationery magnetic field, the non magnetic material falls freely from the shell while ferrous particles are firmly held until carried beyond divider and out of magnetic field. The strength of the permanent magnetic drum is guaranteed to be greater than corresponding electromagnetic Drum . The permanent magnets used are everlasting magnets and its strength does not diminish during normal use and can be used through out the life of the installation.  Size Range :The Permanent Drum Separators are available in standard drum diameters of 300 mm. 400 mm, 450 mm, 500 mm, 600 mm, 800 mm Drum width range from 300 mm to 1500 mm. Other sizes can be made as special to your requirement. the larger the diameter and width of the drum the greater is the volume of material which can be handled. Magnetic Materials : Magnetic separators are offered with two different type of magnets. Ferrite Magnet : The magnetic separator with ceramic magnet are useful for the application where free and larger iron particles are to be separated. The average magnetic intensity on the magnetic drum surface will be 1500-2000 Gauss. Rare Earth Magnet : The magnetic separator with high intensity Rare Earth Nd-Fe-B (Neodymium- Iron- Boron) magnets are useful for removing magnetic contamination with low magnetic properties and fine iron particles are to be separated. The average magnetic intensity on the drum surface will be 3500 - 5500 Gauss.

Shreenath Suspension Type Magnets are most useful for products carried by the Belt Conveyors. Use of Suspension Type Magnets is recommended for products with low contamination. However if the frequency of the impurities is too high, these will make a layer shunting magnetic field. The equipment will require frequent cleaning. For such applications Over Band type Magnetic Separator is recommanded.  The main applications are for the processing of Bulk products such as Sugar, Coal, Minerals, Cereals, Coffee, Glass, Culets etc.    Installation : JMPL magnets can be installed either at the end of the belt above the head drum (Fig 1), or across the conveyor belt ( Fig. 2 ). In both cases, to avoid disturbances to the magnetic field, a magnetic parts must be placed below the surface of the magnet. The installation shown on figure 1 is preferable for high speeds. Separation is more efficient due to the trajectory of the fact that it is then "fluidized".

A specially designed hammer mill with cyclone and dust collector & dust collector system. to suit spice & like materials. Fineness may be changed of screen.

Permanent Drum type Magnetic Separator is most useful for separating tramp iron from non magnetic material processed in bulk quantity, for the purity of end products, recovery of metal having commercial value and protection of processing plant and machinery. These are widely used in all the processing industry for separation of iron contamination from Minerals, Chemicals, Food, Flour, Plastics, Grains, Sand, Cement, Fertilizers, Abrasives, Glass, Slag, Ores, Rock, Refractory and many other products.

Roll Crusher     A very heavy construction, very hard surface of alloy steel to crush materials like, Emery, Glass, Quartz, Ceramic in granule form or a coarse powder. Even two stage crushing is possible to get fine powder.

Type : Rare Earth Magnetic Rod

SHREENATH 'T-Trap Magnetic' Separators are designed for heavy duty large volume liquid and semi-liquid line flow system. The T - Trap employs a slip in cage of stainless steel permanent m magnet tubes. The function of the magnet tubes is such that the captured tramp metal particles migrate to the rear of the tubes where they remain protected from wash-off until the tubes are cleaned.  The magnet cage has positioning lugs that mate with locating recesses in the body of the tramp. Having a top access bolt on steel plate and seal, the T-Tramp is easy to clean. With the top removed the magnet cage is simply lifted out, Wiped clean and reinstalled. Available in 7 standard line sizes from 2 to 18 inches in diameter, T-Traps can also be produced to meet special applications.

The magnetic Drum pulley replaces the drive pulley at the end of conveyor belts. In view of the wide variety of conveyor belt types, the drum pulley are supplied made to measure and ready for installation. As the figure clearly show, the magnetic head roller extracts the iron particles from the material flow and carries them to the underside of the belt where they are removed and collected. Head roller magnets for conveyor belt are supplied in permanent magnets. The version with permanent magnets are fitted with powerful and An-Isotropic Hard ferrite Magnets /high intensity Rare Earth Nd-Fe-B Magnets and operate without the need for power supplies. The magnet system is available in two types: with Longitudinal polar field distribution for use with low levels of iron contamination and thin material layers, and with lateral polar field distribution for greater material thickness and larger iron particles.

Working Principal & Magnetic System :     The permanent Magnetic Drum consists of stationery permanent Magnetic assembly having uniform and everlasting Magnetic field across the entire width of the drum, which is effective over approximately half the drum circumferences as shown in fig. Drum shell made of non magnetic stainless steel revolves around the magnetic filed. As the material fed evenly from the chute falls over the drum ,powerful magnetic, field attract & holds ferrous particles to the revolving shell. As the revolving shell carries the iron particles through the stationery magnetic field, the non magnetic material falls freely from the shell while ferrous particles are firmly held until carried beyond divider and out of magnetic field. The strength of the permanent Magnetic drum is guaranteed to be greater than corresponding electromagnetic Drum . The permanent Magnetic used are everlasting magnets and its strength does not diminish during normal use and can be used through out the life of the installation.  Size Range :The Permanent Drum Separators are available in standard drum diameters of 300 mm. 400 mm, 450 mm, 500 mm, 600 mm, 800 mm Drum width range from 300 mm to 1500 mm. Other sizes can be made as special to your requirement. the larger the diameter and width of the drum the greater is the volume of material which can be handled. Magnetic Materials : Magnetic separators are offered with two different type of magnets. Ferrite Magnet : The magnetic separator with ceramic magnet are useful for the application where free and larger iron particles are to be separated. The average magnetic intensity on the magnetic drum surface will be 1500-2000 Gauss. Rare Earth Magnet : The magnetic separator with high intensity Rare Earth Nd-Fe-B (Neodymium- Iron- Boron) magnets are useful for removing magnetic contamination with low magnetic properties and fine iron particles are to be separated. The average magnetic intensity on the drum surface will be 3500 - 5500 Gauss.

Suspended Permanent Magnetic Overband Separators are designed to eliminate tramp metal from the product carried by belt, vibratory feeders or inclined planes.Over bands are mainly used to protect Machine such as Crushers, Shredders and others, to remove ferrous particles and purify products ( Industries like Foundries, Coal Mines, Cement Works, Food, Sponge Iron, Char coal, Glass, Chemical Industries and Domestic waste recycling Plants.)The permanent Magnetic Overband Separators are used when an automatic Removal of ferrous contamination is necessary. If not, fixed Permanent Suspension Magnets are more suitable.    Applications: Five type of Separators Re designed to operate at  a predetermined working gap over the conveyor : 100, 150, 200, 250 and 300mm. Idler and drive drums will be rolled steel construction fitted with high tensiled steel shafts and mounted in self lubricated dust sealed plumber blocks. Adjuster screws would be fitted to provide tensioning take up on idler drums. Construction: Two U-section pieces are fixed on the Magnet by Fastening ears and are supporting bearings of Drums. Drums are equipped with shafts mounted on removable hubs. All bearings equipped with stakes for tightening the belt. The belt is driven by a Reduction Gear Coupled to Electric Motor / Geared Motor by Vee- belts. Magnet Unit: The Magnet is made of High Intensity Stroncium Ferrite Magnets and is guaranteed for the Magnetic Power through out the life of installation. A Non - Magnetic Stainless steel Plate is provided to cover the poles of Magnet. There is no need for any electrical supply or maintenance. Installation: These units can be installed either inline over the terminal head pulley (Fig - 1. ), or transversal to the conveyor (Fig - 2). In both cases, it is necessary to foresee Non- Magnetic products under the Magnetic Field. The most effective position is inline (Fig - 1) over the head pulley. The material being conveyed is in virtual Suspension and Tramp Iron is therefore more readily extracted. Very good results are obtained by combining a Permanent Magnetic Overband with Permanent Magnetic Pulley at discharge end.

  For Faster More Accurate Sizing, Splitting or Correcting. Designed for use in the sizing of Minerals, Ceramics, Refractories and other powders. The principle on which the SHREENATH Multi form Grader Operates is equally adaptable for the handling of many ceramic products. Then unit is more than "Just a screen". It is a precision tool for producing accurate grades, not merely rough groupings of sizes. It is economical of powder and space; screen life is long; upkeep low. Flexible in its adaptability to widely different materials and conditions. It is unyielding in the uniformity of grades produced. Available in desired for dust-proof operation. SPECIFICATION : (Model Illustrated)    L = 2150 mm W = 1050 mm H = 2100 mm Size of Screen Surface : 1800mm x 810mm Standard Equipments includes Feed Hopper, drive Mechanism and Motor

Shreenth were the first to introduce Indigenous High Intensity. High Gradient dry permanent magnetic roll separators in the Indian market. These machines which are manufactured are base on the popular Permanent roll Technology which has been used successfully in hundreds of Industrial minerals applications around the world. The machine incorporates high energy rare earth neodymium permanent magnetic roll assembly which is manufactured and assembled under proprietary specifications to generate unsurpassed magnetic field gradients. Under this high intensity magnetic field, weekly magnetic contaminants can be easily removed efficiently. The magnetic rolls can be structured to treat particle sizes ranging from 200 mesh up to 50 mm

Separators are designed for heavy duty large volume liquid and semi-liquid line flow system. The T - Trap employs a slip in cage of stainless steel permanent m magnet tubes. The function of the magnet tubes is such that the captured tramp metal particles migrate to the rear of the tubes where they remain protected from wash-off until the tubes are cleaned. The magnet cage has positioning lugs that mate with locating recesses in the body of the tramp. Having a top access bolt on steel plate and seal, the T-Tramp is easy to clean. With the top removed the magnet cage is simply lifted out, Wiped clean and reinstalled.

Shreenth were the first to introduce Indigenous High Intensity. High Gradient dry permanent magnetic roll separators in the Indian market. These machines which are manufactured are base on the popular Permanent roll Technology which has been used successfully in hundreds of Industrial minerals applications around the world. The machine incorporates high energy rare earth neodymium permanent magnetic roll assembly which is manufactured and assembled under proprietary specifications to generate unsurpassed magnetic field gradients. Under this high intensity magnetic field, weekly magnetic contaminants can be easily removed efficiently. The magnetic rolls can be structured to treat particle sizes ranging from 200 mesh up to 50 mm.

Flush Face Plate Magnates deliver optimum tramp metal separation performance when used in above-the flow chute or belt application. When installed over the material flow the powerful Flush Face plate magnets deliver continuous magnetic protection for down stream processing equipments by lifting ferrous tramp out of the product flow stream.Square or rectangular shapes are offered. Customized sizes, shapes and design can also be offered.

SHREENATH was the first to introduce indigenous High Intensity,High Gradient Magnetic Roll Separator For use of dry material in indian Market. It is capable of separating a wide variety of material from diffrent industries is an effciant and economical manner. SHREENATH uses high energy Rare Earth Neodymium Permanent Magnets assembled in a proprietary configuaration to generate forces of magnetic attraction, which can be used for processing any material from ferromagnetic to weakly paramagnetic.The exceptionally high magnetic gradient achived by the unique SHREENETH design result in extremely large separation forces, exceeding those of any electromagnetic induced Roll Separators. SHREENTH incorporates improved design features resulting from an ongoing product development philosophy combined with extrensive operational experience.

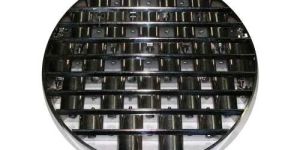

Magnetic filters are made up of stainless steel tubes. Each tube consists of an array of permanent magnetic discs specially designed and configured to generate high magnetic forces. The filters can be supplied using either ferrite or rate earth magnets. The tubes have a diameter of either 34" or 1" or 1.5". The filters can be supplied in various sizes with width and length varying from 9 from 36 inches. Circular or rectangular shapes are offered. Customized sizes, shapes and design can be offered.
