RUBBER/SLEEVE TESTING & PROCESS Incoming polymer characterization Incoming raw material test Master batch testing Final compound testing Cured compound testing Required pressure & load tests   EQUIPMENT Universal Testing Machines Durometers Rebound Resilience Tester Vertical Rebound Tester - Resiliometer Abrasion Tester Rubber Process Analyzer Viscometer

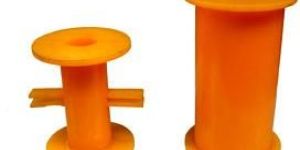

Introducing Ruff-N-Tuff series pinch valve for mining industries – pressure upto 40 bar with Soft-N-Tuff sleeves – used in Fly Ash & Sand Iron Ore Gold & Silver Mines Copper/ Nickle /Nin Ferrous Mines Marbles & Granites Coal Mines Salt Industries Etc. Granules Special designed super weir resistant high elasticity and long life Special features of soft n tuff sleeve for ruff –n- tuff series pinch valve Highly flexible Super gliding flow path High pressure upto 40 bar Long life ( 5 time more than conventional rubber ) Ruff –n- tuff valves for mining industries combination of rubtech & softech polymers Shreyas after a vast experiments & research have developed a combination of elastomers – which functions with satisfaction & providing maximum working life.

FEATURES Streamlined centerline closure Tight shut-off even on trapped solids Built-in over-pinch protection High cycle life, repeatable control Positive opening tabs standard on all sleeves Full, flat-faced reinforced rubber flanges, eliminates need for gaskets Face-to-face equal to industry Standard maintenance-free pneumatic actuator Available in double-acting, fail-open or fail-closed configurations, these valves can also be fitted with pneumatic or electric actuators and pneumatic or electro-pneumatic position controllers. A wide range of elastomers are available to suit most service conditions.   APPLICATIONS Chemicals, Alkaline Mixtures Acids, Slurries & intermediates, Liquid Foods, Viscous fluids, Sludge’s, Granules Dry Suspension Powder Collectors Gases Pulps Vacuum Sewage Plants Thermal Power Stations Water Containing Ash. Pharmaceuticals – Picklings Textiles Industry Mining & Cement Industry Acid & Chemical Tankers Refineries Fertilizers   SIZE 15MM TO 400MM – PRESSURE UPTO 25 BAR – IN CLOSED & OPEN POSITION CYLINDER OPERATED PINCH VALVES Option – I 2 P CONVERTOR ALONG WITH POSITIONER- 4 TO 20 MA MANUAL OVER RIDE

GENERAL FEATURES & HIGHLIGHTS - SEAT LESS & GLANDLESS - EASILY REPLACABLE ELASTOMERIC SLEEVE. - ELASTOMERIC SLEEVE HAVE FOUR REINFORCED PULLING LUGS - FLANGED ENDS & DRILLED TO DIN, ANSI, BS, IS, OR AS REQUIRED. - CONSTRUCTION TO HANDLE ABRASIVE CORROSIVE MEDIA.   INFORMATIONS ON PINCH VALVE Pinch Valve is a Seat less & Glandless valve. Pinch valve is a modified version of laboratory pinchcock. A rubber sleeve is protected under a metalic casing – i.e. CAST IRON, CAST STEEL – WCB, STAINLESS STEEL, ALLUMINIUM. The fluid passing through do not come in contact with either body covering or any other metal parts of the valve except the sleeve. Hence the body and other metal parts are almost permanently not subjected to the corrosive action of the fluid. The flow through the valve is straight and full as that of a pipeline, when the valve is fully open. Further, the collar of the sleeve eliminates gasket. The valve is simple hand wheel operated of rising wheel type. Therefore the operation of the valve is just simple as other wheel operated valve. Fine threading in the spindle permits us the desired controlling. Thus the valve offers positive & smooth flow with fine/desired control over flowing media.   APPLICATIONS Chemicals, Alkaline Mixtures Acids, Slurries & intermediates, Liquid Foods, Viscous fluids, Sludge’s, Granules Dry Suspension Powder Collectors Gases Pulps Vacuum Sewage Plants Thermal Power Stations Water Containing Ash. Pharmaceuticals – Picklings Textiles Industry Mining & Cement Industry Acid & Chemical Tankers Refineries Fertilizers RANGE : SIZE RANGE FROM 15MM TO 400MM – ATTN – WE HAVE FULL CAPACITY TO DEVELOP ANY DESIGN PINCH VALVE. AS WE HAVE ALL FACILITIES ASSOCIATED WITH PATTERN & DIE MOULD SHOP, FOUNDRY, RUBBER MOULDING SYSTEM WITH CAPACITY OF BIG SIZE RUBBER MILLING SYSTEM, BOILER, MACHINING & ASSEMBLY UNIT. i.e. FROM DRAWING TO FINAL FINISH PRODUCT AVAILABLE READY STOCK OR AT THE EARLIEST. TYPES OF VALVES & ACTUATORS : The valve are available MANUAL HAND WHEEL DRIVEN PNEUMATIC CYLINDER OPERATED – DOUBLE ACTING ELECTRICAL OPERATED WITH MANUAL OVER RIDE HYDRAULIC LEVER OPERATED

Spindle :   AISI 410

SIZE 15MM TO 400MM DRILLED TO ANY STANDARD – DIN, ANSI, BS, IS, OR AS REQUIRED. PRESSURE UPTO 25 BAR – IN CLOSED & OPEN POSITION – SLEEVE OPTIONS – NEOPRENE, NATURAL, HYPALONE, EPDM, VITON, HIGH ABRASSION RESISTANT – SPECIAL INVENTED – HIGHLY ELASTIC, SPECIAL EXTRA HIGH PRESSURE MOULDED (FIVE TIMES BETTER ABRASSION RESISTANT & LONG LIFE THAN ANY RUBBER SLEEVE)

An Air pinch valve is a pinch valve. Air or liquid pressure is inserted in the cavity of AIR PINCH VALVE - at the control inlet collapses the internal rubber sleeve to provide immediate and positive shut-off. The rubber sleeve closes completely, even on large particulate matter, abrasive and corrosive materials. When open, the sleeve allows full, unobstructed flow with little turbulence. Air pinch valve sleeves can be easily and economically replaced when they wear out. SIZES AVAILABLE SCREWED END 15, 25,40 & 50 MM FLANGE END 15, 25, 40, 50, 75 & 100MM SLEEVE AVAILABLE - NEOPRENE, NATURAL, HYPALONE, EPDM, VITON, SPECIAL ABRASSION RESISTANT PRESSURE UPTO 6 BAR POSITIVE OPERATION Air pinch valves give fast & positive shut-off of most industrial materials, liquids, and dry flowable materials. Air pinch™ pinch valves will close tightly on suspended particulate materials in liquids. Even highly viscous materials are no problem. Air pinch valves are versatile because of their unique flow-through design. It provides fast & smooth rapid operation, 100% full way, unobstructed flow, and complete close design. It can be mounted in any position or direction, & also works perfect even in fully submerged condition. ECONOMICAL DESIGN Air pinch valve housings are light weight and well suitable to use where heavy valves not required or won’t work. investment casting in wcb/cast steel, or investment casting cast stainless steel. No moving parts hence a sturdy long lasting valve at an economical fair price. PINCH VALVE OPERATION / OPERATION PRESSURES Operating pressures for controlled material vary depending on sleeve elastomer and valve size, and can range from a moderate vacuum (up to 26" Hg) to a maximum of 90 psi when controlling with air. Required control pressure is normally 20 to 40 psi greater than the material pressure. Use of excessive actuation pressure (air or liquid) than that which results in complete valve closure will impact sleeve life. Use of actuation pressure above 90 psi is not recommended.
