SHRI AMBIKA SCALE MFG. WORKS Sarangpur, Ahmedabad, Gujarat

Features and Advantages By using Wireless data Transmitter you can monitor weighbridge transactions from your existing “AMBIKA” Intelligent terminal on your mobile / Windows application / web application. We deliver top quality, reliable products and services at competitive prices to our customers. The system automatically scans the data and required information is sent to your cell phone at a Pre – determined time every day. Data can be sent to more than one mobile number. This is suitable for Public weighbridges. This application sends every weighment transaction to predefined mobile numbers without human interaction. For standalone application, we will provide two WDT’S, one is for the weighbridge IT, and another one is for your personal computer. Both applications are communicated through WDT. These application work is based on SMS service. Using this software you can genertate any kind of report, based on your requirement on your PC. This application uses GPRS technology. The required information can be downloaded in WORD / Excel / PDF files. Un authorized persons cannot retrieve or view your data in the server. It is highly confidential. If there is a problem in the net work or the sever is down, then our system detects the problem, stores the data in a personal folder and resends to the server / Mobile when the network or server is up

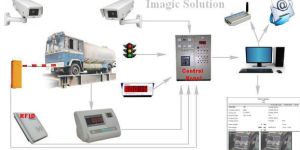

The unmanned Weighbridge system is a standalone system which allows 24 hours 7 days a week weighing operations without the need of operator. Due to the system’s easy interface, it is totally operated by the truck driver. Moreover “AMBIKA” solution custom designs the system to suit the specific requirements of your operations. Automated weighbridge system’s software is an intelligent software that turns your weighbridge to a simple unattended terminal.

GENERAL The unmanned Weighbridge system is a standalone system which allows 24 hours 7 days a week weighing operations without the need of operator. Due to the system’s easy interface, it is totally operated by the truck driver. Moreover “AMBIKA” solution custom designs the system to suit the specific requirements of your operations. Automated weighbridge system’s software is an intelligent software that turns your weighbridge to a simple unattended terminal. Features Unman Weighbridge Software. Robust and weather proof stainless steel cabinet for added protection with optional climate control. CCTV camera supporting. Data accuracy with pre-programmed vehical data using RFID card readers or touch panel with user friendly interface. Improved facility control and security with traffic barriers, traffic light, surveillance cameras etc. Weighing data management software interacting with Imagic industrial scale terminals provides instant access to critical business information such as operational analysis,billing and inventory control. Detection loops or photocells-to automatically detect vehicles and transfer of details. Truck Plate Recognition-for clear identification of vehicles and loads. Instruction announces with loud speaker. Integrate with SAP, Oracle,ERP. Barcode Integration. PLC Based Intelligent Indicator. Advantages Removes the need for Weighbridge operators. Cut operating costs with a fully automated vehicle weighing solution. Fast throughput for busy Weighbridges. Fully integrate solution into you back office systems. Automatic identification of driver, truck.trailer. The same radio card is used by the driver at the tare weighbridge as at gross.

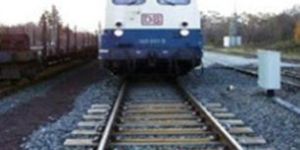

The Comboweigh Rail and Truck weighbridges from “Ambika” is able to weigh both types of Vehicles on a single surface, saving time and money. This Heavy Duty Rail and Truck weighbridge is designed to stand upto the harshest out door conditions while maintaining accuracy and dependability. These weighbridges are available in either steel or concrete to suit the requirement of the application, with heavy, wide flange steel beams to assure structural integrity. The combo weigh Rail and Truck weighbridges are suitable for industries like Agriculture, Manufacturing Steel scrap and Recycling, coal & mining etc. Rail weighbridge is crucial in virtually every aspect of rail operation, from avoiding overloading penalties.

The Comboweigh Rail and Truck weighbridges from “Ambika” is able to weigh both types of Vehicles on a single surface, saving time and money. This Heavy Duty Rail and Truck weighbridge is designed to stand upto the harshest out door conditions while maintaining accuracy and dependability. These weighbridges are available in either steel or concrete to suit the requirement of the application, with heavy, wide flange steel beams to assure structural integrity. The combo weigh Rail and Truck weighbridges are suitable for industries like Agriculture, Manufacturing Steel scrap and Recycling, coal & mining etc. Rail weighbridge is crucial in virtually every aspect of rail operation, from avoiding overloading penalties. TRACK REQUIREMENTS FOR RAIL WEIGHBRIDGE : Approximate 100 Mtrs straight Track on either side of weighbridge. The Track at both end of the weighbridge of 100 Mtrs. is desired to be level tangent with gradient not exceeding "1 in 300". Points of crossing up to a distance of about 100 Mtrs of both end of the weighbridge are needed to be avoided. Concrete sleepers upto 100 Mtrs & RCC base atleast 20 Mtrs on either side of the track should be well ballistic and settled at both end. Non weighing speed should not be more than 25 Kmp.   SYSTEM OVERVIEW : The load cell based in - motion weighing system consists of 4 load cells, weighbridge with prefabricated supporting structure and rail approaches. The load cells are strain gauge based electrical signal with very high accuracy and stability. Wagon movement on the weighbridge is identified by Track switches placed on either side of bridges, to detect the direction, type of wagon, start and stop weighment.

Sturdy mechanical structure manufactured as per IS 2062 Grade. Reliable mounting assembly for load cells. Law resistance cables and weather proof junction box. Windows based friendly Software. Hermatically sealed load cells eliminates water logging. Accuracy 0. 02%. Each weighbridge is fully assembled at factory and performance tested Prior to delivery. Each weighbridge is fully assembled at factory and performance tested Prior to delivery. Faster installation than conventional systems. Software is password protected.

GENERAL A durable and reliable on-board weighing system from “AMBIKA” ensures overloading of tippers/wagons and improves process efficiency. The fact that it is a digital system, it has less cabling than others, having no junction box and therefore, clay, moisture, dust will not cause it to fail. The need for instant load verification has become critical for companies that need to be more efficient in hauling, determine profit/loss with each load,eliminate overweight fines while maximizing each load and monitor potential wear on equipment. Workmanship: It consists of a very high capacity pressure transuders which are fixed to the inlet port of the vehicle’s lifting cylinder. The hydraulic pressure in the lifting cylinder is proportional to the load carried in the bucket.The output of the pressure transducer is connected to the Indicator. The Indicator displays the weight of material in the bucket and totalizes this weight reading. This totalized quantity is subtracted from the target load which is set by the operator. This allows the operator to control the quantity of material into the wagon in the final stages of loading , thereby avoiding over-loads. The data can be transferred from the loader weighing module, to a PC with a pen driver. BENEFITS Robust digital system with no junction boxes ensures minimal downtime. Prevents over-loading /under-loading of trucks/wagons. Quick data transfer from weighing module to printer, PC and memory card. Easy Installation and maintenance. Eliminate overweight fines. Increase revenue, operational efficiency and Driver Retention. Designed to work on all models of loaders and excavator available world wide. Saves time and fuel, on load correction re-runs by trucks. No more premature wear damages caused by overloads.

Feature and Advantages of Mobile Weighbridge. "AMBIKA" is the first and only company to introduce Mobile Weighbridges in Gujarat, India. These weighbridges are designed to be installed quickly anywhere there is a need for on-site truck weighing and surface mounted. These quickly installed Mobile weighbridges do not need permanently built foundations, but only a fairly horizontal level and strong concrete floor, eliminating costly site preparation and reducing installation time to a mater of hours. Thease weighbridges are completely supplied with ramps which are steel fabricated and therefore do not need traditional cement foundation. The top plate and Bottom frame are steel fabricated and the load cell are installed between top frame and bottom frame which rests on traditional foundation. Due to easy ransportation, cost saving and reducing installation time these weighbridges are mostly used by road transportation company, Forestry, Quarries, Military and Agriculture industries. No mechanical operation is required and the “Weights” is instantaneously indicated on Big display for facility of operator.

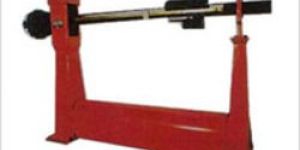

These weighbridges are ideal for low – cost weighing solution and are manufactured from M.S. Levers, supported by heavy duty Girders, M.S. stripped plates which is bolted with beams. Five lever or Mutilever system is available, depending upon capacity & length of the platform. Multilever system minimizes cost of civil construction, reduces freight and installation of labour cost. multilever system has a longer life as the load on the platform is distributed over a greater number of knives and bearings. Multilever system minimizes cost of civil construction, reduces freight and installation of labour cost. multilever system has a longer life as the load on the platform is distributed over a greater number of knives and bearings. Dust Free steelyard Box. Stainless steel numbering blade. HCHC Knives & Bearings. Seats & Swings from one piece profile cutting plate. M.S. Fabricated levers.

Sturdy mechanical structure manufactured as per IS 2062 Grade, Reliable mounting assembly for load cells, Law resistance cables and weather proof junction box, Windows based friendly Software, Hermatically sealed load cells eliminates water logging, Each weighbridge is fully assembled at factory and performance tested Prior to delivery, Faster installation than conventional systems, Software is password protected.

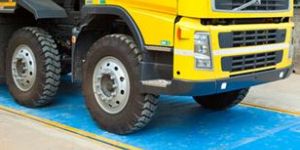

Pit mounted structure wherein platform is usually flushed to the ground. Assembled on civil foundation within the pit. Manufactured by Inserting a single load cell on transfer lever. Intelligent Terminal system OR PC based RS 232 – RS – 485 systems are available. Auto calibration facility available . LAN system available. Accuracty - 0.02%. Fully Mechanical Weighbridges are converted to fully electronic weighbridges by replacing the whole lever system by 4, 6, or 8 Load cells with minor modifications in foundation. We provide auto jumbo display facility without connecting cable from indicator to Jumbo display. Connection to printer, scanner or other perihherel facility is also avaible. Analogue output. Eliminating human error and better controll on data processing. In single load cell system, costly load cells are eliminated and therefore economical. AMBIKA'S in-house design expertise and experience which helps in suggesting most suitable design for conversion.     Send Inquiry

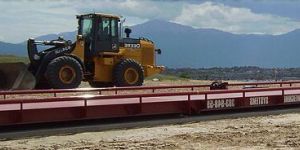

Sturdy mechanical structure manufactured as per IS 2062 Grade. Reliable mounting assembly for load cells. Law resistance cables and weather proof junction box. Windows based friendly Software. Hermatically sealed load cells eliminates water logging. Accuracy 0. 02%. Each weighbridge is fully assembled at factory and performance tested Prior to delivery. Accurate "Weight" first time and every time. Faster installation than conventional systems. Software is password protected.   PIT TYPE WEIGHBRIDGE : MODEL : PTW-900 ADVANTAGES OF PIT TYPE WEIGHBRIDGE :     Suitable for places having limited space. e. g. non hilly area. No ramps are required on either side. Most suitable for public weighbridges. Easy maintenance as platform is completely flushed to ground level. Designed carefully to withstand heavy loads without damage.

Alpha Numeric Indicator is a microprocessor based indicator for use on single weigh platform. Microprocessor 8051 derivative Clock 11 MHz Memory 128 K for data storagewith battery backup Power Supply SMPS with EMI/RFI filter and Spike Suppressor A/D Converter Duel slop type with charge balancing feature A/D Clock 100 KHz Conversion Speed 5Hz Load Cell Excitation 10V @ 300mA ( up to eight load cells of 350 ohms each ) Signal / Unit Weight 1micro volt to 3 microvolt Keyboard 101 – Keyboard IBM PC AT type Printer Port Centronics compatible parallel port Printer EPSON LX 800 / LX 300, TVSE Serial Port RS – 232C type port is available (For computer Interface or remote display interface ) with Pen drive & SMS system. Display 16 char X 2 lines LCD display with backlight for Data entry and display of weight, date and time Remote Display Port 9 – pin D – shell female connector for optional ½” / 1” / 2.3” / 4” 6-digit bright red LED display Indications Buzzer for fault and data entry Fuse F1 fuse 2.5A for power in Protection RFI/EMI filter for input power Spike Suppressor for input transients Weight Record Storage 1530 records, depending on options programmed. Consolidated Report Date wise, RST wise and all 5 entries wise for full & Pending report Input Voltage 150 V 270 V AC @ 50 Hz / 60 Hz Power Consumption 10 VA (approx) Environment Operating Temp : 10 º to + 55º Celsius Humidity 0 to 95% relative humidity non- condensing

Fast and economical Installation. Excellent levels of corrosion protection through shot – blasting and , epoxy painting. These weighbridges enables throughputs of bulk materials and are designed to keep installation, maintenance and operations as simple as possible even in the saline and corrosive environment. "AMBIKA'S concrete Truck scales are available in capacities ranging from 10 to 150 Tons with platform sizes 2 mtr. X 2 mtr. to 25 mtr x 6 mtr. The steel frame of this weighbridge is designed to withstand harsh environmental conditions. The production system ensures impeceable focus to the performance of the product and faster response to customer’s needs. As compared to steel platform weighbridges, concrete weighbridges are maintenance free and economical as it does not require painting every year, the parts do not get rusted, absorbs more vibrations, capacity can be increased without using extra material, no bending of steel structure, more stable due to heavy mass structure, no effect of lightening. Most suitable for using longer trucks and trailers like "Volvo" which are capable of carrying heavy payloads There is saving of transportation as the construction of the concrete platform is casted on the foundation at site. Vehicle movement is arrested due to rough surface of the platform. Due to above reasons, 90% of electronic weighbridges are manufactured with concrete platform in the developed world.
