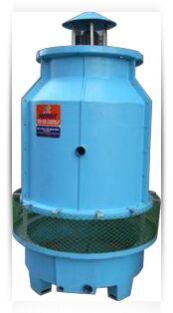

CASING :- Casing of tower is made of fiber glassreinforced plastic. The cooling tower is designed and constructed for minimum maintenance and long life. You can operate in aggressive environment & resistant water born contaminats.

Concept: These motors specially design for cooling tower Fans for continues running in humidity area. Range: Our cooling tower motor range 0.25 to 20 hp. Frame 71 to 225M. Motors are flange mounting with IP-55 Degree of protection. Supply 415(+- 5%) voltage and frequency 50Hz. (+-3%) combined +-5%.Motor available in 4, 6, 8, 10 and 12 pole. on customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60.

The basic components of an air washer system are a chamber that contain a series of spray nozzles, an eliminator section that removes water from the air that is exiting the air washer and a sump which catches both the sprayed water droplets and the water that was collected by the eliminators. The spray section will either add moisture to the air or dehumidify the air, while washing solid particles out of the air. The eliminator section in many cases is a "W" or a series of "W"s in shape. This section, forces the air to contact the eliminator components, which in turn knocks down water droplets and air borne solids. The sump is the collection basin for the system. The washed out solids, lint, dust, and water all collect in this area.

he basic components of an air washer system are a chamber that contain a series of spray nozzles, an eliminator section that removes water from the air that is exiting the air washer and a sump which catches both the sprayed water droplets and the water that was collected by the eliminators. The spray section will either add moisture to the air or dehumidify the air, while washing solid particles out of the air. The eliminator section in many cases is a "W" or a series of "W"s in shape. This section, forces the air to contact the eliminator components, which in turn knocks down water droplets and air borne solids. The sump is the collection basin for the system. The washed out solids, lint, dust, and water all collect in this area. FUNCTIONS OF AN AIR WASHER: 1. Cool the air.2. Humidify the air. 3. Dehumidify the air. 4. Clean the air of particles. 5. Hyperionize the air. HUMIDIFICATION BY AN AIR WASHER: Humidification is accomplished by using the recirculating spray water, washing preheated air with the spray water, and by heating the spray water. In general, the humidification of the air occurs as the humidity of the outside air decreases. This allows the water from the sprays to entrain in the low humidity air and increase the humidity of the washed air as it leaves the system for the plant. The heating of the spray water or the heating of the air prior to the air washer creates a condition that allows the air passing to the plant to hold a higher level of moisture. The amount of moisture that is required for the plant use will dictate the degree that the air or spray water will need to be heated. An air washer will humidify the air during the seasons when the outside air is low in humidity. This is usually during the late Fall, Winter and the early Summer, or in arid climates. The reason that the air is humidified, is to create the proper condition for the operation of the plant. In the production of Textiles, Electronics, and other related industries, where the humidity of the air is crucial for the air quality and material production, the air washer will balance the required humidity of the plant air by humidifying the air during the dry seasons, and dehumidifying the air when the air conditions are more humid than the plant requires. During the humidification process, the water in the air washer will cycle up solids in the same manner as a cooling tower. For this reason, the air washer is to be treated in basically the same manner as a cooling tower would be, that has the same water characteristics. The only differences in the chemical treatment program are based on the unique operating characteristics of an air washer, which are addressed in other sections of this report. DEHUMIDIFICATION BY AN AIR WASHER: Dehumidification occurs when the water that is spraying from the nozzles is cooler than the wet bulb temperatures of the incoming air. In this case, the incoming air is moist and contains a higher level of moisture than the plant requires. By spraying this air with colder water, the incoming air is cooled down. This cooling process also removes moisture from the incoming air. Dehumidification usually occurs during the hotter more humid months of the late Spring, Summer, and very early Autumn. During the period of time that the air washer acts as a dehumidifier, the air washer will take on the water that has been stripped from the air. This effect causes the dissolved solids level in the air washer to drop. It also creates a surplus of water in the air washer system that is removed from the air washer through the system overflow. As the solids level in an air washer drops, the Langelier Index will also drop. The index is used to indicate the tendency of the system water to be either scale forming or corrosive. During CLEANING THE AIR WITH AN AIR WASHER: Air is cleaned by an air washer when particulate matter impinges on the wetted surfaces of the eliminator blades. Air is also cleaned, when the sprayed water generates enough ionization to neutralize the charges on the particles in the service area so that they can be dropped out into the sump as they are drawn through the air washer. The cleaning of the air will remove lint, oils, and other airborne particles from the air. This builds up the level of the solids in the water which must be removed either from over flow or bleed. Chemical treatment can improve particle removal and prevent nozzle clogging from excessive solids build up. AIR HYPERIONIZATION: As the water droplets are broken up at the nozzles, ionization occurs. This places a charge on the water droplet which allows it to attract charged particles that are in the air. This will allow the removal of any of the airborne solids from the air. It can also cause the build up of charges in the air that exits the air washer. These charges can cause static electricity to build in the air, which can cause textile processing problems if not neutralized by an antistat treatment program. RECOMMENDED AIR WASHER MAINTENANCE: Air washer systems should be inspected regularly to insure that wetted components are free of dirt, WE ALSO HAVE

Casing of tower is made of fiber glassreinforced plastic. The cooling tower is designed and constructed for minimum maintenance and long life. You can operate in aggressive environment & resistant water born contaminats. A pre-eminent quilaty and long life fill consists of modular block of PVC honey combs construction to create prolonged contact time of hot air with water for maximum heat transfer. The air pressure drop through the fill is negligible.

These motors specially design for cooling tower Fans for continues running in humidity area. Motors are flange mounting with IP-55 Degree of protection. Supply 415(+- 5%) voltage and frequency 50Hz. (+-3%) combined +-5%.Motor available in 4, 6, 8, 10 and 12 pole. on customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60.

Manufactur of Cooling Towers.

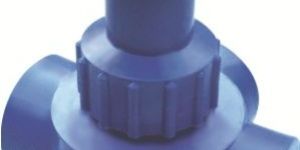

Manufacturer of Cooling Tower Nozels.

Duty & Insulation: Insulation class “F” with constant duty (s1) Cooling tower motor design for Working S1Duty. For continues working. Motor relative humidity up to 90% Shaft and Bearing: Our cooling tower Motor relative humidity up to 90%. Cooling tower Motor Shaft is Mead by stainless steel material AISI-410. Nut and washer are made for stainless steel AISI-202. It can make protection against corrosion. Motor shaft extended so cooling fan fitted properly.

Concept: These motors specially design for cooling tower Fans for continues running in humidity area. Range: Our cooling tower motor range 0.25 to 20 hp. Frame 71 to 225M.Motors are flange mounting with IP-55 Degree of protection. Supply 415(+- 5%) voltage and frequency 50Hz. (+-3%) combined +-5%.Motor available in 4, 6, 8, 10 and 12 pole. on customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60.Performance: Motor performance conforms to IS: 325.Mounting: Mounting V1 shaft downward position Flange B-5 as per IS 2223.Duty & Insulation: Insulation class “F” with constant duty (s1) Cooling tower motor design for Working S1Duty. For continues working. Motor relative humidity up to 90%Shaft and Bearing: Our cooling tower Motor relative humidity up to 90%.Cooling tower Motor Shaft is Mead by stainless steel material AISI-410. Nut and washer are made for stainless steel AISI-202. It can make protection against corrosion. Motor shaft extended so cooling fan fitted properly.

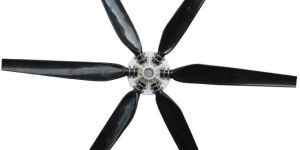

CASING :- Casing of tower is made of fiber glass/reinforced plastic. The cooling tower is designed and constructed for minimum maintenance and long life. You can operate in aggressive environment & resistant water born contaminats. P.V.C. FILL :- A pre-eminent quilaty and long life fill consists of modular block of PVC honey combs construction to create prolonged contact time of hot air with water for maximum heat transfer. The air pressure drop through the fill is negligible. SPRINKLER :- The uniform distribution of water over the honey combs fills this sprinkler, rotates by self propulsion and eliminates the need for atomising the water nozzles. The head side includes ball bearing requiring minimum maintenance. MOTOR :- Electo Magnetic designs of the entire range of New India and Bharat Motor covered by 3N series have been developed in keeping with the Latest national and international practices and confirm in general to 1 EC recommendations. FAN :- An aero-dynamically designed axial flow type fan is a well balanced construction. The fan blades are of case aluminium alloy. Fan with variable pitched blades is dynamically balanced for low vibration and high efficiency. Nozzles :- Nozzles are constructed of Brass/Plastic Nylon used in cooling tower. The design ensures a fine water spray system. CONSTRUCTION MATERIALS Top Section : Fiberglass Reinforced Plastic Casting : Fiberglass Reinforced Plastic C.W.Basin : Fiberglass Reinforced Plastic Fill : Regid P.V.C. H.W.Inlet & C.W.Outlet : Steel HDG Fan Blade : Aluminium/Fibre BranchArm : Polypropylene Motor Support : Steel HGD Hardwear : G.I./HGD Corrosion Free : To avoid corrosion on metal in water lines. Inspection Window : For Inspection of running position of sprinkler and fan blade. After Sale Service: After sales service for all cooling tower is guaranteed to all users. Our service enigineers are available at any time to assist consulting engineer, tower owners and tower operators.  Round shape Cooling Tower CapacitiesRound shape cooling tower gives 100% cooling efficiencies it’s give good appearance flow rate from 5 M³/Hr To 550 M³/Hr gives differences in temperature 4ºC To30 ºC Availability of Capacities from 5 TR T0 600 TR.FeaturesThe bottle shaped FRP cooling tower is utilized in several industries and has the following features. • All the components have a modular and compact design• The casing and the design has an exclusive circular design. Therefore no impact of the direction of prevailing wind is encountered.• This FRP water cooling tower has a very efficient sprinkler head system that is rotative and is made of aluminum alloy• Axial flow fans that are designed aerodynamically with adjustable pitch are used• The bottle shaped FRP cooling tower helps conserve power• Quiet operation is ensured• The sump is given easy access with a galvanized mesh of hot dip. This is done to avoid entry to foreign objects into the water basin• The possibility of corrosion and rust gets minimized due to the framework steel components that are galvanized hot dip Though the cooling tower maintenance is not difficult, it is important.Cooling Tower Maintenance• Efficient treatment of water• Prevent scale deposits• Do way with or clean spray nozzles that get clogged• Adequate air flow should be ensured• Adequate performance of pump also should be assuredRound shape Cooling Towers Spares• PVC Fill : A good quality fill and is of long life too.• Drift Eliminator: The carry over losses due to moisture drops.• Sprinkler: Due to the even water distribution over the honey comb fills.• Fan: flow type fan that is aero dynamically designed is of well balanced construction. we have availability of FRP fan and Aluminum fan

The basic components of an air washer system are a chamber that contain a series of spray nozzles, an eliminator section that removes water from the air that is exiting the air washer and a sump which catches both the sprayed water droplets and the water that was collected by the eliminators. The spray section will either add moisture to the air or dehumidify the air, while washing solid particles out of the air. The eliminator section in many cases is a "W" or a series of "W"s in shape. This section, forces the air to contact the eliminator components, which in turn knocks down water droplets and air borne solids. The sump is the collection basin for the system. The washed out solids, lint, dust, and water all collect in this area.
