Soil Testing Equipment Dealers in Kathwada, Ahmedabad

• Brand Name: EIE

We hold expertise in offering marshall stability test apparatus that is used for widely used for designing and evaluating bituminous paving mixes. The marshall stability test apparatus offered by us, can be availed at market leading prices. the apparatus consist of the following load frame marshal moulds (3 nos.) compaction pedestal compaction hammers (2 nos.) breaking head assembly optional accessories the following accessories and consumables are not part of the standard supply and are mandatory for the testing work proving ring of 30 kn capacity with calibration certificate with traceability flow meter dial gauge with 0.01mm graduation and 25mm travel water bath with thermostatic or digital control with stirrer electronic balance of capacity 5 kg/1gm or 2 kg/0.1 gm or two pan balance with set of weights and analytical weight box pair of asbestos gloves filter paper ( pack of 100 ) misc. Items: spatula, scoop, mixing tray, trowel, light mineral oil and benzene the following additional instruments will speed up the testing process with ease and accuracy.

• Temperature Range: 0-400 deg °C.
• Model No.: ESCR- A
• Time totaliser range: 999.9 hours
• Accessories: Cutting die, nicking jig, bending cum transfer tool, specimen holder, test tube & rubber cork
• Water circulation: Through induction motor with stirrer
• Testing capacity: 6 tests at a time
• Heating load: 1.5 to 3 KW
• Body: Inner S.S and Outer M.S with powder coating
• Power Supply: 230V AC, 50Hz
• Inner size of bath: 12"X 8"X 9"
• Dimension: 28"X 13" X 25"
• Net weight: 36 kgs

Introduction Hand operated With Automatic Timer Hand Operated : The apparatus consist of a cast aluminium base with an iron stand on which moves an aluminium arm. A 6" dial is fixed on this arm and a brass chromium plated rod slide through the lower portion of the arm. A needle with weights is fitted to this rod. The dial is graduated from 0-400 in one tenth millimeter sub division. Supplied complete with adjustable needle holder, penetration needle sample container, transfer dish and weight of 50 gms. With Automatic Timer : Same as above but with automatic digital timer and electrical arrangement.

• Application: Soil Testing
• Brand Name: DM
• Weight: 2 Kg
• Color: DA Gray
• Power: Electronic
• Body Material: Mild Steel
• Fall Frequency Of Soil Disc: 120 Beat/ min
• Usage: Determine the Moisture Content

Motorised Model: With consists of a brass cup held on an adjustable bracket. The bowl can be adjusted for a fall raised & dropped on a rubber of standard hardness by cam action. Complete with one casagrande-grooving tool, one ASTM grooving tools and a height gauge block. With counter. Fitted with a motor geared down to give approximately 120 RPM. Suitable for operation on 230 Volts, single phase, 50 cycles, A.C. supply. Relevant Standard: IS : 2720 (Part-V)

Mett-Bio Metallurgical Testing & Services with its state of the art equipment setup consisting of Salt Spray Chamber Complying to the Requirement of ASTM B 117/ ASTM G 85.   Tests are performed in our ISO 17025:2005 NABL accredited lab under the standard Specified conditions or as per specific field conditions.   Salt spray testing is a test method where in a product or coatings resistance to corrosion is evaluated in severe corrosive conditions with extended exposure to a saline or salted spray   This testing is carried out in a closed chamber which is filled neutral salt fog. The test specimen is exposed to a predetermined time period and inspected during its exposure. This test is carried out to check the integrity of coatings, paints in a corrosive environment. This test is carried out as per ASTM B117.   Types of Salt spray testing:   · Neutral Salt Spray (NSS), · Acetic acid Salt Spray (ASS), · Copper sulphate Acetic Salt Spray (CASS)   The salt spray test can be acclimatized to suite different corrosivity level to simulate different environments.   The test specimen is exposed to a predetermined time period and inspected during its exposure. This test is carried out to check the integrity of coatings, paints in a corrosive environment. This test is carried out as per ASTM G 85.   A standard 5% salt solution of sodium chloride known as NSS or neutral salt spray and a solution of acetic acid known as ASS. The solutions are chosen based on the type of coating to be evaluated   Other salt variations: SO2 / Calcium Chloride (CaCl2)

    Introduction This test is used to determine the elapsed time between batching of a concrete sample and when it is deemed by standard methods to have set. The method involves measuring the penetration resistance of a test sample, which has had coarse particles removed at periodic intervals. It is particularly useful, in determining the effect on setting time of admixtures in the concrete, where these may have been introduced specifically to increase the setting time.   It consists of cylindrical spring housing with a plunger attached to the top of the spring. Penetration needle is attached to the other end of the spring housing. The plunger is graduated in 1 kg divisions, to a maximum capacity of 60kg, which can be read with respect to the top end of the spring housing. A set of six needle points with areas of 645, 323, 161, 65, 32 and 16mm2 are provided. Supplied complete in a wooden carrying case.   General Descriptions & Specifications The Concrete Mixers are available in two versions for Laboratory or field use. The field models are hand operated. This portable concrete mixer has rubber tyred wheelsand a towing tongue so that it can be towed and moved around by hand. Its rotationis powered by single-phase electric motor or by hand . The lever allows the concrete to be tipped into a wheel-barrowor mixing pan. The driving shaft is mounted on sealed ball bearing The counter balanced drum swivels and tilt 360° for easy and complete discharge.   Pocket Penetrometer Consists of a needle having face area 3/10 sq.cm. and graduated at a distance of 25mm. The needles point is an integral part of barrel which houses a calibrated spring. The spring is confined in a sleeve. The resistance offered by the concrete mortar is shown on the direct reading scale with a marker ring which holds its position when released. Scale range is 0-50 kg/cm2 when the penetration resistance reaches a value of 35kg/cm2 the concrete is assumed initially set. Supplied complete in a leather carrying case. AS PER ASTM C-403 .

• Material: Cold Roll Steel
• Application: Industrial
• Working chamber sizes (FT): (L x DX H) 2 x 2x 2 ,3 x 2 x 2 ,4 x 2 x 2 ,6 x 2 x 2
• Feature: Multiple Working Ports
• Width: 750 mm to 2400 mm

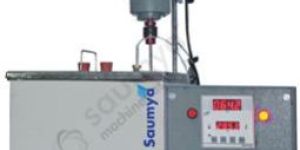

ESCR Test Apparatus: Environmental stress cracking is a property that is highly dependent upon the nature and level of stress applied and on the thermal history of specimen. This taste is normally employed for routine inspection purpose.

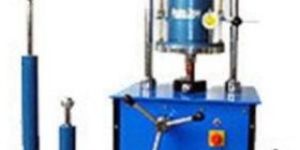

The California bearing ratio test is penetration test meant for the evaluation of subgrade strength of roads and pavements. The results obtained by these tests are used with the empirical curves to determine the thickness of pavement and its component layers. This is the most widely used method for the design of flexible pavement. The laboratory method for the determination of C.B.R. of undisturbed and remolded compacted soil specimens, both in soaked as well as unsoaked state.

• Type: Laboratory Furniture
• Material: Mild Steel
• Voltage: 220/230 Volts AC Supply

Fabricated out of thick Mild Steel Sheet these are designed so as to throw out toxic/harmful vapours, thus protecting costly instruments & the person working in the lab. The outer surface is finished with powder coated & inner surface is epoxy painted.   The working table top is fitted with acid/alkali resistant tiles/S.S & a small wash basin with connections provided for inlet & outlet of water. The front door moves vertically up & down with concealed counterbalanced weight. The unit is fitted with fluorescent light & a gas cock of gas/air supply. The space under the work station can be provided with storage compartments for storage purpose. The front-facing panel is fitted with 15/5 amp socket with switches for exhaust system & fluorescent light to work on 220/230 volts AC Supply.

Soil Testing Equipment, Digital Comparators
