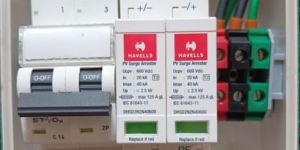

Solar DCDB Dealers in Ahmedabad

We are the main supplier of this product.

• Voltage: 800V DC
• Frequency: 50HZ
• Country of Origin: Made in India
• Current: 16A
• Usage/Application: SOLAR
• BRAND: STS
• classification: ABS-T (IP 66/67)

• Material: PC
• Voltage: 1000V DC
• Current: 15 TO 32AMP
• IP Rating: IP65
• Usage/Application: SOLAR ROOF TOP PLANT
• Number Of Ways: 3

• Frequency: 50/60Hz
• Material: Polycarbonate
• Country of Origin: Made in India
• Brand: SS
• IP Rating: IP65
• Operation Voltage: 240V
• Power: 50kW
• Packaging Type: Box

• Voltage: 800V DC
• Material: ABS/PC
• UV Protected: Yes
• Conductor Material: Tinnned Copper
• Ideal For: Solar Application
• Brand: Samptel
• IP Rating: IP65
• Temperature range: 40 Deg C
• Number of Strings: 3 in 3 out
• Dimension: 280x280x130 mm
• Number of Core: 1C
• Power: 10-16 kW

• Voltage: 600 V
• Number Of Strings: 3 In 1 Out
• Packaging Type: Box
• Brand: Box
• IP Rating: IP67
• Model Name/Number: Si.3011
• Usage/Application: Solar PV

A distribution board (also known as panelboard or breaker panel) is a component of an electricity supply system which divides an electrical power feed into subsidiary circuits, while providing a protective fuse or circuit breaker for each circuit. The ACDB receives the AC power from the solar inverter and directs it to AC loads through the distribution board. AC Distribution Panel Board (DPB) shall control the AC power from PCU, and should have necessary surge arrestors. Requirementspecifications of DCDB and ACDB may be changed as per site conditions. An ACDB to be provided at the cable terminating point emanating from 5 KVA PCU for interconnection control of dedicated electrical loads.

• Voltage: DC 500-1500V
• Frequency: 50 Hz
• Current: 8A-400A DC
• Usage/Application: Solar On-Grid, Off-Grid & Solar Hybrid System
• DC SPD: 600V, 1000V & 1500V DC
• DC Fuse: 1000V & 1500V
• DC MCB: 500V, 800V, 1000V
• DC Isolator: 1000V, 1500V
• DC Cable: 1600V
• Item Code: SEPL-DCDB

• Material: Polycarbonate
• Application: Solar Power Plant
• Number Of Strings: 6
• Power: 25-30 KW
• Brand: Ksquare
• Dimension: 380x280x110 mm
• Degree Of Protection: IP 65
• Usage/Application: Solar Power Plant
• DC MCB Voltage: 800 V
• DC MCB Current: 32 A
• DC SPD Voltage: 1000 V

• range: 1kW to 30kW.

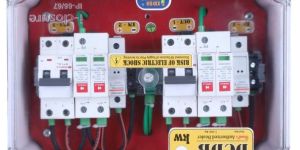

The Solar dc distribution box DCDB 2 in 2 out that we offer are fabricated with the use of best in class technology from highly reputed, Array junction boxes, DCDBs, ACDBs, SPD boxes for DC side and SPD boxes for AC side for small solar PV power plants of size ranging from 1kW to 30kW. The customer can quickly install these products.
