Surge Protection Device Dealers in Ahmedabad

A lightning Arrester is a metal rod or metallic object mounted on top of a building, electrical power systems and telecommunications systems electrically bonded using a wire or electrical conductor to interface with ground or "earth" through an electrode, engineered to protect the building and the electrical power system from the damaging effects of lightning strike. If lightning targets preferentially strike the rod and be conducted to ground through the wire, instead of passing through the building, where it could start a fire or cause electrocution. The typical lightning arrester has a high-voltage terminal and a ground terminal. A lighting arrester made from GI rod and copper bounded rod in form of single point and multipoint's system.

We are offering franklin lightning arrester. When the electrical potential between two clouds or between a cloud and earth reaches a sufficiently high value the air becomes ionized along a narrow path and a lightning flash results which can extend upto multiple kilometers. buildings are protected from lightning by metallic lightning arrestors or surge arrestors extending to the ground from a point above the highest part of the roof. The arrestor has pointed edges on one side and the other side is connected to a long thick copper stripwire (down conductor) which runs down the building and connects to the earthing system. in the event of lightning falling on the building, the lightning arrestor directs the charge through down conductor and into the earth through the earthing system, safely.

Electrical overhead corporation is a leading certified manufacturer of Lightning arrester in gujarat. Lightning arresters are installed in high voltage electric facility containing equipments

• Arrester Length: 3mtr, 5mtr, 6mtr
• Arrester Diameter: 70mtr, 105mtr
• Country of Origin: Made in India
• Radius Coverage Area: 70mtr, 105mtr
• Air Rod Height: 3mtr, 5mtr, 6mtr
• Surface Finishing: base plate
• Net Weight: 10kg to 15kg
• Suitable For: Industrial use
• Rod Diameter: 40mm, 48mm, 58mm

a typical lightning arrester, also called surge arrester, comprises a high voltage terminal made of copper of aluminum mounted on top of a building. It is electrically connected to the ground terminal through a wire to protect the building in the event of lightning. If lightning strikes the building, it will preferentially strike the lightning rod and be conducted harmlessly to ground through the wire, instead of passing through the building where it could start a fire or cause electrocution. Lightning arresters can be commonly seen mounted on tall buildings, monuments, towers, water tanks etc. a very important point worth noting in this regard is that a lightning arrester or lightning protection system as a rule never stops the action and effects of lightning. However, it provides ample protection and insurance against the damage to the building and electrical devices.

• Type: Lightning Arresters
• Material: Ceramic
• Shape: Disc
• Application: Control Panels
• Tensile Strength: 0-25Mpa
• Feature: Easy To Install
• Warranty: 1year
• Temperature: High Temperature

• Leak Protection Current: 10mA
• Power Requirements: AC 220V +/-10% 50-60Hz; 24VDC
• Dimensions: 89(H) x 483(W) x 350(D) mm
• Net weight: 7.9 kg

  Features                                 Download PDF * The OD-25L protects a PA system with outdoor speakers from potential damage caused by thunder storms and lightning. Four independent channels provide protection for up to 20A of audio power per channel. When a channel exceeds the threshold, the speakers are disconnected from the rest of the system to prevent damage to other equipment.Specifications* Input : 4 Channels (CH1-CH4) 70V/100V audio signal* Output : 4 channels, 70/100V, 20A, audio signal, Active out : OV signal* Lightning Protection : IEC529/EN60, 529 protection grade satisfied : IP 20* Overload Protection : 165-300V, peak* Rated Discharge Current : 30kA

• Type: Surge Protection Device
• Material: Cermaic, China Clay, Plastic
• Certification: CE Certified, CQC Certified, ISI Certified
• Color: Creamy, Grey, White
• Voltage: 110V, 220V, 380V
• Condition: New, Used
• Frequency: 50Hz, 60Hz
• Power: 0-5Kw, 10-15Kw, 15-20Kw, 20-25Kw, 25-30Kw30Kw, 5-10Kw
• Feature: Auto Controller, Dipped In Epoxy Resin, Durable, High Performance, Stable Performance
• Warranty: 1Year

 VPD Surge Protector Technical Specification * Model --> CVT-S1012VPD* Function --> Video Power Data* Response Time --> 5V, 12V,  5V* Limited Voltage DC --> 20V,  30V,  20V* Insertion Loss(dB) --> 0.2dB,  0.5dB* Max Transmission Rate (Mbps) --> 10 Mbps ---  1 Mbps* Connector Type--> BNC, 2P, 2P* Dimensions --> 90mm(L)×64mm(W)×23mm(H)* Weight --> 200g * Sheathing material  --> Shield metal Shell

We are proud to present premium quality Voltage Protector (240 V) which are specially designed by our expert team keeping safety of our esteemed clients as the top priority. The Electric Shock Guard (240 V) offered by us are known for Technical Specifications 240 Rated V (Single Phase)2 Poles50 Hz Rated Frequency Rated Current 10 A20 A25 A32 A Other Details Less then 20m secondsHV 280 +- 10 %LV 180 +- 10%BS 4293, IS 12640Suitable for 25 Sq. mm Aluminum Cable Dimensions (mm) Length – 110Width – 175Height – 60

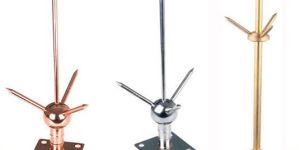

Lightning Protection Materials are used to protect a building or facility from the devastating effect of lightening, electrical short circuits, leakage currents & the after effects. A lightning strike carries with it, electric potential in thousands of volts, which could destroy any structure & people within. If not grounded properly, the massive surge of electric power will damage the building, costly equipments within and people. Earthing & Lightning Protection Materials, which are made of high quality copper and copper alloys acts, when installed on the building as carriers of this high potential to the ground. Lightning Arresters are installed on the top of a building, in combination with down conductors, clips and earthing system. This provides a least resistant path for the electric energy to flow to ground, where earthing system takes it to deep within. In addition to grounding the lightening energy, the electrical short circuits and leakage currents are also earthed or grounded using these equipments.

• Phase: Single Phase
• Number Of Poles: 2.0
• Minimum Order Quantity: 01 Number

• Material: Pure copper,Copper clad steel
• Brand: Ksquare

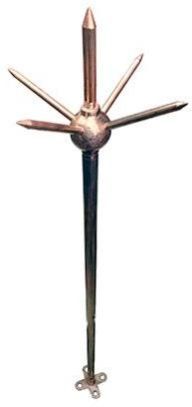

• Arrester Type: Distribution Type
• Protection Angle: 65 degree
• Current gradient: Less than 5KA
• Grounding resistance: Less than 10 ohm
• Number of Spikes: 5
• Length: 1000 MM

A lightning Arrester is a metal rod or metallic object mounted on top of a building, electrical power systems and telecommunications systems electrically bonded using a wire or electrical conductor to interface with ground or “earth” through an electrode, engineered to protect the building and the electrical power system from the damaging effects of lightning strike. If lightning targets preferentially strike the rod and be conducted to ground through the wire, instead of passing through the building, where it could start a fire or cause electrocution. The typical lightning arrester has a high-voltage terminal and a ground terminal. A lighting arrester made from GI rod and copper bounded rod in form of single point and multipoint’s system.

• Operating Temperature Range: -40/+85 Degree Celsius
• Maximum Operating Voltage: 280V AC
• Poles Number: 3 Pole+N
• Maximum Current: 40 kA
• Packaging Type: Box
• Brand: CITEL
• Usage/Application: Solar Photovoltaic System
• Phase: Three Phase

Surge Lightning Protector for LED Max. Surge Current: 20 kA, 8/20µs Voltage : 230/415 V Application : Home and Office Equipments Current : 32 A

• Certification: IEC 61643-31:2018
• No.of Poles: Double Pole
• Model Name/Number: 6P.27.9.600.1020
• Brand: Finder
• Usage/Application: Solar
• Range: 600V DC
• Rated Current: 20 kA
• Breaking Capacity: 40 kA
• Rated Voltage: 600V
• Classification: Type B

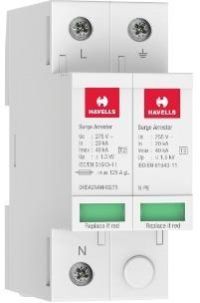

Surge Protection from Havells effectively while providing a protective device for each circuit.

We are an eminent and leading trader of surgearrestors.

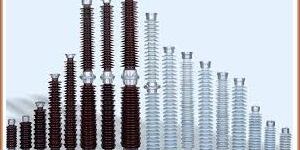

Lightning arresters are installed on many different pieces of equipment such as power poles and towers, power transformers, circuit breakers, bus structures, and steel superstructures in substations. A substation is a high-voltage electric facility containing equipment to regulate and distribute electrical energy. While some substations are small with little more than a transformer and associated switches, other substations are large and complex. Lighting Arresters are protective devices for limiting surge voltages due to lightning strikes or equipment faults or other events, to prevent damage to equipment and disruption of service. Also called surge arresters.

Single Channel Video Surge Protector - Transmission speed supports 10mbps for video - 5V DC Rated Voltage

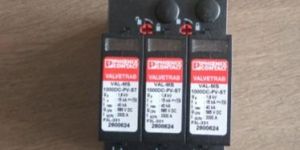

• Brand Name: Phoenix
• Poles Number: 1pole+N, 3 Pole+N, DC
• Classification: Type B, Type C, Type D
• Rated Short Circuit Breaking Capacity: 30KA
• Minimum Order Quantity: 1 Number

• Material: Copper
• Application: Electric Industry
• Operating Temperature Range: -20 to 80 Deg C
• Arrester Length: 1 Mtr
• Packaging Type: Box
• Weight: 250 Gram
• No Of Antenna: 5
• Phase: Single Phase

• Country of Origin: Made in India
• Material: Copper
• Phase: Three Phase
• Brand: SS
• Frequency: 50/60Hz
• Number of Spike: 4
• Length: 1.5 m
