Topcon Engineering Dudheshwar, Ahmedabad, Gujarat

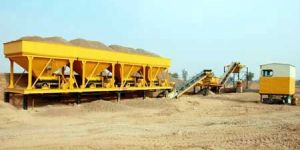

Made from the optimum quality raw materials, our Wet Mix Macadam Plant is widely appreciated in the market due to its excellent performance. Owing to its high efficiency, our Wet Mix Macadam Plant is widely acclaimed by the clients. The use of the latest technological innovation in the plant makes it even more advanced. Known For : High production rateWeather proof control panel Easy operationLow consumption of fuelLow dust emissions Consists Of : Cold Aggregate Feeder : Four-bin cold aggregate unit includes Gathering conveyor with 600 mm wide driven by 5 HP Electric Motor. Belt feeders under each bin are driven by 2 HP variable speeds drive and fitted with adjustable quadrant gates. (Capacity of each bin is approximately 10 MT)Vibratory Screen : For the removal of the oversize material Slinger Conveyor : At the bottom of bins, adjustable gates are provided to regulate the flow of aggregate with four auxiliary conveyors. Gathering conveyor is equipped with scraper and driven by A.C. Motor. Aggregate from the Gathering conveyor is fed in to the drum by a slinger conveyor through vibrating screen.Pug Mill Mixer : The inherent asphalt tank capacity of the drum mix process, along with the frame mounted dry dust collector makes this drum mixer a good neighbour. This machine has maximum asphalt tank efficiency so, wet collector is not necessary except in metropolitan areas.Control Panel : Control Panel All control panels for plant with small control cabins. Control Panel Cabin Centralised air conditioned and insulated control cabin is provided with electronic control panel cabinet to operate the entire plant.

We are offering Mobile Concrete Batching Plant. our mobile concrete batching plant is the most versatile and efficient plant which is demanded worldwide. this mobile concrete mixing plant is made up of high quality parts and raw materials which make it absolutely optimum in usage. it not only produces concrete more quickly but also gives excellent quality with no segregation during discharge. praised for : compact design corrosion resistive property high durability excellent performance easy adjustment comprises : four bin system : 4 bin aggregate feeder units with a storage capacity of 2.5m³ each. feeder bins are mounted on individual loading conveyor.loading conveyor : aggregates are discharged sequentially according to the predefined sequence of loading into the mixer by the loading conveyors (500mm x 3 ply) chevron belt.mixing unit : the mixing is carried out in a pan type-mixing unit of capacity 0.5m³.the mixing is carried out with the help of pedal arms, which ensures homogenous mix.discharge conveyor :the discharge conveyor powered by 7.5hp motor is 900mm x 3ply, endless belt with a discharge height of 2.3 mtrs. cement hopper with screw conveyor : cement hopper of storage capacity of 50 bags of cement is employed along with a screw conveyor powered by a 5hp motor is used for discharging the cement in the mixer.water pump : 2hp water pump is used for dispensing water in the mixer.high pressure jet cleaner system for mixer microcontroller based control panel : auto, hand & manual mode. the unit is fully dust proofed. accommodates 5 different type of mix recipes. material weight error indicator. wired remote operated system. emergency switch provided on panel as well as on remote unit operating on 24 v. electrical motors are provided by o/l relays & mcb as a back fuse. 1-inch digital lcd display. stationary concrete batch mixing plant capacity - 30 cu.mtr. / hr. mobile concrete batch mixing plant capacity - 20 cu.mtr./ hr. optional : online printing system discharge belt conveyor fly ash feeding system cement storage silo.

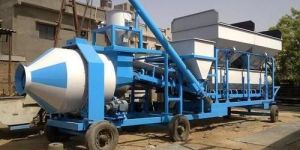

The company specializes in the production and supplying of high end mini reversible concrete batching plant & mixer in the market. We design and manufacture a wide range of mini reversible mixers that is durable in quality and has compact design that helps in giving fast mix and requires less space. These mixers are easy to transport as well as easy to operate. These machines assure the clients of maximum weighing accuracy. Engineered to perfection, our range of machines is robust in construction and assures the clients of better output. requiring low maintenance cost, these mini reversible mixers are widely demanded in the global market. Our mini reversible mobile concrete batching plant is the used for mixing and grinding of construction materials that are used in making roads. They are made of easy replaceable spare parts. Apart from that, we fabricate mini reversible mixers that are durable in quality and have a long working life. Compact in design, these machines are easy to transport and can be fitted in a small space. The technical features of our reversible mixers are: we are one of the trusted heavy duty mini reversible concrete batching plant & mixer manufacturers in the country. technical specification 12m3/hr capacity mini reversible concrete batching plant & mixer :

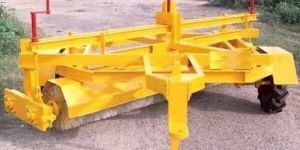

Mechanical Broom Endowed with sound infrastructure and qualified team, we unveil a large range of superior quality Mechanical Broom that is widely used for removing the dust of the road. Our mechanical broom sweeper is a zero maintenance machine that is highly acclaimed in the national and international market for high efficiency. Mechanical Broom As, it is Mechanical Broom manufactured from the technically advanced parts, it uses minimum man power and provides maximum output. Its high speed with excellent Mechanical Broom performance makes it perfect for metaling, wet mixed macadam surface and asphalted road surface. We are counted Mechanical Broom among the overriding mechanical waterless broom suppliers, based in India. Salient Features of Our Mechanical Waterless Broom : Can be operated conveniently by towing with a tractor or jeepWeeping width is 2.25 meter clear sweepingDust is collected on left hand sideAdjustable on both side as per the slope of roadBrush adjustments up to 100 mmTwo heavy duty wheelsNylon brush bristles Technical Specifications : Mode of Operation Can be Operated conveniently by towing with a Tractor or Jeep.Sweeping Width 2.25 Meter Clear sweeping. Dust CollectionLeft Hand Side : Sweeping AdjustmentAdjustable on both side as per the slope of road.Brush Adjustments up to 100 mm. Wheel Two Heavy duty Wheels. Material of BrushNylon Bristles.Suitable of UtilizationSuitable to use for MetalingWet Mixed Macadam Surface.Asphalted Road Surface etc.

The company uses high quality raw materials for manufacturing this Hot Mix Plant. The Hot Mix Plant manufactured, exported, and supplied by the company ensures a compatibility with Indian site conditions. In addition, this Hot Mix Plant is offered at reasonable prices. Appreciated For : Easy maneuverabilityCorrosion resistive propertyHigh durabilityExcellent performanceEasy adjustment Used In The Construction Of : RoadsBuildingsBridges Product Details : HS Code : 01Trademark : TEModel No. : TE 01Productivity : 200 Sets / YearUnit Price / Payment : FOB Qingdao USD150000 / SetPacking : Container 40hc For Shipment Components " FOUR BIN FEEDER : Our clients can avail from us Four Bin Feeder, which is resistant to wear & tear and available in 20 to 80 Tons capacities. Provided with extractor belt, & A.C or D.C Motors these are suitable for various road construction machines. These are manufactured using certified material, which ensures durability and fine performance. Four Bin Feeder is sturdy and can be availed at most competitive price.THERMO DRUM UNIT : Thermo Drum is the most important unit of the entire plant. Specially Designed Buckets, Advance Firing Systems, Sturdy Drive systems etc are some of the parts which assure Long Term Reliable Plant Operation. This unit is available in three models as per plant model.BITUMEN TANK : Fully Insulated Bitumen Storage & Heating Tanks are available with various capacity models. Pumping unit is fitted on this Tank to send the Heated Bitumen in the Thermo drum unit. Sufficient thickness of Insulation & Advanced Oil Burner saves the valuble Fuel for Heating of the Bitumen.THERMO DRUM BURNER : Thermo Drum Burner is the heart of the entire system and hence its efficiency, ease of serviceability etc. are most important factors. The burner is fully automatic and two stage (High & Low) pressure jet type system. This burner is suitable to use LDO/Diesel as fuel and is fitted with remote control system to detect flame failure and have electric spark ignition system condition hence nil downtime for nozzle cleaning.LOAD OUT CONVERYOR BELT : Load out conveyor Belt transfers the Mixer Material from Thermo Drum to the Gob Hopper from which the material is discharged to the Truck. Gob Hopper is provided with sufficient storage capacity to avoid segregation of material.SLINGER CONVEYOR : Slinger Conveyor is provided to transfer the Screened Raw material from Four Bin Feeder to the Thermo Drum. Load Cell is fitted on this conveyor to weigh the material being transferred.VIBRATING SCREEN : Vibrating Screen is used to remove oversize aggregates from the Raw Material coming from the Four Bin Feeder.MINERAL FILLER : Mineral Filler is provided with sufficient storage & feeding capacity. Pneumatic conveying system is powered with Twin Lobe Air Compressor to assure the delivery of the minerals to the Thermo drum unit.FUEL TANK : Available with us is L.D.O. Tank, which is cost effective, durable and used in various industries for storing chemicals, solvents and other liquids. These have been appreciated by clients not only for corrosion resistance but also for low maintenance. To fulfill diverse requirements of clients, we offer L.D.O. tanks in various capacities. These tanks are easy to install and manufactured using quality raw material to ensure international quality standards.CONTROL PANEL BOARD WITH CONTROL CABIN Features : Easy operation and less maintenanceDesigned for International MarketModem Drum Mix TechnologyProduces High Production RatePortable of StationeryLow dust EmissionProper Drying and Homogeneous Mixing of AggregateModular Design For Containerized TransportProper Asphalt Coating and SavingEast to OperateLess Fuel ConsumptionFully Automatic Computerized Control Panel BoardAccuracy In Quality Control

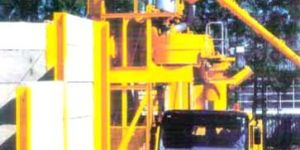

We offer exclusive quality Concrete Batching Plant that is produced using the finest grades of raw materials. Concrete batching plant offered by us is appreciated for its effective performance, high precision, and low maintenance. Besides, our concrete batching plants are also available in diverse production capacities as per the desired needs of our customers. comprises : modular designed fabricated sections independent weighing system sturdy skip hoist trackreplaceable hard-liner tiles integrated glass cabin features : capacity : 20, 30, 45m3/hroperation with : plc/pc control design : bolted type compulsory : single shaft mixer optional : pan type mixer, star bins, radial dragline scrapper specifications parameters units modelte-20te-30te-45output capacitym3/hr.20 m3/hr.30 m3/hr.45 m3/hr.type of mixer--pan mixerpan mixer pan mixer capacity of mixer liter250500750 aggregate storage --star batcher star batcher star batcher nos. Of compartment no.040404active storage cap.m371020boom length meter101212stock pilesm3300500700aggregate load cellsno.040404cement load cells no.030303water load cellno.010101weighing scale--------skip capacity kg.100015002000cement capacitykg.200300600water capacitykg.100150300cement screw conveyor n.b.6" 8"8"vibrator motor --sand / cement sand / cement sand / cement controls--fully automaticfully automaticfully automatic connected power kw50.57091.5concrete discharge height (with raised foundation)mt.4.24.24.2total weight (approx)mt.131620.

We are offering Concrete Batching Mixer Plant. we hold specialization in providing to the clients supreme quality mini reversible concrete batching mixer plant. mini reversible concrete batching mixer plant is extensively used for grinding and mixing of construction materials used for making of roads. this concrete batching mixer plant is precisely engineered and delivers high output. consequently, we are counted amongst most trustworthy concrete batching mixer plant manufacturers, suppliers and exporters from india. features : compact design durable fast mix minim space requirement smooth operation easy to handle low maintenance cost longer service life applications : highways airports railways optional accessories : 3 bin aggregate mobile storage bin system feeding screw conveyor system of cement manually operated load out belt conveyor for effective release of concrete mixture.

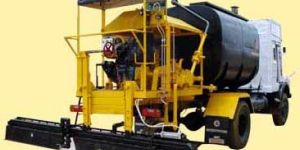

We offer highly efficient Bitumen Sprayer, which is hard to find anywhere else. Our bitumen sprayer is highly effective in its working thus acclaimed by the clients in the market. Our bitumen sprayers are made up of high quality parts so that there is no compromise in the quality. why our bitumen sprayer? manufactured from good quality raw materials sophisticated design efficacious performance exceptional durability easy to adjust engine section equipped with : air cooled ha 294 diesel engine fully - insulated tank full-circulating spray bar pressure cleaning system.

We are a trusted Manufacturer, Exporter, and Supplier of superior quality Asphalt Drum Mix Plant that is developed and designed using the latest technology. Our Asphalt Drum Mix Plant ensures a reliable performance. We offer customized Asphalt Drum Mix Plant as per requirements of honored customers. Why Our Asphalt Drum Mix Plant? Easy to operate Requires less maintenanceDesigned as per international standardsHigh production rateLow dust emissionsLess fuel consumptionComputerized control panel board Plant Comprises : Four Bin Feeder : This unit is provided to store the Aggregates & Deliver them to the System as per required. Sturdy Design & Quality Fitment make this unit running for years without any trouble. Options for Storage & Feeding System are available as per plant model. Thermo Drum Unit : Thermo Drum is the Most important unit of the entire plant. Specially Designed Buckets, Advance Firing Systems, Sturdy Drive systems etc are some of the parts which assure Long Term Reliable Plant Operation. This unit is available in three models as per plant model.Bitumen Tank : Fully Insulated Bitumen Storage & Heating Tanks are available with various capacity models. Pumping unit is fitted on this Tank to send the Heated Bitumen in the Thermo drum unit. Sufficient thickness of Insulation & Advanced Oil Burner saves the valuable Fuel for Heating of the Bitumen.Thermo Drum Burner : Thermo Drum Burner is the heart of the entire system and hence its efficiency, ease of serviceability etc. are most important factors. The burner is fully automatic and two stage (High & Low) pressure jet type system.This burner is suitable to use LDO/Diesel as fuel and is fitted with remote control system to detect flame failure and have electric spark ignition system.The temperature is controlled through thermostatic control device to operate the plant in desired temperature range. The nozzle system is so designed that the nozzle can be cleaned during running condition hence nil downtime for nozzle cleaning. Load Out Conveyor Belt : Load out conveyor Belt transfers the Mixer Material from Thermo Drum to the Gob Hopper from which the material is discharged to the Truck. Gob Hopper is provided with sufficient storage capacity to avoid segregation of material. Slinger Conveyor : Slinger Conveyor is provided to transfer the Screened Raw material from Four Bin Feeder to the Thermo Drum. Load Cell is fitted on this conveyor to weigh the material being transferred. Vibrating Screen : Vibrating Screen is used to remove oversize aggregates from the Raw Material coming from the Four Bin Feeder.Mineral Filler : Mineral Filler is provided with sufficient storage & feeding capacity. Ruggedly designed structure and hopper for filler storage. Controlled discharge through variable speed driven rotary valve pushed by pressurized airflow by air-compressor.Fuel Tank (L.D.O Tank) : Available with us is L.D.O. Tank, which is cost effective, durable and used in various industries for storing chemicals, solvents and other liquids. Fuel Tank Fuel Tank is provided to store LDO or Furnace Oil for the Burners. Furnace Oil Heating System is provided as Optional attachmentsControl Panel Board with Cabin : Microprocessor Base module software based fully automatic, computerize controls. Both automatic and manual mode of operation. Up to date print out records containing all parameters of asphalt production. Dust and scratch proof panel board housed in insulated, air-conditioned control room.Extended junction box for easy connection, maintenance and fault tracing.Pollution Control Unite : Venture system provided for higher efficiency Brass spray nozzles for anti-rusting long performance an easy maintenance.Mix Storage Silo for Asphalt Drum Mix Plant Specifications ModelDM-20DM-30DM-45DM-60DM-90DM-120Thermo Dryer UnitDiameter (m)11.131.31.51.82.1Length (m)3.96.16.256.756.757.5Capacity range (TPH)*15to2030 to4545to6060to90 90 to120120 to150Exhauster (CFM)5500750010500145001850022500Burner Rating (Ltrs. / Hr.)150150250350550900qInsulation (Cera wool in mm)25252525`2525Four Bin Feeder ColdfeedGathering conveyor width (mm)600600600600`600`600Belt feeder width (mm)500500500500500500No. of Bins444444Bin Capacity (MT)5.578101215Slinger ConveyorConveyorWidth(mm)600600600600600600Loadout ConveyorConveyor Width (mm)600600600600600600Load out Height (m)3.23.23.23.23.23.2Hopper Capacity (kg)35057575075010002000Power RequirementsDrum Drive (HP)101520254060Exhauster (HP)1015202550704 Bin Feeder Hopper (HP)4x1.54x1.54 x 24 x 24 x 34 x 3Feeder Gathering Conveyor (HP)35557.57.5Slinger Conveyor (HP)35557.57.5Vibrating Screen (HP)0.50.51122Load out Conveyor (HP)33557.57.5Hydraulic Power pack (HP)222225Asphalt Pump (HP)333335Mineral Filler Rotary Valve (HP)1.51.52255Dryer Automatic Burner------------Fuel Pump (HP)333335Blower (HP)557.57.51525Bitumen Tank Capacity (MT)151515202020Insulation (Glass wool in mm)505050505050Ldo TankCapacity (Ltrs.)1500150020006000800010000Total Connected LoadLoad80 KVA100KVA120KVA135KVA220KVA300KVA
