Traction Elevator Dealers in Ahmedabad

Ideal for high- and medium-rise buildings. Traction elevator delivers smooth, quick acceleration, energy efficiency and attractive cost for high-rise buildings. Especially, these lifts impress with their versatility, power and speed. A superior combination of flexibility and performance. To create the highest quality traction elevators, our designers and engineers put their technological creativity to its full potential. Our traction elevators combine the latest digital technology with world-renowned construction to achieve a new level of precision, energy efficiency, safety and reliability.

Passenger weight is 68 Kg. per person as per Indian Standard,The parameter in this table bases on the counterweight coefficient 0.50,Table is just for reference to select our machine, you must calculate as per your elevator parameter,As innovation in design is continuous, the technical data can be changed without prior notice

• Country of Origin: India
• Type: Traction Elevator
• Application: Residential, Industrial, Commercial
• Color: Blue
• Voltage: 440V
• Power: 2-4kw
• Driven Type: Electric
• Warranty: 2yrs
• Loading Capacity: 800-1000Kg, 600-800Kg, 400-600Kg, 200-400Kg, 100-200Kg

• Brand Name: SHARP
• Packaging Details: Wooden Plywood Packing
• Supply Ability: 15000 Piece/Pieces per Year
• Place of Origin: Gujarat, India

A superior combination of flexibility and performance. To create the highest quality traction elevators, our designers and engineers put their technological creativity to its full potential. Our traction elevators combine the latest digital technology with world-renowned construction to achieve a new level of precision, energy efficiency, safety and reliability.

The traction lift manufactured, supplied and exported by us has been widely acclaimed by the customers due to its superior quality and durability. Widely used in offices, shopping malls, hospitals and many other places this lift can accommodate six people at a time. With high functionality and efficiency, the traction lift are fabricated using superior quality galvanized material. features high functionalityefficientdurabilityeasy to operate applications shopping mallsofficeshospitalrestaurants

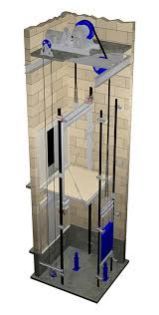

Traction lifts are the oldest and most versatile type of lift. They basically consist of a lift car and a counterweight attached to separate ends of a cable which travel over a large pulley wheel called a Sheave at the top of the lift shaft. Traction lifts generally require a machine room at the top of the lift shaft. This is typically higher than a standard room as the top of the lift shaft protrudes into the room, terminating in a platform about 1m higher than the floor of the room that houses the motor, gears, sheave, safety governor and floor selector. Lift machine rooms must be kept locked as unauthorised persons could interfere with the equipment or sabotage it or injure themselves. A lift motor room features fast moving parts and high voltage electricity. Machine rooms should be well ventilated and heated if there is a chance of cold weather damaging the equipment and they should also have a lifting beam attached to the ceiling and a hatch in the floor so that heavy machinery can be winched out and new machinery winched in. With lift machinery having a seemingly ever decreasing lifespan, it is important to ensure that all the equipment can be replaced easily. Machine rooms should ideally be accessible by stairs although many machine rooms are only accessible by a ladder. Machine rooms should not be used for any purposes other than housing the machinery required for the lift, when lift machinery is located in a general service penthouse, it should be located in a separate and locked room. In some cases, the machine room is located below the lift shaft rather than above it, in this case, the lift cable is a complete chain with an un-powered sheave at the top of the haft and a powered sheave at the bottom, located in a machine room.

Traction elevators are the most common type of elevators. Elevator cars are pulled up by means of rolling steel ropes over a deeply grooved pulley, commonly called a sheave in the industry. The weight of the car is balanced by a counterweight. Sometimes two elevators are built so that their cars always move synchronously in opposite directions, and are each other's counterweight.   Nowadays, some traction elevators are using flat steel belts instead of conventional steel ropes. Flat steel belts are extremely light due to its carbon fiber core and a high-friction coating, and does not require any oil or lubricant. Because of these qualities, elevator energy consumption in high-rise buildings can be cut significantly.
