Ultra Febtech Pvt Ltd Vatva, Ahmedabad, Gujarat

Bucket elevators are designed to move flowing powders or bulk solids vertically. Bucket elevators use an endless belt or chain and have a series of buckets attached to it. Bulk material is spread into an inlet hopper. Buckets (or cups) dig into the material and convey it up and over the head sprocket/pulley, and then throw the material out a discharge throat.

High - efficiency vibratory separators, available in size from 24” to a large one 72” in diameter. Creative design features maximize screen utilization, efficiently handle widely varying feed rates and consistencies, increase throughput, prevent blinding. One to multilevel screen surfaces yielding desired numbers of predetermined fractions with accurate separations in various mesh sizes. The equipment also can be supplied with dust cover and other special auxiliaries. Material of construction will be choice of customer and largely will depend on the application. Application In: Food, Pharma, Chemical, Minerals, Guar Gum / Starch / Cellulose etc

A unique equipment to handle the mass that is most difficult to grind. It gives the desired fineness with a very high capacity and that too at lower power consumption. No special feeding systems such as screw conveyor or rotating valve is required. It pulls the material in, due to high suction of air and throws in high vertical discharge pipeline makes even drying possible with in the same equipment. Less maintenance makes the operation of grinder unstoppable. The equipment is available in vertically mounted or horizontally mounted on tough frame. Various capacities are available. Application In: Guar flour, tamarind kernel powder and their derivatives. Cellulose and starch derivatives, to grind pulses and cereals, chemicals, feed and minerals.

We ultra febtech - an iso 9001:2008 certified company engaged in manufucturing of tkp plants to convey the material. The plant has been configured keeping in mind minimum manual operation. The material will be fed into the pneumatic system and will be conveyed to the reactors. The one hold up hopper (storage feeder) will help to save the time between two batches. Raw material tamarind kernel powder seeds is treated with the chemicals as described in the process in the reactor. For effective use of the plant, two reactors are suggested with medium size s those are more convenient and economical to use. To add chemicals, three metering tanks are suggested. To maintain temperature or to increase temperature of the material in the reactor, hot water tank is provided. This hot water tank is equipped with coils to maintain the desired temperature of the water. The reacted mass is sent to the ultrafine grinder. Ultrafine grinder can grind the material with minimum thermal degradation compared to other grinders. Material coming out from the grinder will have high moisture due to addition of moisture in the reaction stage.

Rotary Table Feeders are used in industries, which require the moving or feeding of powder or granular substances. Table feeders are particularly helpful in moving sticky or hard to feed materials. They are also very useful in converting an intermittent batch process into a continuous material feeding process.The amount of material leaving the rotary feeder can be controlled by changing the angle of the discharge plow via a hand wheel or by motor.

The rotating paddles break up soft agglomerates and propel individual particles through the screen while rejecting hard lumps and trash. This makes ease of screening even to the powders that has poor flow ability. A compact appearance, quiet operation, and high output make this rotating screen a highly acceptable for the various applications of the powder screening. These are available in various materials of constructions.e in various materials of constructions.

Available size : 4" to 20". Rotary Air lock valve is suited for low and medium differential air pressure systems, gravity, or volumetric feeder discharge equipments. This will allow free flowing solids to pass from one to another valves space with a different air pressure. Rotary airlock is useful as one component in a bulk or specialty material handling system.

The design of the Reaction blender also makes suitable to dry stage reaction for the application such as starch, gum and cellulose derivatives. We also offer a various range of accessories such as liquid spray system, controlled rate discharge device, jackets to control or to vary the temperature of the mass. Application In: Food, Pharma, Chemical, Minerals, Guar Gum / Starch / Cellulose etc.

Plough shear mixer is a typical mixer for mixing highly viscous materials where the ploughs are breaking the lumps and gummy materials to separate and again mix them with other particles. Sometimes ploughs are in different shapes according to particular requirement. We add the Ribbon with plough for better mixing. Application In: Food, Pharma, Chemical, Minerals, Guar Gum / Starch / Cellulose etc

By adopting cutting edge technology, and making use of qualitative raw material, we have come up with a high performing range of reaction tanks. Fabricated in accordance to the market requirements, these reaction tanks are used for handling corrosive chemicals in harsh conditions. These reaction tanks aid automatic and easy control of more than one process at a time. Designed up to 300 bar pressure with extra safety equipment, these tanks are designed and installed on the basis of type of fluid, nature of fluid, temp.

The entire unit is fabricated with engineering precision. Along with the double ribbons that provide to & fro, up & down movement to the powder. Two of chopper blades moving at cutting speed are provided at diagonally opposite sides to break lumps of the mixture. It accurately and rapidly blends small proportions into large stocks. Ribbon blender is also suitable to mix a small quantity of liquids to powder stocks. Offers you dust free operation, compact and excellent appearance. This low operative cost equipment is available with the sizes varying from a tiny lab model to 15000 liter.

Our company manufacturer and supplier Pulse jet dust collector india and world wide trade.

Pneumatic Flash Dryer will be effectively used for drying the wet material and convey it. The drying takes place in wide and high vertical tube. The material is sucked into the tube with a negative suction. The hot air is also carried with the material. Cyclones will be attached for the air and material separation. Necessary air lock will be provided with the system.

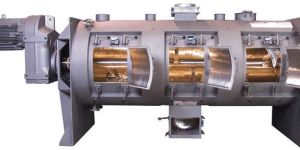

We manufacture superior quality plough mixer that are used for different blending, mixing and drying processes. The machines provide perfect homogeneous blends for dry, fine as well as coarse powders, grains and pastes.These mixers find application in industries like pharmaceuticals, brake lining, cement, chemicals, cosmetics, dyes, fertilizers, foodstuffs, paints etc. Our range of plough mixers can be availed with optional jacket for cooling and heating applications.

We manufacture superior quality plough mixer that are used for different blending, mixing and drying processes. The machines provide perfect homogeneous blends for dry, fine as well as coarse powders, grains and pastes.These mixers find application in industries like pharmaceuticals, brake lining, cement, chemicals, cosmetics, dyes, fertilizers, foodstuffs, paints etc. Our range of plough mixers can be availed with optional jacket for cooling and heating applications.

Pin Mill is designed for finer mesh grinding of different materials, which are heated during grinding. The RPM of machine is varying from 2000 to 5000 depending on material to be pulverized. The output mesh size is also variable from material to material. This is an ideal solution for size reduction for foodstuff. It is available with water-cooling jacket on special requirements. Uniform output & easy to operate and maintain are the distinctive features of Pin Mill. Application In: Food, Pharmaceutical and chemical industry.

Nauta Mixer is Ideal mixer to mix various small lots to make uniform one lot or to mix many large proportions of powders to a uniform product. This should be perfect choice. The Nauta mixer offers low operative cost than any other types of mixers. A planetary rotating screw near the wall of cone not only mixes the powders but also breaks the lumps. A silent equipment offers you trouble free operation. The sizes of Nauta mixer available are 500 liters to 20000 liters. Application In: Food, Pharma, Chemical, Minerals, Guar Gum / Starch / Cellulose etc.

An extra heavily constructed machine designed to pulverize even rocks and minerals of medium hardness. Fineness, ranging among 100 meshes to 300 meshes (150 to 50 microns) and in some cases even 500 meshes. Non concrete foundation - frame with AVM pads may be provided. The equipment is suitable for medium hard minerals, chemicals, bulk drugs, coal, paints, dyes and pigments, herbs, seed, etc. Application In: Guar flour, tamarind kernel powder and their derivatives. Cellulose and starch derivatives, to grind pulses and cereals, chemicals, feed and minerals.

Details of Hot Air Generator A fully automatic multi pass counter current Hot Air Generator consist of stainless steel shell type integral combustion chamber accommodated in multi M.S. shell. The cold air is inserted by a suitable capacity blower fan in first pass, absorbs heat from flue gas passage and accordingly both hot flue gas and cold air travel in opposite direction in the passage which ultimately transfers 90% heat to cold air and delivers hot air from hot air outlet hole. The system functions fully automatic on temperature sensing device installed at hot air outlet which ON-OFF the burner at pre-set temperature. the system is a package type unit, fixed on common base frame.

Ultra Febtech Pvt. Ltd. make a Hammer mill which is used for the materials that are grounded on the impact of the hammer. The feed is at the top and while rotating in the grinding shell; it is often allied beaten by the swing type hammers fixed to the rotor. It is crushed by frequent contact of hammers and wall. A screen is round the rotor, which prevents the bigger particles to escape from the chamber. The mill is made in SS and MS.

The plant has been configured and designed in such a way that minimum work force will require. The guar split will be fed in to the pneumatic system to feed in to the turbo screen. The turbo screen is suggested at the high of plant. The screening will be employed for the removal of foreign matter. This screened material will be stored in a storage hopper. The guar splits will fall from the screens by gravity to the storage hopper, which is configured below the screen. From storage hopper material can be taken in to double cone mixer as and when required by gravity for the rehydrating of guar splits.All the rehydrated guar split will be sent to the hopper of Flakers at a time by gravity. Flakers will crush the guar splits and crushed guar splits will go into the ultrafine grinder at the uniform rate.

We ultra febtech - an iso 9001:2008 certified company engaged in manufucturing of guar gum to convey the material. The plant has been configured and designed in such a way that minimum work force will require. The guar split will be fed in to the pneumatic system to feed in to the turbo screen. The turbo screen is suggested at the high of plant. The screening will be employed for the removal of foreign matter. This screened material will be stored in a storage hopper. The guar splits will fall from the screens by gravity to the storage hopper, which is configured below the screen. From storage hopper material can be taken in to double cone mixer as and when required by gravity for the rehydrating of guar splits. All the rehydrated guar split will be sent to the hopper of flakers at a time by gravity. Flakers will crush the guar splits and crushed guar splits will go into the ultrafine grinder at the uniform rate. Ultrafine grinder is proposed for the grinding of crushed guar splits. This grinder has ability to grind the material without generating too much heat. Material will be fed into the dryer. Oil will be the media to convey the heat and deliver to the air. This hot air will take the material into the dryer line where actual drying will take place. Attached cyclone system will separate the material and hot air. To heat the oil thermal boiler will be used. the material will be screened through centrifugal screen. Material passing through the screen will be again screened through turbo screens as additional control. This material will be sold as a premium product. Oversize of the centrifugal screen will be screened through turbo screen to separate another grade in terms of particle size followed by additional screening. The oversize will be screened through another turbo screen to separate another grade. Oversize will be passed through another grinder.

Some process need only crushing of the material to meet either to requirement of coarse material or to feed smaller sized material to another grinder. Two hardened rolls rates towards each other. They are kept nearer to each other by means of either mechanical devices or with hydraulic system. This system helps to create the pressure on the rolls and makes the crushing possible. The larger particle of mass, cereals, pulses is pushed between the rolls uniformly spread and with continuous rate through a separate device. A dried feed mass gives material at the bottom with reduced size or if soaked cereals or pulses, give you the material in a flake form. Due to use of roll, Flakers also known as a roll crusher. Application In: Pulses, guar, TKP, minerals and feed.
