Uni-Mech Industries Vatva, Ahmedabad, Gujarat

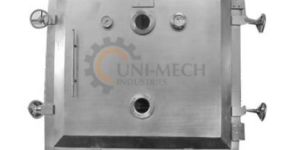

Uni-Mech Vacuum Tray Dryer is offered in cGMP / Non-GMP models for drying at low temperature (normally below 80 °C) to avoid decomposition / cheering of the product. It is composed of vacuum tight insulated drying chamber with shelves, utility circulation arrangement, special designed door, vacuum system, solvent recovery system, heating system. It is used for processing batch using vacuum for pharmaceutical & Food Industries, Sterilization should be conducted prior to the drying process. MOC: Mild Steel, different grades of Stainless Steel, Alloy material and even cGMP / Non-GMP model is available. Operated by: Normally by Hot Water Temperature : Normally below 80 °C Application : Chemical, Pharmaceuticals, Food products. Features: The Hot Fluid is Circulate in Hallow Shelves. Vacuum tray dryer is designed in such a way to resolve the client problem with a suitable MOC. Special designed door locking arrangement

Vacuum Nutsche Filter is a closed / Open Filtration under Vacuum / atmospheric pressure along effective washing. Nutsche Filter is consisted Cylindrical Shell / Rectangular Shell, Top Open / Dish-end with / without Davit Arm attachment. All Filters are manufacture from Mild Steel, Different grades of Stainless Steel (SS316/SS304), Hastelloy, Mild Steel with Lining or Coating like FRR Lead or Rubber, PTFE, Halar in accordance to the Chemical properties. These Equipments are used in Dyes & Intermediates, Pesticides, Insecticides, Pharmaceuticals & Food Industries, where Solid-Liquid Separation by Filtration with Safe Solvent recovery, Preventing Atmosphere from Hazardous Chemicals. Other Filters manufactured by Uni-Mech : Ro Plants Bag Filters Membrane Filters Cartridge / Candle Filters Filter Press

Uni-Mech Tray Dryer is an enclosed insulated chamber in which trays are placed in trolleys. Fresh air and re-circulated air is heated by Heating Elements and is re¬circulated in chamber resulting in heat transfers in materials. Uniform air circulation, controlled temperature, sturdy construction and large working space are the valuable features of the oven. TRAY DRYER is especially designed for Pharmaceutical, Food& Bakery, Chemical and Dyes & Intermediates. Uni-Mech Tray Dyers are manufactured from materials like Mild Steel, Different grades of Stainless Steel. (cGMP Model is available) Tray Dryers are operated by Steam, electrical heater, thermic oil or hot air.

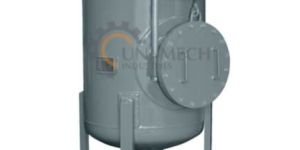

Uni-Mech manufactures Storage Tanks / Vessel for the Pharma and Chemical Industries ranges from 1 KL to 350 KL capacity. Storage Tank is designed for Mechanical / Process Chemical as per IS-2825 / ASME Section-VIII, Div. -1 / API 650 / IS 803. The main application of the tank is in Pharmaceuticals, Fine Chemicals, Petro-Chemicals, Dyes and Intermediates, Fertilizers, Refineries, Dairies and Food Product Industries. Many times, inside the storage tank lining, bonding is done with Rubber / FRP / Lead / Tile / Brick / Glass / PTFE / Haller /SS Cladding etc. Process Storage Tank : Silo Tanks Pressure Tanks- Ethylene Oxide & Petroleum Tank, Air Receiver, Horizontal Tanks Vertical Storage Tank Raw Material Storage Tank : Batch/Measuring Tanks Receivers Finished Product Storage Tank : Solid Material Storage- SS Bin, SS Containers

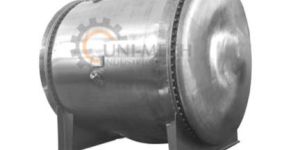

Crystallization is an important unit of operation for manufacturing wide range of chemicals, which are ideal for use in pharmaceutical and chemical industries. The nature of a crystallization process is governed by both thermodynamic and kinetic factors, which can make it highly variable and difficult to control. Factors such as impurity level, mixing regime, vessel design, and cooling profile can have a major impact on the size, number, and shape of crystals produced. Crystal growth is a layer-by-layer process with less retention time. Crystallization equipment has been classified according to the means of suspending the growing product. Cooling Crystallizers : Static Crystallizers Draft Tube Baffle Crystallizers Evaporative crystallizers Forced Circulation Crystallizers Freeze crystallizers Melt crystallizers Oslo Crystal Crystallizers

Material : Mild Steel / Different grades of Stainless Steel

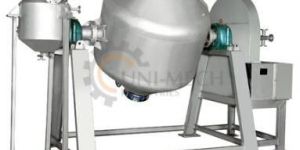

UNI-MECH Rotocone Vacuum Dryer is most useful for drying heat sensitive materials used in chemical and pharmaceuticals with weldedMineral Wool / Glass Wool insulation. It consists of a conical Shell with a jacket for steam or oil heating and leak proof arrangement of Vacuum. The indirect heating process is carried out under vacuum; recovery of solvent is possible by condensing the vapor generated during operation. The cone rotates at a slow RPM to ensure gentle agitation of the entire mass.

Application : Chemical, Pharmaceuticals, Food products.

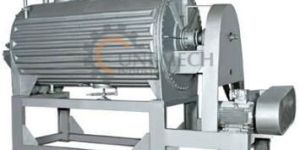

Uni-Mech Rotary Vacuum Dryer (RVD) is useful for wet cake/powder/slurry drying at high/low temperature steam/thermic oil in a closed condition with a batch process. This is very effective drying operation with agitator under vacuum and hence process becomes faster and sometimes decomposition / cheering of product can be prevented at higher temperature. Heat sensible product can be dried in this equipment. Any solvent based product is very safe when used in this equipment with effective solvent recovery by condensing the vapor. RVD is constructed from Mild Steel, different grades of Stainless Steel and even cGMP/ Non-GMP model is available. Benefits : Suitable for organic solvent based product Drying time reduce due to drying is carrying our under vacuum & Agitator Safe for handling of flammable solvent Prevent atmosphere from hazardous chemicals Suitable for heat sensible product and prevent decomposition / cheering Solvent recovery is possible by condensing the vapor Application : Pharmaceutical & Chemical Dyes & I ntermed iates Pesticides & Insecticides Food Products

Ribbon blender is used for uniform, homogeneous and quick mixing of powders and semi-wet materials of different densities by specially designed helical ribbon agitator. It can be used for Pharmaceutical, Food, Chemical, Dyestuffs & Pigment etc. For Pharmaceutical Industries, Ribbon Blender is called as Mass Mixture. Uni-Mech manufactures Continuous type and Batch type Ribbon Blenders. Uni-Mech also designs Ribbon Blenders for Chemical Reactions with Heating & Cooling applications. Ribbon Blender Design Range : Capacity range: 5 liters to 15000 liters Material of Construction: Various grades of Stainless Steel, Mild Steel, Hastelloy (cGMP model is also available).    Special Features : Homogeneous Mixing Dust Free Operation Easy Handling & Operations Top Charging & Bottom Discharge through Butterfly Valve / Sliding Gate

Thickness : 5 MM to 40 MM

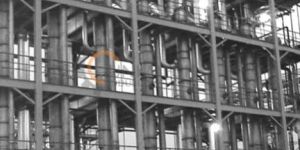

Uni-Mech Multi Effect Evaporators are the equipment in which steam from an outside source is condensed in the heating element of first effect. The boiling temperature at which the first effect operates is high enough so that the evaporated water can serve as the heating medium for second effect. The vapors so formed are then sent to a condenser if it is a double effect evaporator. The feed for the multi-effect type evaporator is generally transferred from one effect to another. This leads to the ultimate product concentration to reach the desired effect through the evaporator. Uni-Mech offers many Evaporators like : Falling Film Evaporator Thin Film Evaporator Forced Circulation Evaporator Rising Film Evaporator

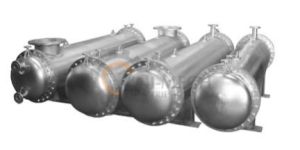

Uni-Mech designs (Thermal and Mechanical) and manufactures a complete range of Shell and Tube Heat Exchangers for cooling, condensing and heating application in fixed tube sheets type, floating head or removable “U” tube bundle type to suit different process conditions and to specific requirement of customer. Uni-Mech designs are as per design Code IS-2825, AMSE SEC. VIII, TEMA, API-660 etc. Salient Features : Well engineered to avoid misdistribution of fluid flow High thermal efficiency High heat transfer coefficients and optimum operating cost Stress free tube bundle assembly Heat Exchangers for processes involving phase transition : Condensers Falling Film Evaporators Re-boilers Finned Tube U-Tube Fixed Tube Sheet Removable tube Bundle Coil in Tank Heat Exchangers without phase transition Coolers and pre heaters for liquids and gases Materials of Construction : Carbon Steel Various grades of stainless steel Copper Duplex Steel Hastelloy Titanium Alloy 20

Manual/Automatic Filter Cleaning System is used for Filter Cleaning in AHU areas. UNI-MECH manufactures the system complete with washing, scrubbing and drying of single / double Filters (600x600x300 mm approximately.) Uni-Mech manufactures Storage Tanks/Vessel ranging from 1 KLto350 KL in capacity.

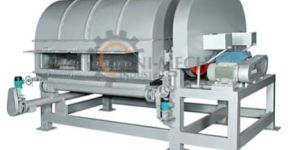

UNI-MECH Manufactures Drum Dryer/Flakers are used to convert solid flakes from slurry by either applying heating media or chilling media, depending on materials and their properties. This is achieved by forming a thin Layer of Molten Slurry. Molten Slurry is fed into a single or double Drum dryer and the materials are dried in single rotation and scrapped out by adjustable scrapper Blades. Drum Dryer is made from MS, SS304/SS316, Alloy material and MS with Hard Chrome materials. Enclosure is provided for Vapor extraction by vacuum / blower. It is dust tight so prevent atmosphere and nitrogen purging is possible. It is widely used in Some Minerals, MCA, fatty acids, caustic soda, Naphthalene, resins, Nickel catalyst, waxes, guar gum, sulfur dyes, Milk products, baby foods, breakfast cereals, fruit and vegetable pulps, starches, spent yeast, and various kinds of glues, pigments and waste products etc. Special Features : Low Cost of operation Designed for trouble free operation Continuous Process High thermal efficiency User friendly Accomplishment of flaking in a single step with uniform product

Drum DryerFlakers are used to convert solid flakes from slurry by either applying heating media or chilling media, depending on materials and their properties. This is achieved by forming a thin Layer of Molten Slurry. Molten Slurry is fed into a single or double Drum dryer and the materials are dried in single rotation and scrapped out by adjustable scrapper Blades. Drum Dryer is made from MS, SS304SS316, Alloy material and MS with Hard Chrome materials. Enclosure is provided for Vapor extraction by vacuum blower. It is dust tight so prevent atmosphere and nitrogen purging is possible.

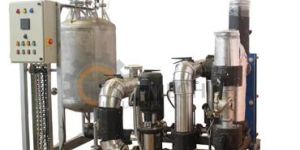

Hot / Cold Water System is the most commonly used in versatile and compact fully automatic skid mounted unit. Hot / Cooling Water System is designed with higher energy efficient solution on heat Transfer requirements. It is operated by way of Steam / Electrical / Solar / Brine Water etc.

Uni-Mech designs and supplies fractional distillation System for various aromatic chemicals, fine chemicals, and solvent recovery. The company’s unique design offers high purity and maximum recovery of the product. Uni-Mech also designs systems for heat sensitive chemicals. Continuous Distillation System High Vacuum Distillation system is designed for separation of heat -sensitive, high molecular weight or viscous material using structured packing and Falling film orforced circulation evaporator. Continuous Azeotropic Distillation System It is used for separation of Azeotropic compound using third component as an entertainer. Continuous liquid-liquid Extraction System It is extensively used in the chemical industries where separation by distillation is difficult or not possible because of close boiling point of two component. Continuous extraction needs less solvent and less man power compare to batch system. Proven and time tested technology for the separation involving very low specific gravity difference Highest recovery of the product from mother liquor Durable and Demands less maintenance Application : Fine Chemicals Bulk Drugs Petro Chemicals Pesticides

Uni-Mech Fluid Bed Dryer is designed for rapid and uniform drying granular, crystalline, coarse or similar materials in pharmaceuticals, fine chemicals, dyes, food & allied industries. Fresh air passes through a filter and is heated in a Heating Chamber creating fluidization in product container using diffuser plates and sieve. Fluid Bed Dryer contains explosion flap and pressure relief valve for the safety, in case of excess pressure generation. MOC: Mild Steel, diffrent grades of Stainless Steel and even cGMP/Non-GMP model is available. Operated by: Steam, Electrical heater, Thermic oil or hot air. Performance : Suitable for Water / Solvent removable at low temperature. Continuous process. Temperature: upto135°C Application : Chemical, Pharmaceuticals, Food products. Salient Features : Rapid Heat exchange by granules Differential pressure gauges for measuring differential pressure across inletfilters&filter bags Pneumatically operated exhaust air control damper (for control of fluidization) Inspection window on product container and processing chamber Filter bags & sealing arrangement by means of inflatable tube CIP system for washing down during product changes Fully sealed air control damper with positioners for accurate air monitoring Air filtration supplied with HEPA filters

The robust body of Uni-Mech’s Centrifuges (with basket) is suspended by THREE POINTS or FOUR POINTS. Basket is driven at high speeds resulting in generation of enough centrifugal force to pullout liquids from basket into casing through the basket’s perforated sieves and filter cloths. These machines are available with top discharge, bottom discharge or bag lifting type.

Feature : Three /Four Pendulum Suspension, Statically & Dynamically Balanced Basket, Smooth Running & Longer Life etc.

The robust body of Uni-Mech’s Centrifuges (with basket) is suspended by THREE POINTS or FOUR POINTS. Basket is driven at high speeds resulting in generation of enough centrifugal force to pullout liquids from basket into casing through the basket’s perforated sieves and filter cloths. These machines are available with top discharge, bottom discharge or bag lifting type. UNI-MECH Centrifuges are made from suitable materials like Mild Steel, different grades of Stainless Steel, Hastelloy, Mild Steel with Lining and Coating like FRR Lead or Rubber-Lined, PTFE, Haller in accordance to the Chemical properties. Centrifuges are used in Chemicals, Textiles, Dyes and Intermediates, Pharmaceuticals, Food Product Industries. Uni-Mech offers various types ofcentrifuges in various sizes : Uni-Mech’s Centrifuges come inThree Points OR Four Points with : Top Discharge Bottom Discharge Bag Lifting Special Features : Three /Four Pendulum Suspension Statically & Dynamically Balanced Basket Smooth Running & Longer Life Compact design for minimum floor space More efficient washing Hydraulic System for top lid lifting available.

Agitator Nutsche Filter is a closed cylindrical flanged end type Agitated Vessel with a jacketed perforated bottom. Agitated Nutsche Filter is used for closed filtration under pressure vacuum atmospheric pressure along effective washing. Agitated Nutsche Filters are made from suitable materials like Mild Steel, different grades of Stainless Steel, Hastelloy, Mild Steel with Lining and Coating like FRR Lead or Rubber-Lined, PTFE, Haller in accordance to the Chemical properties. These machines are used in the manufacturing process of various chemicals, pesticides, insecticides, dyes, food products and pharmaceuticals.

Agitator Nutsche Filter is a closed cylindrical flanged end type Agitated Vessel with a jacketed perforated bottom. Agitated Nutsche Filter is used for closed filtration under pressure / vacuum / atmospheric pressure along effective washing. Uni-Mech Agitated Nutsche Filters are made from suitable materials like Mild Steel, different grades of Stainless Steel, Hastelloy, Mild Steel with Lining and Coating like FRR Lead or Rubber-Lined, PTFE, Haller in accordance to the Chemical properties. These machines are used in the manufacturing process of various chemicals, pesticides, insecticides, dyes, food products and pharmaceuticals. Advantages of Uni-Mech Agitated Filter : Reduction in manpower due to no manual handling. Toxic and hazardous material can be processed. Easy cake discharge. Low power consumption compared to other filtration systems. Easy to handle solvent wash along with recovery of solvent. Combining filtration, washing, re-slurring and drying in a fully enclosed automated unit thus reduction of capital and operating costs. Heat transfer surface can be provided on the vessel wall by providing jacket or limpet coil.
