Vacuum Breaker Dealers in Ahmedabad

Available with us is a precisely designed variety of Vacuum Circuit Breakers that are sourced from highly trusted manufacturers in the industry. Designed by experts, the Vacuum Circuit Breakers provided by us find their application in varied industries such as electronic industry, construction industry etc. Further, our Vacuum Circuit Breakers are tested as per IEC standards modular design. The clients can avail these quality-tested Vacuum Circuit Breakers, at pocket friendly prices from us. Circuit-breaker range from 7.2 to 24 kV Fixed, withdraw able in cradle, frontal or lateral versionsOptimized width to facilitate cubicle integration through four phase-to-phase distancesRated current from 630 to 2500 AShort-circuit current from 25 to 40 kA Option  Pilot, easily implemented monitoring moduleElectrical operating mechanismKey lock for locking the circuit-breaker in open position Range associated with switchboard components Multi-performance current sensors, LPCTEarthling switch

We make available Vacuum Circuit Breaker which has impeccable make and long service life. As we are the name on which the customers lay their trust for quality, as we are supplying the finest Vacuum Circuit Breaker. Our organization is renowned as reliable distributor in the industry and based in the well-connected state of Ahmedabad(India).

• Type: Vacuum Circuit Breakers
• Feature: Best Quality
• Condition: New
• Power Source: Electric
• Warranty: 1year
• Current Type: AC
•  Connection Type: 3way

we are offering Vacuum Circuit Breakers . VCB Panel Panel Enclosures as per latest IEC 61439- Part 1 & 2 with drawout option and type tested along with all leading switchgear brands.

Vacuum Circuit Breaker Widely Regarded As VCB Is Distinctive Breaker Which Used Vacuum As An Arc Extinction Medium. In Vacuum Circuit Breaker (VCB), The Fixed & Moving Contact Is Encircled In A Permanently Sealed Vacuum Interrupter. The Arc Is Defunct As The Contacts Are Separated In High Vacuum. It Is Principally Used For Medium Voltage Ranging From 11 KV To 33 KV. Krish Engineer Is An Economical Manufacturer & Supplier Of Quality Vacuum Circuit Breaker (VCB) In Ahmedabad, Gujarat. Customer Can Avail Good Quality Of This Kind Of Circuit Breaker At Our Factory. Salient Features: Our Manufactured Vacuum Circuit Breaker (VCB) Is Inbuilt With Following State Of The Art Features Available In Fixed As Well As Drawout Versions Can Be Customized To Suit Your Needs. Drawout Truck Can Be Interlocked In TEST/SERVICE Position For Safety. Individual Vacuum Interrupters Are Housed In Epoxy Housing With Suitable Clearances. Compartmentalized Design With Separated Chambers For VCB Truck, CT, PT, Busbar And Metering. Can Be Combined With Air/SF6 Load Break Switches In RMUs And Indoor Substations.

• Rated voltage (frequency 50Hz): 12 kV
• Rated current of feeders: 1250 A
• Rated current of the busbar: 2000 A
• Rated power frequency withstand voltage (rms) 60 sec.: 28 kV
• Rated lighting impulse withstand voltage (peak) 1.2/50 microsec.: 75 kV
• Rated short circuit Breaking current (rms): 26.3 kA
• Rated short time current (rms) withstand (3 sec.): 26.3 kA
• Rated short Circuit Making current (peak): 66 kA

• Finishing: Color Coated
• Material: Plastic
• Country of Origin: Made in India
• Brand: Chasten
• Color: Yellow, Blue, Black
• Size: 1.05 inch
• Usage/Application: Chemical Fertilizer Pipe
• Packaging Type: Box

• Size: 15MM TO 25MM

The vacuum breaker is also called vacuum relief valve. It let the outside air in and prevent the backflow of water. The vacuum breaker is placed on the bib cock valve that supply the pressure drop and helps the disc to spring back. This let the vents open and the outside air in.

• SIZE: ½

A pressure-vacuum breaker is an important part of any irrigation system and is required by most cities, because it prevents contamination of the potable water supply through the irrigation system. It works by breaking back-suction on the lines should water pressure fall, thereby preventing contamination from being drawn back into water supply.   Size Available ½" & ¾

We can Supply & Installation of Vacuum Circuit Breaker (VCB) for all Current Ratings on HT side. Our VCBs are very competitive & attractive on both sides of price, structure & utilization. We do design & supply the VCBs based on the clients requirements. Namely the different patterns of the VCB panels which we offers are Incoming, Switching, Outgoing, Synchronizing, Mono & Dual Busbar Distribution.

We can Supply & Installation of Vacuum Circuit Breaker (VCB) for all Current Ratings on HT side. Our VCBs are very competitive & attractive on both sides of price, structure & utilization. We do design & supply the VCBs based on the clients requirements. Namely the different patterns of the VCB panels which we offers are Incoming, Switching, Outgoing, Synchronizing, Mono & Dual Busbar Distribution.

REX Vacuum Breakers provide a simple, dependable way to relieve any unwanted vacuum condition which may develop in closed vessels such as vats, unit heaters, jacketed pans, cookers, receivers, evaporators, heat exchangers, tanks, boilers, etc. and pipe line such as steam mains, condensate line etc. In steam system, a vacuum will form when a control valve throttles down or the steam line is isolated. This vacuum formation will prevent efficient condensate removal and lead to possible equipment or system damage and poor process control. In condensate return systems, collapsing flash steam bubbles will also cause a vacuum to form, leading to water hammer and noise problems. Essential on temperature controlled steam applications, REX VB-Series Vacuum Breaker range offers a simple and effective solution, allowing air to enter a system as vacuum forms, thus restoring the system balance. THE BENEFITS Effective vacuum prevention protects equipments from possible damage and ensures maximum system efficiency. Simple configuration for ease of installation. Robust design ensures maintenance-free operation. Choice of materials for use in a wide variety of applications and environments.

• Type: Vacuum Circuit Breakers

• Material: Ceramic, Plastic
• Condition: New
• Power Source: Electric
• Warranty: 1year
• Current Type: AC
•  Connection Type: 3way

AK Transcharger Pvt Ltd is providing CGL make indoor vacuum circuit breakers (VCB) as well as outdoor porcelain clad VCBs in India. AKTPL offer outdoor metal clad VCBs Up to 36KV, 2000Amp.

Vacuum Circuit Breakers, MCCB Switches, Flexible Control Cables

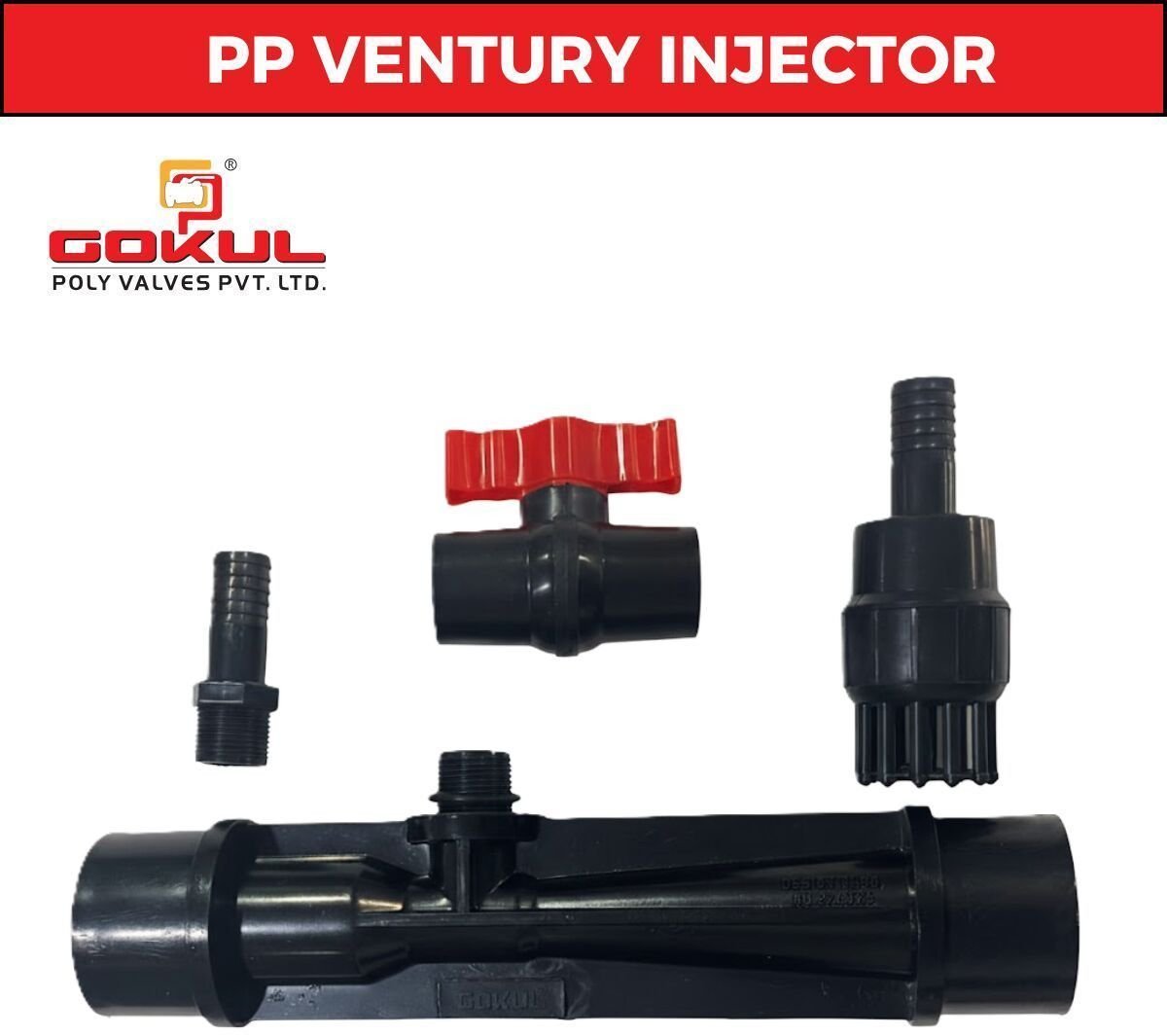

vacuum breaker, Motor Automatic Switch, Venturi Injector

Vacuum Circuit Breaker, motor gearbox, Alarm Annunciator
