Variable Speed Motor Drives Dealers in Ahmedabad

• Product Range: Single-Phase 230V - 0.75 to 3.7kW, Three-Phase 230V - 0.75 to 18.5kW, Three-Phase 415V - 0.75 to 90kW, IP66 Three-Phase 415V - 0.75 to 22kW
• Enclosures: IP20 standard & IP66 Optional
• Handles loads up to: 75 kW (HD) / 90 kW
• Dual rating operation: Designed to be used for heavy and normal duty applications
• Starting Torque: 150% at 3 Hz for V/F, 200% at 0.5Hz for Vector Control
• Reactor: 37kW to 90kW

Features : V/F, Sensorless Vector Control, Slip compensation. Conformal Coating complying to IEC 60721-3-3 class 3C2. Built-in RS485 Modbus. Peer to Peer Communication to share I/O’s. Built-in Brake Control. Inbuilt PLC functionality. Component Life Monitor. Inbuilt PID. Multi Keypad. No Motor Detection. Built-in DC Reactor from 37kW to 90kW. Built-in Braking Chopper till 30kW.   Applications: OEM Machines. Elevators Plastic & Textile Machinery. Compressors Extruders Conveyors Fan and Pump. Crane Control LT / CT.   Overload capacity: Heavy duty operation: 150% of rated current for 60 sec. Normal duty operation: 120% of rated current for 60 sec.   Safety Disable function (Safety Stop): Sx2000 is compliant to the EU Machinery Directive without the additional of previously required external devices. Through this compliance, Sx2000 reduces the number of peripheral devices needed to satisfy safety regulation. It results in cost, space, and maintenance reduction.   Enhanced Brake control: Ideal for Crane & Lifts: Brake release with Delay. Brake Close frequency different settings possible for Hoisting & Lowering Motion. Brake opening command by Drive under following conditions: Inverter Output Frequency > Brake Release Frequency AND Inverter Output Current > Brake Release Current Multi-Keypad: Optional LCD keypad of Master drive enables to access every drive (Slave) connected via inbuilt RS485 communication so that the users adjust and monitor parameters easily.   P2P communication: Peer to peer communication among the drives allows sharing any I/O via inbuilt RS485 communication. It might be useful in case of limited number of I/O points for a certain system.   User Sequence: Built-in PLC Functionality: User sequence creates a simple sequence from a combination of different function blocks with direct access to Drive parameters. No Software required to create logic The sequence can comprise of a maximum of 18 steps using 28 functions blocks. Function blocks: AND, NOR, ADD, SUB, MIN, MAX, COMPARE, TIMER, XOR, SWITCH, UP/DWN COUNT...etc   Component Life Monitoring : Sx2000 monitors both main capacitor’s lifecycle and Fan. When the life span of Fan is near, Sx2000 outputs via Relay or Digital output as a alarm sign.   Smart Copier : It allows users to download & upload the parameters from/to Sx2000 without AC input power. Easy download of Customized firmware from copy unit to drive Copy paste of parameters   Optional Communication Cards : CANopen. Profibus DP Modbus TCP /Ethernet I/P)   Flange option: Sx2000 allows its heatsink to be installed outside of panel for better cooling system with this option.

The company has created a strong foothold in the business of exporting and supplying world class ac drives. Designed to precision, these ac drives find their application in varied industries where electric supply is required. Our ac drives are specially sourced from reliable manufacturers, who make use of good quality raw materials. Further, we deal in ac drives of atv 31 / atv61/ atv 71 series. The clients can avail these aforesaid ac drives, at most competitive prices from us. technical specifications 3-phases 200/240 v - 380/480 v - 500/690 vul type 1/ip20 from 0.75 to 800 kwul type 12/ip54 from 0.75 to 800 kwspeed range: 1:100 in open loop modeoverload: 110% .. 120% - 60 sgraphic keypad: plain text, navigation button, "simply start" menu to start immediately and profit at once from the full performance of altivar 61. V integrated emc filters class a or benergy saving law, quadratic motor control lawconformity to the international standards and certifications: ce, ul, csa, c-tickmodbus and can open integratedcommunication cards for industry: ethernet, fipio, modus plus, device net, interbus-s, unitel way and for building lon works, bac net, metasys n2 and apogee flninput/output extension cardsmulti pump programmable cards: atv38 compatibility and new applications

• Type: Ac Drive
• Input Voltage: 220V
• Power Source: Electric
• Range: 0.75 Kw to 4 Kw
• Current: 2.5 Amp to 9.5 Amp
• Voltage: 3 Phase 380 to 480 V Ac/50 Hz

• Brand Name: Siemens
• Model Number: VFD
• Motor Power: As per Requirement
• Input Voltage: As per Requirement
• Input Frequency: 60 Hz
• Output Current: 3 - 138A
• Start Up Torque: As per Requirement
• Control Procedure: As per Requirement

• Input Voltage: 440v Ac
• Output Power: 1500w
• Input Phase: 3 - Phase

• Brand Name: Logic Tracks
• Material: Plastic
• Color: Black
• Power: 4kw, 7.5kw & 10kw
• Application: Industrial
• Country of Origin: India

PUMP-X (3PHASE IN - 3PHASE OUT) Pump Mount VFD Input : Three Phase 380V Output : Three phase 380V HP : 1HP to 10HP (Available) Sensor : Pressure Transmiter included Application : Pressure Booster system to maintain constant pressure in pipeline   MODEL :- 3PH-3PH – 4KW – 5.3HP  3PH-3PH – 7.5KW – 10HP  3PH-3PH – 10KW – 13.4HP

• Frequency: 0.1
• Features: The M drive is designed to provide an ultra-low-noise operation, and includes several innovative technologies that reduce interference.
• Output Power: 0.75-11kW
• Output Current: 5-20A
• Input Phase: Single, Three
• Input Voltage: 240-400V
• Usage/Application: Industrial

• Driven Type: Mechanical

With our fast delivery network, we can easily meet expected delivery deadline of the clients. So, what are you waiting for, place orders now! We have efficiently utilized our storehouse space in the most efficient way as we have segregated units to keep the products sorted for quick and urgent deliveries.

• Brand Name: Lenze
• Input Phase: 3 Phase
• Motor Power: Mains 1 AC 230/240 V 0.25 to 2.2 kW / 1.7 to 9.5 AMains 3 AC 400/500 V 0.37 to 45 kW / 1.0 to 89 A

• Input Phase: Three Phase
• Model Number: VFD007M21A
• Power: 0.7 Kw
• Amps Ct: 5 Amps
• Series: VFD-M
• Nominal Input VAC: 208;240 Volts AC
• HP (VT): 1 Horsepower
• Braking Type: DC Injection;Dynamic Braking
• Operator Controls: Keypad Included
• Motor Control Max Level: Open Loop Vector (Sensorless Vector)
• Dynamic Braking Trans: Included
• Enclosure Rating: IP20

Variable voltage DC Drive uses Thyristors in its power section to vary the armature voltage of a separately excited D.C. Motor to run it at a desired speed. Controls the system in variations of load temperature or supply voltage. The drive operates on 230V Ac, 50 Hz single Phase Supply. Normal Protections like overload current trip. Surge current trip, field current failure trip as well as surge suppressors are provided.

J Solution Services is one of the leading service provider in the Industrial Electronic Repair, service, troubleshoot & Maintenance in the ability to troubleshooting virtually any electronic equipments or Printed Circuit Board with an experience of 5 years. We are Expert in Repairing of all make variable frequency drives (VFDs) at component level. We will troubleshooting and repair on site in your factory. We can service all OEM, Non-Warranty, Upgrades and obsolete repairs, for a wide range of items We Service Most Brands: Omron, Yaskawa, Lenze, INVT , Siemens, Mitsubishi, Allen Bradly, ABB, Panasonic, RELIANCE, Fuji,FG,Moog , Hitachi, Toshiba, Schneider, Parker, Telemecanique,Donfoss, Delta, Hitech, Teco, Eurothrem,GENERAL ELECTRIC ,GE,KEB,B&R,Saf, Saftronics,ACOPOS, Bosch, Magnatek, SEW, L&T,Lust,Nord,

As more and more applications in plant and machinery construction require custom solutions to automate simple motion sequences with minimal requirements, Siemens answers with the compact SINAMICS V20 drive. Easy to Install Easy to Use Easy to Save Money

New generation Yaskawa AC Drives with latest technological advancements in AC induction motor speed control Adjustable S-curves for acceleration and deceleration DC injection brak1ng at start or stop VoltsFrequency ratio-fully adjustable Drive efficiency-96 to 98% Many protective features like torque limit, heat sink over-heat, current limiting DC bus fuse, motor overload protection, single phasing protection etc. AC Drives DC Drives Elevator Drives

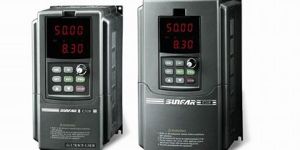

We are the leading manufacturers and suppliers of Industrial AC Drives.Use of AC drives is growing rapidly and it is more important than ever to maintain AC drives’ installation work smoothly. It not only helps in maintaining the AC speed of the motors that are used widely in industrial set ups, but it also saves electricity and maintains a control on the speed of the motors. These industrial AC drives have wide application in industrial processes because of their ruggedness and maintenance-free lifecycle. These AC drives are supplied by our company at affordable prices.

We are dealing with abb make ac variable frequency drive with export quality. Range 0.5hp to 300hp vfd. Acs550, acs380, acs850 etc models

• Model Number: SV100
• Brand Name: Kinco
• Frequency: 50/60HZ
• Phase: 3 phase

FV-100-Series With rich industry experience and knowledge, we are manufacturing, trading and supplying a qualitative range of VFD Vector Drives. The offered range is manufactured using high grade material and advance technology at vendors’ end. Apart from this, our range is tested on various parameters in order to ensure its high performance and quality by our vendors’ experts. Clients can avail these products from us in different specifications and at industrial leading prices. Features: • Hassle free performance • High efficiency • Long service life Specifications: • 0.5 ~ 3.0 HP (1Ø3Ø, 220V) • ~ 525.0 HP (3Ø, 440V AC) • Control Mode: VF Control, Open Loop Vector Control, Vector Control with PG • Frequency Accuracy: Digital Setting: Max Frequency + 0.01% Analog Frequency + 02% • Built In Auto Tuning and Brake Unit up to 15 kw • DC Reactor built in up to 110KW • Copy Parameter by Operation Panel

• Supply Type (Ø): 1
• Voltage Class: 230V
• HP: 0.05
• KW: 0.04
• Output Frequency (HZ): 1.00 TO 120 HZ
• Output Current: 0.4
• Braking Chopper: No
• Control Mode: V/F
• PID/PLC Function: Simple PLC
• PG Close Loop: NO
• Overload Endurance: 150% FOR 1 MINUTE
• Start-up Torque: 150% AT 5 HZ
• Comm.: RS-485 (MODBUS)

RICH ERIC AC DRIVE We specialize in offering a wide range of Rich Eric AC Drive. This range of Rich Eric AC Drive is available in different sizes and models with respect to the varied demands of clients. The offered AC drives are checked strictly on number of parameters so as to ensure its compliance with the benchmarks of quality. Additionally, the offered range is best suited solutions for simple conveyors pumps & fans and various door applications.Features:- Durable- Superb performance- Reliable.

• Display: Digital
• Brand Name: Yaskawa
• Model Number: G7
• Overload Capacity: 150%
• Weight: 294 kg
• Starting Torque: 0.5Hz/150%SVC
• Digital Output: 5 programmable, 3 form A and 2 open collector

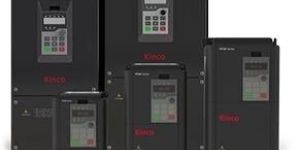

Kinco vector control VFD (frequency inverter) integrates the characteristics of compact design, easy operation, and effective cost, including CV100 Series, SV100 Series and FV100 Series. The functions such as unique over current, stall and torque protection make Kinco VFD work smoothly and safely.

► Fully digital, vector-controlled drive amplifier ► Auto tuning function ► Digital, analogue, EnDat 2.2 and Resolver encoder interfaces ► Position control, speed control and torque control

Removable Dual LED display keypad: Easy for monitorning and parameters copy Reliable,accurate load handling Compact size design: All power size are typically 20% smaller Built-in smart logic controller Real current vector control technology: Generates strong torque at a low speed Static and rotation motor parameter autotune Cooling fan OnOff selectable: Reduce energy consumption of inverter

• Power: 3 HP
• Application: For Fans
• Phase: Three phase

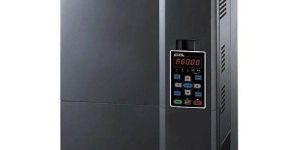

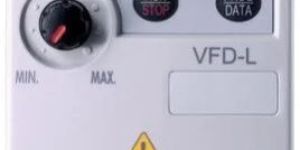

• Brand Name: Delta
• Power Range: 380V-480V
• Input Phase: 3  Phase

Product Range Power : 0.5 to 5 hp Frequency : 48…63 Hz Voltage : 1Ø 200 to 240 V ± 10% 3 Ø 380 to 480 V ± 10 Programmable Control Connection: 5 DI / 1 AI / 1 Relay O/P Features 40° C ( Upto 50° with Derating ) Application: Fans Pumps Gate control Material handling Conveyors Ambient Temperature: Flash Drop Integrated interface Integrated potentiometer Inbuilt EMC filter Inbuilt brake chopper Flexible installation Coated boards
