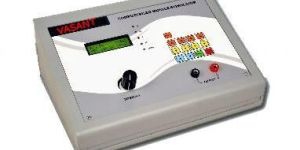

FEATURES : Highly user-friendly Control Panel Universal & Economical Unit Easy-to-operate design SDC Facility available Five types of Currents (Galvanic, Interrupted Galvanic, Faradic, Surge Faradic & TENS) INPUT SUPPLY : 230 V AC, 50HzSIZE : L 11.5” x W 8” x H 4.5”WEIGHT : 2.3 Kg. ApproxTECHNICAL SPECIFICATIONS :Input Current : 58 mAOutput Current : 60 mAGalvanic Output : Low ripple D.C. continuous adjustable from 0 to 145 voltsInterrupted GalvanicFrequency : 1, 2, 3, 5, 10, 30, 50, 60, 100 HzPulse Width : 0.01, 0.03, .10, .30, .40, 1, 3, 10, 30, 100, 300 Milli SecondsFaradic : 1 Milli Second pulsed width and 60 Hz Frequency. Amplitude continuously adjustable from 0 to 145 voltsSurge FaradicContraction Period : Contraction period adjustable from 1 to 9 secondsRest Period : Rest period adjustable from 1 to 9 secondsTENS : Pulse width 400 micro sec. & frequency 50 HzSTANDARD ACCESSORIES : One pair plate electrode One pair Velcro Straps One point electrode

FEATURES : Easy portable treatment Three output selections ( Tens, Interrupted Galvanic, Surge Faradic ) Good quality cover. INPUT SUPPLY : 230 V AC, 50HzSIZE : L 6” x W 5.5” x H 2”WEIGHT : 1.5 Kg. ApproxTECHNICAL SPECIFICATIONS :TNS Pulse width : 400 micro sec. Frequency : 50Hz IG Pulse width : 100 mili sec. Frequency : 1 per sec. SF : 1 to 9 sec. duration.STANDARD ACCESSORIES : One pair plate electrode One pair Velcro Straps One point electrode Note: As our products undergo continuous R&D for improvement, we reserve the right to change their specifications.

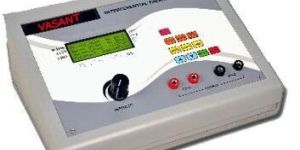

FEATURES : With Russian current. Universal & Economic Unit. Highly user friendly control panel. Complete computerized unit. INPUT SUPPLY : 230 V AC, 50HzSIZE : L 11.5” x W 8” x H 4.5”WEIGHT : 2.5 Kg. ApproxTECHNICAL SPECIFICATIONS :SelectionRussian Current : 2500Hz Carrier freq.Medium Frequency : 4 KHz, 2 KHzBase : 0 to 100 HzSweep : 0 to 150 HzForm : Triangular 6/6 Sec | Trapezoidal 1/5 Sec | Rectangular 1/1 SecMode : (4pv) 45° Four pole vector Interferential | (4pv) 90° Four pole Vector Interferential | (4p) Four pole Interferential Therapy | (2p) Two pole Bipolar Interferential TherapyOutput Mode : PadsIntensity : Control variable output of 0-60 mATimer : 0-60 minute timerBuzzer : Audio buzzer at the end of the treatment timeSTANDARD ACCESSORIES : Four electrodes wire Two size rubber pads Best quality Velcro straps Gel

Specification Fully stainless steel body Latest Heat retention system With low power consumption technology Auto temperature control Auto heater cut-off system Mobile unit on castor wheels

FEATURES : Digital Timer with Buzzer Rectangle- shaped Biphasic Pulse Mode : Five types of Mode ( Continuous, Fast Burst, Slow Burst, Ramp Burst and Sweep ) [ The wide range of Pulse Width variations, along with frequency & intensity variability, offers great flexibility in treatment of Chronic Pain Syndromes ]TECHNICAL SPECIFICATIONS : Input Supply : 230 V AC, 50 Hz Size : L 11.5” X W 8” X H 4.5” Weight : 1.5 Kg. (Approx) Output Voltage : 0 to 50 V with load of 500 ohm / 0 to 110 V without load Pulse Width : 50 to 350 Micro sec. Frequency : 16 to 200 Hz STANDARD ACCESSORIES : Four Pairs Rubber electrodes Four pairs Velcro Straps One Gel Bottle One Mains Cord

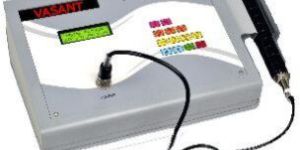

FEATURES : Highly user- friendly Control Panel for Ultrasound Therapy in 24 different Conditions. Pre- programmed Parameters (intensity, mode & time of treatment). Manual setting option. Compact design, Versatile features, Powerful performance. INPUT SUPPLY : 230V AC, 50 HzSIZE : L14” x W8” x H4.5”WEIGHT : 3 Kg. ApproxTECHNICAL SPECIFICATIONS :Programme : 24 Preset ProgrammesFrequency : 1 MHz + 10%Output Mode : Continuous & Pulsed | Variable PulsedFrequency : 16Hz, 48Hz, 99HzIntensity : Continuous Mode 0 to 2 Watts/cm² | Pulsed Mode 0 to 3 Watts/cm²Time : 1 to 60 MinutesBuzzer : Audio buzzer at the end of treatment timeSTANDARD ACCESSORIES : Sonic GelNote: As our products undergo continuous R&D for improvement, we reserve the right to change their specificatio

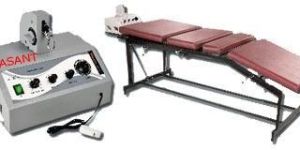

FEATURES : Accurate & sturdy traction unit. Noiseless, reliable, durable heavy- duty Motor. Patient-operated Safety Switch (12V DC). INPUT SUPPLY : 230V AC, 50 HzSIZE : L15” X W11” X H12”WEIGHT : 12 Kg. ApproxTable A Type : ( Four Fold Table )Size : L 7.5ft. X W 2.25ft. X H 2.25ft.Table B Type : ( Two Fold Table )Size : L 7.5ft. X W 2.oft. X H 2.25ft.TECHNICAL SPECIFICATIONS :Hold Time : 20, 40, 60, 80, sec.Rest Time : 1, 5, 10, 20, sec.Timer : 0-30 Minutes Mechanical TimerSTANDARD ACCESSORIES : Cervical Collar Cervical Spreader Bar Lumbar Belt Chest Belt Ankle Traction Belt TECHNICAL DATA :Traction Force : 5 kg to 45 kgTABLE SIZE : “A” Size : L 7.5ft X W 2.25ft X 2.25ft “B” Size : L 7.5ft X W 2.0ft X 2.25 f
